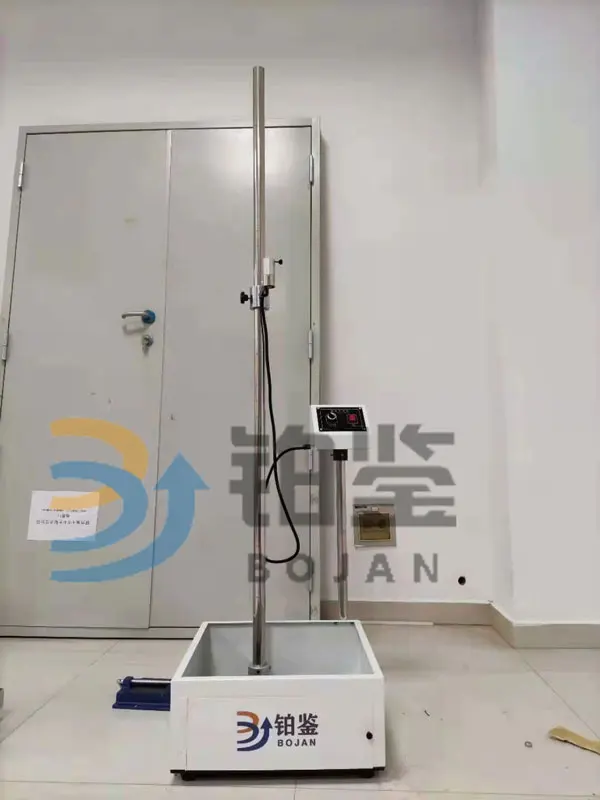

Steel Ball Drop Impact Testing Machine
- Category: >>>
- Supplier: Jinan Bojan Testing Machine Co. Ltd.
Share on (1600524870850):
Product Overview
Description
Product Introduction
The Drop ball impact tester is designed according to "6.10 Drop Ball Impact Peeling Performance Method" of "GB/T9962-1998 Safety Glass Materials for Construction - Safety Glass Performance Specifications and Test Methods". The test product is placed on the test bench, and the specified weight The steel ball is free to fall on the product from the specified drop height, impact the product, and then check the appearance and performance of the product to meet the impact test requirements of the safety interlayer for construction. Test standard JIS R3205:1989, ISO/DIS125421 12543-6:1997 AS/NZS2208:1996, GB/T9962-1999. The drop ball impact testing machine is suitable for impact strength testing of plastic, ceramic, acrylic, glass, lens, hardware and other products.
Product Paramenters
Steel ball diameter | 110、225、500g、1000g (optional according to requirements) |
The allowable error of steel ball weight | ±5g |
Protective device | there are protective cages around |
Control and lifting mode | circuit control electromagnet sucker, manual lifting electromagnet fixed rod |
Drop height | 0~1500mm/2000mm (manually adjustable, steel ruler display scale) |
Drop height display | scale steel ruler plus square ruler for vertical indication |
Drop height accuracy | 1mm |
Drop rod shape | square rod |
Working space of sample frame | 400×350mm |
Sample clamping method | clamp clamping |
Falling iron plate | thickness 10mm |
Machine weight | about 30kg |

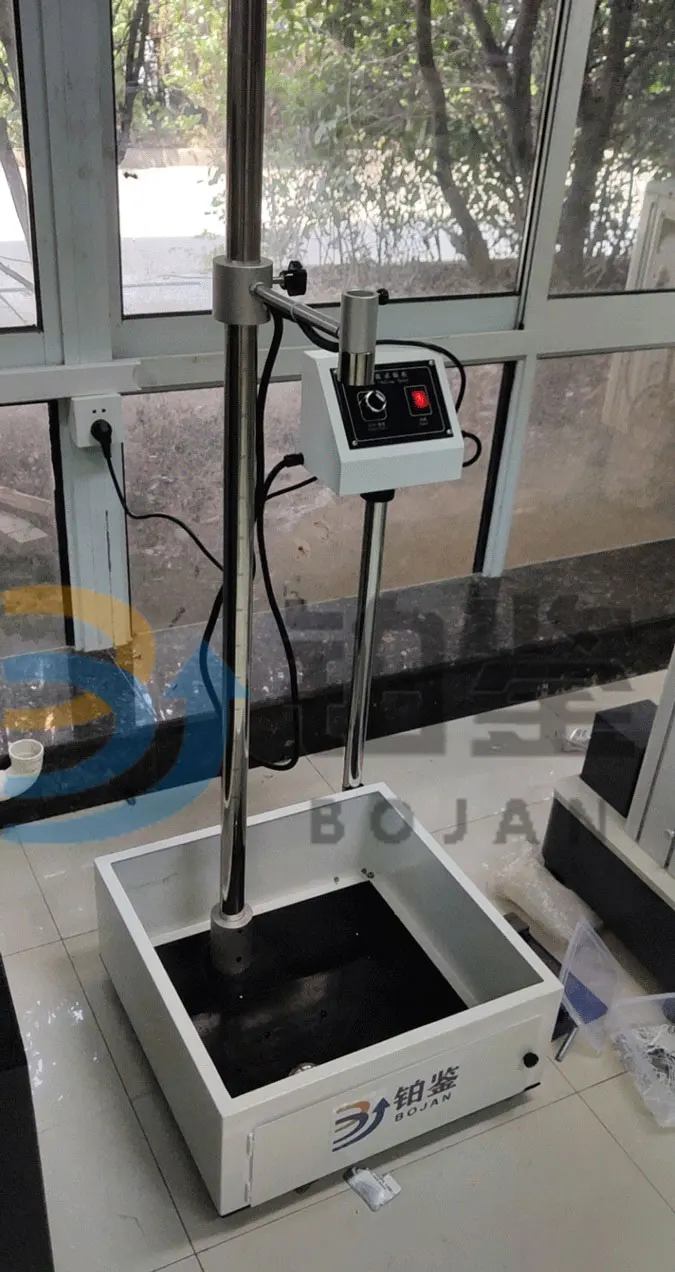

Details Images
steel ball
controller
base
Customer Photos
Our Company
FAQ
1.Are you factory of trade company?
We are factory + trade company.
2.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after you received. If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or Skype video chat if necessary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
3. What's the delivery term?
Standard machines :In stock
Customized machines :We can negotiate ( 7-60 days )
In urgent need :We can consider making a special arrangement for you
4. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
5.How to install and use the product?
We will send you operating instructions, English video by Email. Most of our machines are shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.
6.How can I believe that after payment the goods to me?
We are honest and trust worthy supplier. we're a member of alibaba trade assurance . It will guarantee of all of your payment.
