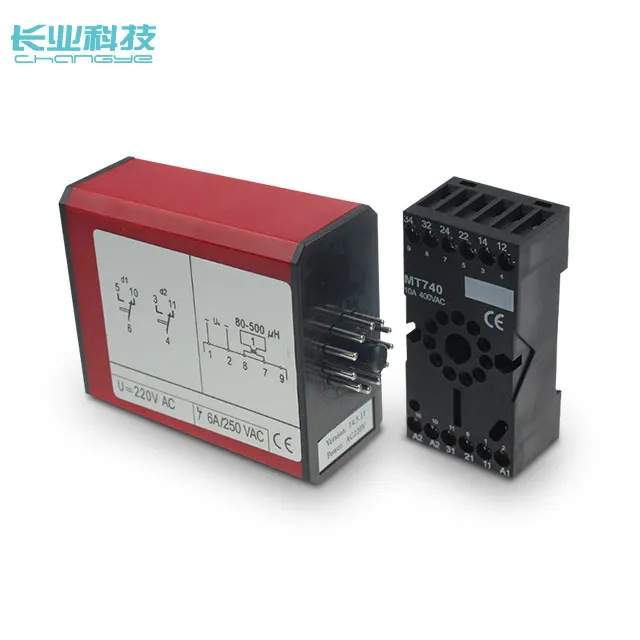

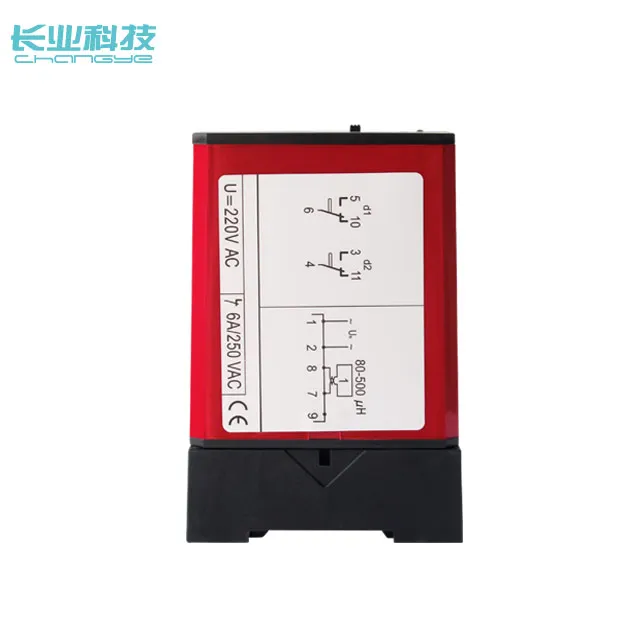

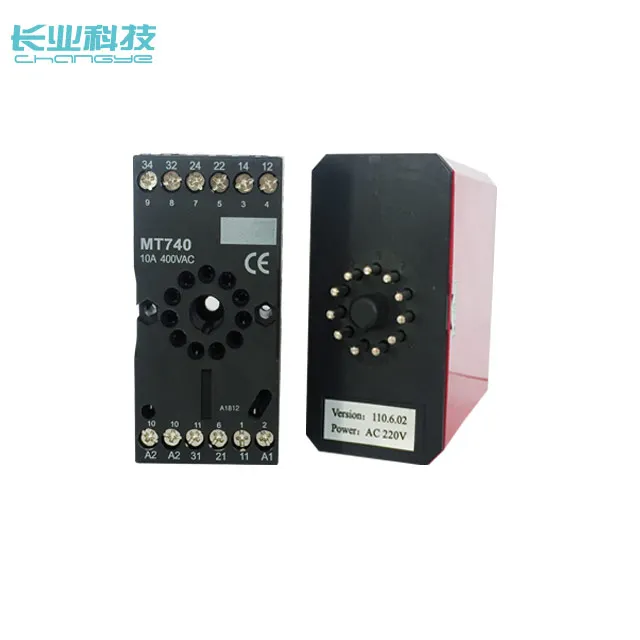

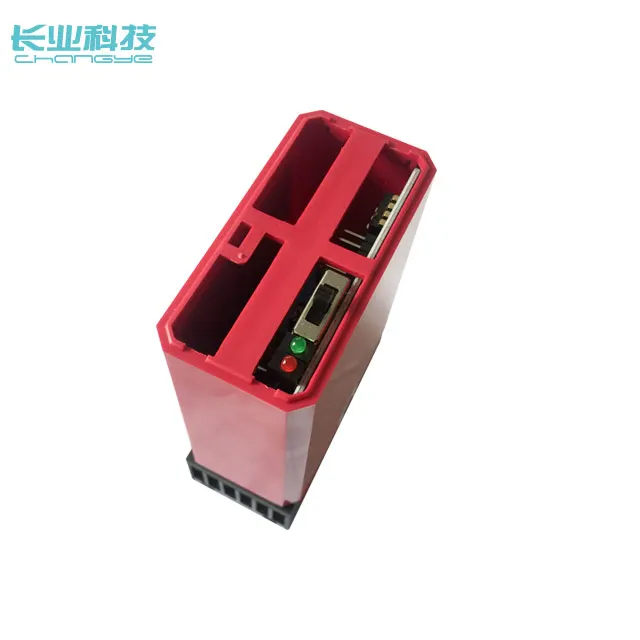

Single Channel Nice Vehicle Loop Detector for Car Parking Barrier
- Category: >>>
- Supplier: Hangzhou Changye Technology Co. Ltd.
Share on (1600524876186):
Product Overview
Description
Product Description
Specification
Technical Data | ||||||
Supply voltage | 230V AC , 115V AC, 24V DC/AC, 12V DC/AC | Frequency range | 20 kHz to 170 kHz | |||
Voltage tolerance AC | +10% / -15% | Reaction time | 100ms | |||
Voltage tolerance DC | Voltage tolerance DC | Signal holding time | Unlimited | |||
Power Consumption | 4.5VA | Sensitivit | Adjustable in 3 increments | |||
Output relays | 240V/5A | Loop inductance | Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH | |||
Operating temperature | -20°C to +65°C | Loop connection wiring | Maximum length 20 meters, twisted at least 20 times per meter | |||
Storage temperature | -40°C to +85°C | Size of Housing | 78x40x108 mm (L x W x H) | |||
what is the key feature of the loop detector ?
1. High temperature stability
2. Environment drift automatic compensation function
3. Coil automatic fault detection function
4. Multi-stage sensitivity adjustable
5. Can be used with barrier gates and anti collision
6. Can be used with the barrier gates and realized car pass gate close automatically function
7. Double coil model can realize vehicle driving direction detection
1. High temperature stability
2. Environment drift automatic compensation function
3. Coil automatic fault detection function
4. Multi-stage sensitivity adjustable
5. Can be used with barrier gates and anti collision
6. Can be used with the barrier gates and realized car pass gate close automatically function
7. Double coil model can realize vehicle driving direction detection
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
