IntelIntel Apollo Lack Metal N3350 CPU J3455 MINI PC AK7 4G 64G with Win10& Linux for Outdoor Display Connect Projector Game use
- Category: >>>
- Supplier: Shenzhen Quweilai Technology Company Limited
Share on (1600524878461):
Product Overview
Description
Specification
Type | Spec. | Standard Configuration | Optional | |||||
Product | Product Type | MINI PC, Ad Terminal Box | ||||||

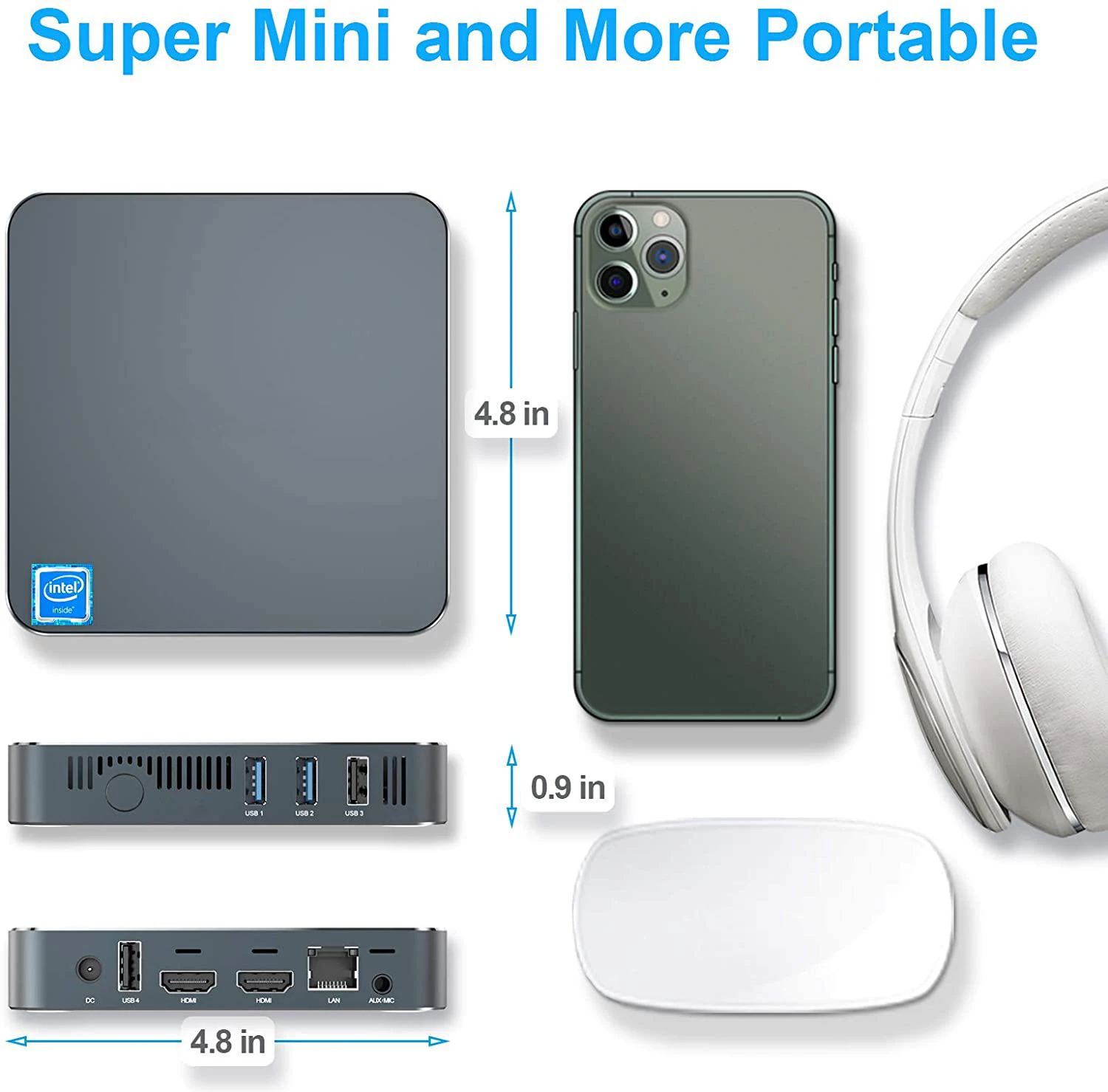

Dimension | 123mm*123mm*22.8mm | |||||||
Case Material | Metal+Plastic | |||||||
Weight | Net Weight 277g，Gross Weight 515g | |||||||
System Hardware Configuration | ||||||||
Type | Spec. | Description | Optional | |||||
CPU | Model | Intel Apollo Lake N3350; N3450；N4200; J3355；J3455；J4205；E3940 | Optional | |||||
Speed | 1.1GHz (N3350,N3450,N4200) 1.5GHz ( J3455,J4205) 1.6GHz ( E3940) 2.0GHz ( J3355) | |||||||
Max. Turbo Speed | 1.8GHz (E3940) 2.2GHz (N3450) 2.3GHz ( J3455) 2.4GHz ( N3350) 2.5GHz (J3355, N4200) 2.6GHz ( J4205) | |||||||
Power Consumption | 6W(N3350,N3450,N4200) 9.5W( E3940) 10W(J3355,J3455,J4205) | |||||||
Memory | Model | LPDDR3/LPDDR4 | ||||||
Capacity | 2x LPDDR3/LPDDR4 Max 16GB on Board | Optional | ||||||
Storage | EMMC | eMMC Max 128GB | Optional | |||||
SSD | Optional，mSATA /M.2 ( 2280 NGFF) SSD，Max 2TB | Optional | ||||||
2.5" SSD | No Supporting | |||||||
TF Card | Not supported by default | Optional | ||||||
RTC | BIOS | Real-time Clock, Time Boot | ||||||
Auto Power On | BIOS | Support auto power on after electrified | ||||||
Diskless Network | BIOS | Support uefi/Legacy Diskless Switch On | ||||||
TPM | CPU integratesTPM | Support TPM 2.0 | ||||||

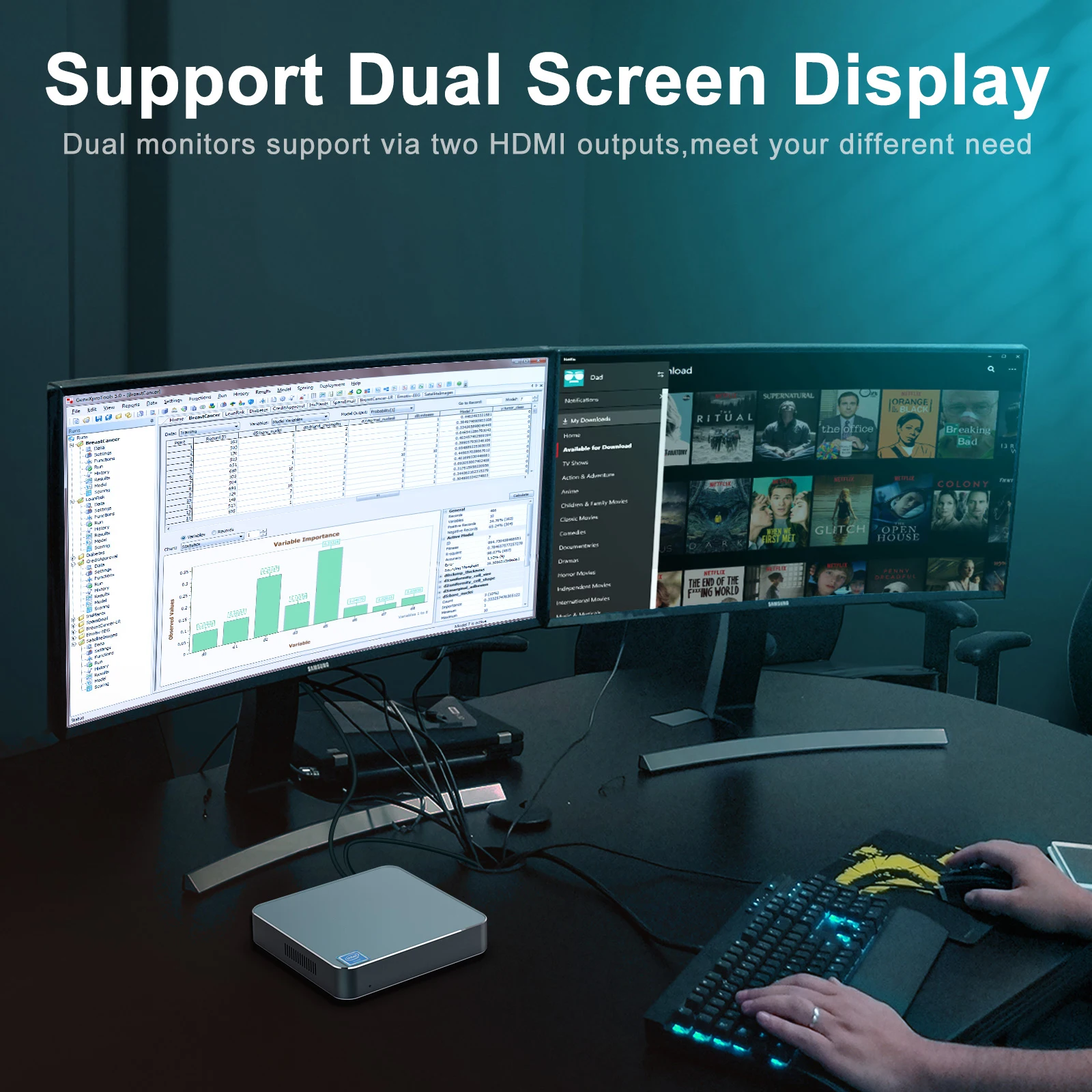

Dual Display | Video Output | Support HDMI1+HDMI2 dual display | ||||||
LED | State | Blue light- Swith on Red light- Machine dormancy | ||||||
Internet Connection | ||||||||
Type | Spec. | Description | Optional | |||||
WIFI | Model | intel 7265/ 3165/ RTL8821CE on board | Optional | |||||
Protocol | IEEE 802.11 a, b/g, n, ac | |||||||
BT | Model | intel 7265/ 3165/ RTL8821CE on board | Optional | |||||
Protocol | Support BT 4.2 | |||||||
3G | Built-in | No | ||||||
4G | Built-in | No | ||||||
Ethernet | LAN1 | 10M/100M/1000M Self-adaption | ||||||

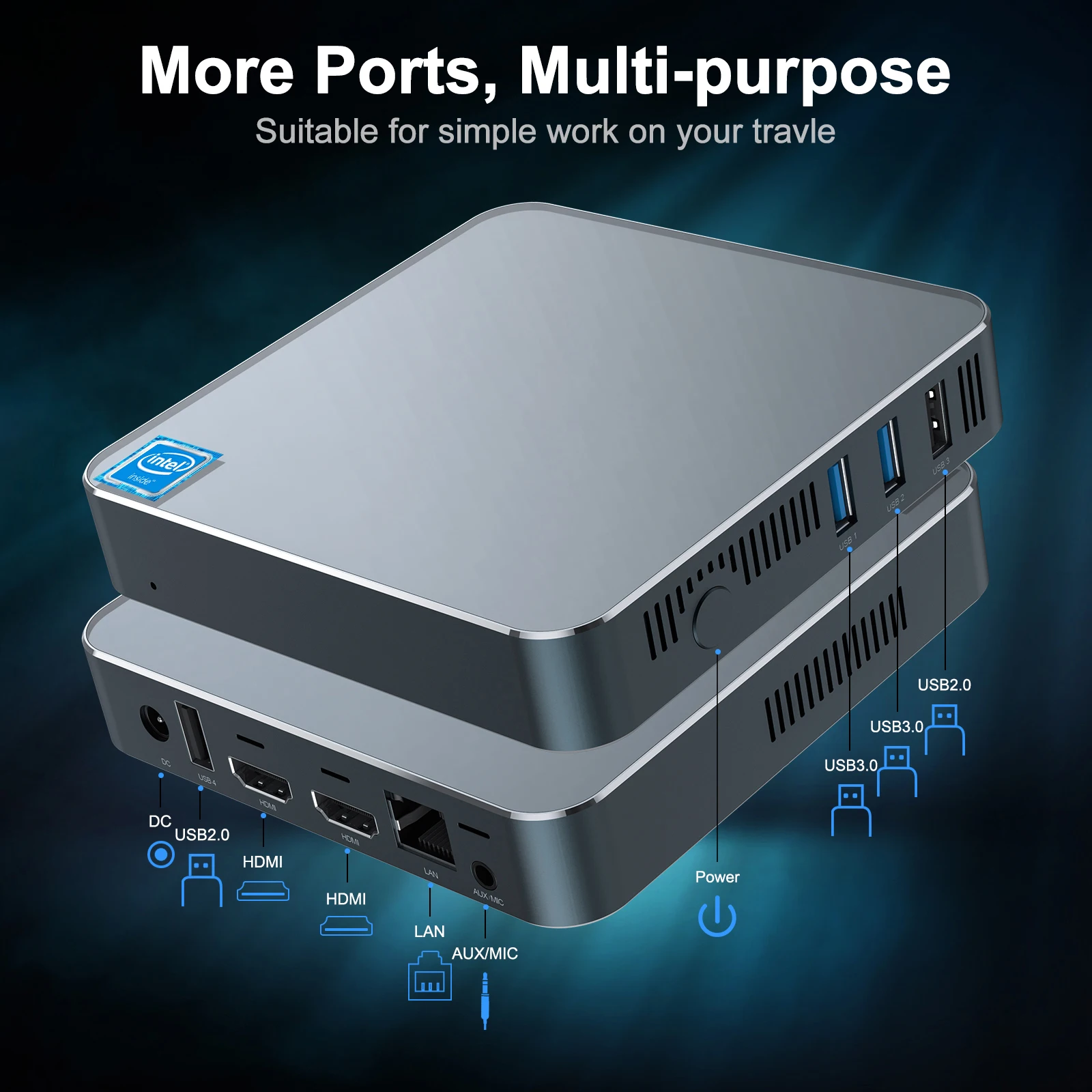

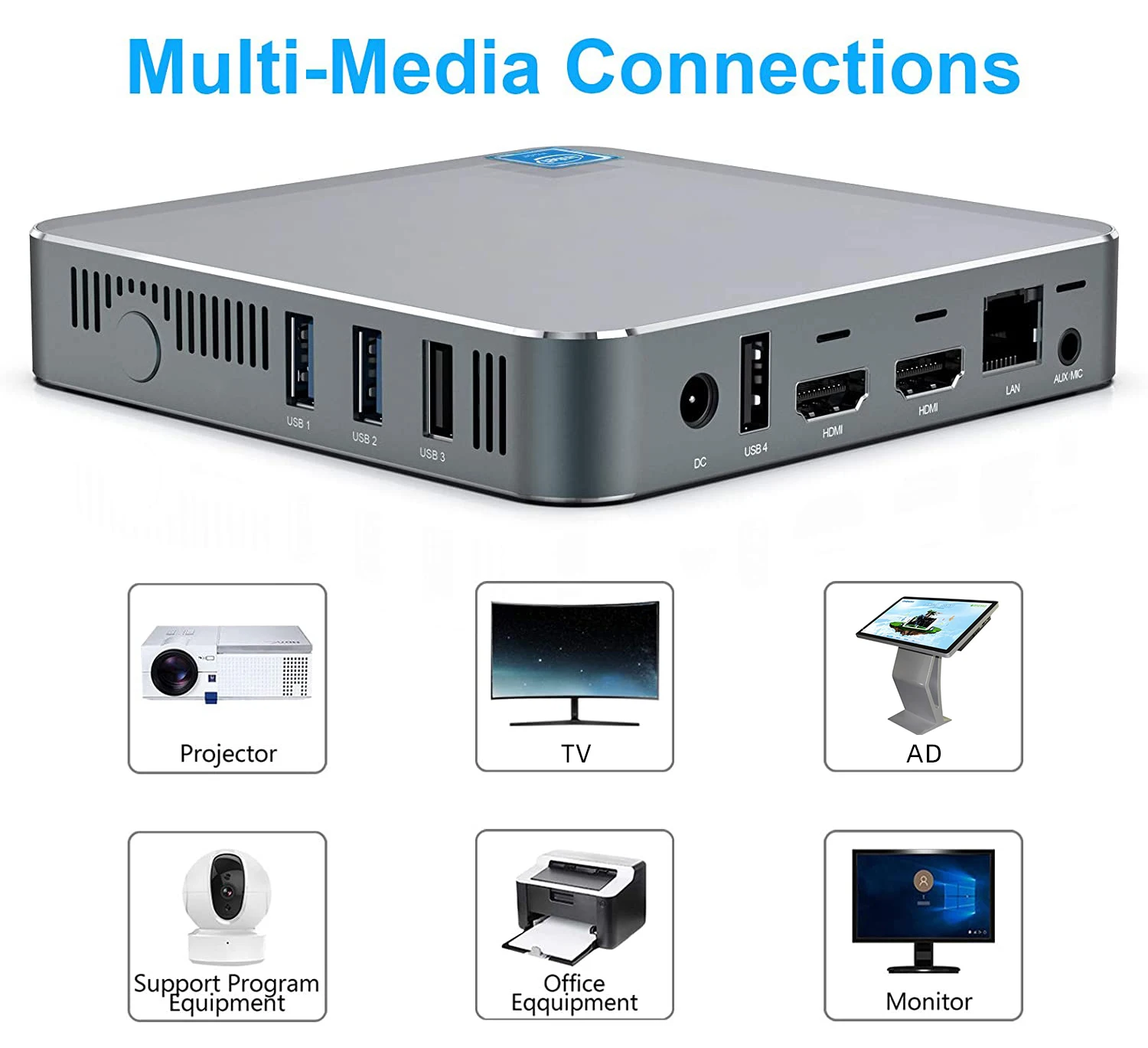

I/O | ||||||||
Type | Spec. | Description | Optional | |||||
USB | USB2.0 | USB2.0 Type-A*2 | ||||||
USB | USB3.0 | USB3.0 Type-A*2 | ||||||
TF | Expansion Memory | Not supported by default | Optional | |||||
HDMI | AV Output | HDMI 1.4b Type A x2 | ||||||
VGA | Gigabyte Ethernet | No | ||||||
RJ45 | Data Transmission | RJ45 x1 | ||||||
Uart | Power Button | No | ||||||
POWER | Power Button | x1 | ||||||
DC IN | Power Supply Input | 5.5/2.1mm DC Jack x1 | ||||||
Audio-in/out | Audio-in/out | 3.5mm Phone Jack x1 （Two-in-one interface） | ||||||
Antenna1 | FPC Antenna | WiFi 2.4+BT x1 | ||||||
Antenna2 | FPC Antenna | WIFI 5.0 | ||||||
SIM | Micro SIM | No | ||||||
Software Configuration | ||||||||
Type | Spec. | Description | Optional | |||||
OS | Version | Win10 Home/Win10 pro/Win10 IOT/ Ubuntu | ||||||
Environment | ||||||||
Type | Spec. | Description | Optional | |||||
Environment | Working Temperature | 0~40℃ | ||||||
Memory Temperature | -20~60℃ | |||||||
Humidity | 90% @ 40 °C (No Condensation) | |||||||
Accessory | ||||||||
Type | Spec. | Description | Optional | |||||
Power Supply | Vesa | Input 100~240V 50/60Hz Output 12V/2.5A DC 5.5/2.1mm | ||||||
IR Remote Control | No | |||||||
