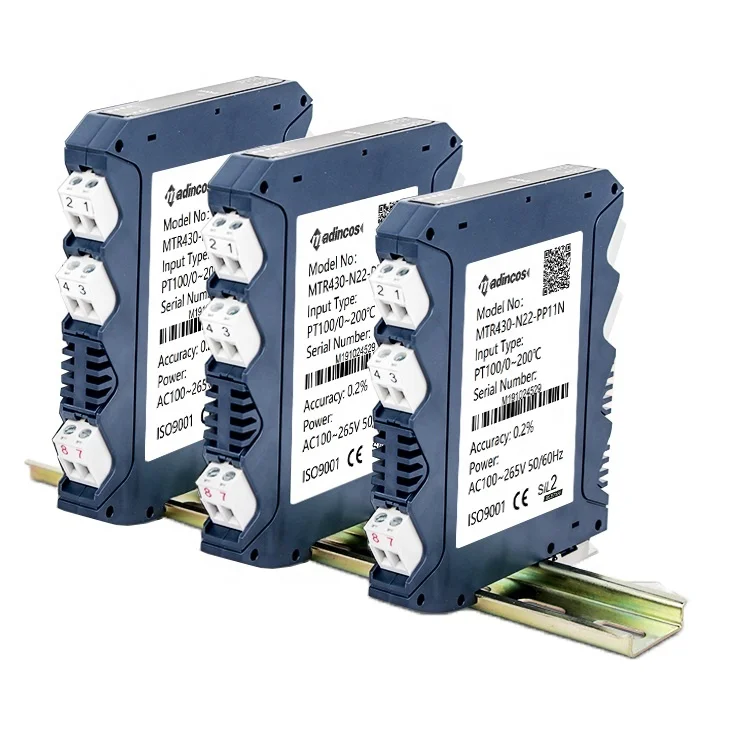

MSC80T: DIN Rail Isolated RTD pt100 Temperature Sensor Transmitter Converter to 4 20ma, 0 10ma, 0 20ma, 0 10VDC,1 5V,0 5V,RS485
- Category: >>>
- Supplier: Xiamen Madincos Automation Co. Ltd.
Share on (1600524901573):
Product Overview
Description
Product Show
Isolated Rtd pt100 Din rail mounted temperature transmitter, 4-20mA pt100 temperature converter with opt. 0-20ma, 0-10ma MSC80T
Model No.: | MSC80T | Name | Temperature Transmitter | ||
Accuracy | 0.2FS%+1 digit | Power supply | 20-32VDC; 24VDC default | ||
Temperature Shift | 0.0075%/℃ | Power consumption | ≤1W (1 input 1Output); ≤1.4W(1/2Input2Output) | ||
Response Time | 50seconds up to 90% of final value | Size/N.W. | 121.2Xx108x13mm/0.13KG | ||
Min Resolution | 0.1℃ | Working condition | -20 to 60℃/25% to 85%RH | ||
Cold junction -compensation | 10 to 50℃ | Insulation resistance | Input-output-power≥100mΩ at 500VDC | ||
Cold junction-comp. accuracy | ±1℃ | Isolated ability | Input-output-power 1.5KV, 1min, 50Hz | ||
Input Signal | Thermocouple:K, T,E,J, N, R,S, B, Wre325,Wre326,F2 | ||||
RTD:pt100, cu50, cu100, cu538,BA1,BA1 | |||||
Output Signal | 4-20mA,0-10ma, 0-20mA; 1-5V,0-5V | ||||

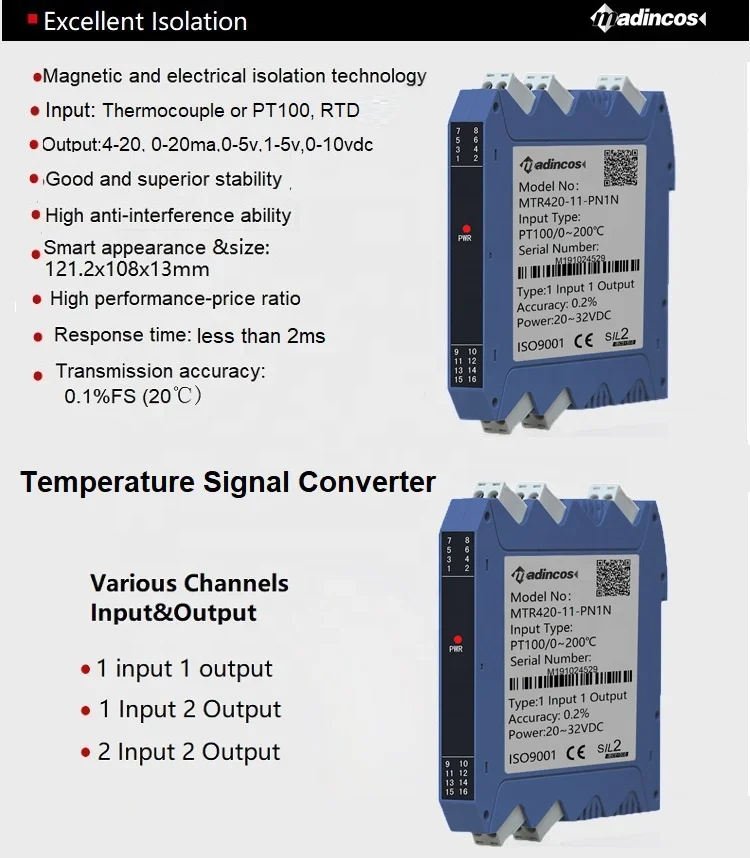

Type | 1 input 1 ouput; 1 input 2 output, 2 input 2 output | ||||

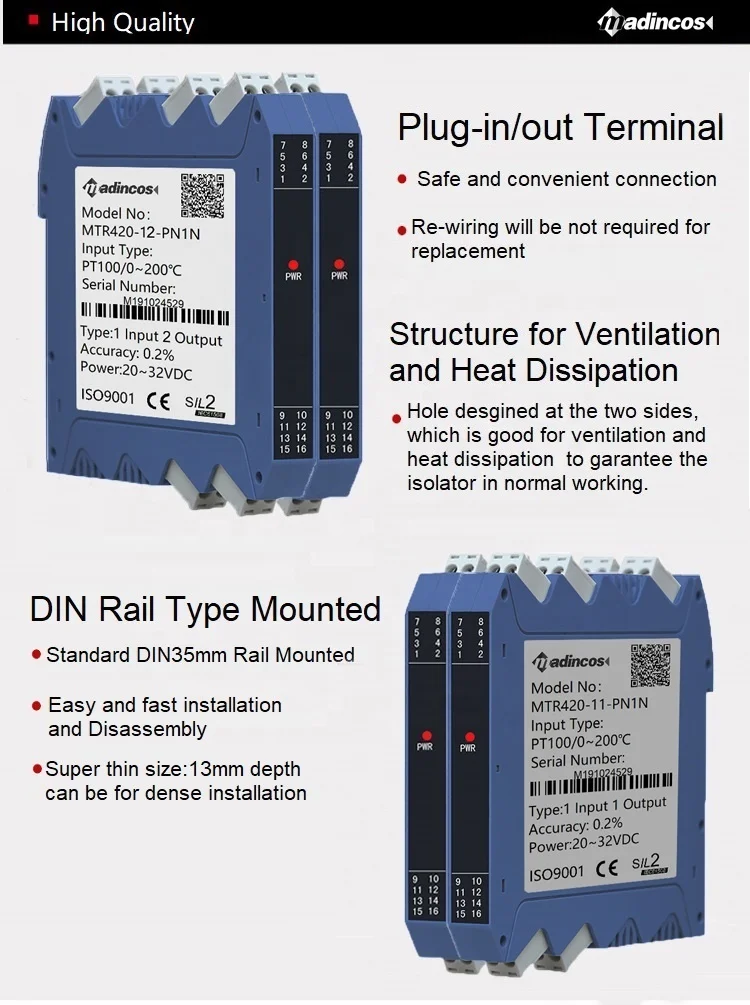

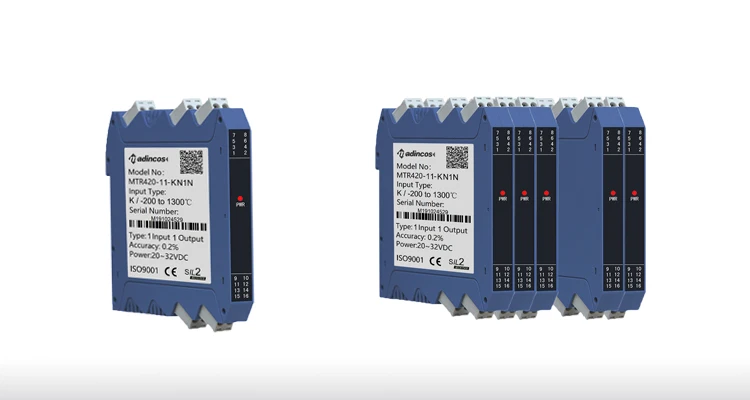

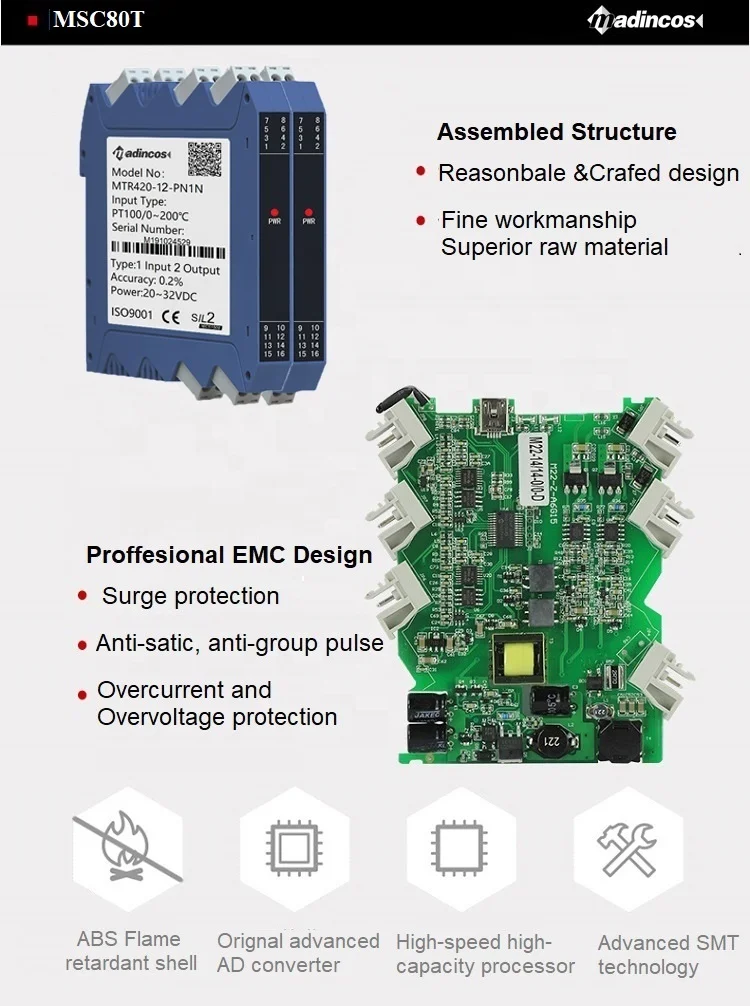

Details Images
Application

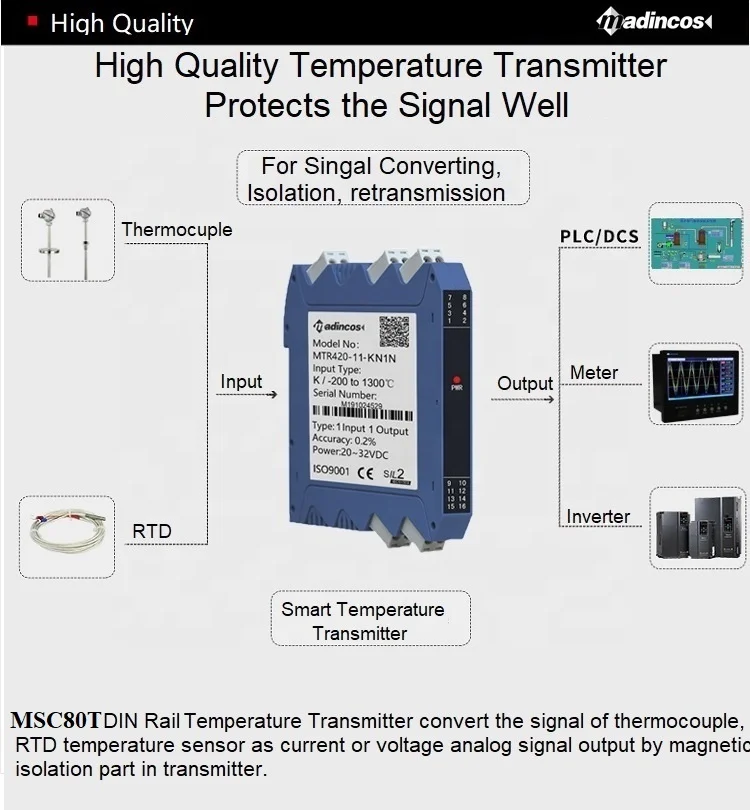

.with 1.5KV input-output-power isolated, working with Field Instruments, DCS, PLC etc control systems;
.Widely used in major projects in the oilfield, petrochemical, LNG, CNG, manufacturing, power,
metallurgy, cement, pharmaceutical, environmental protection, and automated manufacturing industries
metallurgy, cement, pharmaceutical, environmental protection, and automated manufacturing industries
Product packaging
Package | ||

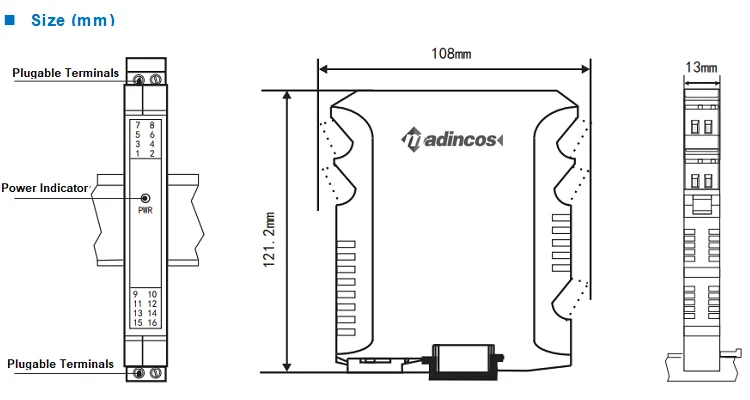

Size | 121.2Xx108x13mm | |
Weight | 0.2kg per pc | |
Package | Package: The normal package is paper box.: PC+Bubble box +paper box with prection further to garantee the delivery the goods to you great. Delivery: by DHL, TNT, UPS, FEDEX; by air, by sea | |
