Non fried Instant Egg Noodles Making Machine Korean Instant Noodles Machine
Non-fried Instant Egg Noodles Making Machine Korean Instant Noodles Machine
Non-fried Instant Egg Noodles Making Machine Korean Instant Noodles Machine
Non-fried Instant Egg Noodles Making Machine Korean Instant Noodles Machine
Non-fried Instant Egg Noodles Making Machine Korean Instant Noodles Machine
Non-fried Instant Egg Noodles Making Machine Korean Instant Noodles Machine
Non-fried Instant Egg Noodles Making Machine Korean Instant Noodles Machine

Non fried Instant Egg Noodles Making Machine Korean Instant Noodles Machine

Share on (1600524908335):


Price:$10,000.00

Quantity:


Product Overview

Description



Product Description


Dried Noodle Production Line
Dried noodle production line adopts a number of processes and technologies, which has unique production technology, novel design, high degree of automation, and it is a relatively complete set of environmental protection equipment for dried noodle production.








Specification


Model
Capacity(KG/H)
Install Power(KW)
Overall Size(M)
BDP-2Y/C
150
45
40*5*5
BDP-6Y/C
450
58
46*5*5
BDP-10Y/C
750
72
55*5*5
BDP-14Y/C
1000
80
59*5*5
BDP-18Y/C
1400
95
65*5*5
BDP-22Y/C
1700
108
72*5*5
BDP-26Y/C
2000
128
90*5*5


Processing Flow


Automatic Raw Material Supply→Mixing&Measurement of Salt and Water→Double-Speed Double-Shaft Dough Making→Ripening→Monolithic Rolling→Continuous Rolling→ Slitting&Forming→Noodle Steaming→Cutting&Folding→Boxing Forming→Hot Air Drying→ Cooling Conveying→Packaging→ Warehouse


Details Images

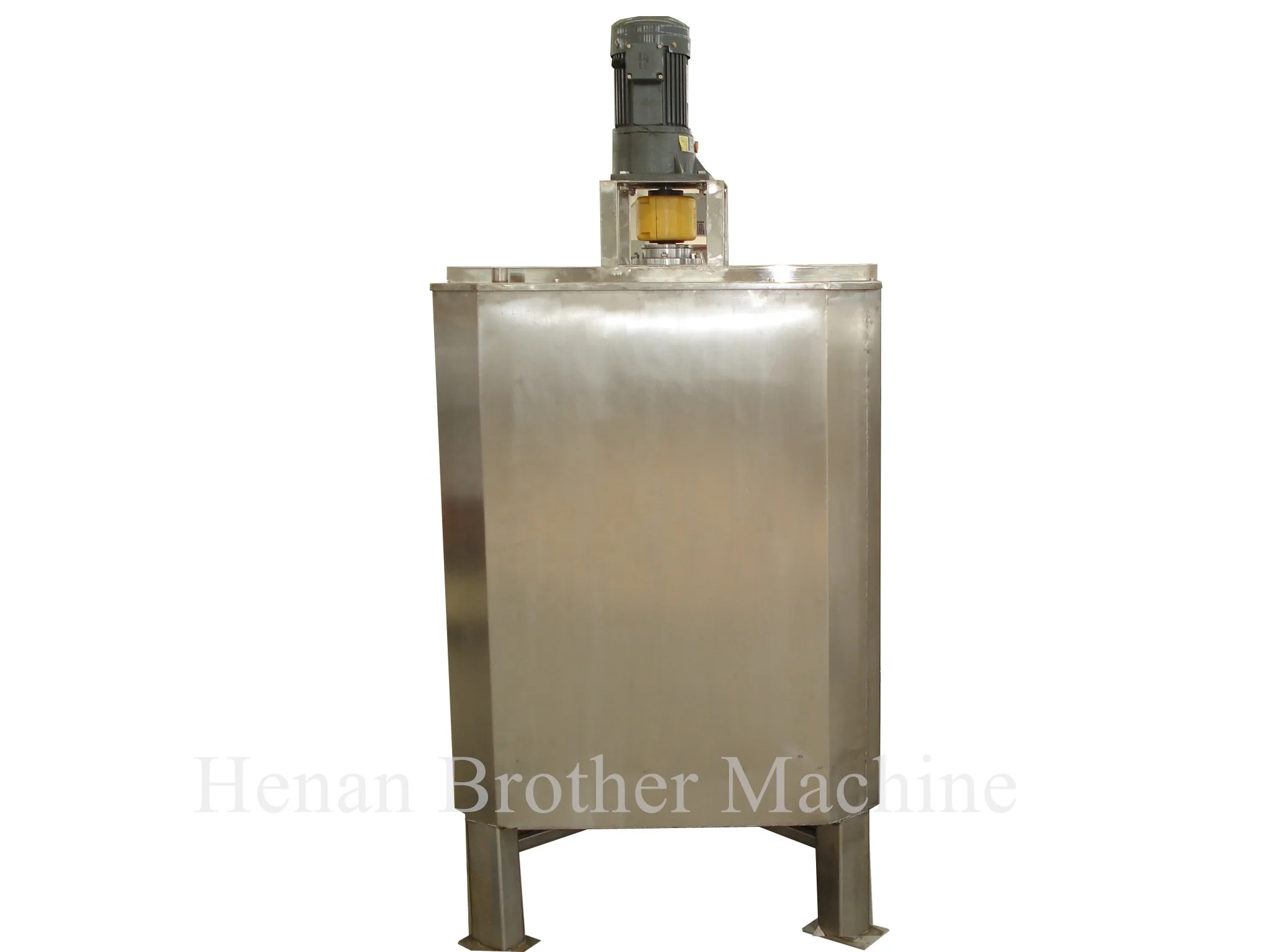

ALKALI MIXING TANK
CAPACITY:500-1000KG PER TANK
MATERIAL: SUS304/316
FUNCTION: TO MIX WATER WITH SALT AND ADDITIVES
MAIN PARAMETERS: MIXING TIME: 10MINS
WATER CONTENT: PURED WATER BETTER
RATION FEEDING TANK
CAPACITY:50-150KG PER BATCH
MATERIAL: SUS304/316
FUNCTION: TO PUMP THE WATER TO MIXER BY RATION CONTROL
MAIN PARAMETERS: ELECTRIC VALVE CONTROL
FEEDING AUTOMATICALLY


DOUGH MIXER
CAPACITY: 50-350KG PER BATCH
MATERIAL: SUS304
FUNCTION: TO MAKE FLOUR WITH WATER COMPLETELY
MAIN PARAMETERS: MIXING TIME:15-20MM
WATER CONTENT:11-14%
WATER ADD:30-35%

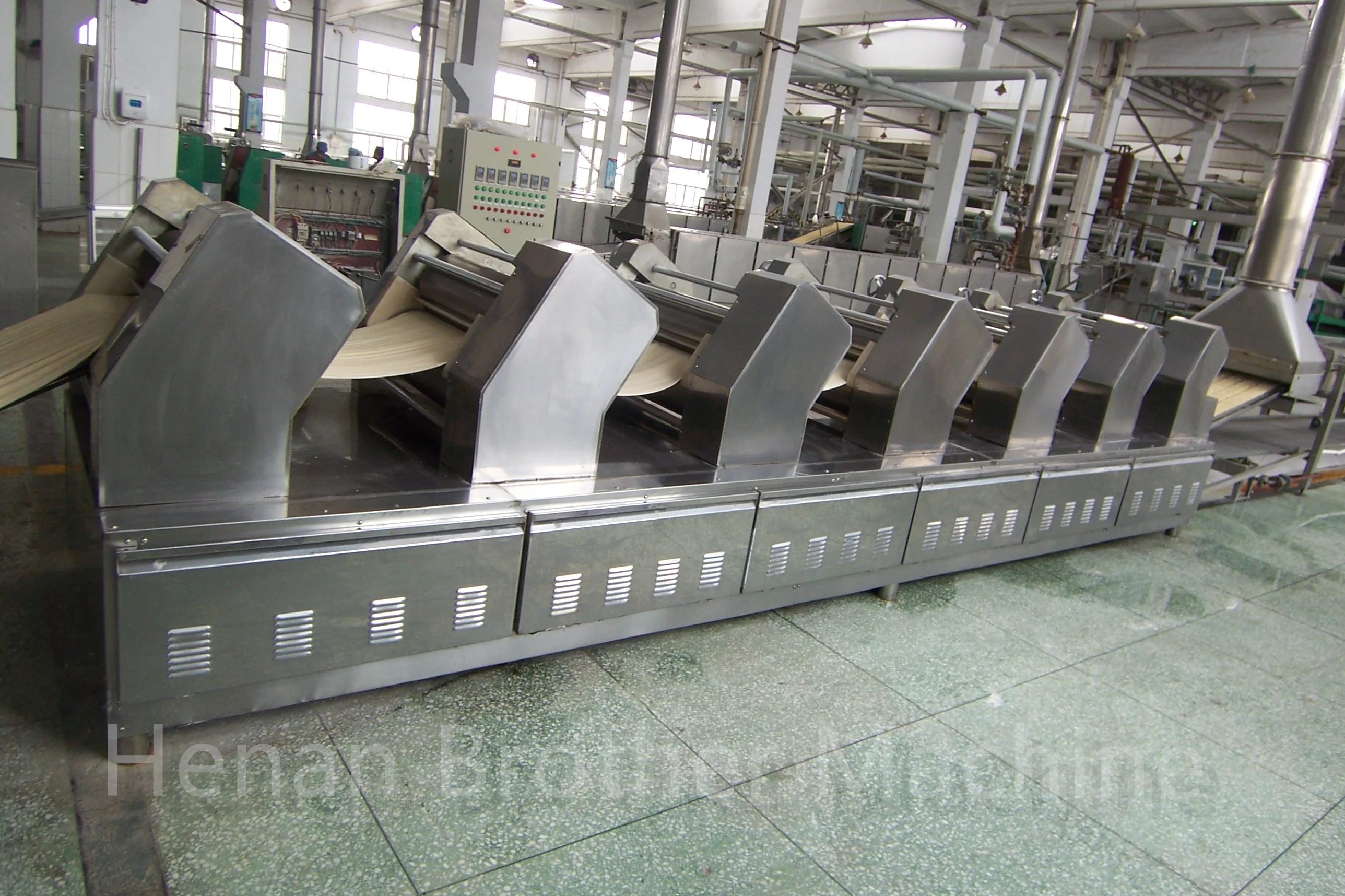

CONTINUOUS DOUGH ROLLING MACHINE
ROLLER WIDTH:200-1500MM
MATERIAL: ALLOY STEEL OR SUS304
FUNCTION: TO ROLL THE DROUGH FROM 14MM TO 1MM THICKNESS
MAIN PARAMETERS: DOUGH SHEET THICKNESS: 14-1MM
ROLLING SPEED: 7M-10M PER MIN
MOTOR TYPE: SOLO OR COMPOUND TYPE

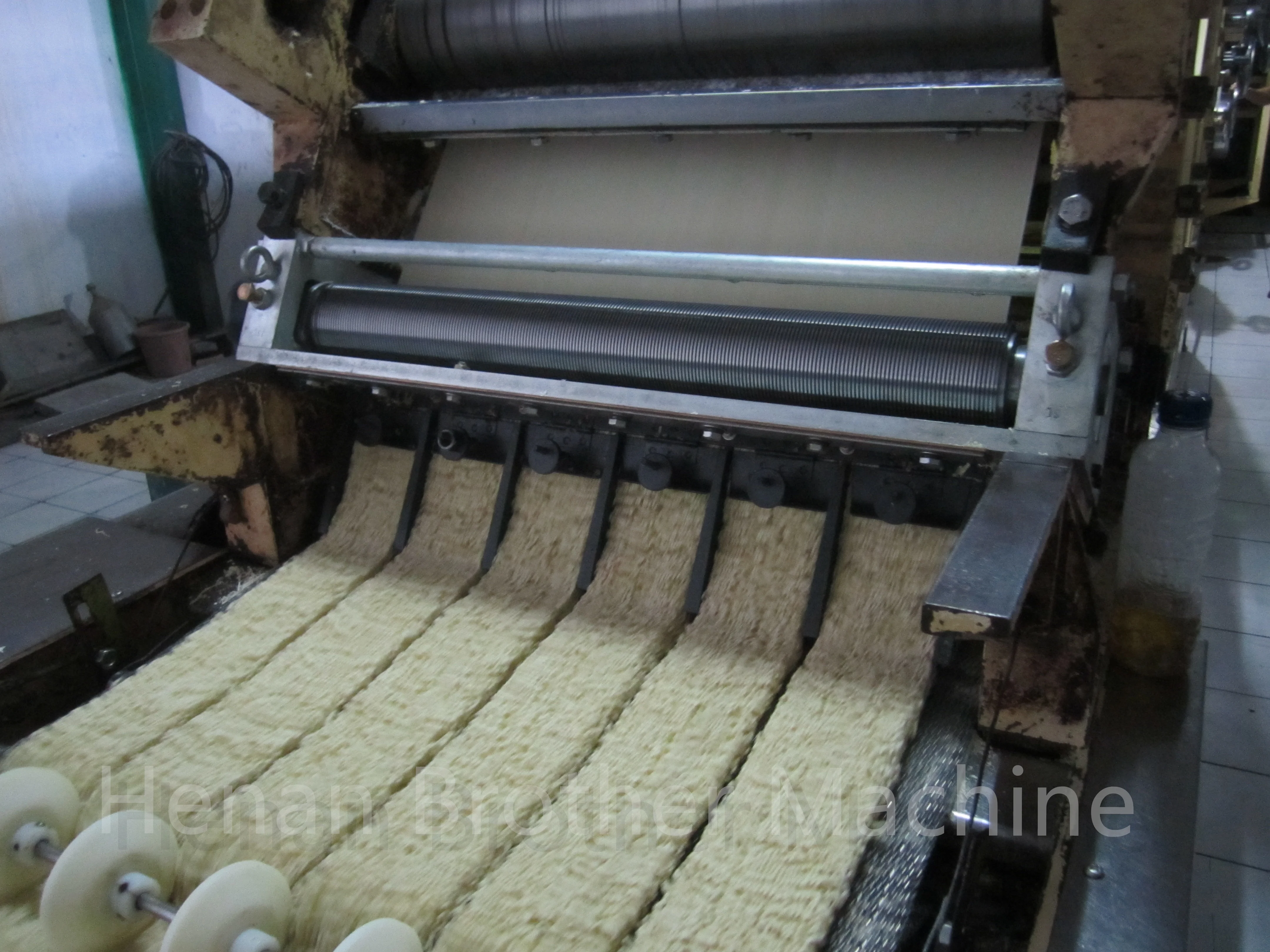

NOODLE SLITTER
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO SLITTER DOUGH SHEET TO NOODLES
MAIN PARAMETERS: SLITTER SIZE:0.7-5MM
SLITTER TYPE:ROUND AND SQUARE

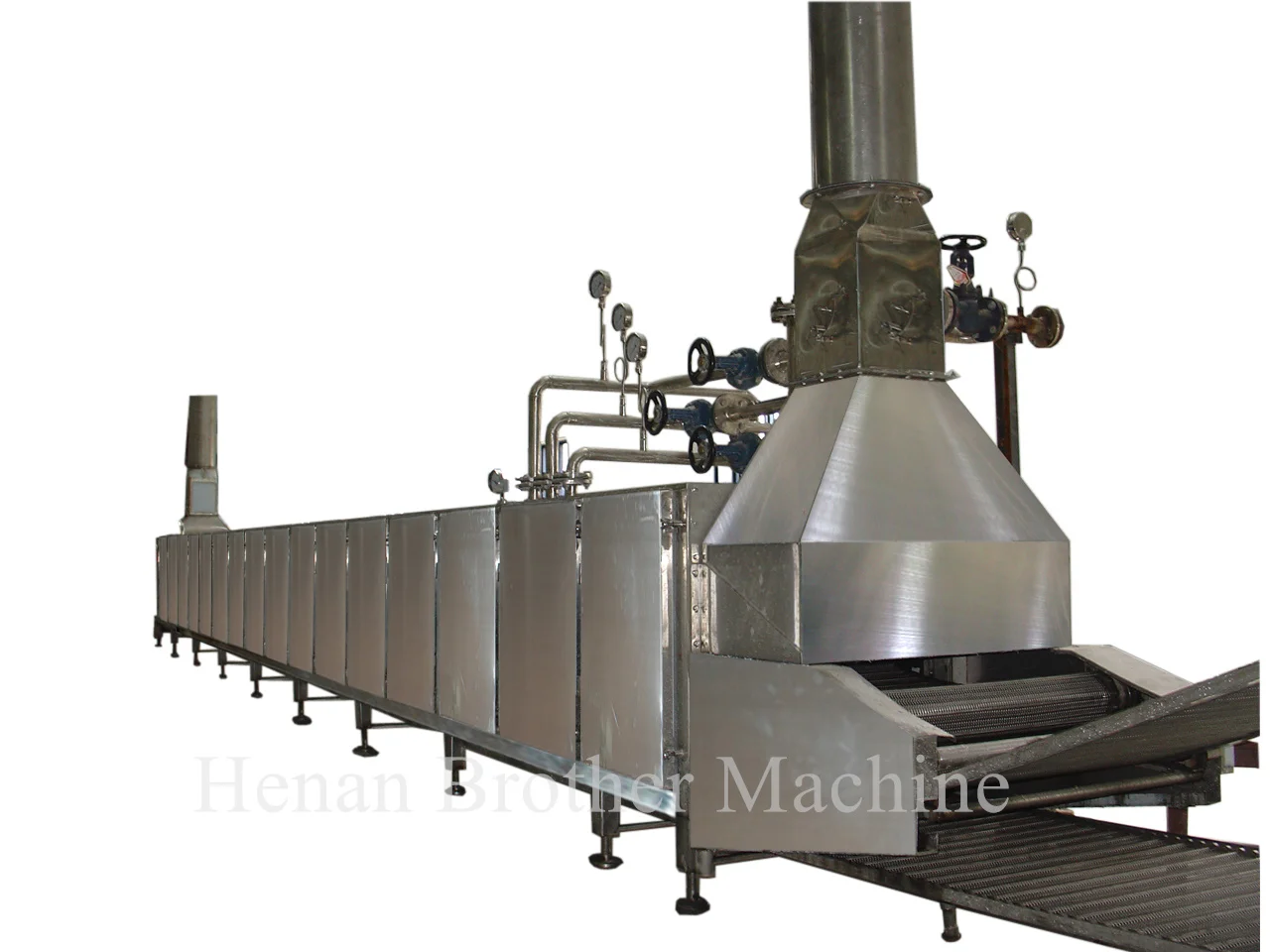

NOODLE CONTINUOUS STEAMER
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO STEAM NOODLES CONTINUOUSLY
MAIN PARAMETERS: STEAM TIME: 180S
STEAM TEMP: 110°C
STAEM TYPE: 1 LAYER OR 3 LAYERS

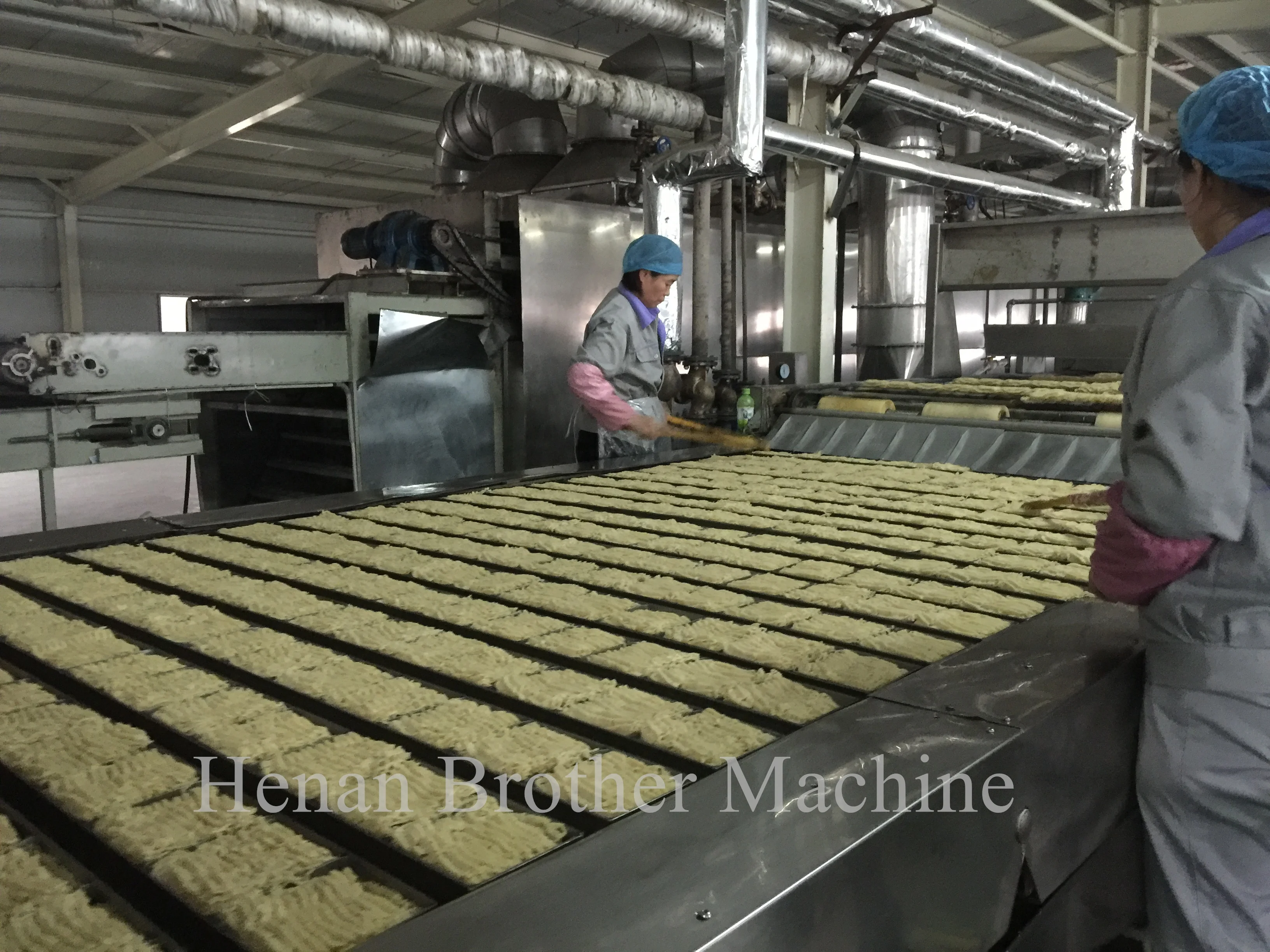

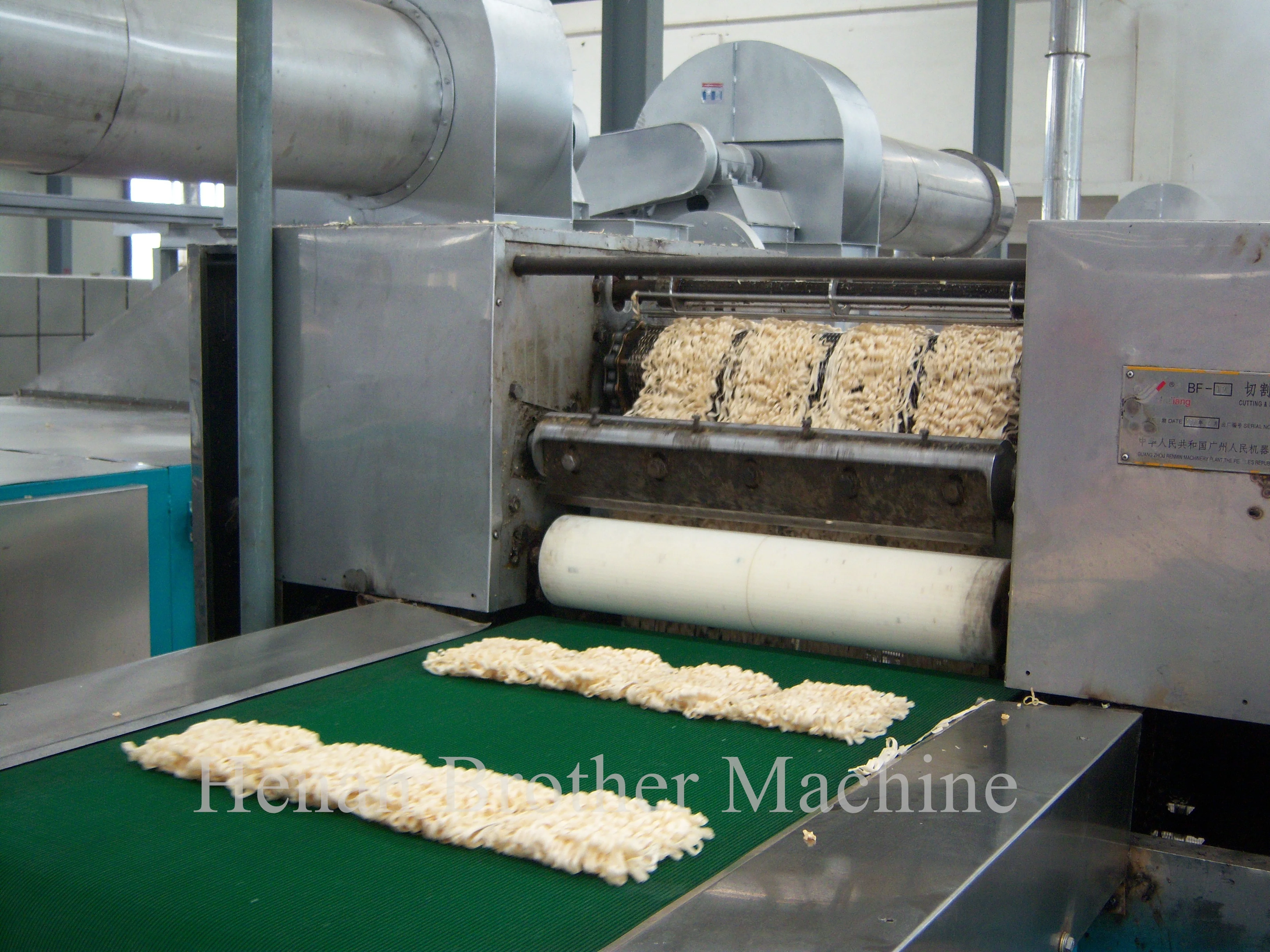

NOODLE CUTTER AND FOLDER
WIDTH:200-1500MM
MATERIAL: SUS304, SLICON PALLET
FUNCTION: TO CUT AND FOLD NOODLES BEFORE DRYING
MAIN PARAMETERS: CUT SPEED: 20-70CUTS PER MIN
CUT LENGTH ADJUSTABLE
IN DRYER CONVEYOR
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO CONVEY NOODLE TO DRYER
MAIN PARAMETERS: BY SUS304 BUSKET
ABOUT 2M LONG

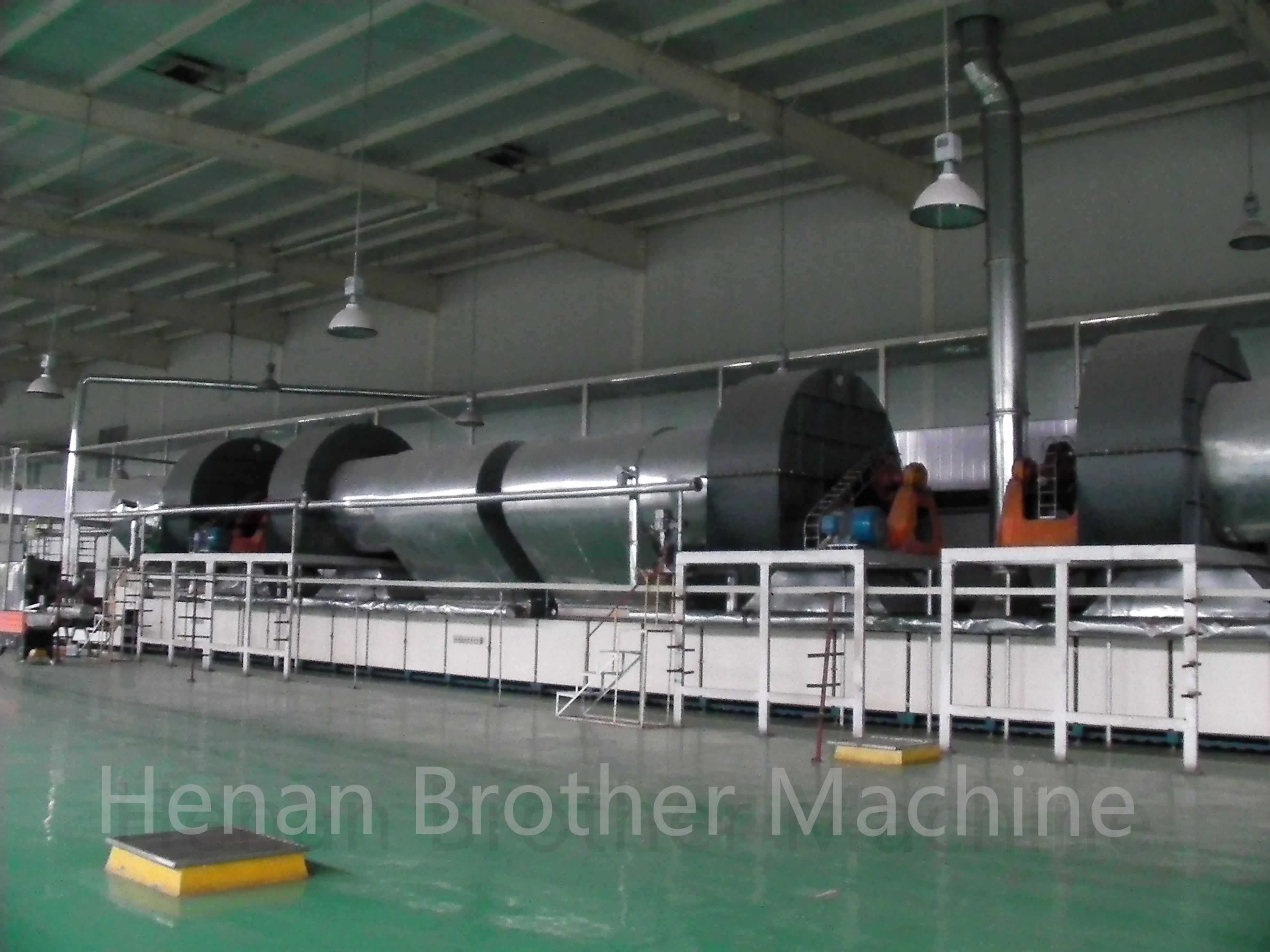

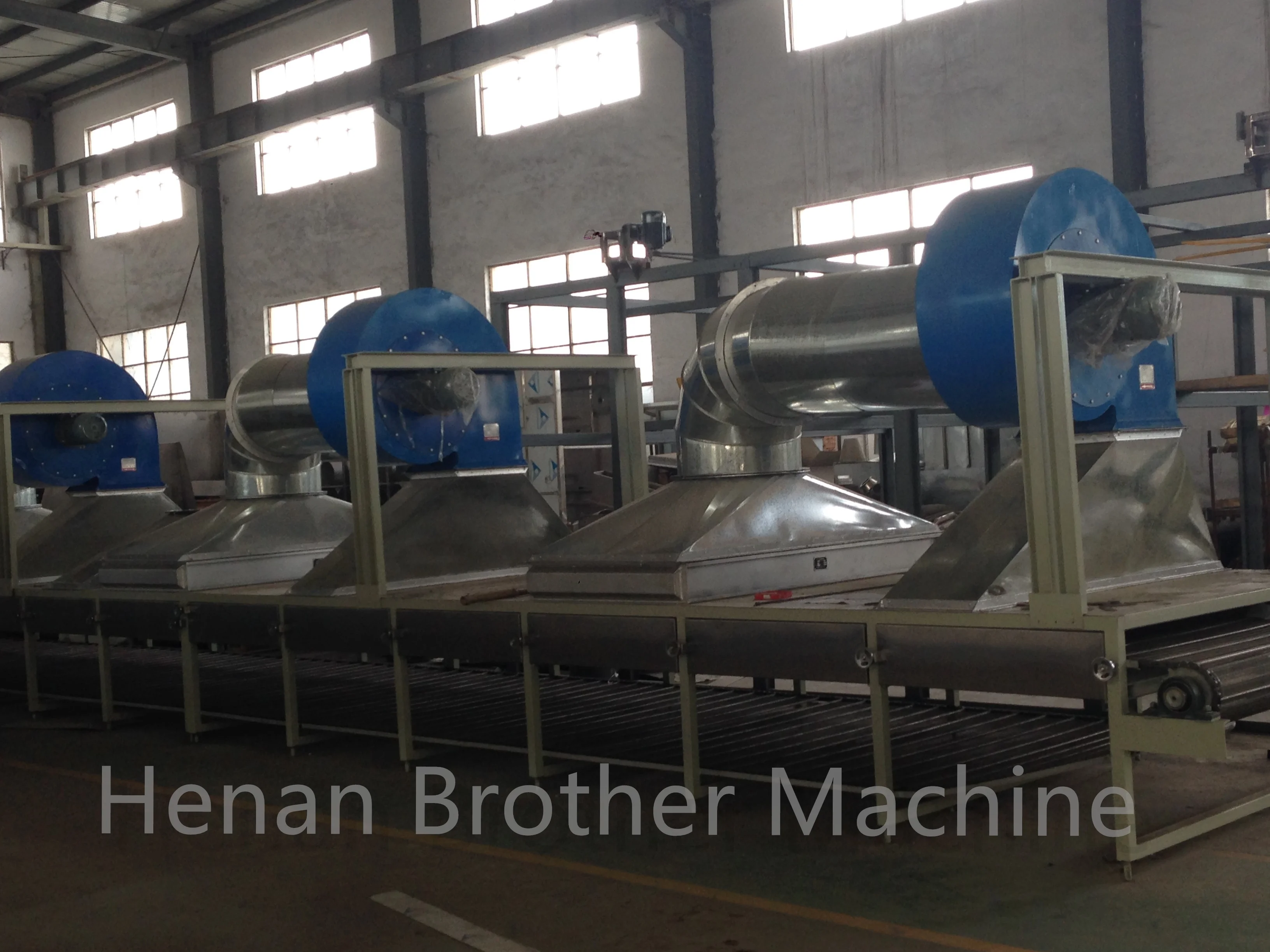

NOODLE DRYING MACHINE
WIDTH:200-3500MM
MATERIAL: CARBON STEEL FRAME, NOODLE CONTACT USE SUS304
FUNCTION: TO DRY NOODLES AS REQUESTED TYPE
MAIN PARAMETERS: DRYER TYPE: BUSKET + MESH
DRYING TIME: 50-60MINS
DRYING TEMP: 60-95°C

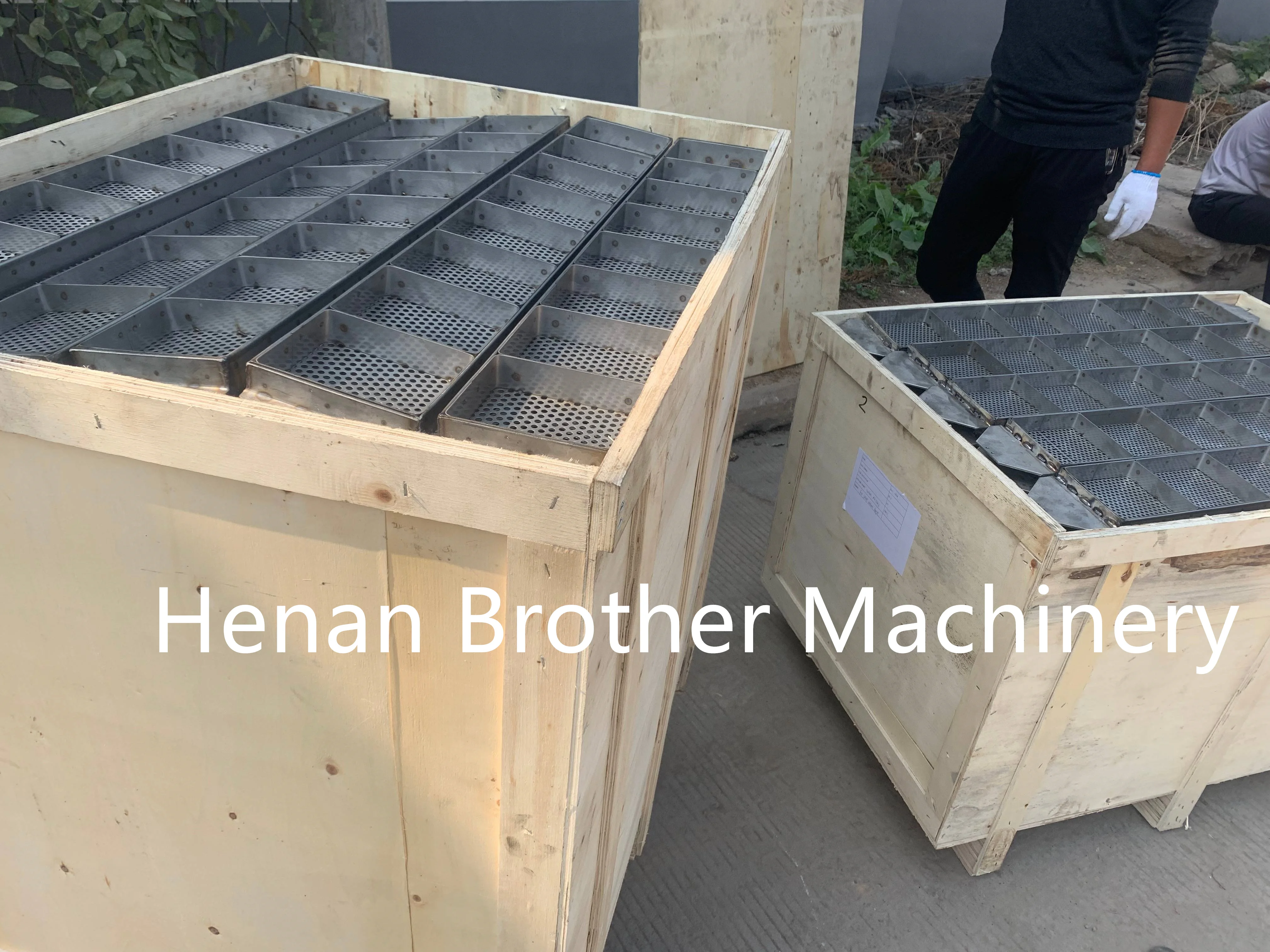

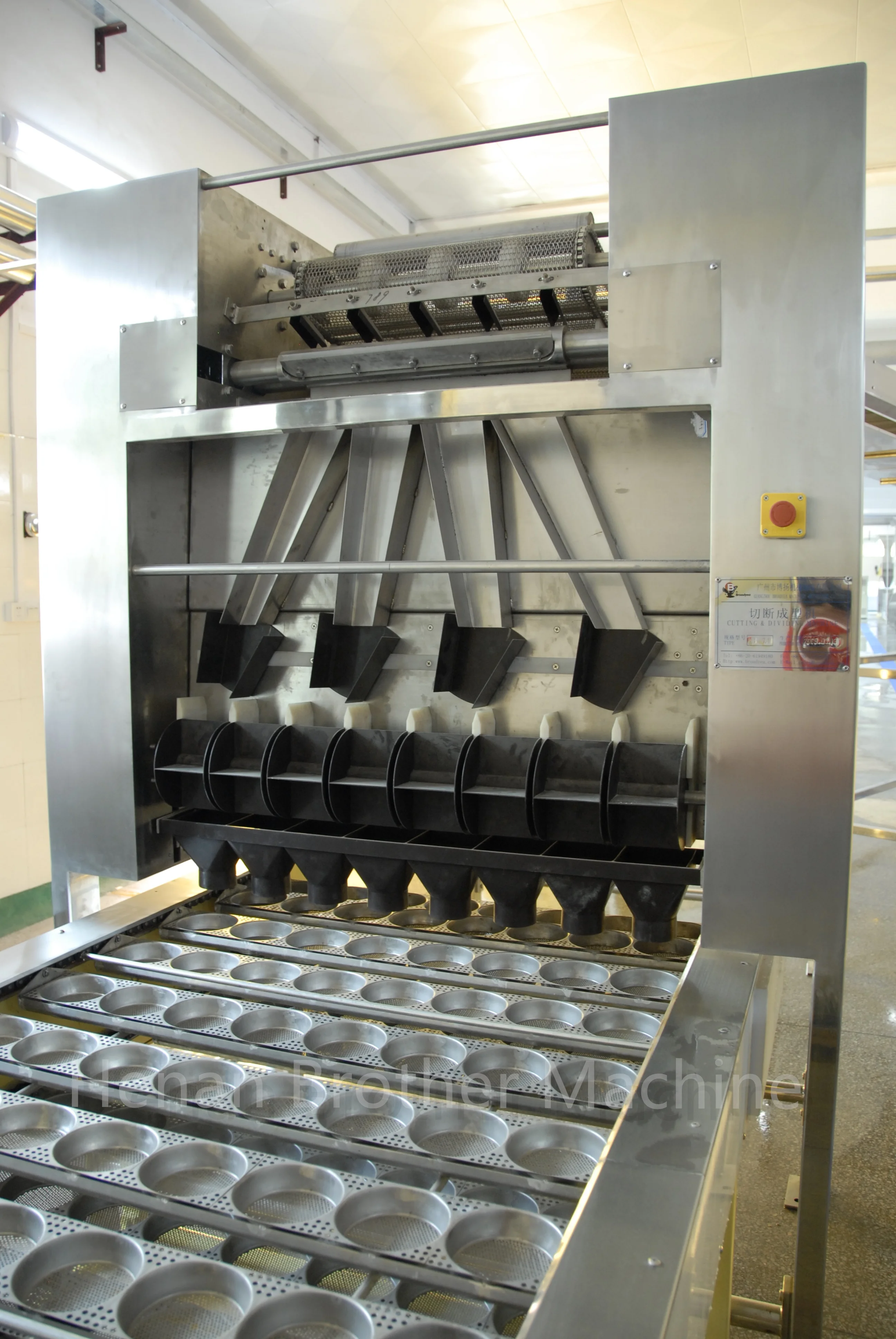

DRYER MOULD
SIZE: 50-300G PER PC
MATERIAL: SUS304
FUNCTION: TO SHAPE THE NOODLE BY MOULD BEFORE DRYING
MAIN PARAMETERS: SIZE: FOR 50-300G NOODLES
THICKNESS: 1-1.5MM

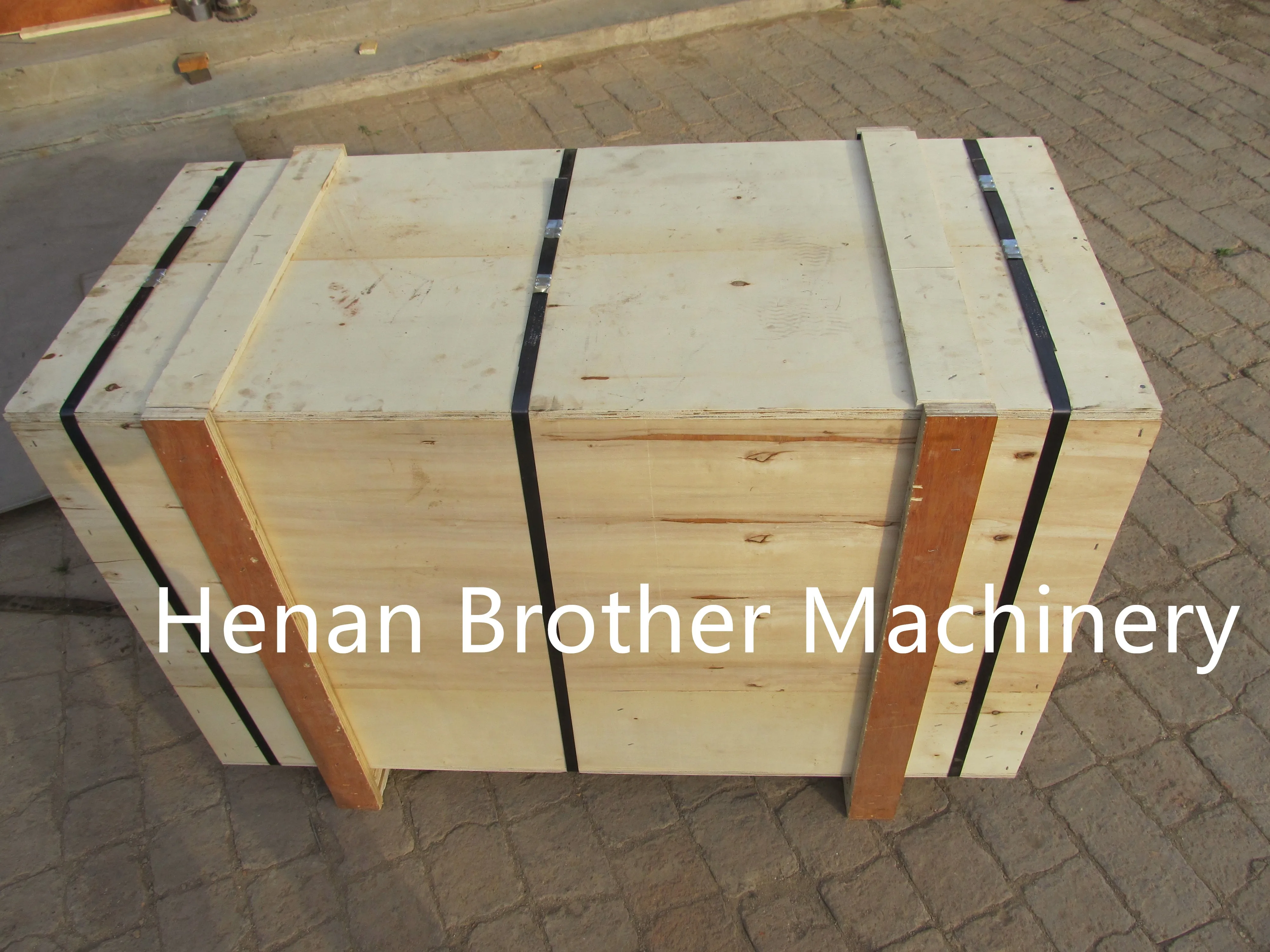

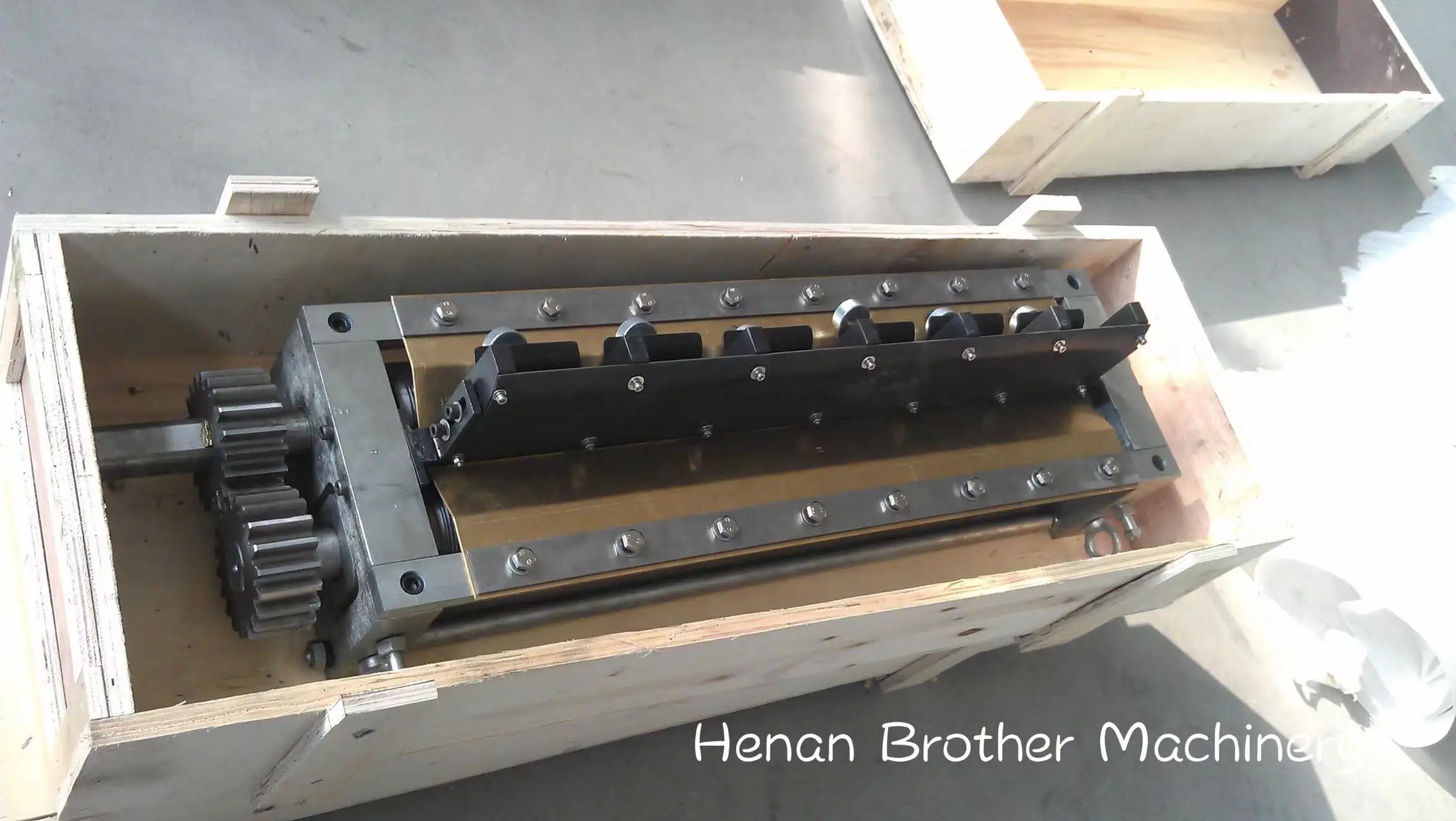

Packing & Delivery

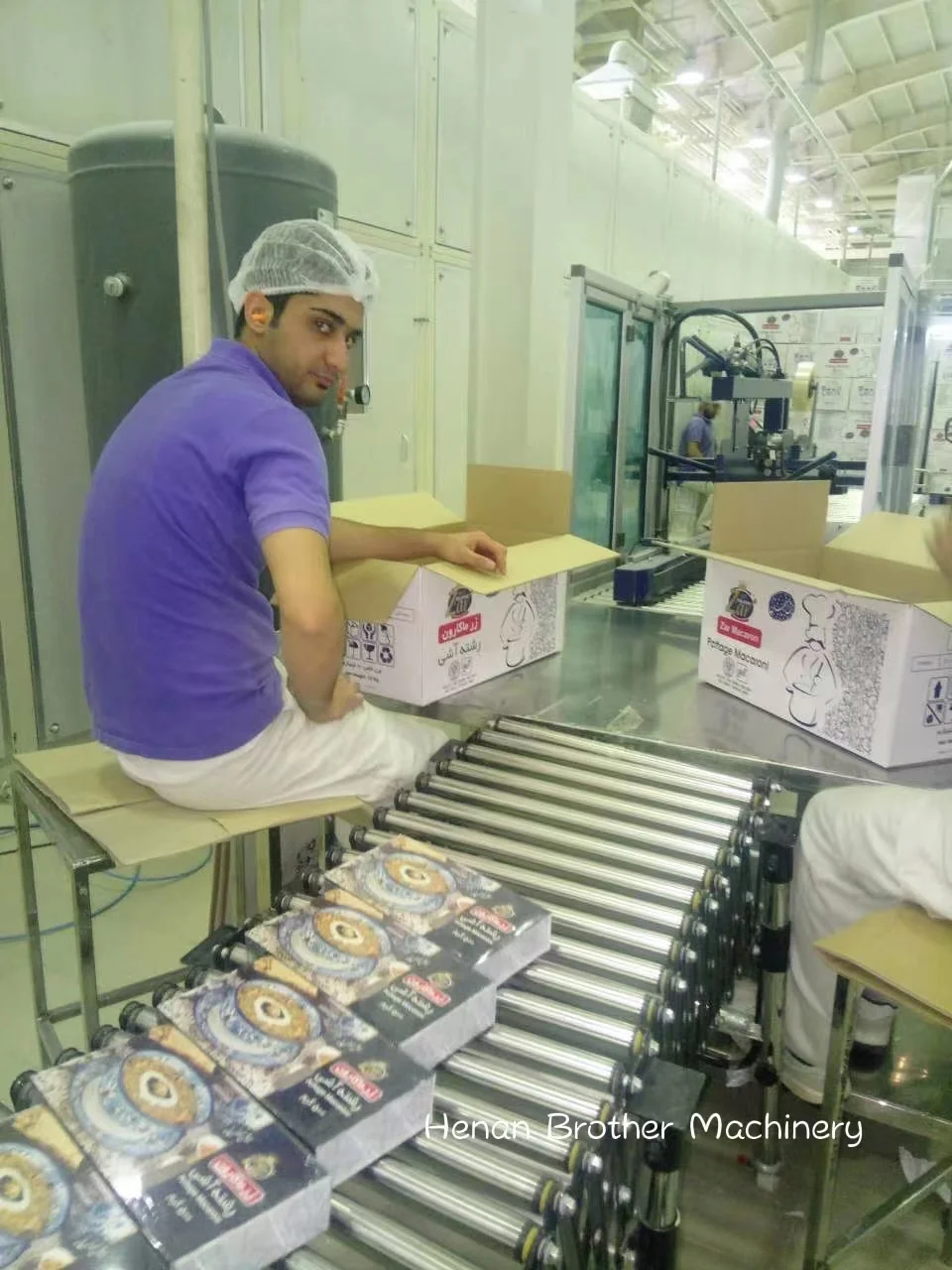

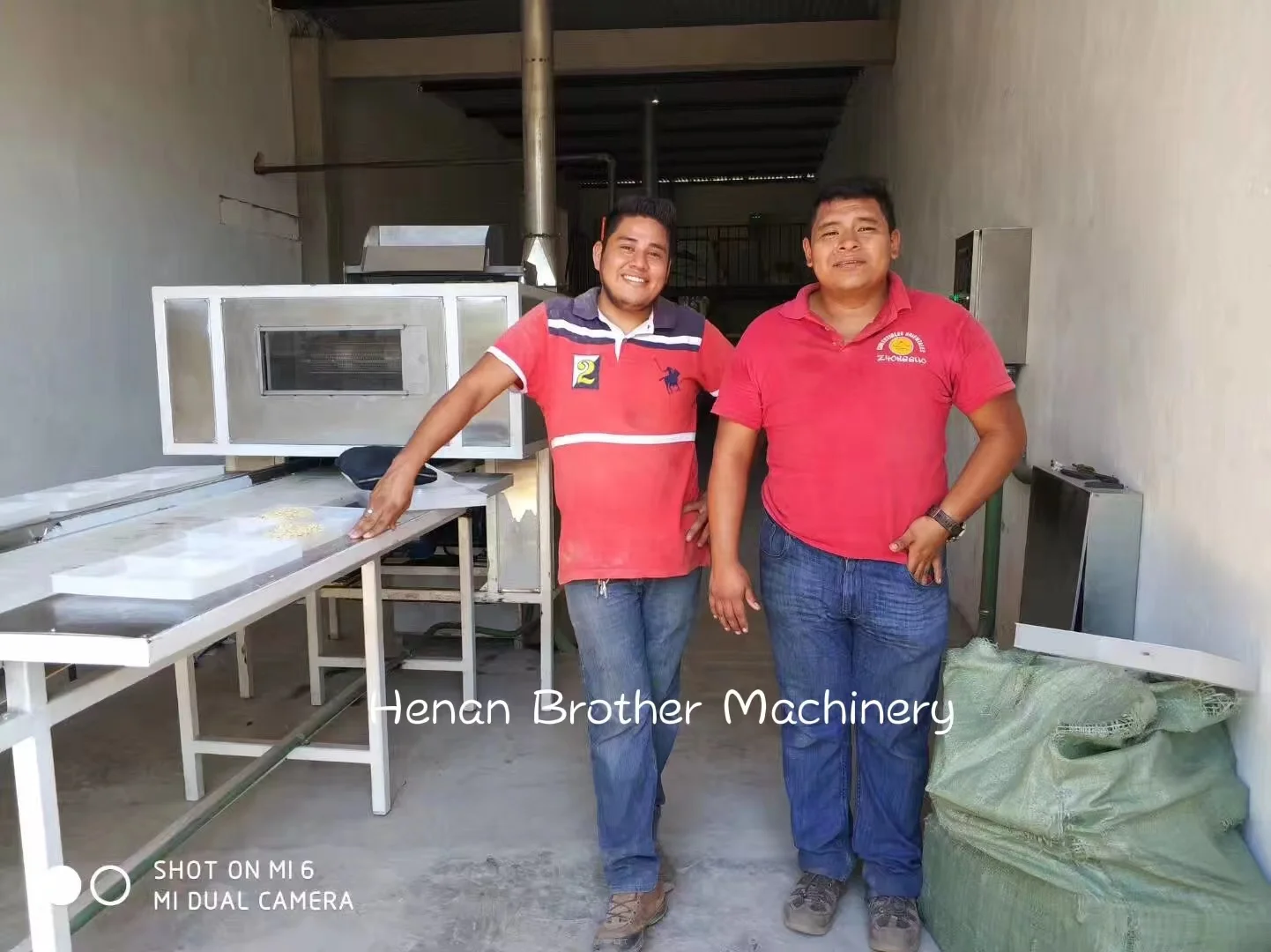

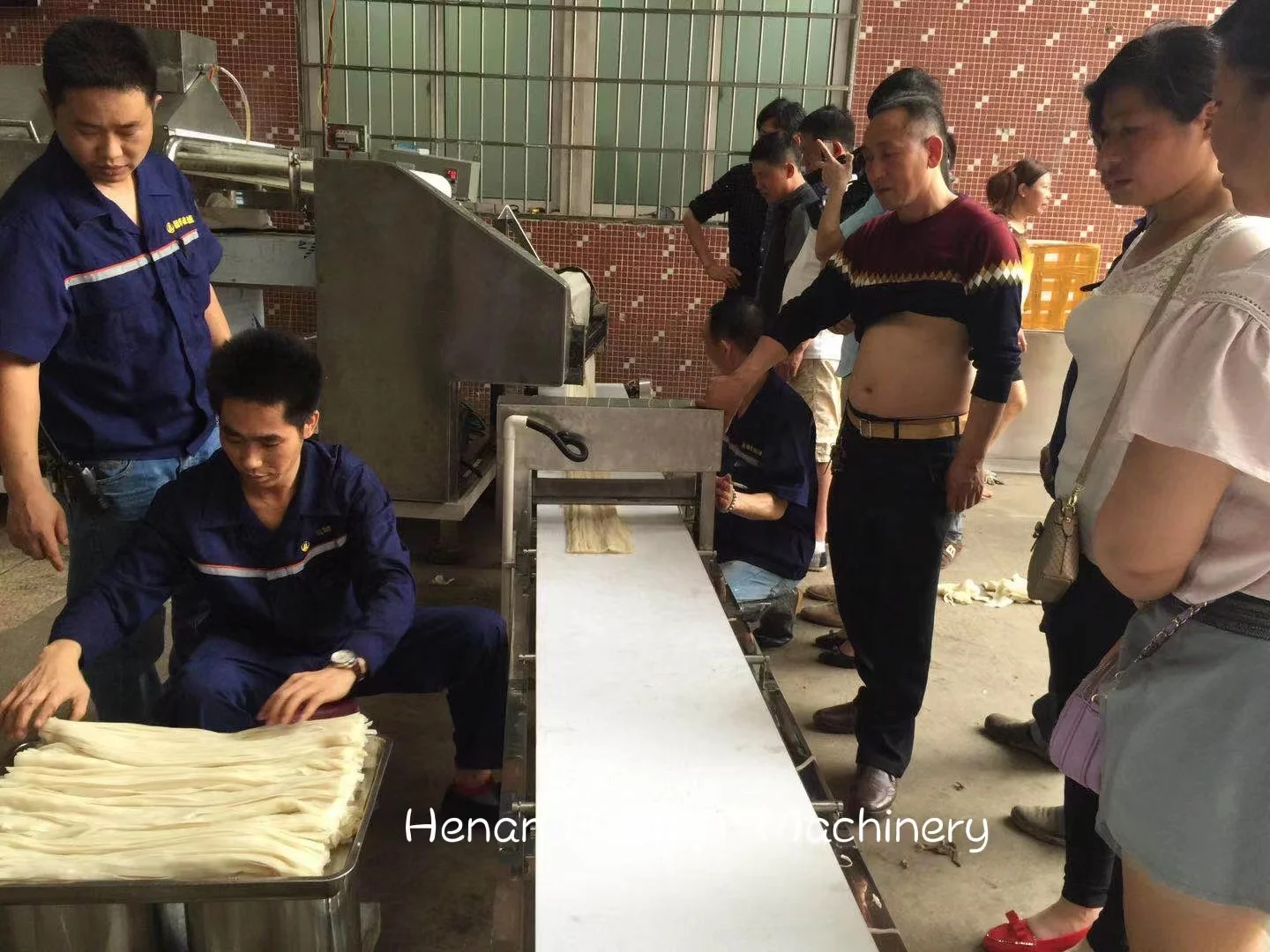

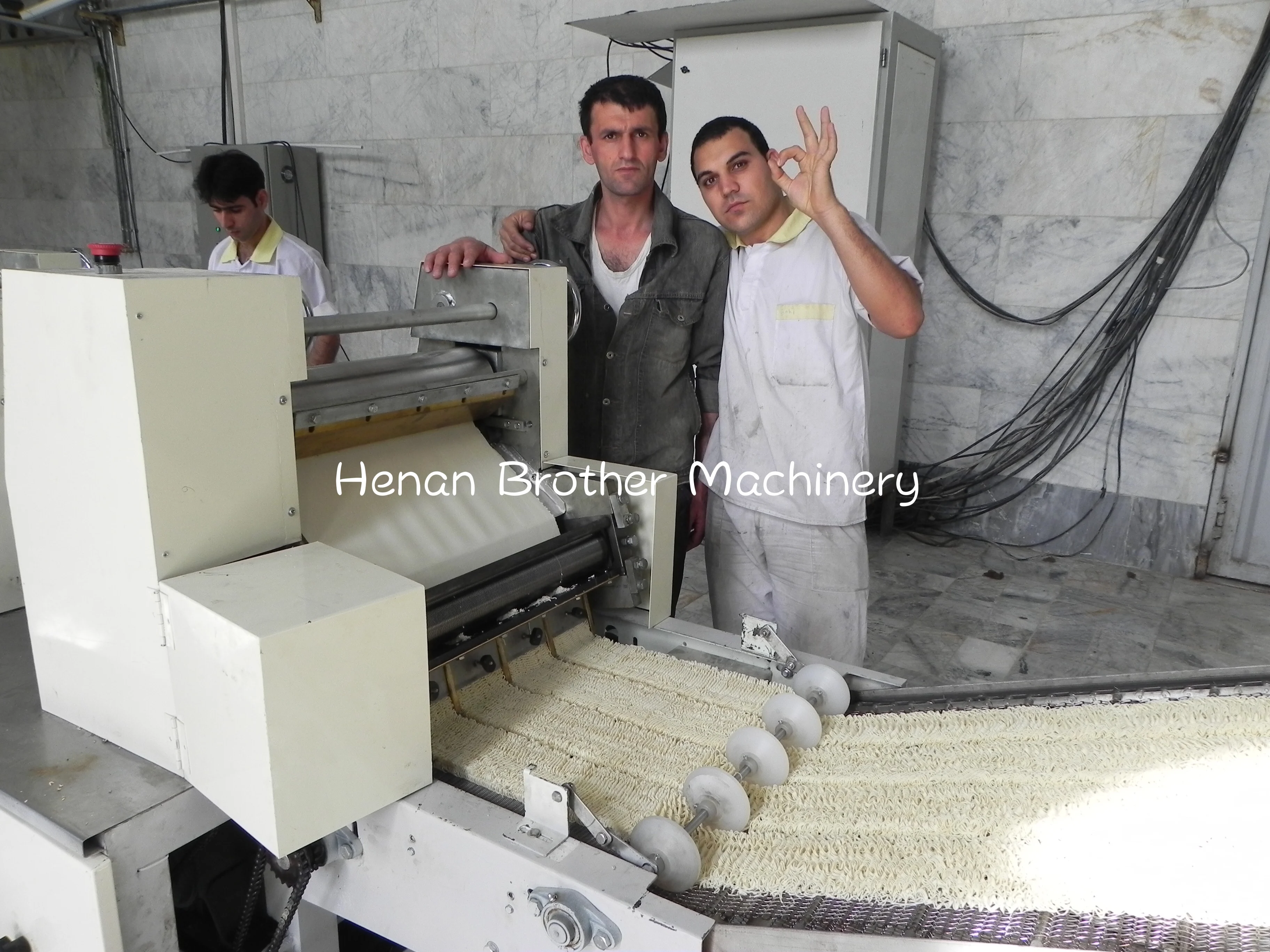

Overseas Service And Clients






Company Profile


Henan Brother MACHINERY MANUFACTURING CO.,LTD is located in Henan Province of China. Founded in 2002, which specializes in manufacturing, researching and technical suotion complete sets of noodle machines.
Flagship products:
Capacity Range: 100kg/hr-2000kg/hr
=Oil Fried Instant Noodles Production Line (square&cup)
=Hot Air Dried Instant Noodles Production Line (shape as request)
=Chow-Mein Production Line(dried or steamed)
=Dried Stick Noodle Production Line( Chinese Spaghetti)
= Multifunctional Noodles Project (fried/dried/steamed)
=Modification&updating Service (as per request)
The friends from all over the world are warmly welcome to build the Win-Win future with us anytime.






FAQ


Q: I am a fresh man in noodles industry and without any experience .
A: The key is you must have passion only, the rest is our job : site visIt,design, feasibility Report,cost analyst,deal or make friend only,installing,training,servicing of noodle machine,free technical formula available.
Q: How about your noodle machine quality?
A: All main parts of the machine are made of 304 stainless steel. We will be responsible for site installation and commissioning.If there is anything wrong with the machine, our engineers can be on site to repair it within two days. Even if the machine doesn't break down. We also pay a return visit twice a year by video phone.
Q: My recent noodle machine is still working but high wastage.
A: Basically,you don't have to replace it if not extend business, we do machine upgrade ,free service check.
Q: I need noodle machine spare parts.
A: We make all kinds of noodle machine spare parts: roller,slitter set, brass comb, divider, SUS304(316) mesh net, noodle casing box and cover,chain,scraper, food grade souping pallet,chain gears etc.
Q: Is it possible to visit you and see your running factory?
A: Of course , you can visit our domestic customer's noodle factory and oversea's both.
Q: I want small capacity noodle machine.
A: Available, low cost but good quality design for you.
Q: What services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian and so on.
