2022 first product small skid steer 500kg TL500T front end loader with bucket mini skid steer loader attachment skidsteer mini
2022 first product small skid steer 500kg TL500T front end loader with bucket mini skid steer loader attachment skidsteer mini
2022 first product small skid steer 500kg TL500T front end loader with bucket mini skid steer loader attachment skidsteer mini
2022 first product small skid steer 500kg TL500T front end loader with bucket mini skid steer loader attachment skidsteer mini
2022 first product small skid steer 500kg TL500T front end loader with bucket mini skid steer loader attachment skidsteer mini
2022 first product small skid steer 500kg TL500T front end loader with bucket mini skid steer loader attachment skidsteer mini
2022 first product small skid steer 500kg TL500T front end loader with bucket mini skid steer loader attachment skidsteer mini

2022 first product small skid steer 500kg TL500T front end loader with bucket mini skid steer loader attachment skidsteer mini

Share on:


Price:$6,999.00 - $9,999.00
Price in USD:Details

Quantity:


Product Overview

Description

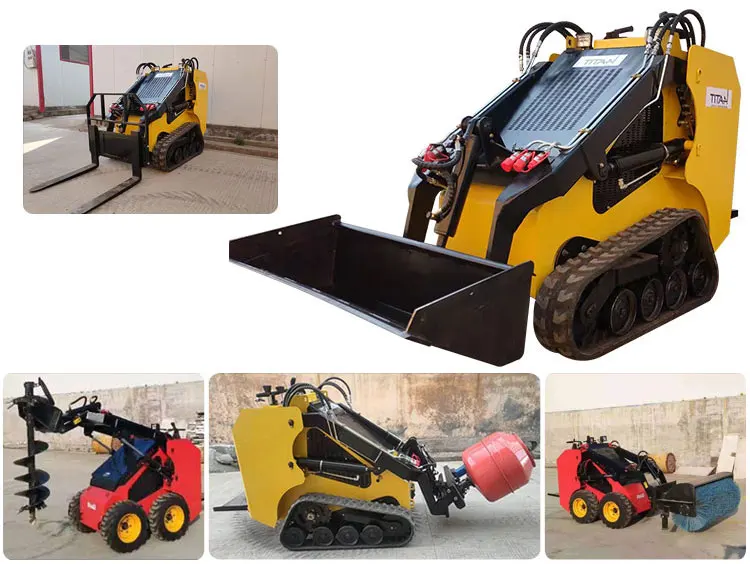

Titanhi ce approved mini track tractor loader rock hammer skid steer snow blower for sale


Product Description




DIMENSIONS
TL-500S Wheeled
TL-500T Tracked
Operating height
2565mm
2695mm
Height to bucket hinge pin
1900mm
2000mm
Height to top
1496mm
1496mm
Overall length with GP bucket
2702mm
2694mm
Overall length without bucket
2075mm
2067mm
Wheelbase
769mm
1080mm
Overall width
1060mm
1070mm
Mini ground clearance
160mm
94mm
Angle of departure
23°
23°
Rated loading capacity
450kgs
450kgs
Kerb weight
1200kgs
1330kgs
POWER
TL-327S Wheeled
TL-327T Tracked
Engine maker
Perkins engine
Perkins engine
Fuel type
Diesel
Diesel
Rating power
22.4kw
22.4kw
Number of cylinder
3
3
Displacement
1.496L
1.496L
Rated speed
2400 rpm
2400 rpm
TRAVEL SPEED
TY-327S Wheeled
TY-327T Tracked
Max. drive speed
7.8 km/ h
6.8 km/h
HYDRAULIC SYSTEM
TL-327S Wheeled
TL-327T Tracked
working system pressure
180 bar
180 bar
working system Flow rate
36 L/min
 36 L/min
Driving System pressure
250bar
250bar
Driving system Flow rate
62.4 L/min
62.4 L/min
Auxiliary circuit Pressure
180 bar
180 bar
Auxiliary circuit flow rate
36 L/min
36 L/min
FLUID CAPACITIES
TL-327S Wheeled
TL-327T Tracked
Fuel tank capacity
40 L
40 L
Engine oil
4.7 L
4.7 L
Hydraulic reservior capacity
40 L
40 L

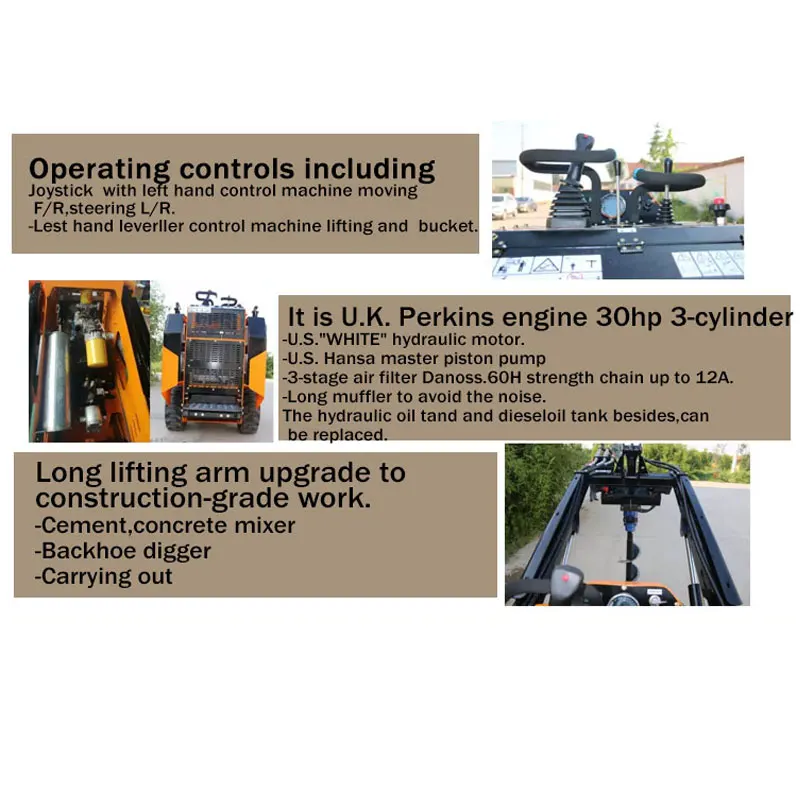

TY-500S mini loader skid steer

  • K. Perkins diesel engine 30hp, 3-cylinder
  • Italy Hansa master pump,direct connecting to engine
  • Hydraulic joystick control for driving.
  • 450kgs loading capactiy
  • Total width 1060mm

23x8.5-12 Nylon Tubeless tires rough terrain.

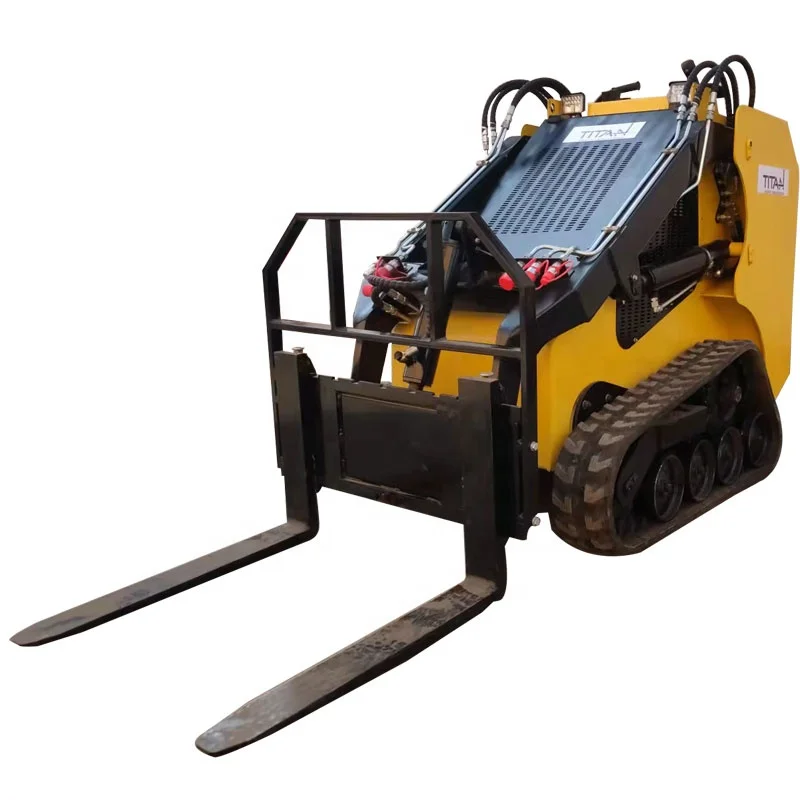

TY-500T mini loader skid steer

1-U.K. Perkins diesel engine 30hp, 3-cylinder

2-Italy Hansa master pump,direct connecting to engine

3-Hydraulic joystick control for driving.

4-400kgs loading capactiy

  • Total width 1060mm

 ISO 330mm rubber crawler



Details Images












Recommend Products












FAQ


Q:Why choose Titan?
A:1) Titan: an experienced loader manufacturer with over 11 years.
2) Titan TEAM: customers-focused,you'll get reply within 5 minutes.
3) Titan: premium quality with reasonable price.
4) Titan: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.

Q:What is Titan warranty?
1) Titan after-sales: life-long, meantime offer one year warranty.
2) Titan proposal: order some wearing parts with loader for easy maintenance.

Q:What about Titan delivery term?
10-14 days after down payment received.

Q:What about the payment term?
30% advance payment,70% balance by T/T.
