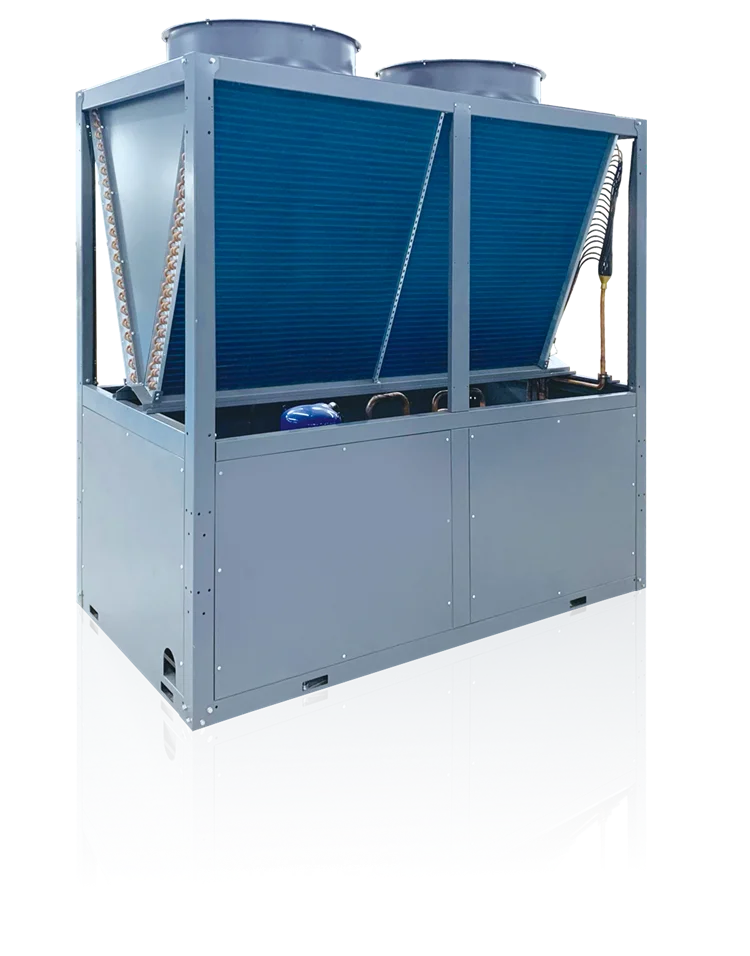

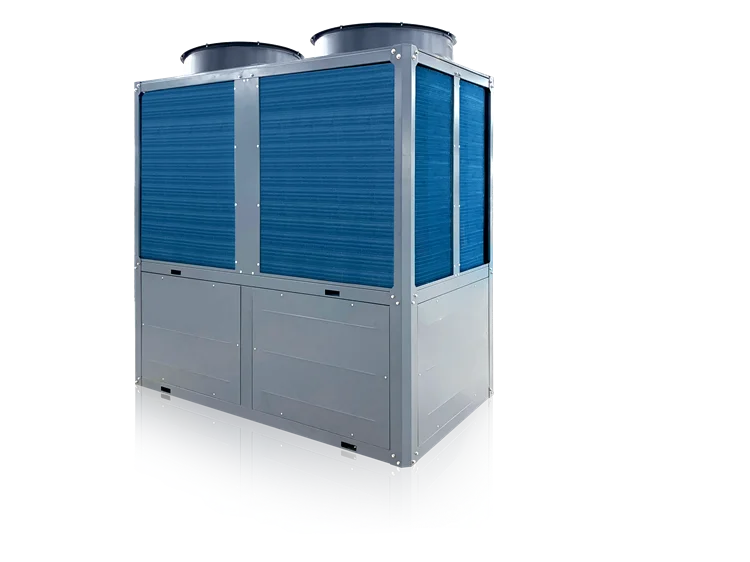

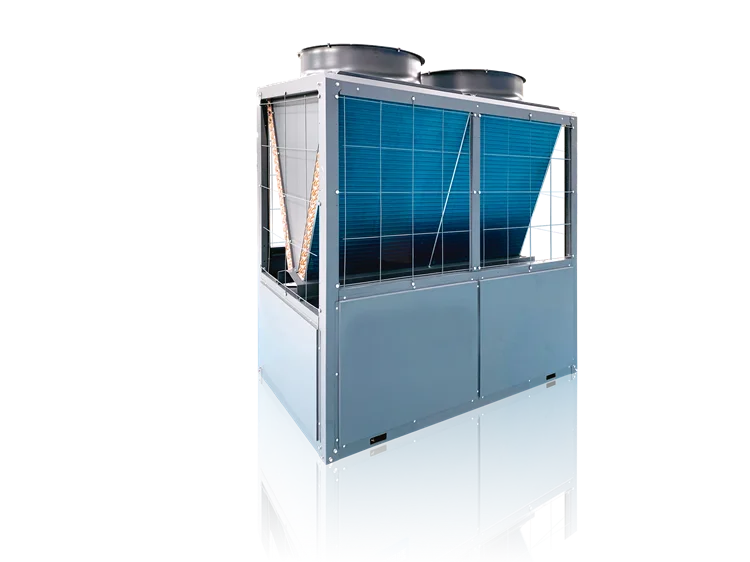

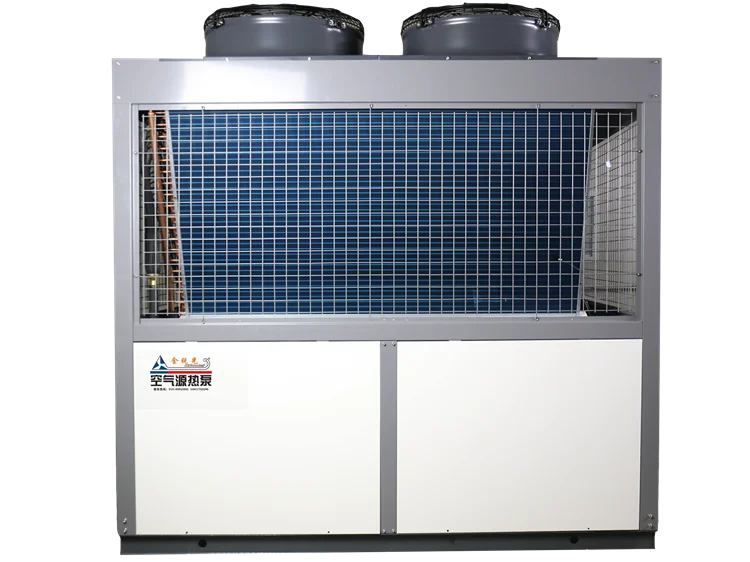

JRG RBD160.0D Air Source Heat Pump High Grade Can Be Custom 65kw Cooling Water Heater
- Category: Water Heaters >>>
- Supplier: Hebei JRG New Energy Technology Development Co. Ltd.
Share on (1600524915488):
Product Overview
Description
Products Display
Specification
Rated thermal conditions A21/15.5℃ W50℃ | Heating Capacity | KW | 164 | |
Energy Efficiency Ratio | COP | 3.8 | ||
Input Power | KW | 43.13 | ||
Input Current | A | 119.06 | ||
Nominal heating condition A-12/-14℃ W41℃ | Heating Capacity | KW | 102 | |
Energy Efficiency Ratio | COP | 2.95 | ||
Input Power | KW | 34.58 | ||
Input Current | A | 110.4 | ||
Low temperature heating condition A-20℃ W41℃ | Heating Capacity | KW | 92.5 | |
Energy Efficiency Ratio | COP | 2.65 | ||
Input Power | KW | 34.91 | ||
Input Current | A | 108.6 | ||
Nominal cooling condition A35/24℃ W7℃ | Cooling Capacity | KW | 142 | |
Energy Efficiency Ratio | EER | 3.4 | ||
Input Power | KW | 41.76 | ||
Input Current | A | 114.2 | ||
Rated cooling condition A43℃/29℃ W15℃ | Cooling Capacity | KW | 94 | |
Energy Efficiency Ratio | EER | 1.9 | ||
Input Power | KW | 49.47 | ||
Input Current | A | 117.48 | ||
Maximum input power | KW | 65.56 | ||
Maximum input current | A | 120 | ||
Power Specifications | V/PH/HZ | 380V 3N -50Hz | ||
Ambient temperature | ℃ | -35℃-43℃ | ||
Circulating water volume (temperature difference 5 degrees) | m³/h | 24.42 | ||
Refrigerant/Charge | KG | R410A/16.5g*2 | ||
Water side pressure loss | KPA | 60 | ||
Rated hot water temperature / cold water temperature | ℃ | 41℃/7℃ | ||
Maximum outlet water temperature > Minimum outlet water temperature | ℃ | 55℃/5℃ | ||
Water pipe interface | INCH | G2(DN65) | ||
Number of compressors | Tower | 2 | ||
Number of fans | Tower | 4 | ||
Noise | dB(A) | ≤76 | ||
Main unit size L/W/H | mm | 2278*1236"2340 | ||
Net weight | KG | 1250 | ||
