cheap camera module wiring diagram 6946
- Category: >>>
- Supplier: Shenzhen Ojos Medical Co. Ltd.
Share on (1600524918550):
Product Overview
Description
Optical Spec
| Coms size | 2P 1/18" |
| Pixel size | 1.75*1.75um |
| Fno | 5.0 |
| Diagonal Fov | 100 degree |
| TV-distortion | <6% |
| Relative illumiance | 60% |
| Chief ray angle | <25% |
| Maximum image circle | 1.0 mm |
| Depth of filed | 5-50 mm |
Electric spec
| Sensor | 1/198" 400*400 |
| Max frame rate | VGA 360fps |
| Interface | USB 2.0 |
| USB output solution | MJPG 400*400 |
| White balance auto mode | Auto mode |
| Operating temperature | -10 ~+50 degree |
| Steel tube temperature | </= 41 degree |

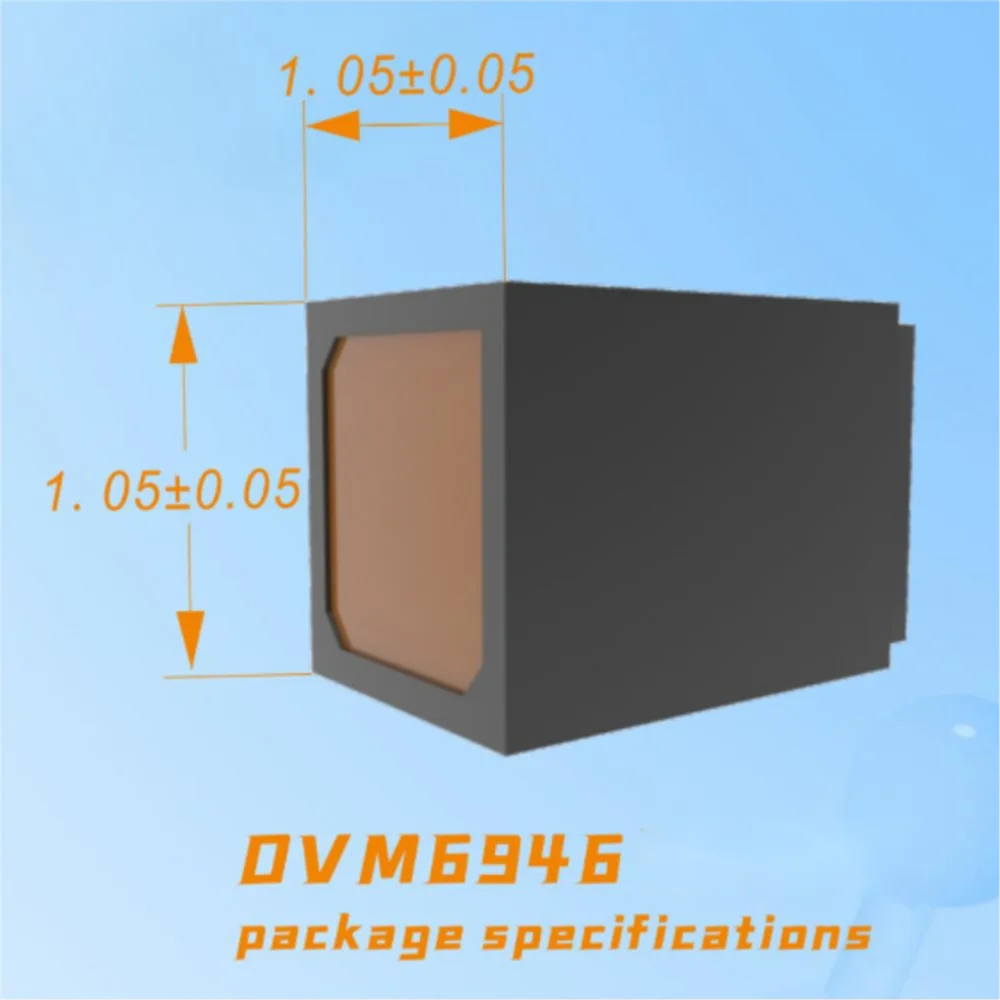

| Min diameter | 1.05*1.05 MM |
| Maximum length | 8 M |

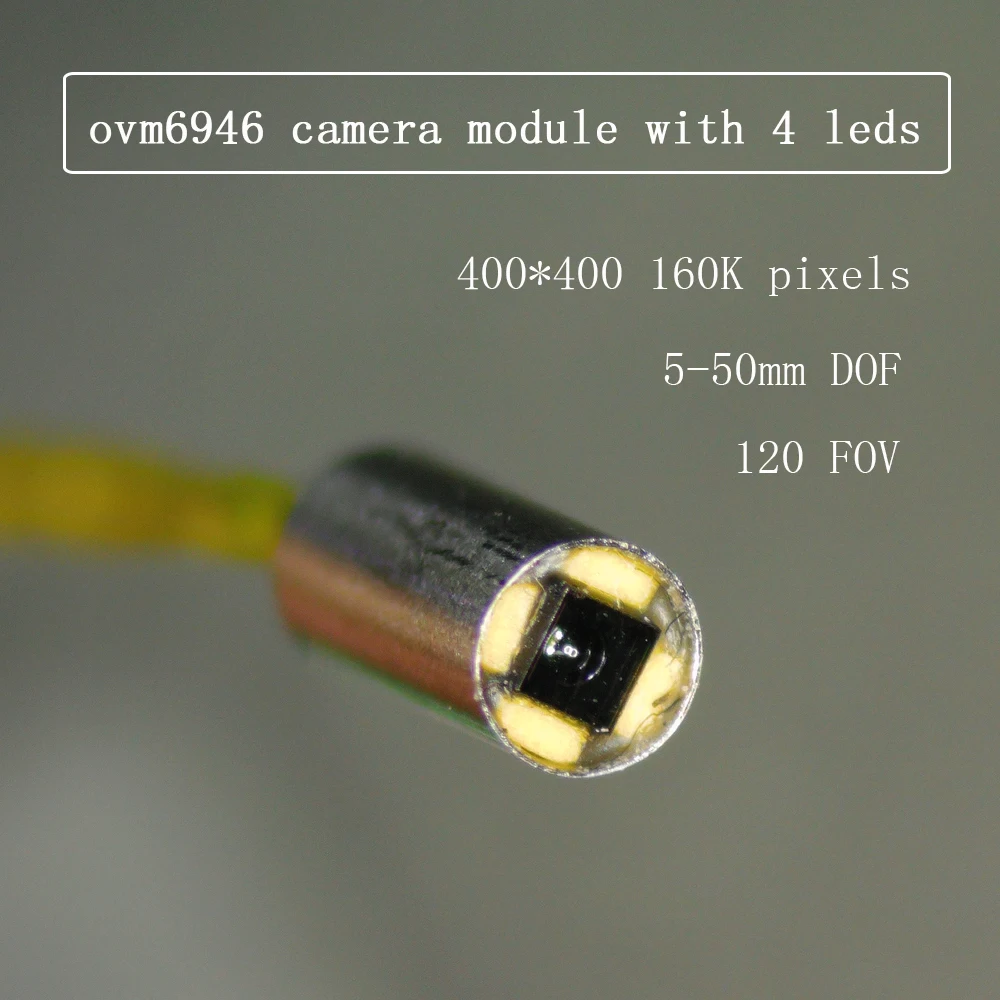

More details for HD micro medical endoscope camera module , endoscope inspection camera cable
