PPL 180H Pharmaland Alu Plastic Food Pharmacy Capsule And Tablet Blister Packing Machine

Share on (1600524936727):


Price:$9,600.00 - $10,000.00

Quantity:


Product Overview

Description



Product Description

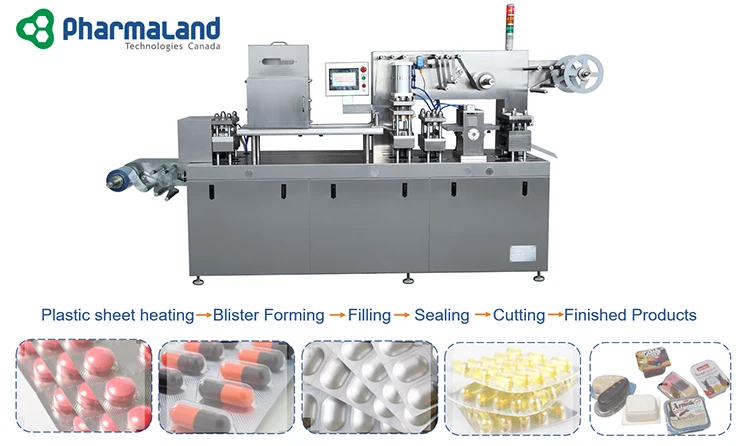

180H.jpgMian Application

PPL-180H multi-functional automatic blister packaging machine has innovative design. Suitable for packing of tablets, candy,capsules and small metal parts and electronic components. The machine integrates the functions of material unwinding, aluminum feeding, blister forming, filling material, waste recycling, plastic heat sealing, printing batch number, texture indentation, forum cutter display etc. The sealing effect is good, safe and healthy.


Advantages


1.  Variable frequency stepless speed regulation, servo traction, adjust the stroke of a key in place.


2. The stroke can be adjusted within 30-110mm, which is easy to adjust with correct synchronization.


3. Adopts plate-type mould, positive-pressure forming, featured by batch number printing,creasing and cutting,aluminum-foil/plastics automatic feeding, automatic alarm for broken—piece and finished-piece and automatic stop etc.


4. Equipped with one set general feeder,which filling percentage reaches 99.5 and above. The feeder is fitted with dust exhaust joint so can overcome the dust problem duting feeding.


5. Adopts registering matching heating so that can reduce the heat energy loss of  heater to the least, and the required temperature will be greatly reduced.


6. This machine has small volume, light weight, cramped structure, easy operation amd maintenance.





Technical Parameters

























































 Cutting frequency


Al-plastic:25-50Times/min
Travel Range30-110mm (Adjustable)

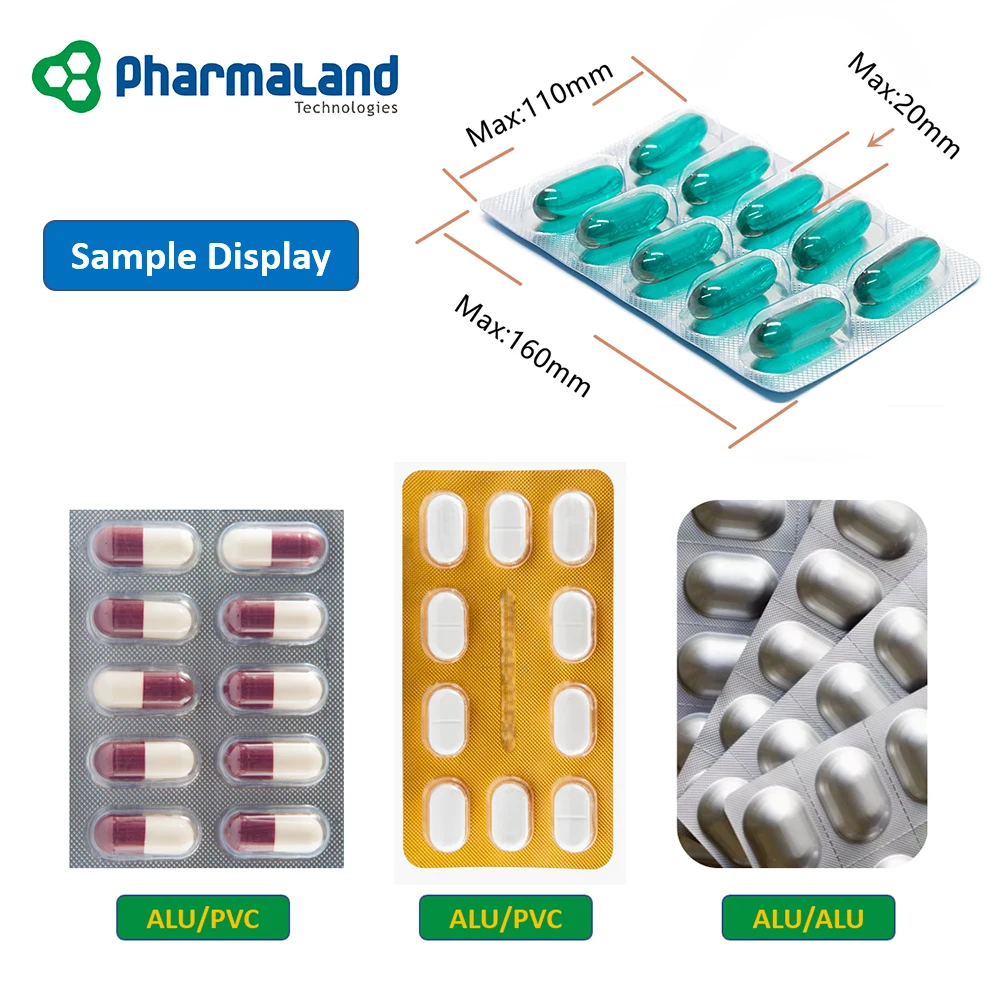

Max forming area160×110mm
Max Forming Depth20mm( Can be customized)
Total power5.8kw
Air volume flow  ≥0.2m³/min
Weight780kg
Air pump pressure 0.4-0.6Mpa
PVC0.25-0.5×180mm
PTP0.02-0.035×180mm
Dialysis paper50-100g×180mm
Overall dimensions3050×590×1550 mm







Detailed Images

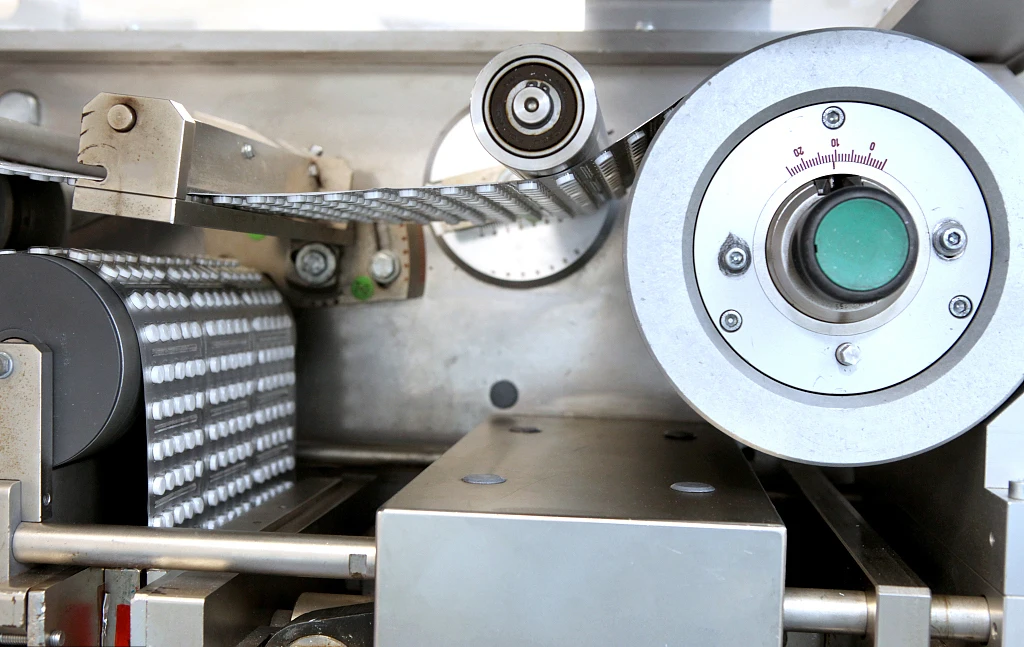

 Detial Image 111


Feedback_production hall _
































Company Information



Pharmaland Technologies Ltd, is a Canada company that was found in 2005 in Toronto with a version to offer affordable quality pharmaceutical and nutraceutical equipments and technical supports to our customers in Pharmaceutical, nutraceutical and food industries. With a global source of technologies and partnerships with those strategic manufacturers mainly in China, Pharmaland offers those most competitive products of the latest technologies with the world leading brand value.





Pharmaland Technologies’ machines are designed and developed with concepts and standards of Canadian mechanical quality and safety, and built up from our facilities of jointed venture and strategic partnership globally, mainly from those leading Pharmaceutical machinery manufacturers in China to offer solid, dependable, affordable and build-in last and long durations of production and package need.





We have our technical support team both in Toronto and Shenzhen China. We have our workshop, showroom and training center as well as parts inventory warehouse in China to provide our prompt service to global customer need.


Our commission is to offer pharmaceutical and nutraceutical manufacturing machinery with advanced technologies at an affordable price, reliable technical supports.





Packaging & Shipping


41iStock-12498888591










FAQ


Q1: How can you ensure the machines’ quality?


A1: Our factory is equipped with high precision lathe, and we only adopt superior material and leading brand components, the machines are designed in accordance with GMP standard.
We have very strict internal inspection during production and before shipment, will provide photos and testing video before shipment to our clients, the machines have one year warranty but life time service.

Q2: Will validation documents provided?
A2: Yes, we can provide full set documents, IQ, OQ,PQ etc.

Q3. Any certificate you can provided?
A3:  ISO9001. CE and GMP approved.

Q4: What kind of after-sales service you can provided?
A4: 1. We offer 12 months warranty and lifetime technic service.
      2.Here is any technic problem, we will response within 24 hours by email or over phone, if problem can’t be solved on-line, we can arrange technician to provide on-site service.

Q5: Can you provide customized manufacture?
A5:  Yes, we have professional technician team to provide customized solutions, just share with us your request for evaluating.

Q6. How can I trust you for first time cooperation?
A6:  We can share with you our business license.
Our main Alibaba shop has 15-years experienced .
It is workable for Alibaba trade assurance service for all orders.
You are warmly welcomed to our factory for visiting or machines audit at any time.
