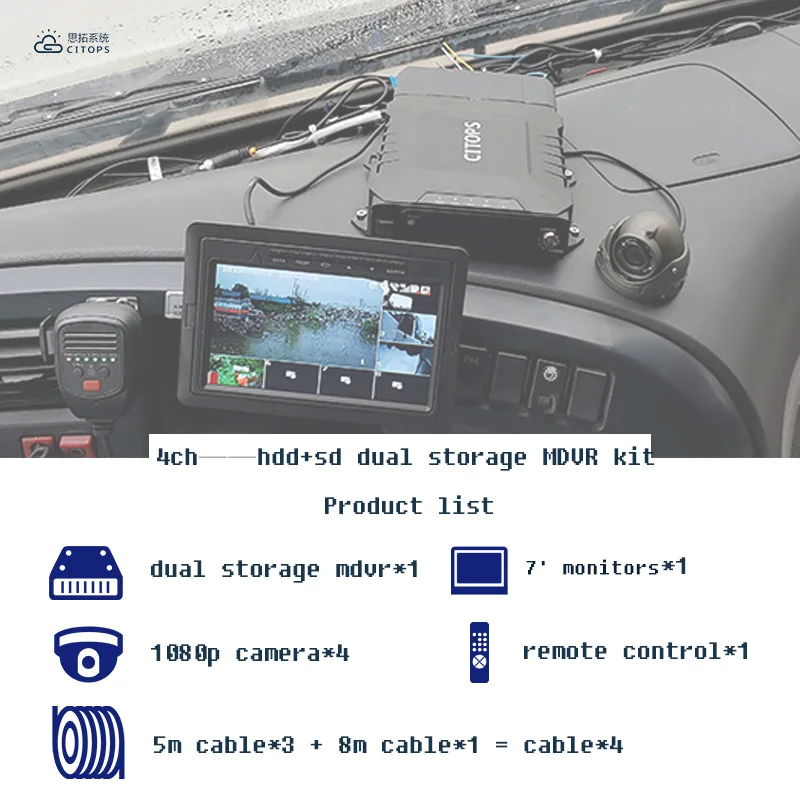

Citops Original Manufacturer sd card mdvr kit 3g 1080P HDD 4G WIFI GPS mobile dvr mdvr 8ch for truck bus
- Category: >>>
- Supplier: Shenzhen Citops Systems Co. Ltd.
Share on (1600524946869):
Product Overview
Description
Key Features

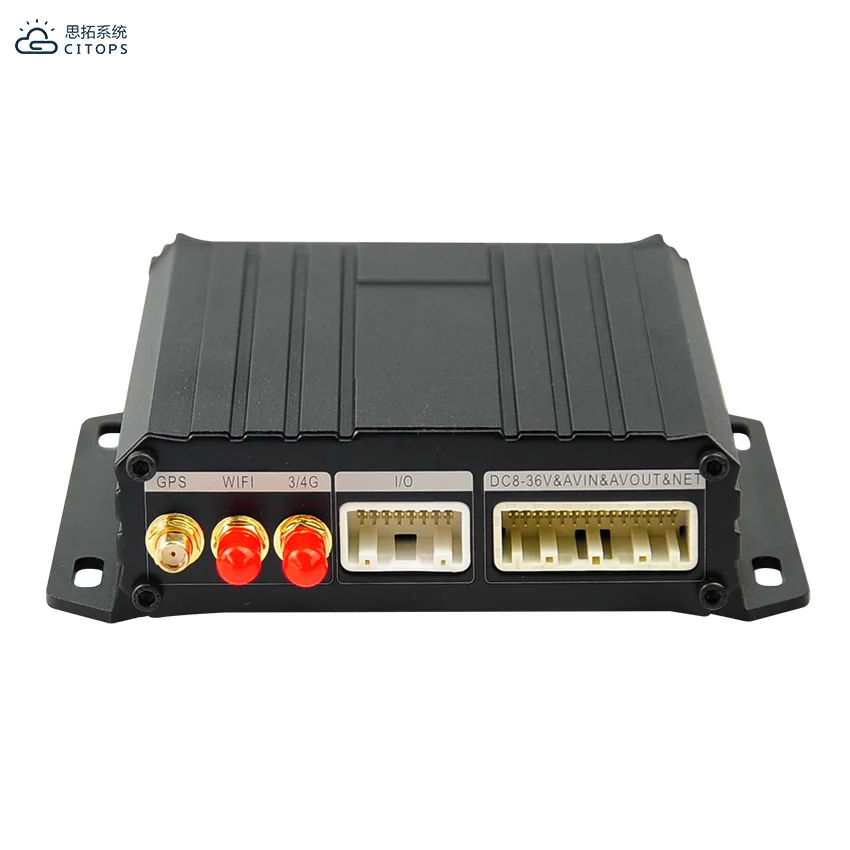

Citops Original Manufacturer sd card mdvr kit 3g 1080P HDD 4G WIFI GPS mobile dvr mdvr 8ch for truck bus taxi car
1. H.265 Compression, saves storage costs, smoothly live streaming, clear picture quality, multi-stream recording;
2. Real-time HD recording, support AHD 1080P/960P/720P optional;

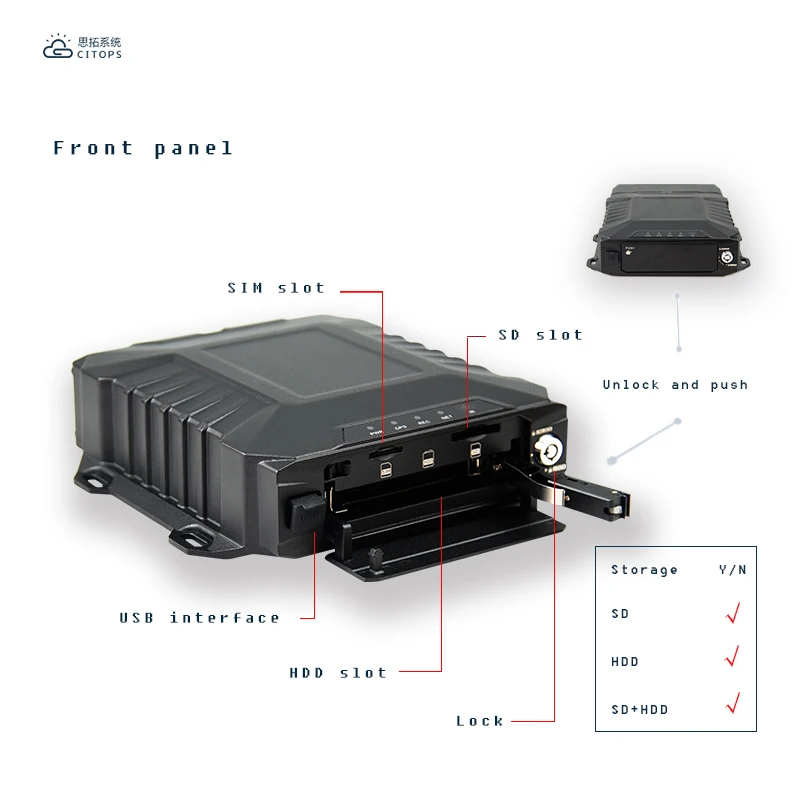

3. Support 1*2.5 inch SATA HDD (Max 2TB) + 1*SD card (Max 256GB), cyclic recording, data automatic coverage
4. Watchdog abnormal restart function protection, Better machine and data protection;
5. Flameout delay recording function, ACC Delay off,can set 24 hours;On board UPS 8~10 seconds delay power-off for data protection
6. Support GPS/BD, 3G/4G, WIFI Module Optional;
7. Support remote management, voice intercom, fuel monitoring, cut engine remotely function;
8. Designed with RS232/RS485 peripheral interface,Allow to integared with Fuel Sensor,Temperature & Humidity Sensor, RFID card-reader,Tire pressure monitor and so on.

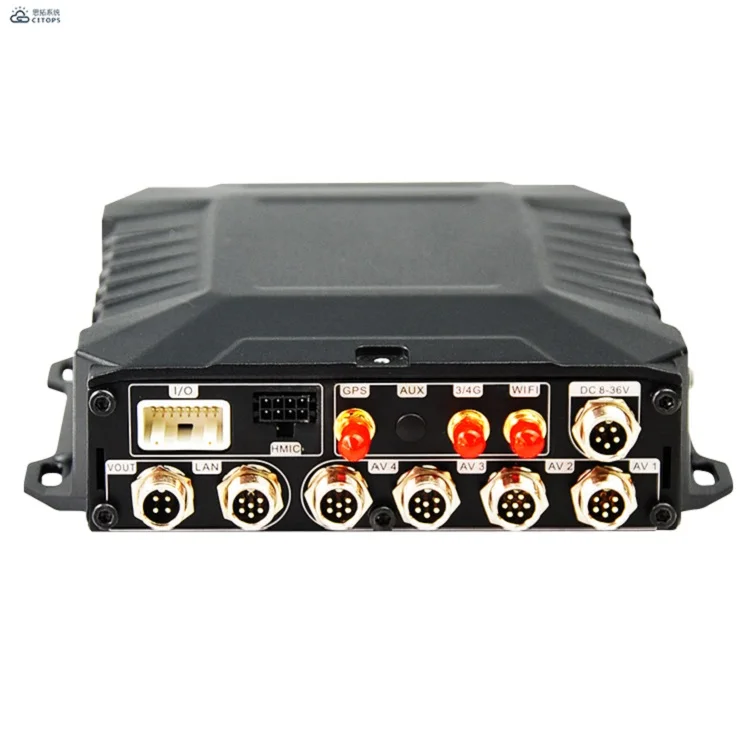

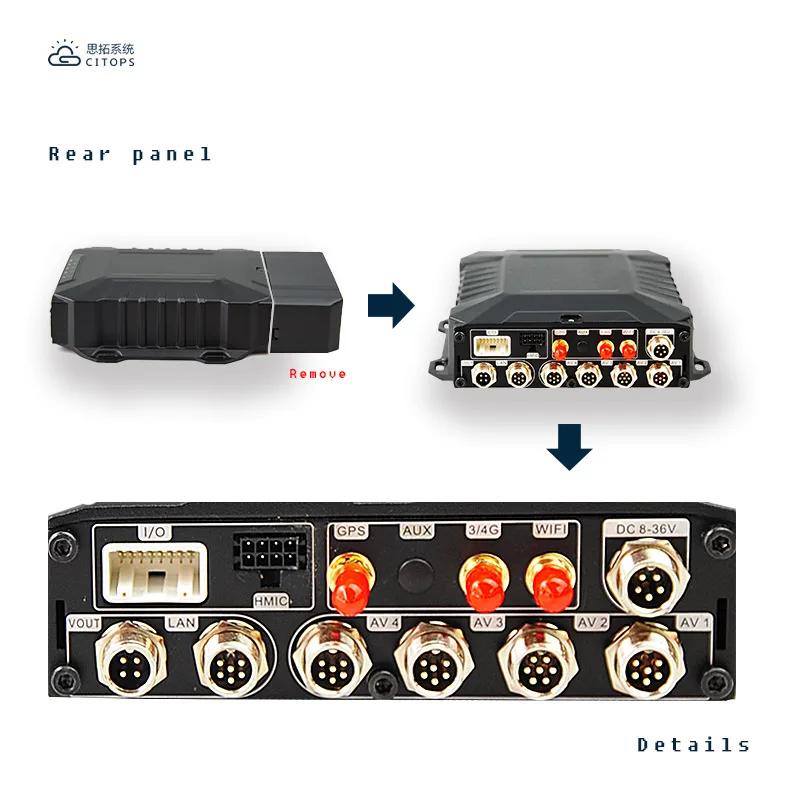

9. Support CVBS/VGA Aviation connector video output;Highly reliable aviation head input and output connector, easy to install and plug, better anti-shock absorbor.
10. With USB Port, support mouse operation, fast and convenient, easy to operate;
11. The system interface is user-friendly, intuitive and easy to operate;
12. Support 4 level inputs, 2 analog inputs, 2 alarm outputscan be linked to a variety of processing responses.
13. All-aluminum profile design, small size, fast heat dissipation, dustproof, shockproof
14. Support CMS (Central Monitoring Software) Client,mobile App,Web platform to realize fleet management online
15. 8V~36V wide voltage power supply, Overload / undervoltage / short circuit protection, low voltage automatic shutdown.
2. Real-time HD recording, support AHD 1080P/960P/720P optional;
3. Support 1*2.5 inch SATA HDD (Max 2TB) + 1*SD card (Max 256GB), cyclic recording, data automatic coverage
4. Watchdog abnormal restart function protection, Better machine and data protection;
5. Flameout delay recording function, ACC Delay off,can set 24 hours;On board UPS 8~10 seconds delay power-off for data protection
6. Support GPS/BD, 3G/4G, WIFI Module Optional;
7. Support remote management, voice intercom, fuel monitoring, cut engine remotely function;
8. Designed with RS232/RS485 peripheral interface,Allow to integared with Fuel Sensor,Temperature & Humidity Sensor, RFID card-reader,Tire pressure monitor and so on.
9. Support CVBS/VGA Aviation connector video output;Highly reliable aviation head input and output connector, easy to install and plug, better anti-shock absorbor.
10. With USB Port, support mouse operation, fast and convenient, easy to operate;
11. The system interface is user-friendly, intuitive and easy to operate;
12. Support 4 level inputs, 2 analog inputs, 2 alarm outputscan be linked to a variety of processing responses.
13. All-aluminum profile design, small size, fast heat dissipation, dustproof, shockproof
14. Support CMS (Central Monitoring Software) Client,mobile App,Web platform to realize fleet management online
15. 8V~36V wide voltage power supply, Overload / undervoltage / short circuit protection, low voltage automatic shutdown.
Product Description
Specification
Item | parameters | ||
Audio and Video Inputs | video input | AHD：4ch 1080/25fps IPC：Scalable 1-4ch | |
audio input | 4ch audio iuput | ||

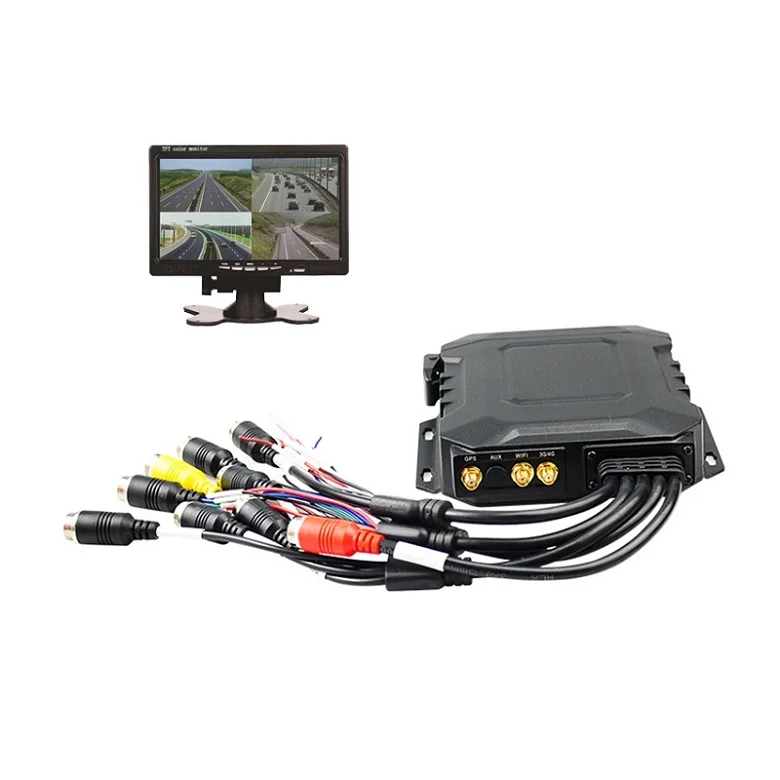

Audio and Video outputs | video output | Default 1-way CVBS output (VGA output optional) | |
speech output | 1ch audio output | ||
Audio and video parameter coding | video coding | H.264 Main Profile/H.265 | |
Resolution | 1080P/720P/D1 optional | ||
audio coding | Default G.726,G.711A optional | ||
storage space | HDD | 1 2.5-inch optional: SSD/HDD hard disk | |
SD | Support 1 SD card | ||
wireless network | 4G | Supports 1 SIM card, optional: all major communication modules in the world | |
WIFI | 2.4/5.8G optional | ||
locate mode | BD/GPS | Support for mixed positioning, speed detection, time synchronization | |
interface | USB | USB2.0 interface, support export data, external engineering treasure | |
serial port | Support 1 RS232, 1 RS485, can be connected with external sensor | ||
I/O | 4 level inputs, 2 analog inputs, 2 alarm outputs | ||
network interface | Support external IPC, support hybrid NVR function | ||
Intercom | 1 special intercom handheld mark interface | ||
Physical Specifications | size | 176.9mm（L）*186.8mm（W）*54mm（H） | |
weight | NW：1.4kg GW：2kg（M51H-DGNE1-L as a standard） | ||
work environment | operating temperature | -20〜+70℃ | |
operating humidity | · 8%〜90%（No condensation） | ||
Other | operator schema | remote control、APP、WEB | |
· Gravity sensor | Built-in G-Sensor | ||
Configurable AI algorithms | Face recognition 、People Counting、ADAS+DMS | ||
