LS WH 300 Solar Flood Light

Product Overview

Description

LS-WH-300 Solar Flood Light



Description:

The LS-WH-300 solar flood light combines high-efficiency LED arrays with reflector optics and good heat dissipation design, provide energy efficient with low cost and less maintenance, as well increase the stability and life span of the product. And it is made in the technology of Aluminum die-casting integrally-mold and it is very good in corrosion and crack resistance.

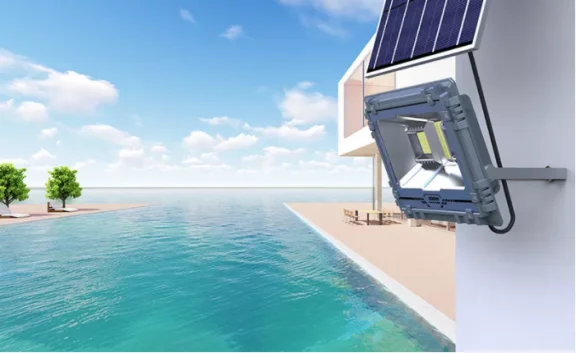

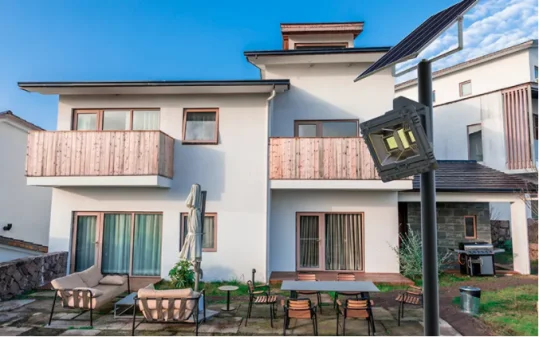

Suitable places: Park, Plaza, Garden, Outer wall, Bridge, Building, Billboard ,etc.



Features:

•Solar panel is separated from luminaire,equipped with 4-5 cable,extension cord is available,to adapt different using environment.Easy to open the glass cover,very convenient to replace accessories.

•Equipped with full color SMD5730,luminaire will change the color and mode automatically according to the musical rhythm,which can be widely used in the garden,park,plaza.Not only for lighting ,but also bring you an impressed experience on the culture of light.

•This product is designed with LED diffuser,of 110*90 beaming angle.With “three years”section and double reflecting structure,lighting effect is much better with low light consumption. Installed at the same height,the light is more focused compared with other traditional lamps,irradiation area increase by 20% as well as the brightness increase by 10%.

•P-MOS charging, charging efficiency increased by 20% ! This solar controller uses PWM-controlled P-MOS charging, a unique charge/discharge management system with more efficient charge/discharge efficiency. For example: The market routinely uses 6 V/ 30 W photovoltaic panels with a peak charging current of 5 A; but our product uses 5 V/ 30 W photovoltaic panels with a peak charging current of 6A. The charging efficiency is improved by 20%.

• Multifunctional and portable design for wider practical scenes!

The product is equipped with high-end leather handles, which can be used as portable lights, emergency lights, etc. It is suitable for outdoor camping, night fishing and other application scenarios.



Specifications

Product model	300W
Photovoltaic panel	5V/35W (580*350mm)
Discharging time	18Hours
Lamp dimension (mm)	340.2*270.2*78
Number of LED (pcs)	318pcs SMD 5730
Battery capacity	Lithium iron phosphate 24AH
Lighting area(m²)	200
Control system	Intelligent light control +remote control
product configuration	waterproof line / U-shaped rack / remote controller / screw
IP Rating	IP67
warranty	3 years



Applications



Shopping center, exhibition hall,packing lot ,gymnastics ,stadium ,billboard, park , statue , government lighting decoration , landmark or building , public square and passage , building connecting passage,telecommunication site and other indoor and outdoor lights applications.
