Outdoor Wifi Long Range Wireless Router Access Point 1800Mbps 4G 5G Router with Sim Card Slot
- Category: >>>
- Supplier: Shenzhen Zhibotong Electronics Co. Ltd.
Share on (1600524987178):
Product Overview
Description

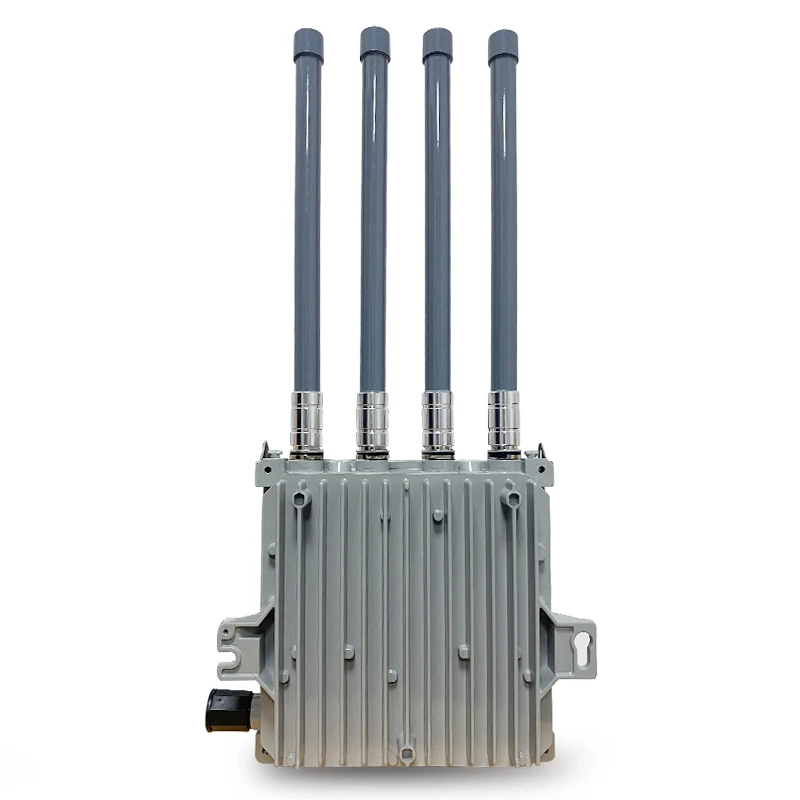

Outdoor Wifi Long Range Wireless Router Access Point 1800Mbps 4G 5G Router with Sim Card Slot
Specification
Please note: price on website not including 4G or 5G function, it means need to add extra 4G or 5G module to dial up 4G/5G internet, thanks
★ Adopt IPQ6000 chip, with Quad-Core ARM Cortex A53s CPU, main frequency up to 1.2 GHz;
★ 2.4Ghz rate up to 573.5mbps, 5.8Ghz rate up to 1201mbps, collectively referred to as 1800 Mbps;
★ Support MU-MIMO, and WiFi modulation mode supports 1024-QAM and OFDMA;
★ Each WiFi channel is independently equipped with high-power FEM(PA);
★ High speed 256MB DDR3 with 128MB NAND flash storage;
★ External LAN port support standard POE-PD function,comply with IEEE802.3AF/AT standard;
★ One built-in PCIE/M.2 interface for connect 4G/5G communication module;
★ Internal standard SIM card interface, supporting SIM / USIM card;
★ IPQ6000 has its own watchdog function, which automatically restarts in case of crash;
★ When multiple products are used at the same time, MESH automatic networking is supported;
★ With fully sealed metal shell to achieve heat dissipation and waterproof functions, meeting IP67 standard;
★ 2.4Ghz rate up to 573.5mbps, 5.8Ghz rate up to 1201mbps, collectively referred to as 1800 Mbps;
★ Support MU-MIMO, and WiFi modulation mode supports 1024-QAM and OFDMA;
★ Each WiFi channel is independently equipped with high-power FEM(PA);
★ High speed 256MB DDR3 with 128MB NAND flash storage;
★ External LAN port support standard POE-PD function,comply with IEEE802.3AF/AT standard;
★ One built-in PCIE/M.2 interface for connect 4G/5G communication module;
★ Internal standard SIM card interface, supporting SIM / USIM card;
★ IPQ6000 has its own watchdog function, which automatically restarts in case of crash;
★ When multiple products are used at the same time, MESH automatic networking is supported;
★ With fully sealed metal shell to achieve heat dissipation and waterproof functions, meeting IP67 standard;
Support logo printing
Support fiberglass antennas
Support 4G Cat 4/Cat 6/Cat 12/Cat 16 modem
Suppor Quectel 5G RM500/RM502/RM510 series 5G modem
Support WebUI customization
Support port forwarding
Support firmware language customization
Could work at EMEA/APAC area and so on
Support...
Please contact for more details

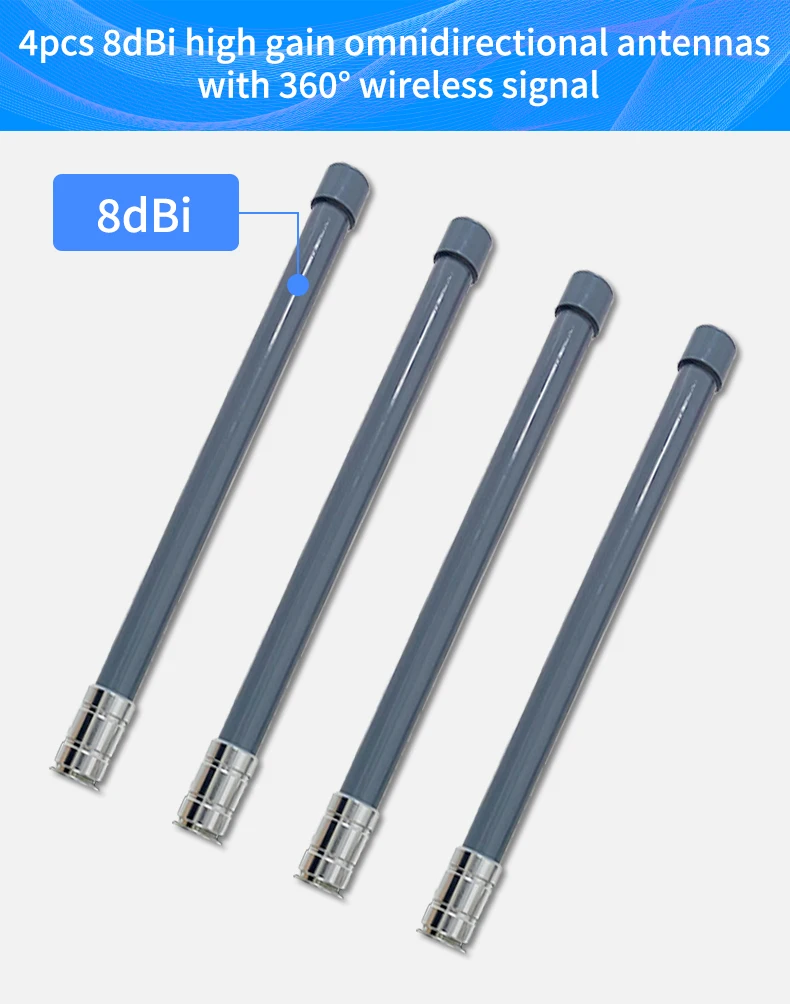

Support fiberglass antennas
Support 4G Cat 4/Cat 6/Cat 12/Cat 16 modem
Suppor Quectel 5G RM500/RM502/RM510 series 5G modem
Support WebUI customization
Support port forwarding
Support firmware language customization
Could work at EMEA/APAC area and so on
Support...
Please contact for more details
Main Chip | IPQ6000 Quad-core ARM Cortex A53s CPU, 1.2GHZ main frequency |
2.4G WIFI chip | QCN5022 IEEE 802.11ax/n/g/b,up to 573.5Mbps, 2T2R |
5.8G WIFI chip | QCN5052 IEEE 802.11ax/ac/a,up to 1201Mbps, 2T2R |
RAM | DDR3 256MB (One DDR matches 32bit firmware) |
Flash | 128MB NAND FLASH |
Ethernet Port | 1*LAN, 1000Mbps (Support Auto MDI/MDIX), IEEE 802.3/ 802.3u/ 802.ab |

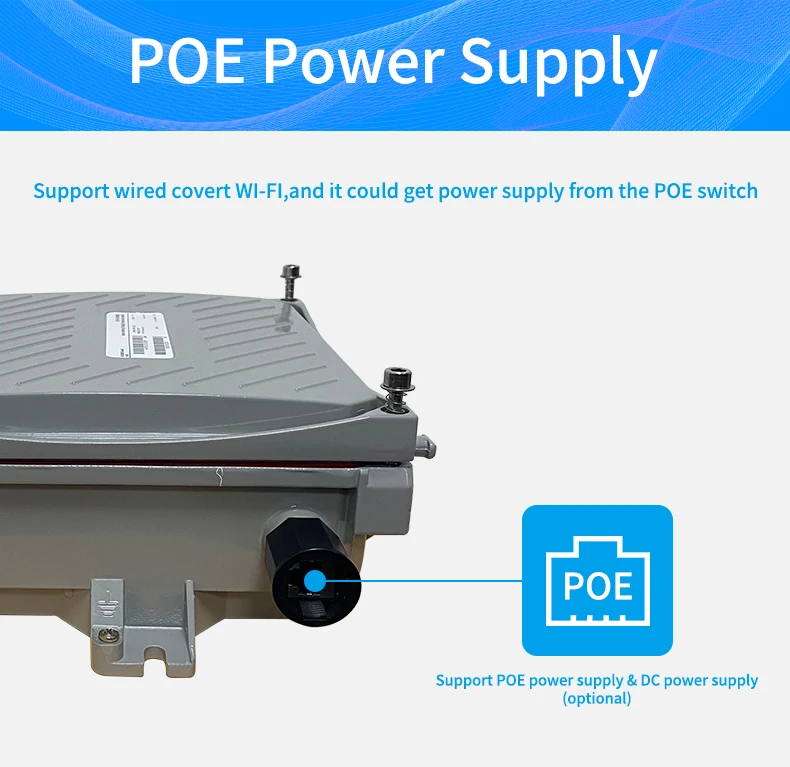

Power port | Standard POE |
Buttons | 1*Reset and 1*MESH |
SIM card slot | 1*Standard SIM card Slot, Support SIM/USIM |
2*undetachable 2.4G+5G fiberglass antennas | |
2*undetachable 5.8G+5G fiberglass antennas | |
M.2 interface | Built-in PCIE/M.2*1, Support USB3.0 and PCIE Bus, support 5G module |
Working Temperature | -20℃ - 60℃ |
Storage Temperature | -40℃ - 70℃ |
Working Humidity | 10% - 90%RH Non condensing |
Storage Humidity | 5% - 90%RH Non condensing |
Default IP | 192.168.1.1 |
User name/ Password | root/admin |
2.4G SSID | WIFI6-XXXXXX (X is the last 6 bits of MAC address), no password by default |
5.8G SSID | WIFI6-5G-XXXXXX (X is the last 6 bits of MAC address), no password by default |
Product Description
Packing & Delivery
1* Outdoor Wifi Long Range Wireless Router Access Point 1800Mbps 4G 5G Router with Sim Card Slot in a gift box
4* Outdoor Wifi Long Range Wireless Router Access Point 1800Mbps 4G 5G Router with Sim Card Slot in a carton box
4* Outdoor Wifi Long Range Wireless Router Access Point 1800Mbps 4G 5G Router with Sim Card Slot in a carton box
Company Profile
Welcome to Shenzhen Zhibotong Electronics Co., Ltd.established in 2010, located at Longhua District,Shenzhen,China. ZBT is a manufacturer which is consist of 300 staffs, with a 30-person R & D team, 10,000 Square meters production scale. Professional in R&D and producing network devices, specially for processing OEM/ODM. Products include openWRT wifi router,3G/4G router,Vehicles router,AP,Outdoor CPE and LTE CPE.ZBT is also a Wi-Fi coverage service provider,provides the solution for hotel,school,hospital,enterprise,airport and vehicle field.We have built a long term cooperation with Mediatek,Broadcom and Qualcomm,capably offering good quality products and fast after-sale service to our clients.Till now, ZBT's products have exported to over 30 countries and regions.Our main customers are China Mobile, Vivacom in Bulgaria, Sprint,T-Mobile,AT&T in USA and Smart in Philippine. We also take part in different Communication Fairs,such as MWCA in USA,Gitex in Dubai, Cebit in Germany and Computex in Taipei. Each year, ZBT will take out more than 35% of the annual turnover as R&D funds to develop new products,so as to satisfy clients' new coming requests.Customers' satisfaction is ZBT's continuously pursues. ZBT warmly welcome everybody joining in and build win-win cooperation.
Certifications
Exhibition
FAQ
Can you printing Customer logo on products?
Yes, we can printing your logo on products.
Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
Yes, we can printing your logo on products.
Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
