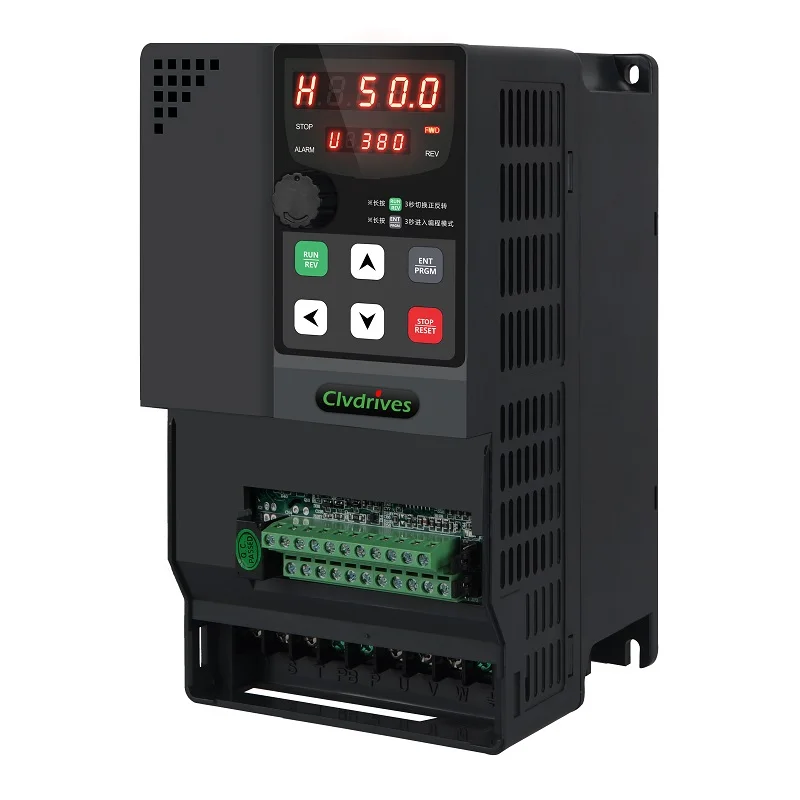

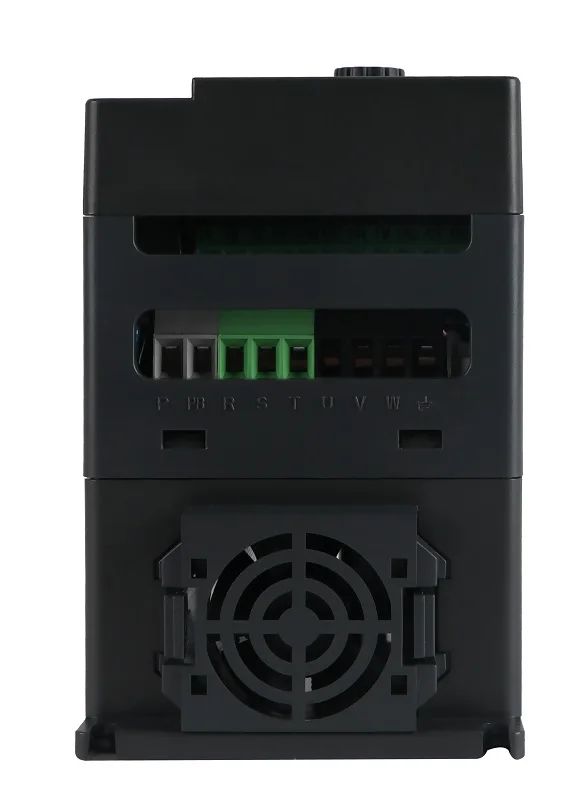

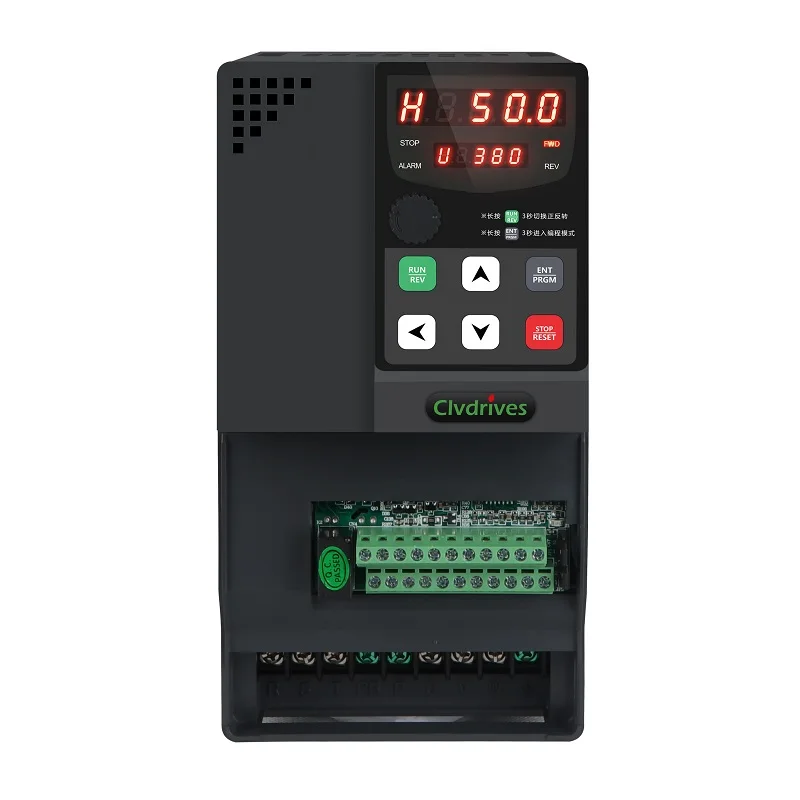

three phase 380V 7.5KW VFD Drives 10HP Variable Frequency Converter AC output Inverter Motor Speed Control High Quality
- Category: >>>
- Supplier: CLV Drives Co. Ltd.
Share on (1600524987331):
Product Overview
Description
Rating Table
CLV Drives General Purpose Frequency Inverter Power Rating from 0.75KW to 630KW
| 0.75KW to 35KW Power Rating Table | |||||
| Model No. | Input Voltage | Output Power | Output Current(A) | Dimensions | |
| KW | HP | L*W*H(mm) | |||
| V1000-V0007G1 | Single Phase 220V±10%, 50/60Hz | 0.75 | 1 | 4 | 170*86*131.5 |
| V1000-V0015G1 | 1.5 | 2 | 7 | ||
| V1000-V0022G1 | 2.2 | 3 | 10 | 180*96*151 | |
| V1000-V0007G3 | Three Phase 380V±10%, 50/60Hz | 0.75 | 1 | 2.5 | 170*86*131.5 |
| V1000-V0015G3 | 1.5 | 2 | 3.7 | ||
| V1000-V0022G3 | 2.2 | 3 | 5.1 | ||
| V1000-V0040G3 | 4 | 5 | 8.5 | 180*96*151 | |
| V1000-V0055G3 | 5.5 | 7.5 | 13 | 221.6*113*166.5 | |
| V1000-V0075G3 | 7.5 | 10 | 16 | ||
| V1000-V0110G3 | 11 | 15 | 25 | 265*160*171.5 | |
| V1000-V0150G3 | 15 | 20 | 32 | ||
| V1000-V0185G3 | 18.5 | 25 | 38 | 302.5*192*171.5 | |
| V1000-V0220G3 | 22 | 30 | 45 | ||
| V1000-V0300G3 | 30 | 40 | 60 | 348.5*227*171.5 | |
| V1000-V0370G3 | 37 | 50 | 75 | ||
Basic Function
| Drive Performance | High efficiency driving for induction motor and synchronous motor |
| Maximum Frequency | Vector Control:0~500Hz V/F Control:0~500Hz |
Carrier Frequency | 0.5kHz~16kHz; the carrier frequency will be automatically adjusted according to the load characteristics |
Input Frequency Resolution | Digital Setting: 0.01Hz Analog Setting: maximum frequency ×0.025% |
| Control Mode | Open Loop Vector Control(SVC) |
| Startup Torque | G Type: 0.5Hz/150%(SVC); 0Hz/180%(FVC); |
| Overload Capability | G Type:150% rated current 60 seconds; 180% rated current 3 seconds; |
| Torque Boost | Auto Torque Boost Function; Manual torque boost 0.1%~30.0% |
| V/F Curve | Linear V/F,multi-point V/F and square V/F curve (power of 1.2,1.4,1.6,1.8,2) |
| DC Brake | DC Brake Frequency: 0.00Hz to maximum frequency. Brake time: 0.0s to 36.0s Brake current value:0.0% to 100.0%. |
| Jog Control | Jog Frequency Range:0.00Hz~50.00Hz Jog Acceleration/deceleration Time 0.0s~6500.0s |
| Simple PLC and Multi-speed Running | It can realize at maximum of 16 segments speed running via the built-in PLC or control terminal |
| Built-in PID | It is easy to realize process-controlled closed loop control system |
| Auto Voltage Regulation(AVR) | It can keep constant output voltage automatically in the case of change of network voltage |
| Over-voltage/current Stall Control | It can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running process |
| Quick Current Limit | Minimize the over-current fault, protect normal operation of the inverter |
Personalized
| Rapid Current Limit | To avoid Inverter frequency over-current fault |
| Timing Control | Timing control function: set time range 0Min~6500.0Min |
| Command Source | Operation panei reference, control terminal reference, and serial COM port reference. It can be switched in various ways. |
Input Terminal | Standard: 5 Digital input terminals 2 Analog input terminals 1 Support 0-10V voltage input or 0~20mA current input. |
Output Terminal | Standard: 2 Digital output terminals 1 Relay output terminal, which can be expanded into 2 channels 1 Analog output terminals, support 0~10V output voltage; |
Environment
Altitude | Below 1000m |
Ambient Temperature | -10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃) |
Humidity | Less than 95%RH, without condensing |
Vibration | Less than 5.9m/s (0.6g) |
Details Images
Application
Packing & Delivery
We have cartons and wooden boxes, which are pwcked in cartons below 75KW and wooden boxes above 93KW. Thichened shockproof foam is filled inside to prevent damage to equipment in transit.
FAQ
Q 1: Are you trading company or manufacturer ?
A: We are factory.
Q 2: How long is your lead time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q 3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample,but we will charge the sample fee and the cost of freight.
Q 4: What is your terms of payment ?
A:We accept T/T, L/C and Western Union,MoneyGram .
Q 5: What is the standard of package?
A. Export standard package or special package according to customer requirement.
Q 6. Is there any discount ?
A. The discount will depend on the quantity you purchase.
Q 7. What is your supply capacity?
A. The week output of the factory exceeds 500 PCs.
Q 8.Do you provide warranty for the goods?
A. Yes, we provide 18 months of warranty for all the goods from us.
Q 9.Could M-driver provide technical support?
A.We' have more than 12 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
