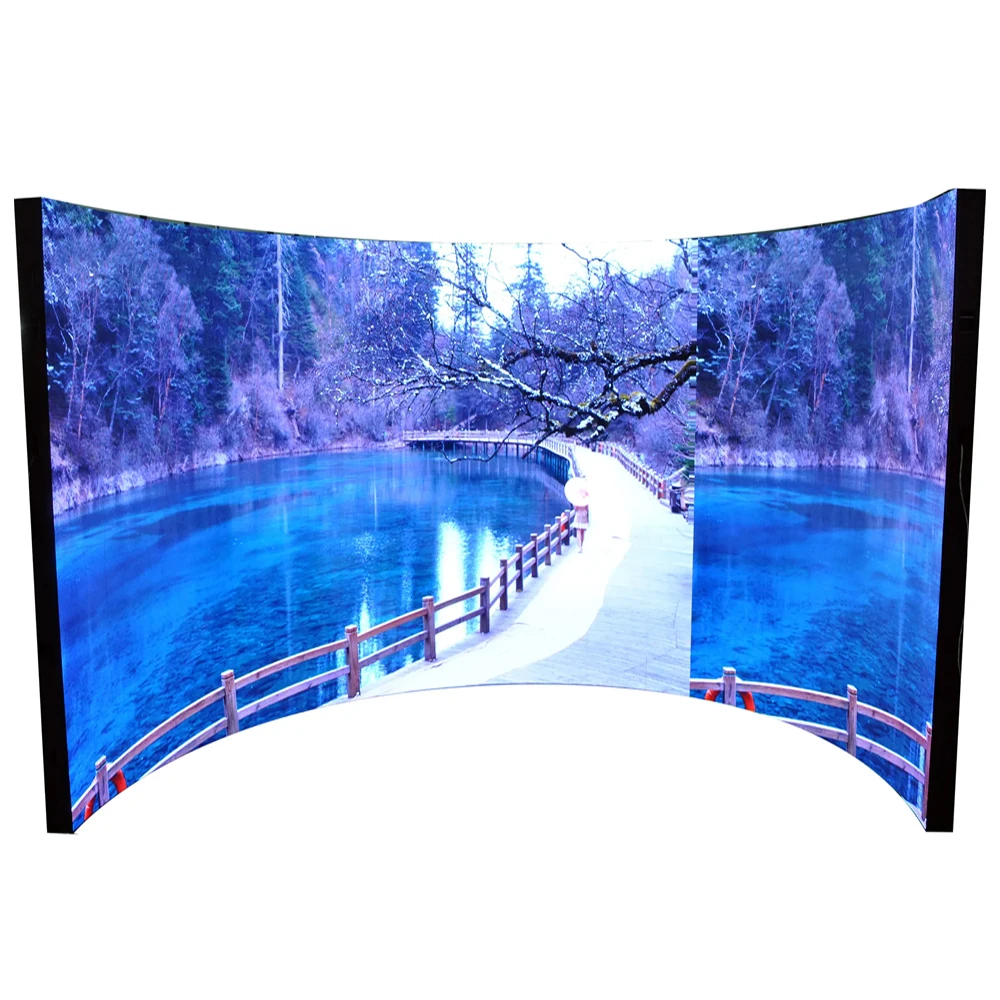

P1.5/p2/p2.5/p3/p4 indoor LED display outdoor LED arc display HD LED module shopping mall supermarket display
- Category: >>>
- Supplier: Shenzhen Senwei Technology Co. Ltd.
Share on (1600525133569):
Product Overview
Description
Product Description
List of assembly materials

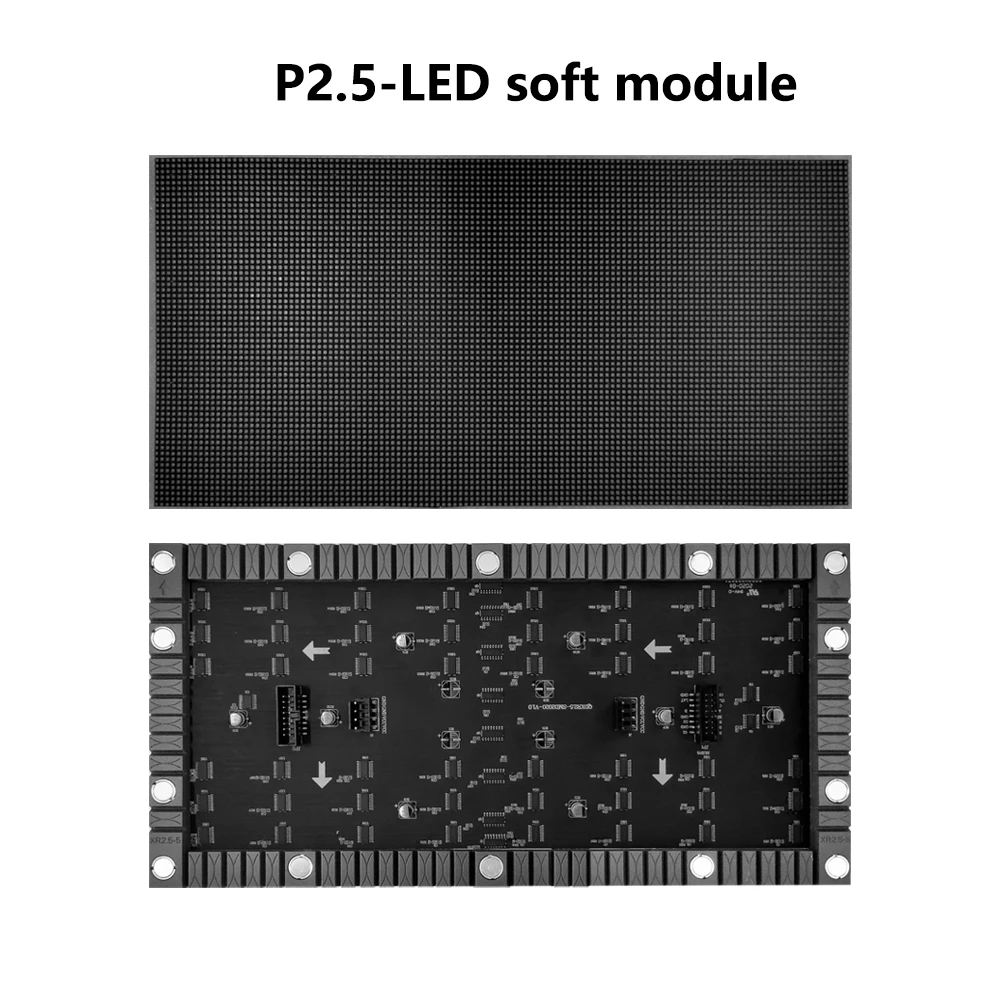

Module
Power supply
Cabinet
Receiving card
Sending card
Fixed screw
Video processor
Flat cable
CAT cable

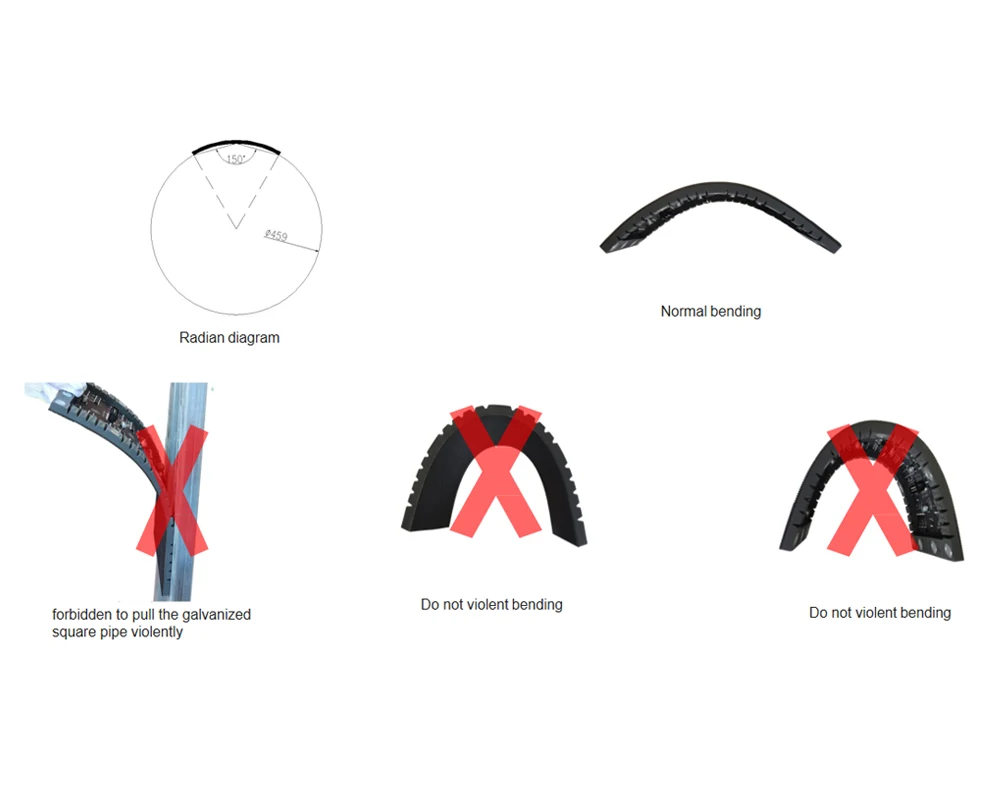

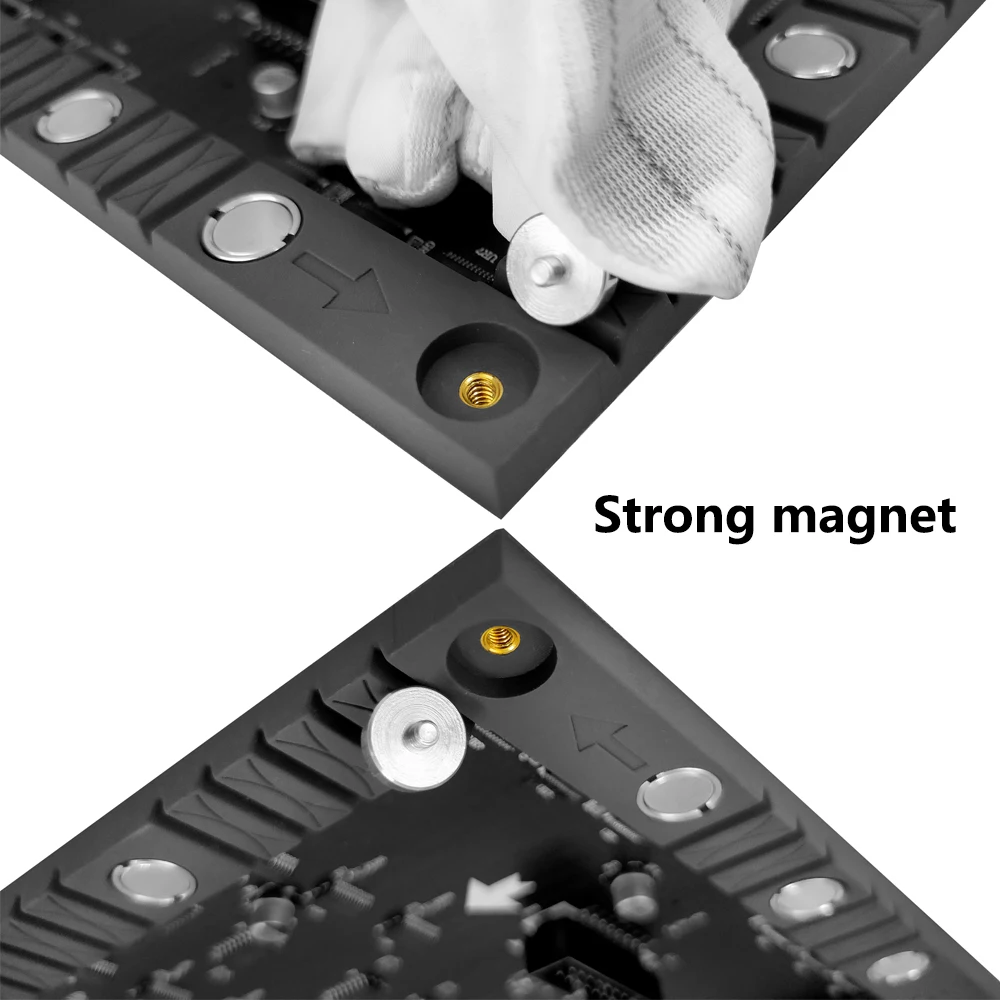

Module installation details
installation process
1
2
3
4
5
6
7
8
9
10
11
12
Overall wiring diagram-1
Overall wiring diagram-2

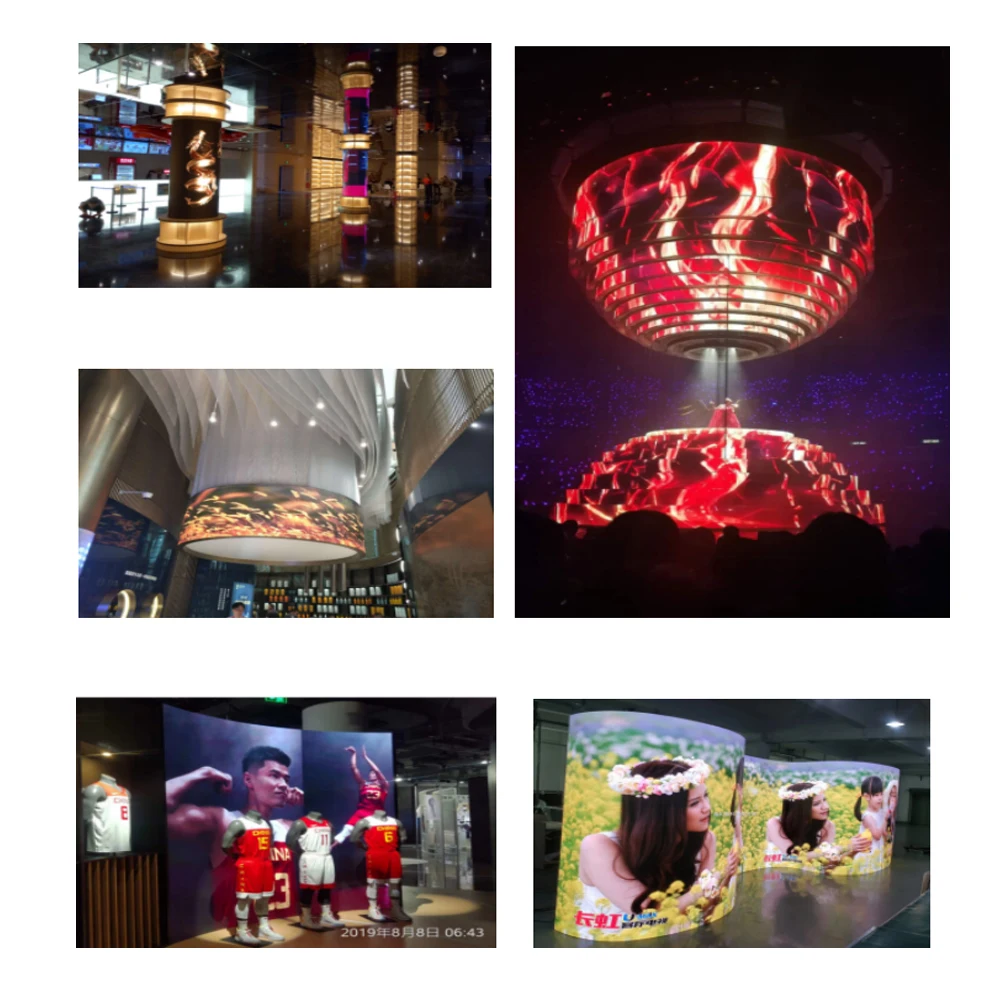

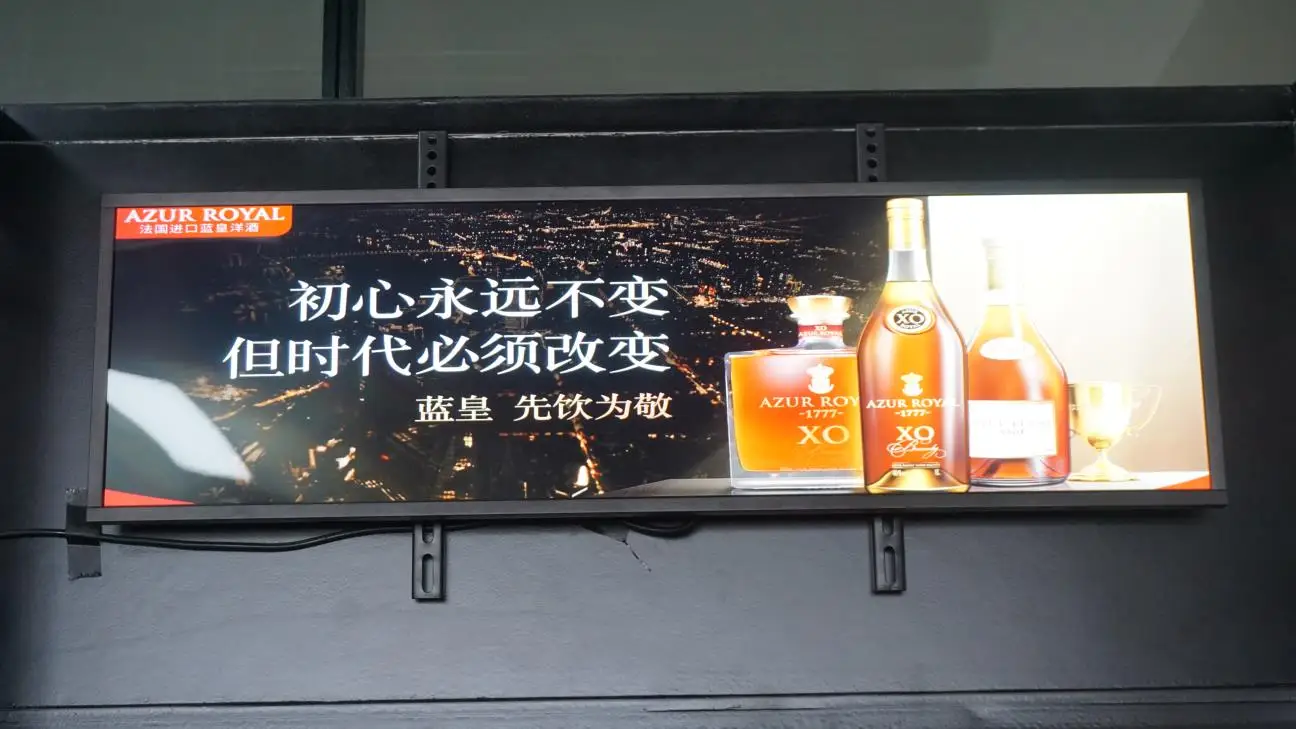

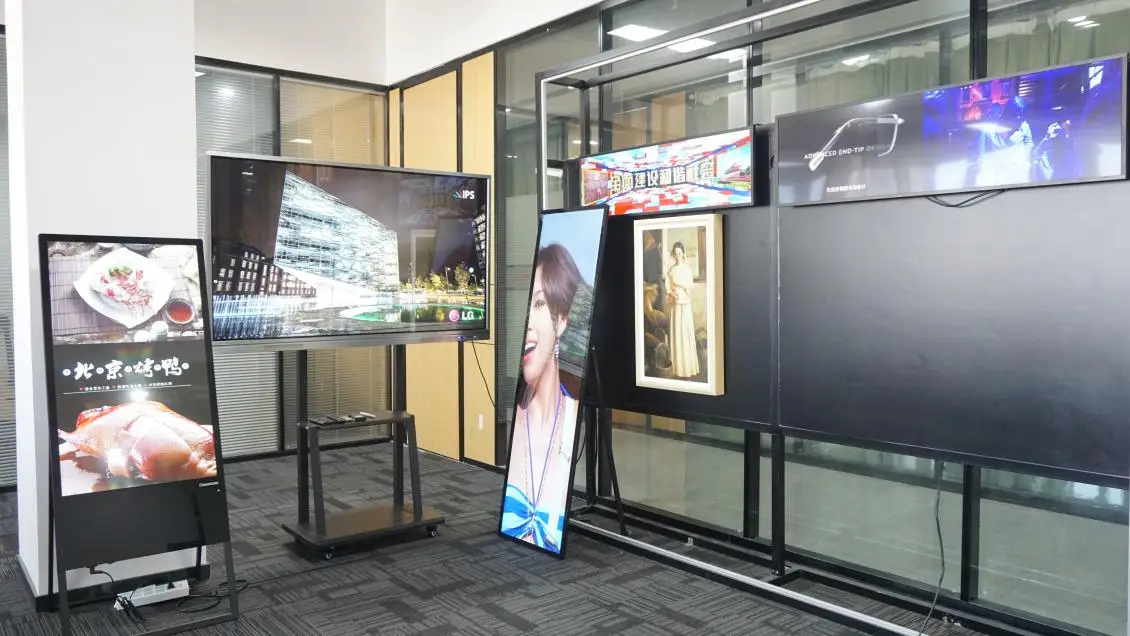

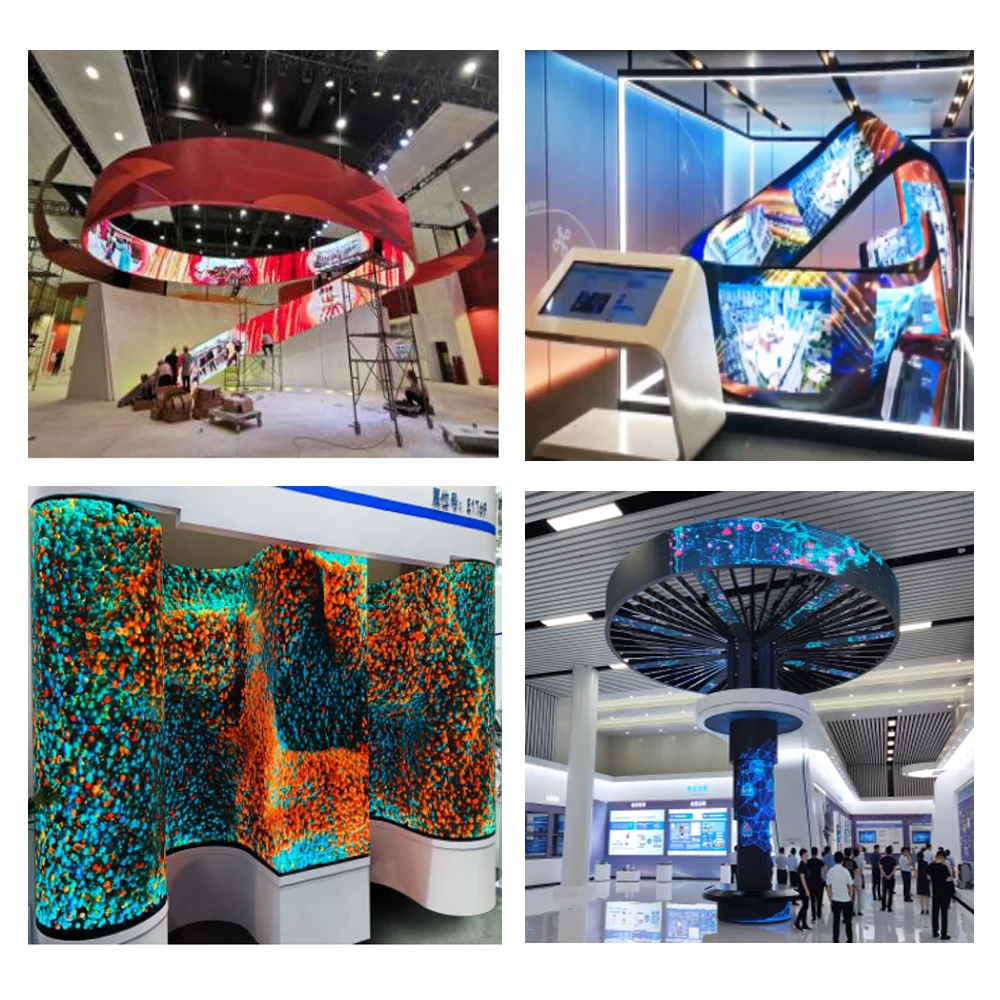

Project case
Specification parameters
Product name | SV-C1.86-PLUS | SV-C2-PLUS | SV-C2.5-PLUS | SV-C3.076-PLUS | SV-C4-PLUS | ||||
Pixelconfiguration | 1R1G1B（Full color） | ||||||||
Lamp bead package specification | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | ||||
Pixel density (dots / m2) | 289050 | 250000 | 160000 | 105688 | 62500 | ||||
Module Size（mm） | 320x160x8.6(length x Height x thickness) | ||||||||
Module Resolution | 172x86 | 160x80 | 128*64 | 104x52 | 80X40 | ||||
Scanning mode | 1/43S | 1/40S | 1/32S | 1/26S | 20S | ||||
Standard drive IC (optional) | Fuman 6363 / Jichuang 2163 (subject to the actual situation) | Fuman 6353 / Jichuang 2153 (subject to actual) | |||||||
refreshfrequency（Hz | ≥2880 | ||||||||
Frame change frequency（Hz） | 50&60 | ||||||||
Gray level（bit） | 14-18bit | ||||||||
Signal interface mode | HUB75 | ||||||||
Module bottom shell material | Silicone soft bottom shell | ||||||||
Module weight (kg / piece) | 0.300 | 0.315 | 0.269 | 0.252 | 0.28 | ||||
Box size | It can be customized according to the size of the module | ||||||||
Cabinet material | Sheet metal sandblasting iron box | ||||||||
Box material and flatness（mm） | ≤ 0.3 | ||||||||
Degree of protection | IP30 | ||||||||
Installation/maintenance mode | Front and rear installation & maintenance | ||||||||
brightness（cd） | ≥600 | ≥650 | ≥750 | ≥750 | ≥600 | ||||
Colortemperature（K | ≤12000 Adjustable | ||||||||
coordinate | X:0.2500 Y:0.3000 | ||||||||
Brightness uniformity | ≥95% | ||||||||
Horizontal / vertical viewing angle | ≥160°/≥140° | ||||||||
contrast ratio | ≥5000:1 | ||||||||
Module supply voltageDC（V） | 5 | 5 | 5 | 5 | 5 | ||||
Module maximum currentDC（A） | 3.8 | 3.8 | 3.6 | 4 | 3.5 | ||||
Maximum power consumption of module（w/piece） | 19 | 19 | 19 | 19 | 19 | ||||
Working input voltageAC（V） | 110-220V | ||||||||
Peak powerconsumption（w/m2 | 370 | 370 | 351 | 390 | 341 | ||||
Averagepowerconsumption（w/m2） | 105 | 104 | 100 | 110 | 97 | ||||
Typical value of service life（hrs） | 100,000 | ||||||||
Operating temperature range（℃） | -10—50 | ||||||||
Operating humidity range（RH） | 20—80%（No condensation） | ||||||||
