Diesel engine stationary 1094CFM 362PSI screw air compressor for water well drilling rig

Product Overview

Description

Diesel engine stationary 1094CFM 362PSI screw air compressor for water well drilling rig



A: Machine purpose of screw air compressor

This series air compressor is mainly used with water well and geothermal project required drilling less than 400mm hole diameter machine;

B: Machine main features of screw air compressor
1. Heavy-duty diesel engine.

It is equipped with Yuchai and other national III heavy-duty special diesel engines. Achieve optimal combustion throughout the engine run. The product has higher reliability, more power, and better fuel economy.
2. Computer control system.

The whole process displays the operating parameters such as running speed, supply pressure, oil pressure, exhaust temperature, coolant temperature, and fuel level. Self-diagnostic faults, alarms and shutdowns ensure the safe operation of unattended machines.

C:Main technical data of screw air compressor

Model	Working pressure	Capacity	Diesel engine brand	Power

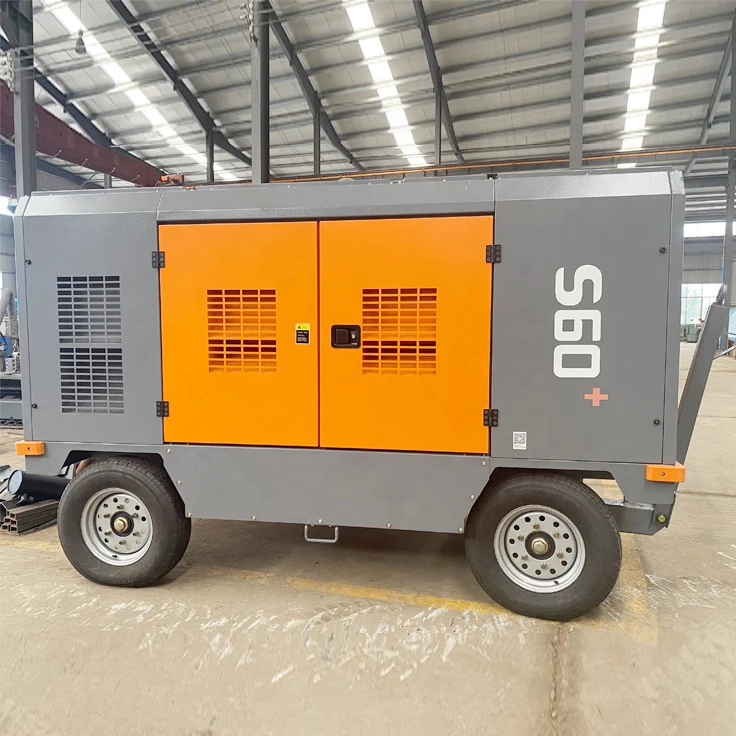

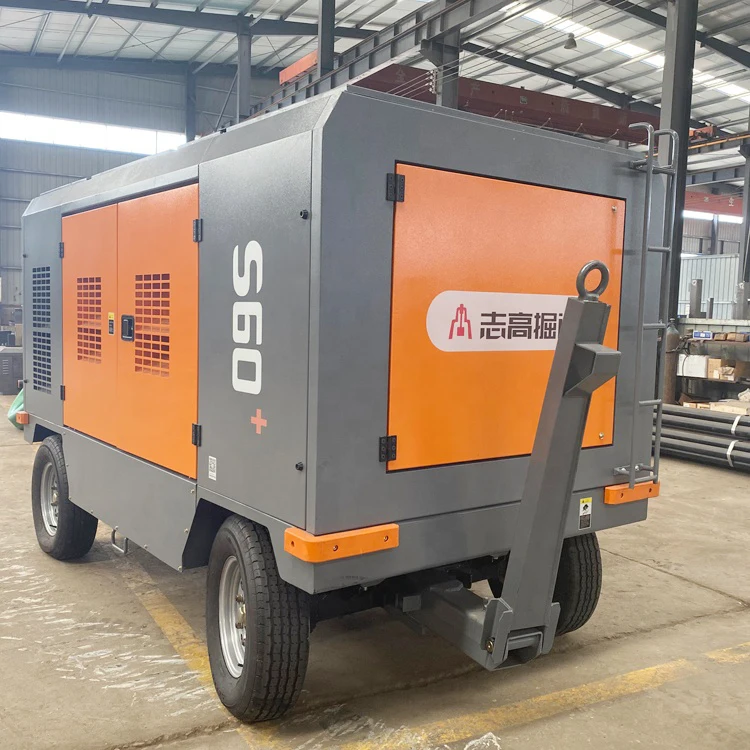

S60+	18bar	18m3/min	YUCHAI	162kw
S85D+	22bar	24m3/min	YUCHAI	228kw
S95CD+	24bar	29m3/min	YUCHAI	295kw

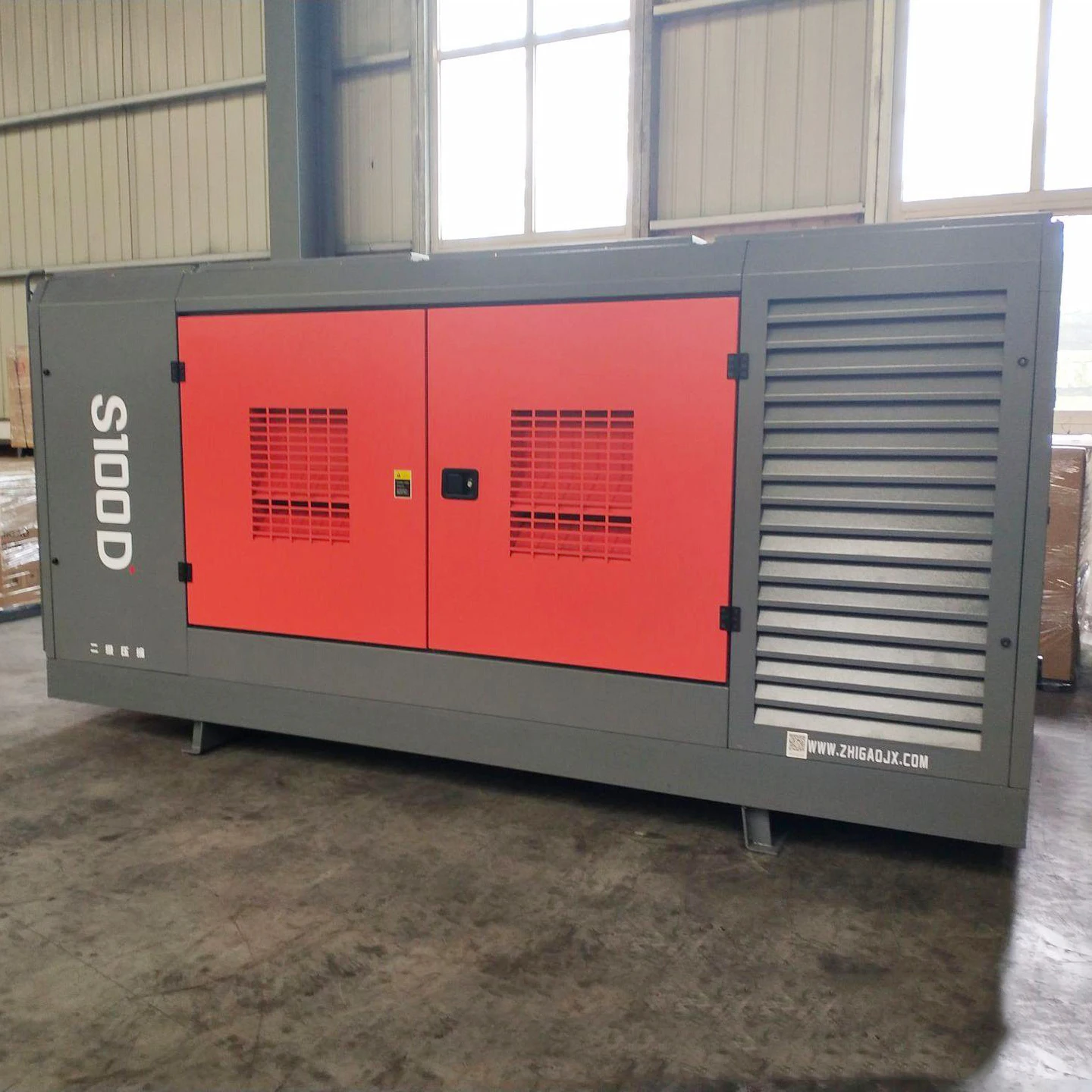

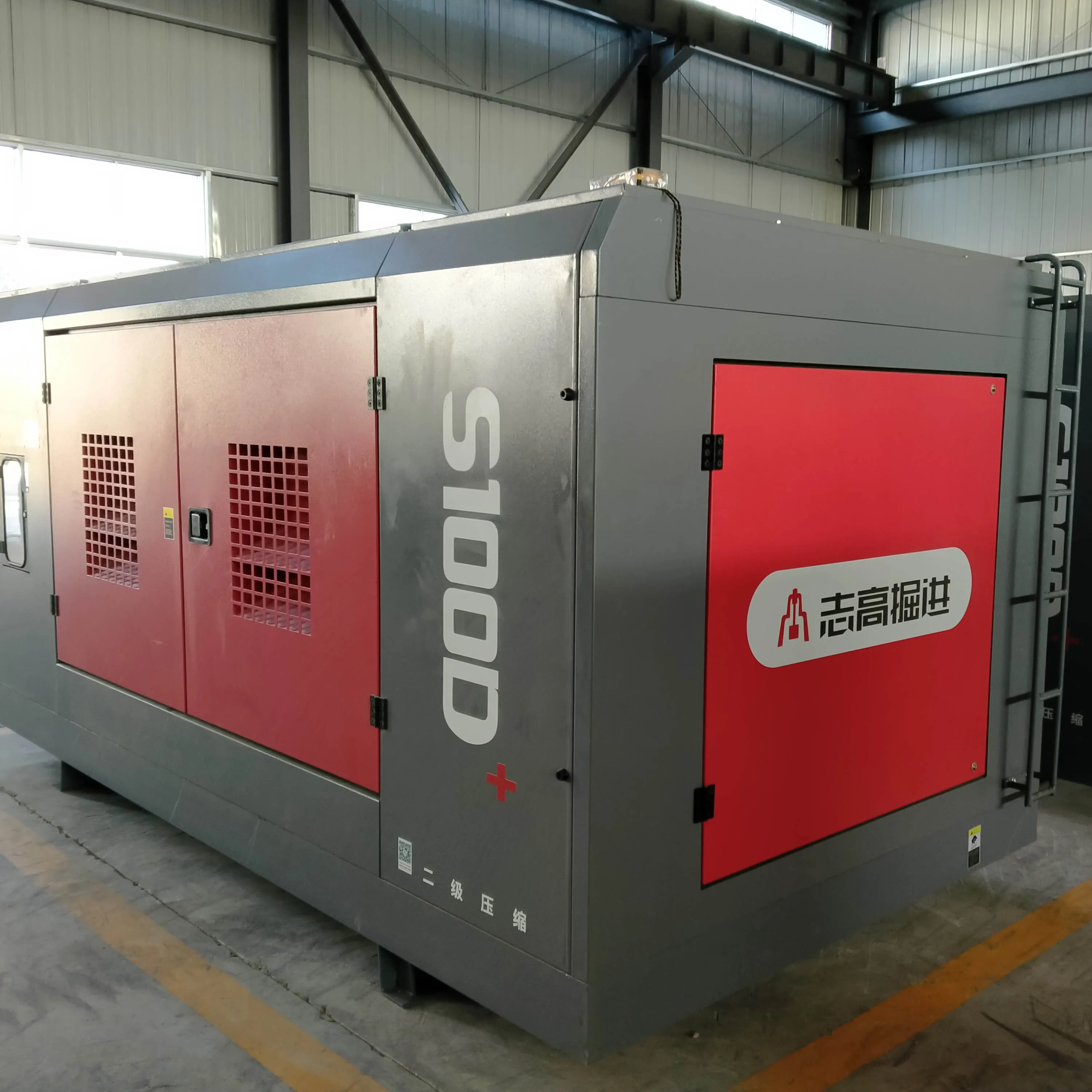

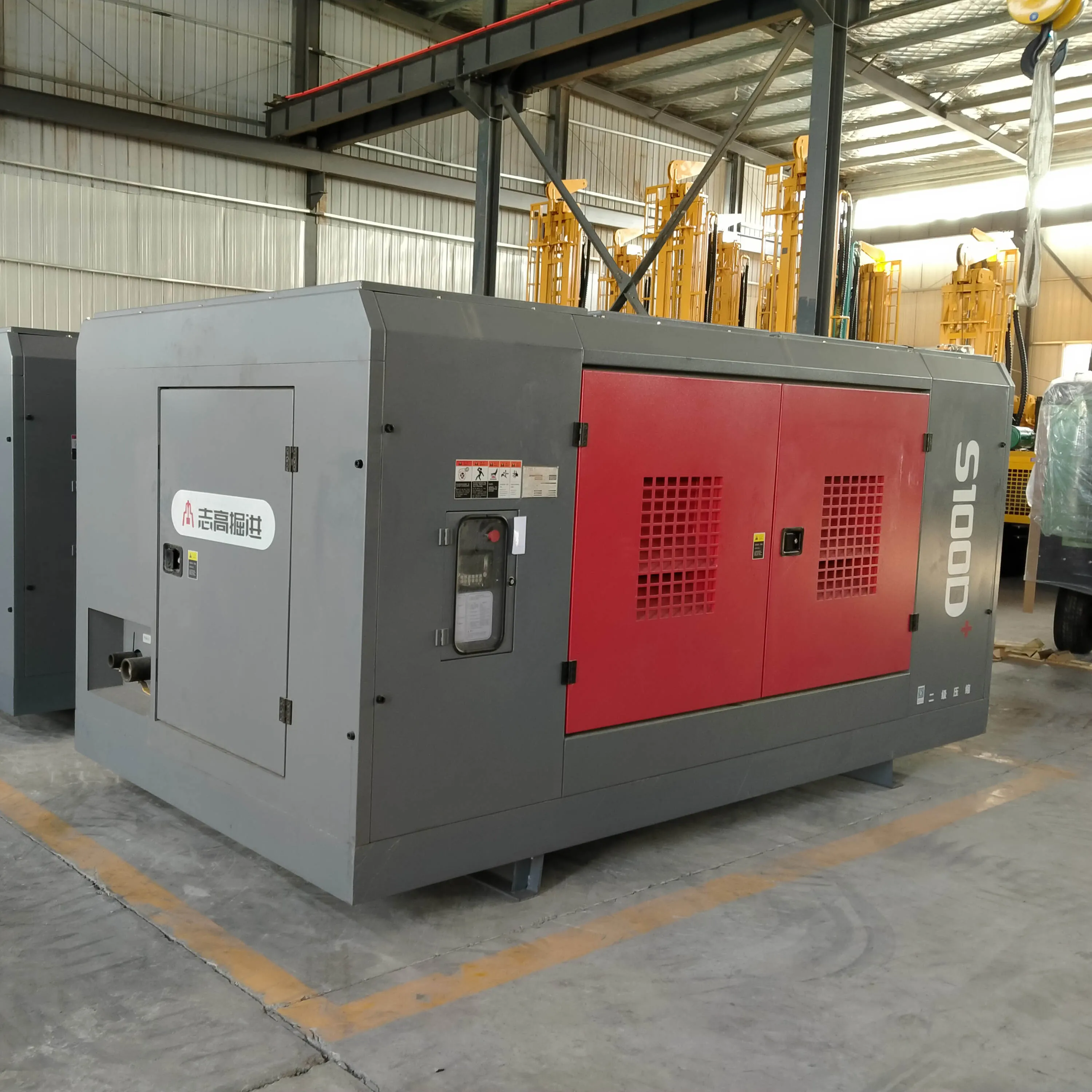

S100D+	25bar	31m3/min	XICHAI	309kw
S125D+	30bar	35m3/min	CUMMINS	419kw

D: More details of portable diesel screw air compressor

E: Packing and shipping about portable diesel screw air compressor
Packaging: General export packing or customized packaging according to your requirement.
Shipping: Professional goods shipping forwarders.
Delivery Time: 7 working days after deposit.

F: After sales service:
1.We can provide all-round technical guidance ff there is any problem about our machine;
2.7*24 hours multi-language professional after-sales service group
3.Construction solutions will be provided for different geological conditions.

4.All the accessories of that kind of machine can be provided for a long time.

G: About Zhigao Group:

Zhigao group is a professional compressor enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China, as well as the nation’s largest screw air compressor manufacturer in terms of production and sale. In 2019 the company’s sales revenue was close to RMB 10 billion. Indeed the scale of its production and sales are significantly higher than all other competitors in China, including multinational companies.

With over 1,000 sales outlets Zhigao’s sales network covers all of China, offering quality sales service to customers. Its products are also sold in more than 60 countries and regions worldwide, including the United States, Germany, Japan, Korea and Russia.

H: FAQ:
Q1: Are you a factory or a trading company?
A1: we are specialized in producing water well drilling rig and core drilling rig in China, at the same time, we are the fist sales agent of Zhigao machine and Kaishan machine in China. We will give you the best prices if you choose us;
Q2: What the exactly address of Zhigao factory?
A2: The company is located in Quzhou, Zhejiang, China
Q3: What is the warranty of Zhigao machine?
A3: one year.
Q4: Can you provide some spare parts for the machine?
A4: of course.
Q5: What kind of payment can you accept?
A5: 30% t / T is senior and 70% t / T is copy of B / L.
Q6: How long do you need to arrange for delivery?
A6: within one week after confirming the order. Most products are in stock.
Q7: Can you accept orders from OEM?
A7: Yes, some products can accept OEM
