China Manufacturer Factory Price Breathing Medical Product High End Use for Adult and Infant ICU Ventilator
- Category: >>>
- Supplier: Nanjing Puao Medical Equipment Co. Ltd.
Share on (1600525444970):
Product Overview
Description
Product Description
Product Application
China Manufacturer Factory Price Breathing Medical Product High-End Use for Adult and Infant ICU Ventilator
Features
China Manufacturer Factory Price Breathing Medical Product High-End Use for Adult and Infant ICU Ventilator
Common Features
• Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory
therapy
• Display: High visibility, wide angle LED alphanumeric data display, equipped with tactile analog parameter controls
•Equipped with high precession infrared turbine pressure and flow sensors
•Power failure support functions: Automatically converts to standby mode during AC power outages
• Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking
function during startup and an automatic self-calibrating sensor
•Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure oxygen failure and other alarms.
•9 Level adjustable humidifier
• Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory
therapy
• Display: High visibility, wide angle LED alphanumeric data display, equipped with tactile analog parameter controls
•Equipped with high precession infrared turbine pressure and flow sensors
•Power failure support functions: Automatically converts to standby mode during AC power outages
• Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking
function during startup and an automatic self-calibrating sensor
•Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure oxygen failure and other alarms.
•9 Level adjustable humidifier
Specifications
China Manufacturer Factory Price Breathing Medical Product High-End Use for Adult and Infant ICU Ventilator
● Display: LED
● Ventilation Mode: A/C, IPPV, SIPPV, IMV, SIMV, MANUAL
● Minute Volume:Greater than or equal to 18L
● Back~up Power Supply: At least 30 minutes, normally 2~4 hours
● Tidal Volume:Adjustable range: 50~1500ml, Display range: 0~2000ml
● Output Oxygen Concentration: 40%~100%
● Respiratory Rate: 6~60bpm
● Pressure Limit: 1~6kPa
● Inspiratory/Expiratory (I:E) Ratio: 1:1.5~1:3.0
● PEEP: 1~10cmH2O
● SIMV Rate: 1~12bpm
● Inspiratory Pressure Trigger: ~4~10cmH2O
● Maximum Safe Operating Pressure: ≤6.0 kPa
● SIGH: 1 sigh breath in every 80~120 breaths
● Airway Pressure Alarm:Upper Limit: 0.9~5.4kPa, Lower Limit: 0.5kPa
● Gas Supply Requirement: 280~600 kPa medical grade oxygen
● Ventilation Mode: A/C, IPPV, SIPPV, IMV, SIMV, MANUAL
● Minute Volume:Greater than or equal to 18L
● Back~up Power Supply: At least 30 minutes, normally 2~4 hours
● Tidal Volume:Adjustable range: 50~1500ml, Display range: 0~2000ml
● Output Oxygen Concentration: 40%~100%
● Respiratory Rate: 6~60bpm
● Pressure Limit: 1~6kPa
● Inspiratory/Expiratory (I:E) Ratio: 1:1.5~1:3.0
● PEEP: 1~10cmH2O
● SIMV Rate: 1~12bpm
● Inspiratory Pressure Trigger: ~4~10cmH2O
● Maximum Safe Operating Pressure: ≤6.0 kPa
● SIGH: 1 sigh breath in every 80~120 breaths
● Airway Pressure Alarm:Upper Limit: 0.9~5.4kPa, Lower Limit: 0.5kPa
● Gas Supply Requirement: 280~600 kPa medical grade oxygen
Model | PA-500 |
Display | LED |
Ventilation Mode | A/C, IPPV, SIPPV, IMV, SIMV, MANUAL |
Minute Volume | Greater than or equal to 18L |
Back-up Power Supply | At least 4 hours |
Tidal Volume | Adjustable range: 50-1500ml, Display range: 0-2000ml |
Respiratory Rate | 6-60bpm |
Inspiratory/expiratory (I:E) ratio | 1:1.5-1:3 |
PEEP | 1-10cmH2O |
SIMV Rate | 1-12bpm |
Inspiratory Pressure Trigger | -4-10cmH2O |
Adjustable Oxygen Concentration | 40-100% |
Gas Supply Requirement | 280~600 kPa medical grade oxygen and compressed air supply |
Maximum Safe Operating Pressure | ≤6.0kPa |
SIGH | 1 sigh breath in every 80-120 breaths |
Airway Pressure Alarm | Upper Limit: 0.9~5.4kPa, Lower Limit: 0.5kPa |
Gas Supply Requirement | 280~600 kPa medical grade oxygen |
Output Oxygen Concentration | <50% |

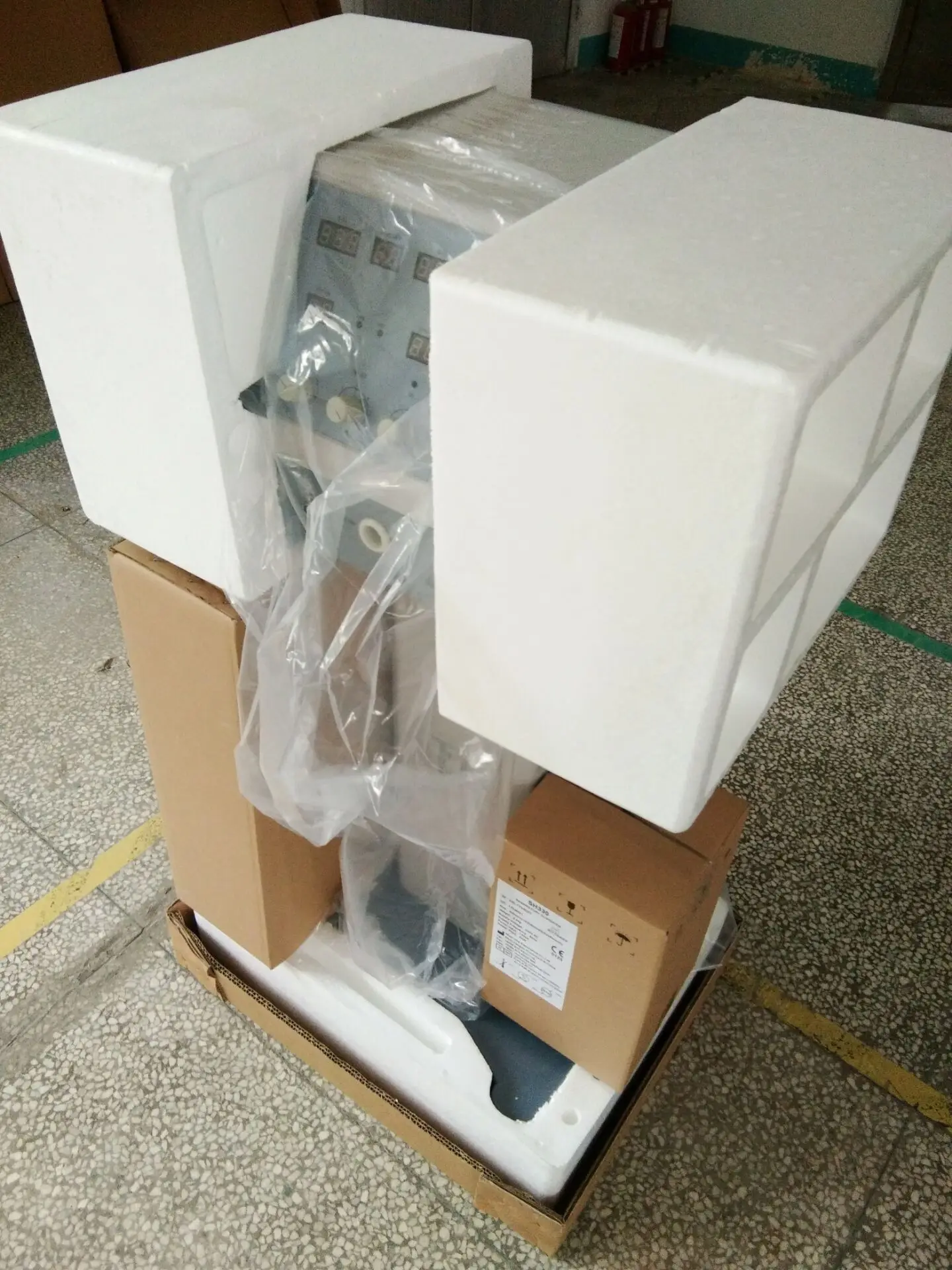

Packing & Delivery
Our Service
Certifications

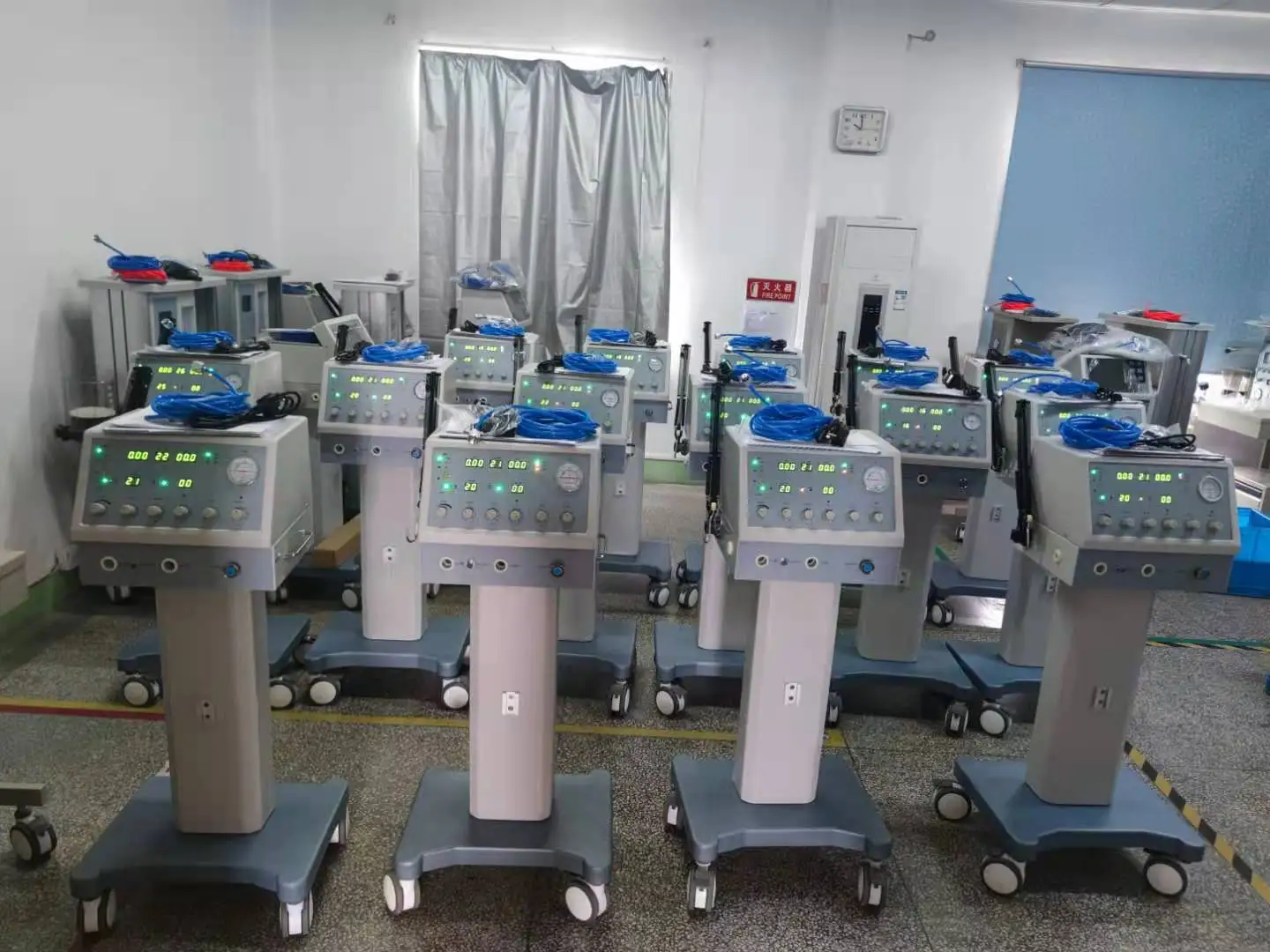

Product Showcase
Company Information
FAQ
I) What is your Minimum Order Quantity?
Our minimum order quantity (MOQ) is generally 1 unit. The exception however is that for certain accessories (e.g. wires) the MOQ may vary. Feel free to contact us to get a exact MOQ quote.
II) Which payment methods do you accept?
We accept most forms of monetary payment such as bank transfer, T/T, direct transfer & Alibaba Secure Payment. Please get in touch with one of our sales managers to check if your payment option is acceptable.
III) What is your shipping & delivery time?
Once we have confirmation of your order we normally ship within 5 to 10 working days.
IV) What product guarantees do you offer?
All our products are Alibaba Trade Assured which means that your order will be fully protected. Hence if we fail to ship on time or can’t meet our product quality obligations, Alibaba will refund your payment.
V) Which certifications do you have?
Almost all our products are CE, ISO and RoHS certified.
VI) Can I place my company logo on your product?
Yes, baring a few exceptions. Please check with our sales team before applying.
VII) What after sales services do you provide?
We offer technical, customer service & troubleshooting support for the life time of the product.
VIII) How long is your warranty period?
We typically offer 12 to 24 months warranties for all our products, except some accessories which may have shorter warranty periods.
