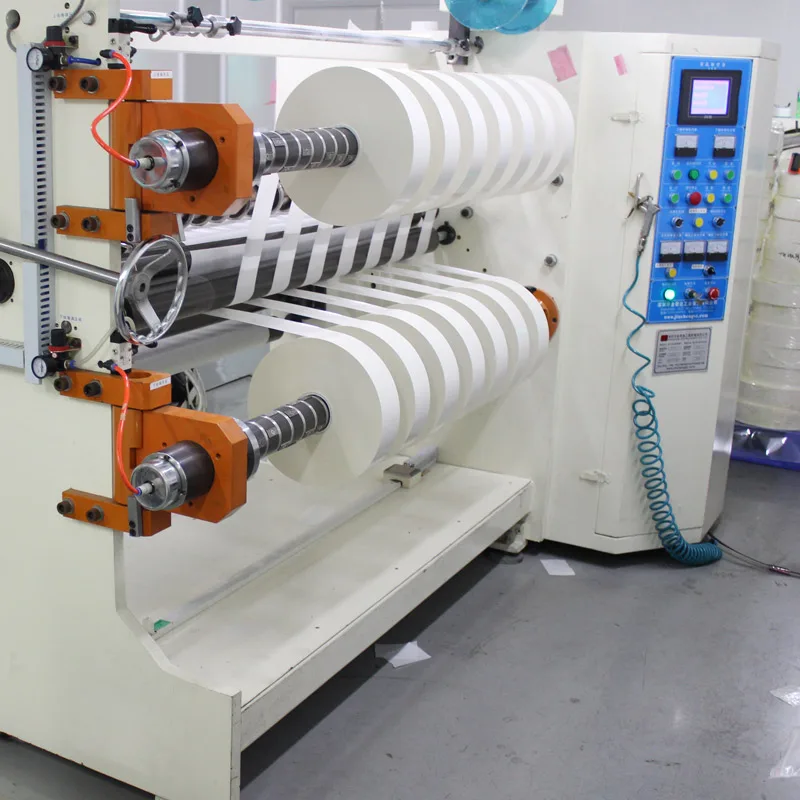

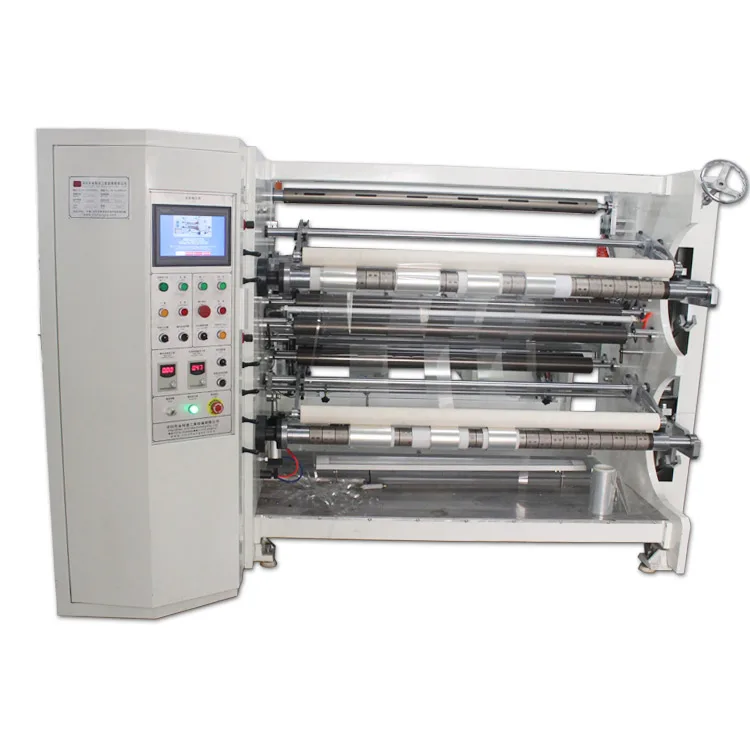

OCA TPU, PET, PC Foam PVC, plastic film and Fabric roll laminating slitting and rewinding machine

Share on (1600525477469):


Price:$27,800.00 - $28,850.00

Quantity:


Product Overview

Description



Professional slitting rewinding machine


***Function***
This machine is suitable for laminating slitting the OCA/ ITO/ PC/PET film/ PE film/ CPP film/ Foam/ Paper/ Label / Fabric roll and so on.
Slitting / Single side lamination + Slitting / Double sides lamiantion + Slitting / Lamination + Peeling + Slitting / all could be made in this one machine.




***The Structure:***






1. The Mother roll unwinding part
Automatic hydraulic oil loading system, max weight it could charge is 1000KG

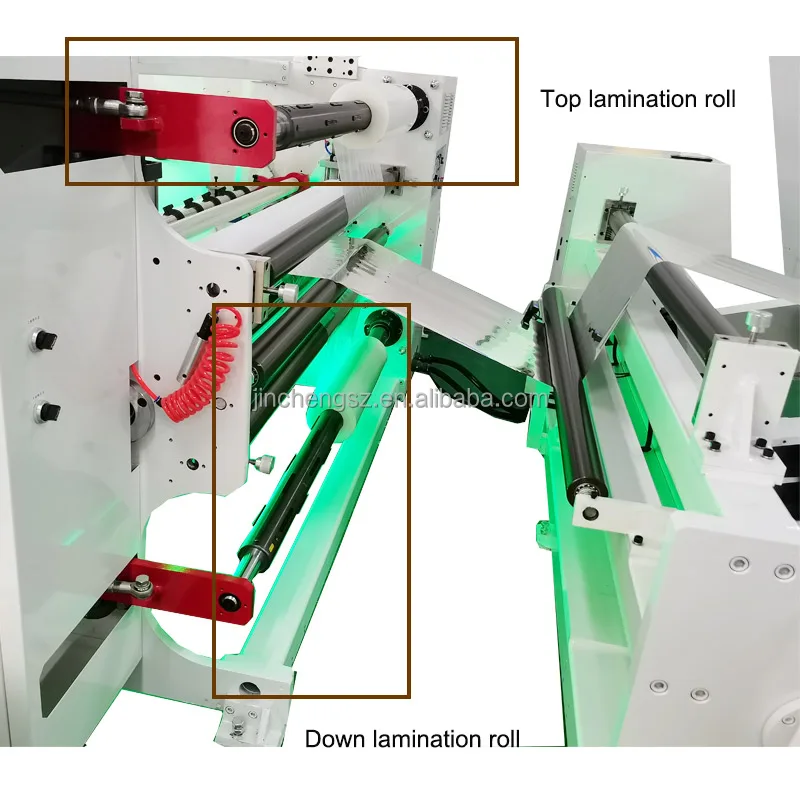

2. The lamination part
Top and down laminating
Suitable for PE and PET protecting film, double sides tape, fabric and so on

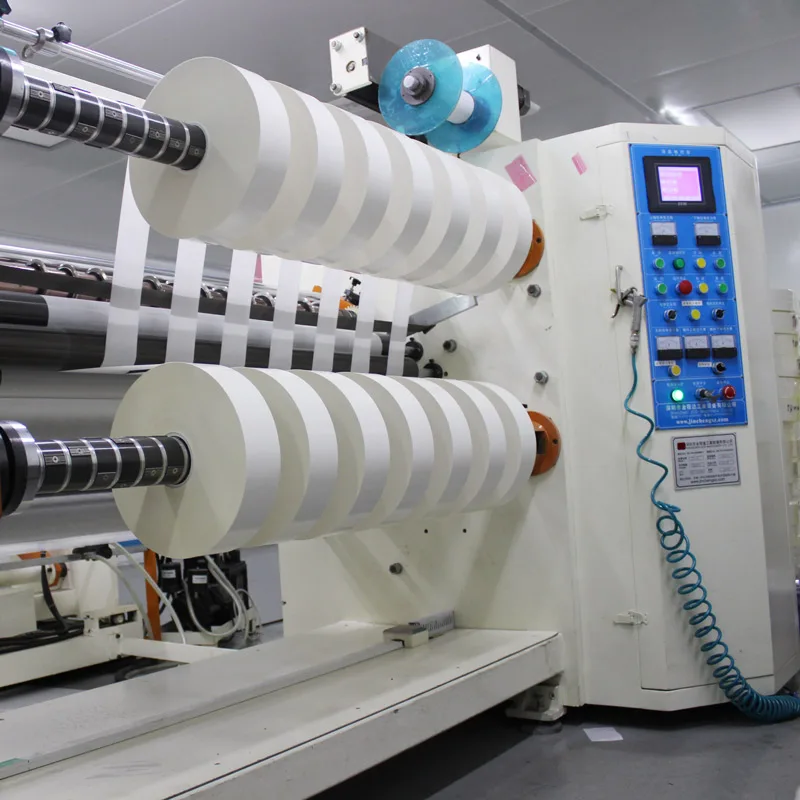

3. The rewinding part
Double shafts for rewinding


***The Specification:***


Type
JC-S03B-1300
JC-S03B-1600
Valid width
1300mm
1600mm
Max mother roll unwinding diameter
800mm
800mm
Max Rewinding Rewinding diameter
500mm
500mm
Inner tube diameter
3'' or 6''


3'' or 6''

Speed
0-150m/min adjustable
0-150m/min adjustable
Size
3200*3000*1300mm
3300*3200*1300mm
Weight
3500KG
3500KG


Detailed Images





1. Double-sided laminating ,sinlge side laminating, protective film moving could choosen.

Widely used in the printing filed and PET die cutting filed.




  • 2. Automatic ultrasonic EPC system.

  To make sure the slitting surface  perfect.

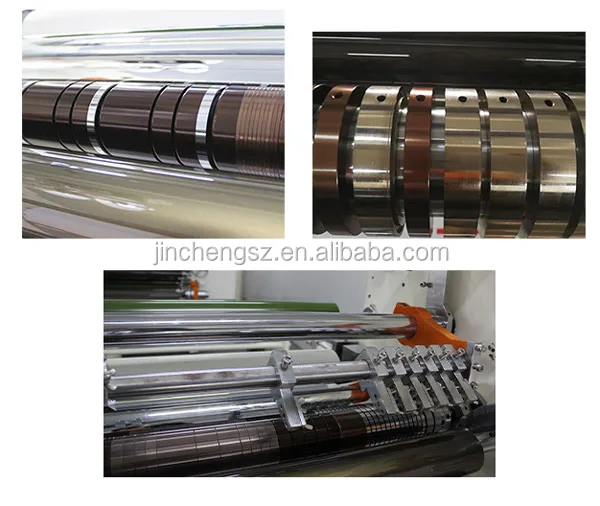

3. Adjustable width Top and down blade, Razaor could be choose
Don't need to remove the blade shaft and just confirm the width on the machine. Easy operation.

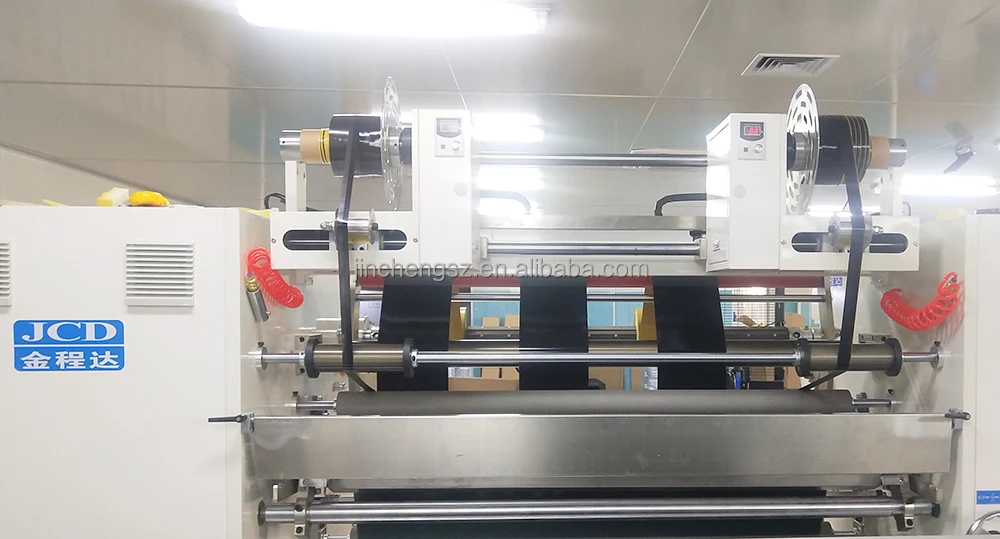

4. Used the separate waste collection to collecting the waste edge.
Servo motor control, same running speed as the main machine.

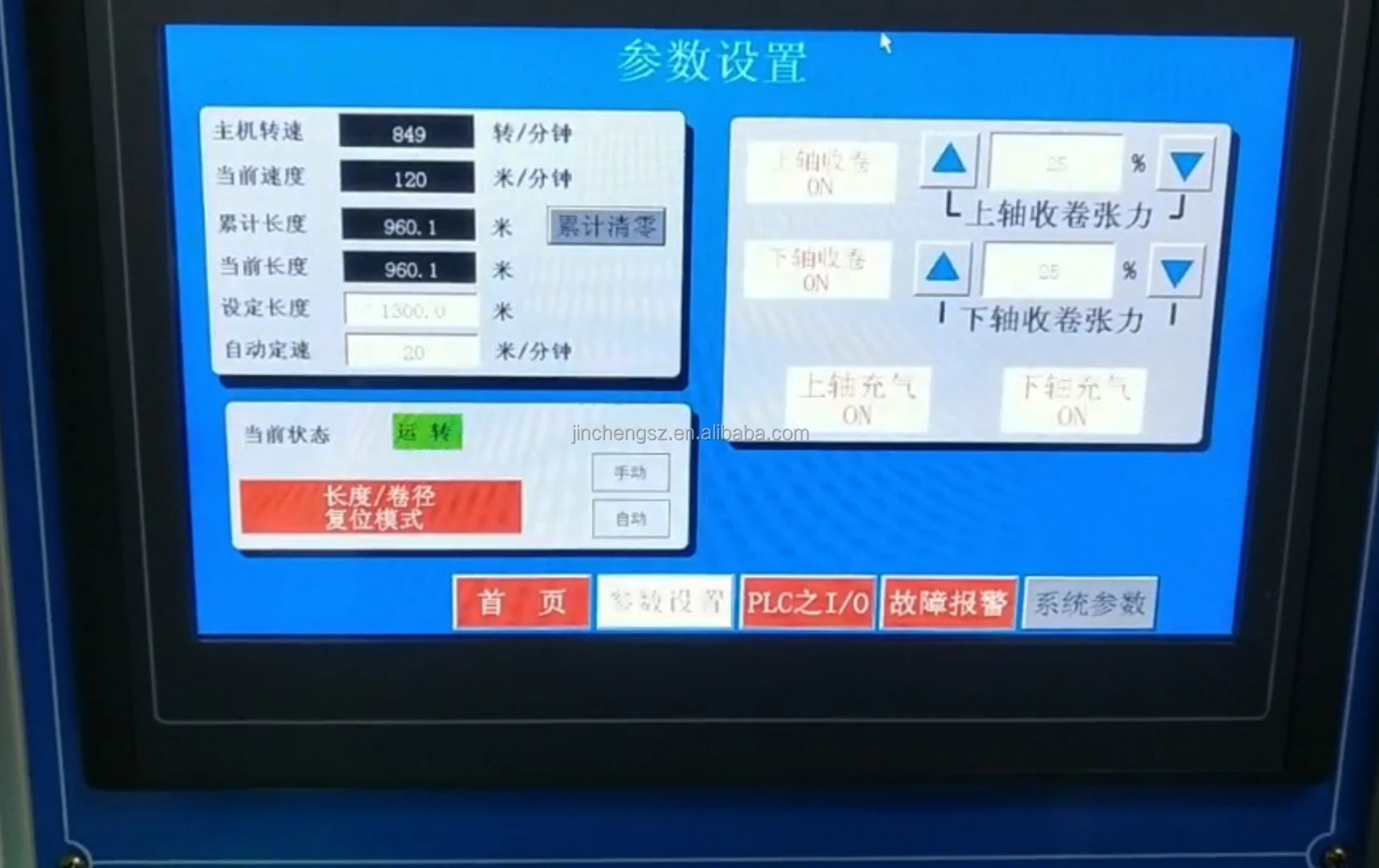

5. Automatic tension control system and large touch screen opera.

Touch screen size: 10''

Language : English ,Chinese or as customized

Length setting: YES

Speed setting: YES

Automatic tension setting: YES







***The optional device ***


1. The unloading stand for the finial roll.
Help to unload the finial rewinding roll.
2. Air slipping shaft
Help to solve the material thickness error.
3. Shaft-less loading stand for the mother roll
Suitable for different kinds inner core

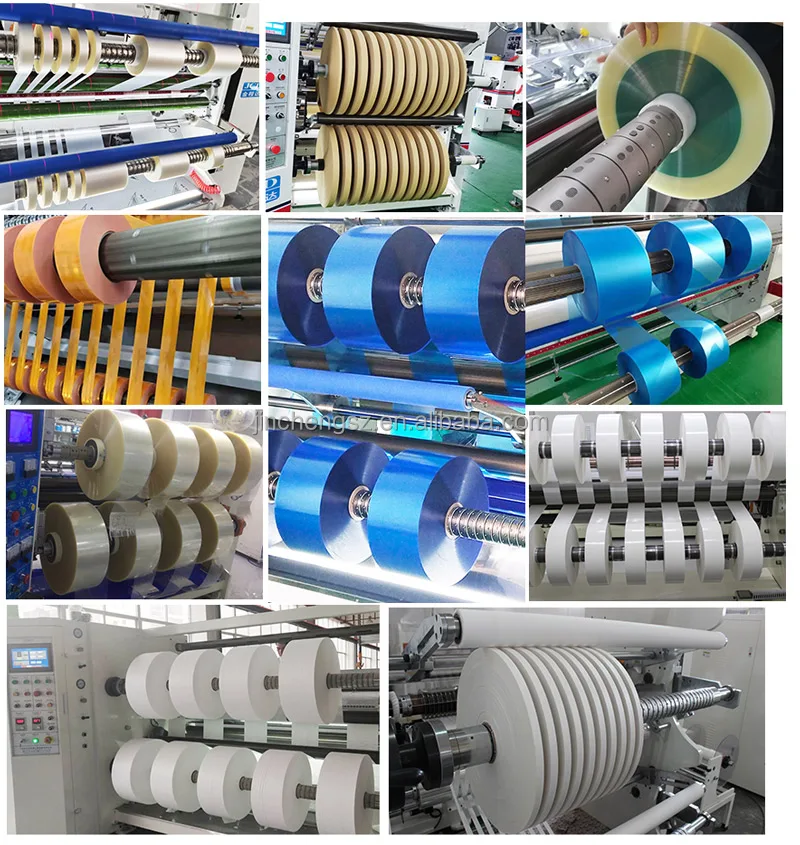

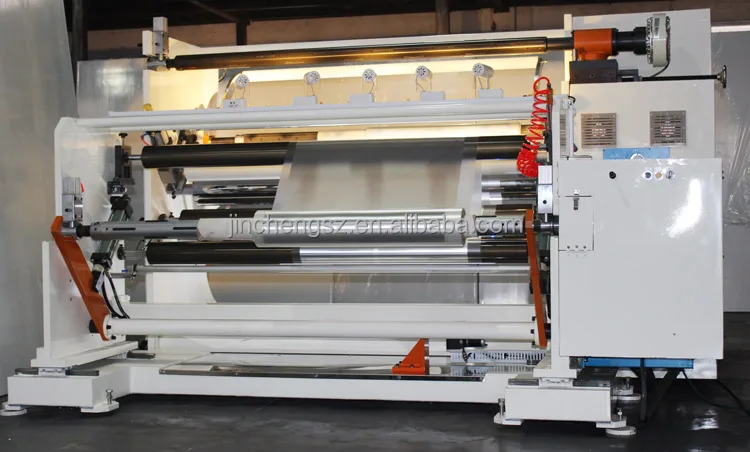

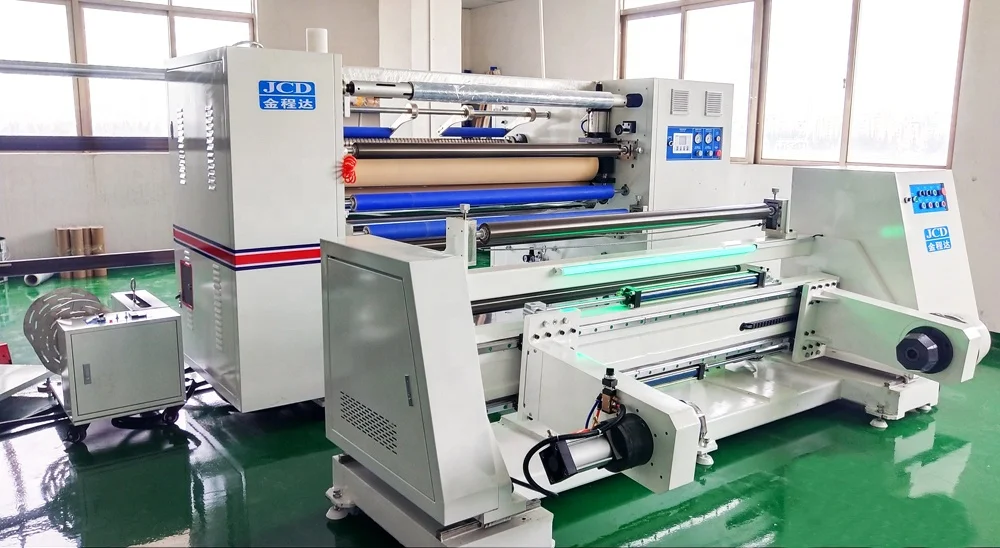

***More Photos: ***

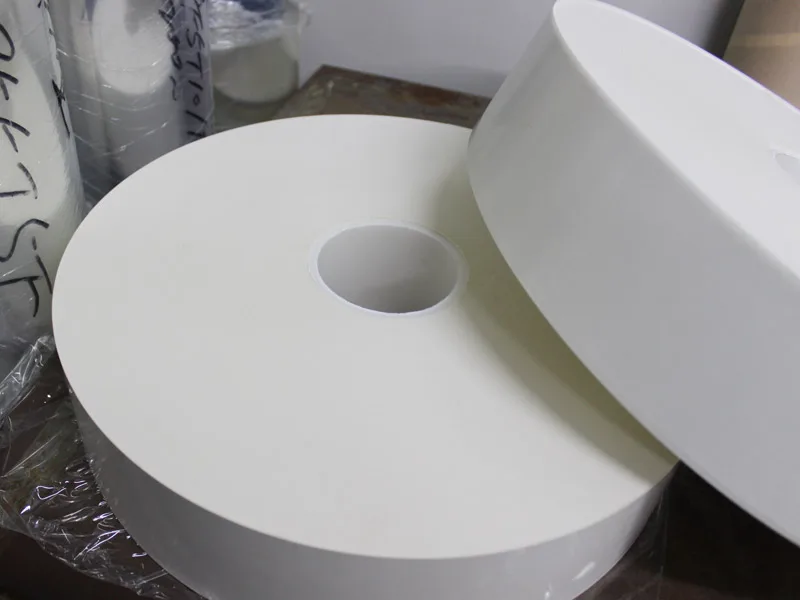

***Finial effect: ***




***Package and Delivery:***




***CE Certification:***




Company Introduction



Shenzhen JCD machinery Co.,ltd is established in 2008, specializing in producing automatic adhesive tape cutting machine,
rewinding machine, BOPP tape jumbo roll slitting rewinding machine and different kinds of optical film slitting laminating and
rewinding machine.
Welcome to contact with us and visiting our factory! Our JCD team will try our best to provide the perfect service to you!


JCD EXHIBITION








GOOD SERVICE


Electric team
* 2 electrician
* 8 years experience
Assemble team
* 3 production lines
* All the workers have more than 5 years experience
QC Team
* 2 QC team
* Over 10 yeas experience in the mould cutting and slitting filed.


DELIVERY TO HOME AND ABROAD




FAQ


1. Q: Are you a factory or trading company?
A: We are a professional factory and we have years of experience of manufacture of rewinding ,cutting machines and slitting machine
2. Q: Does the machine be able to cut different size of tapes?
A: Yes absolutely, you can set any width by the PLC controler.
3. Q: Do you make machines according to specifications?
A: Yes, we do design different machines for special purpose.
4. Q: Do you have the manual book?
A:Yes, and if necessary, our engineers are available to service overseas .And our machines are highly automatical and easy to operate.
5. Q: How long does it usually take you to make the delivery?
A: As a rule ,we deliver our machine within 1 month, and of cause it will take longer for special orders, but in no case would it take longer than 3 months.
6. Q: The voltage in our country is different from yours,does the machine can be changed?
A: Yes, we can make the change for customers.
7. Q: Where is your factory locatesd in , and how can I get there?
A: Our address is 24th Pingxi south road, Pingdi street, Longgang district, Shenzhen city. 518117. China.. And we are near by Guangzhou and Hongkong .
8. Q: How about your warranty?
A: One year, wearing parts not included.
