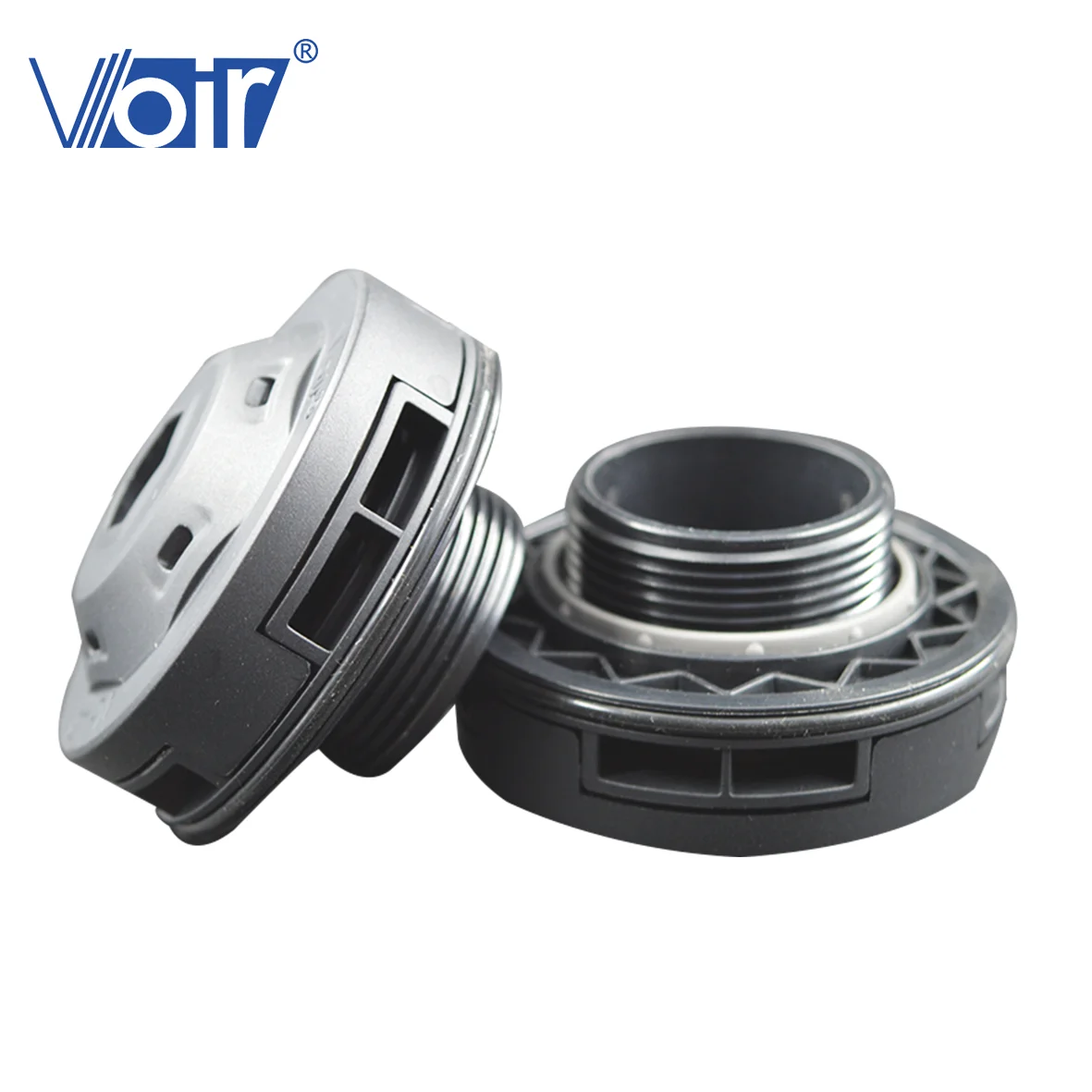

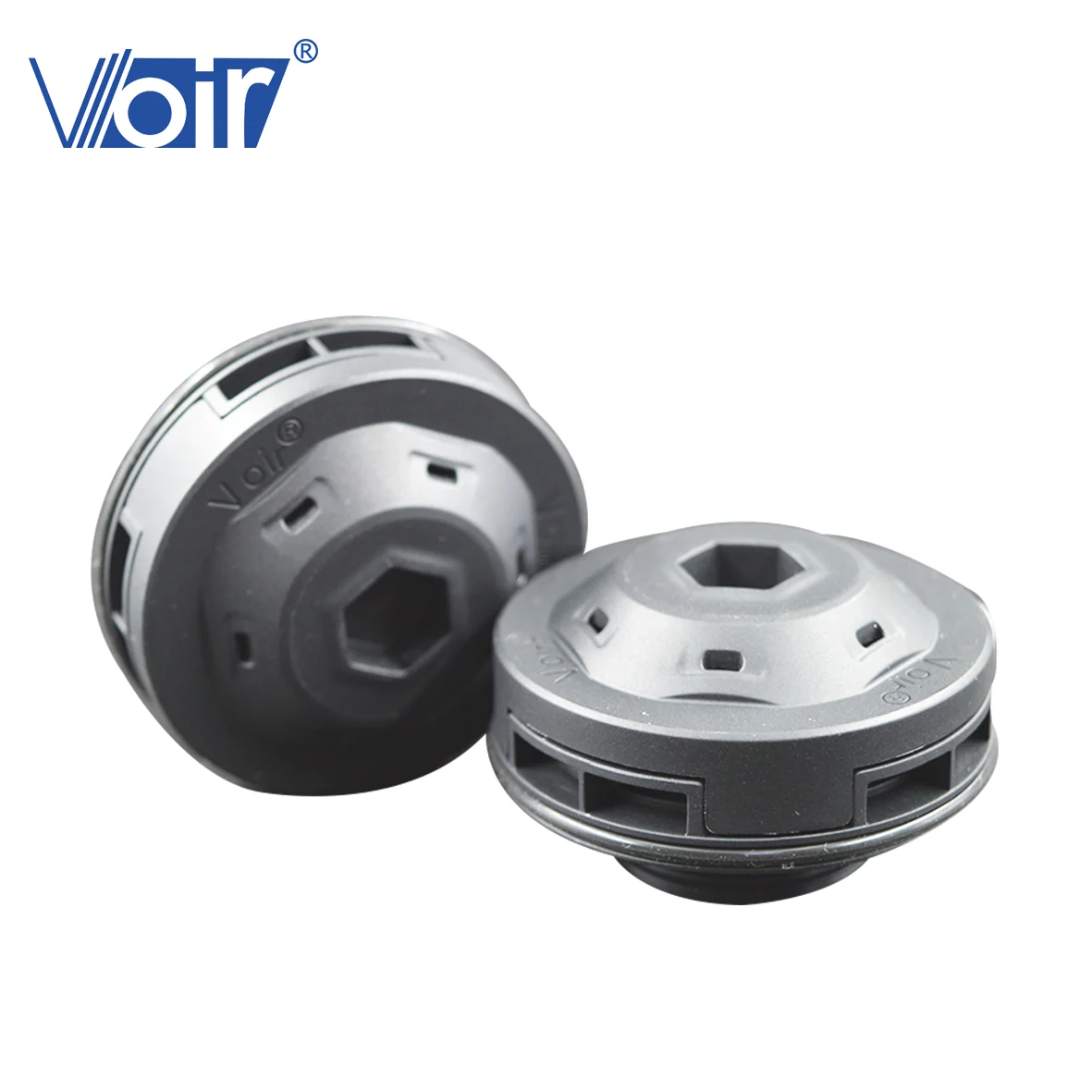

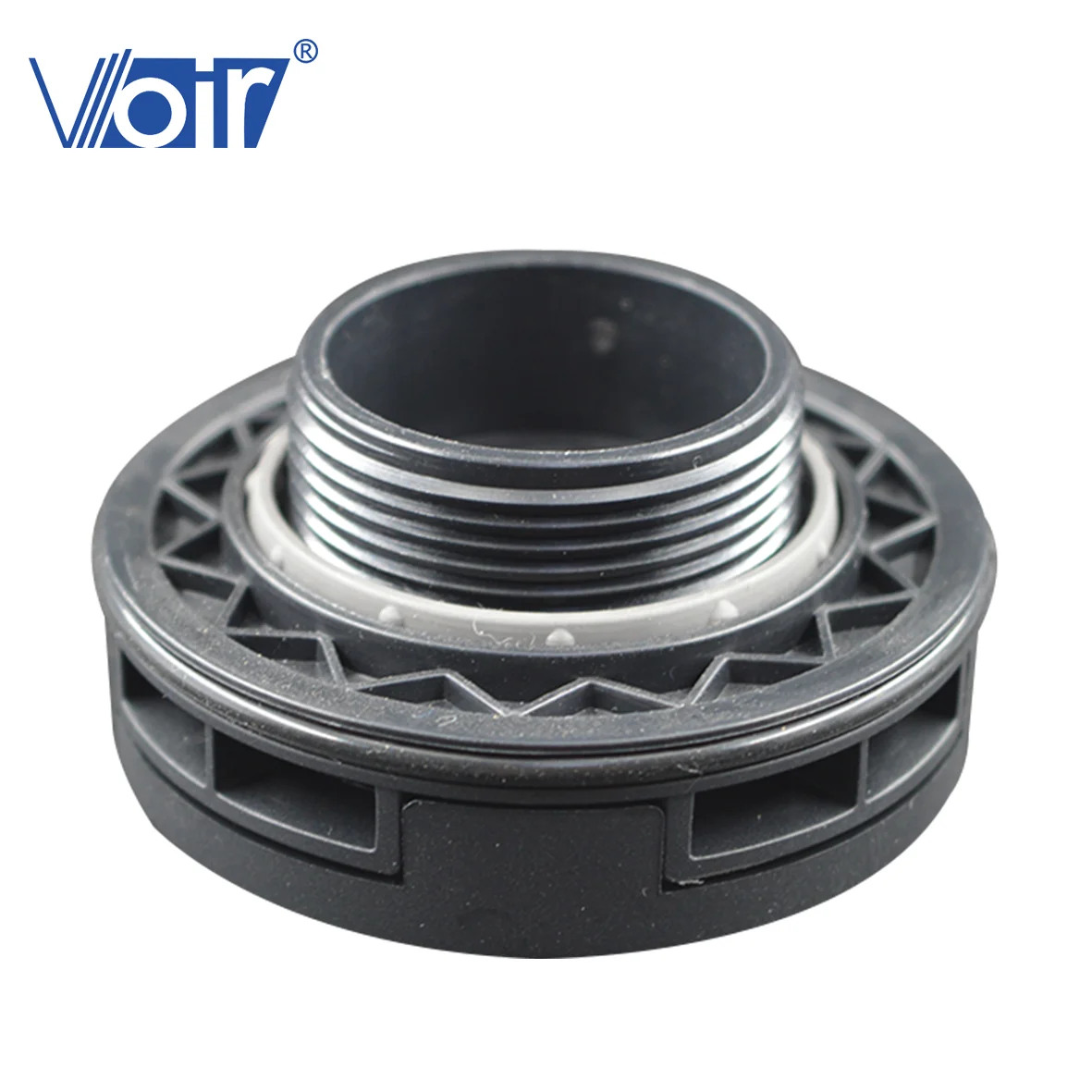

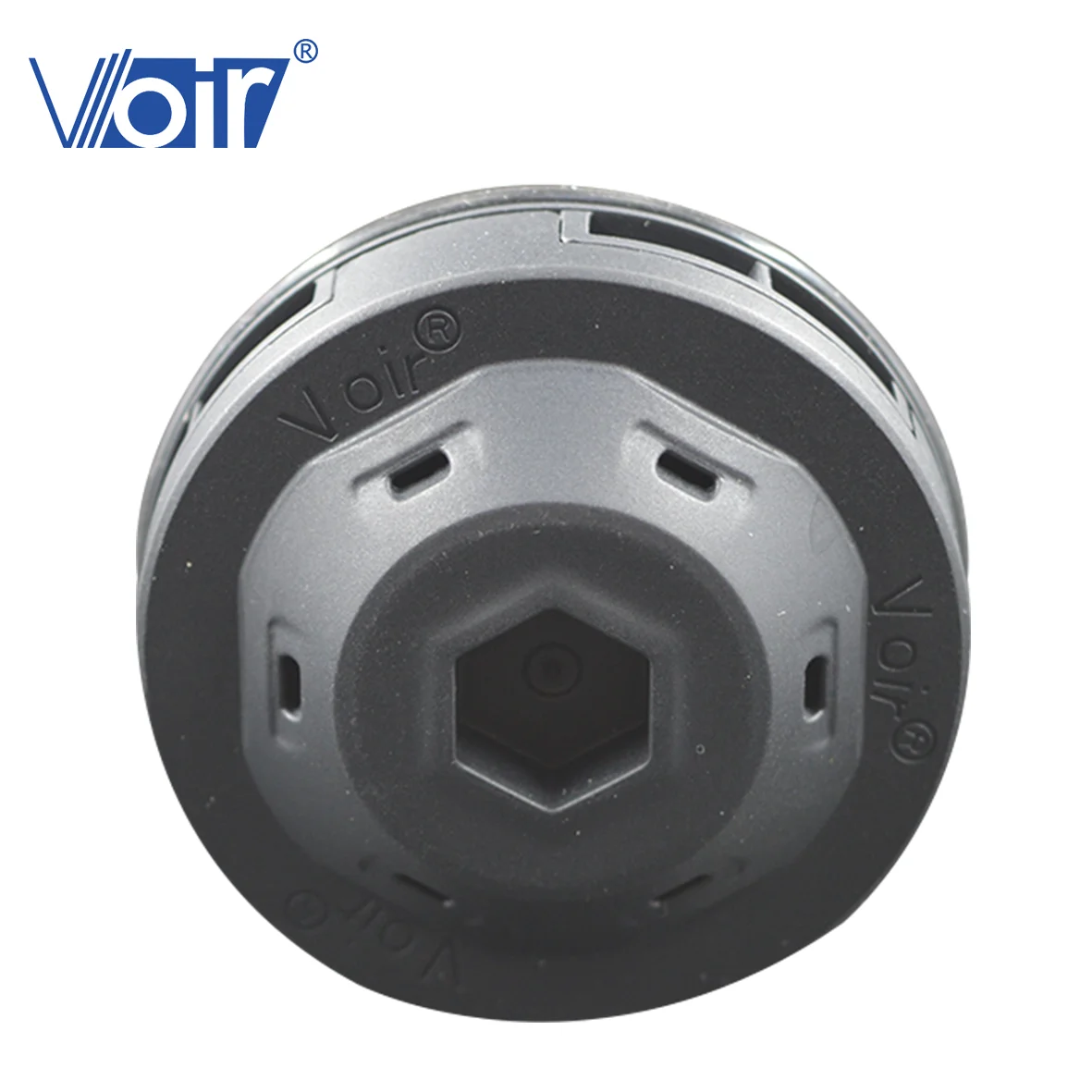

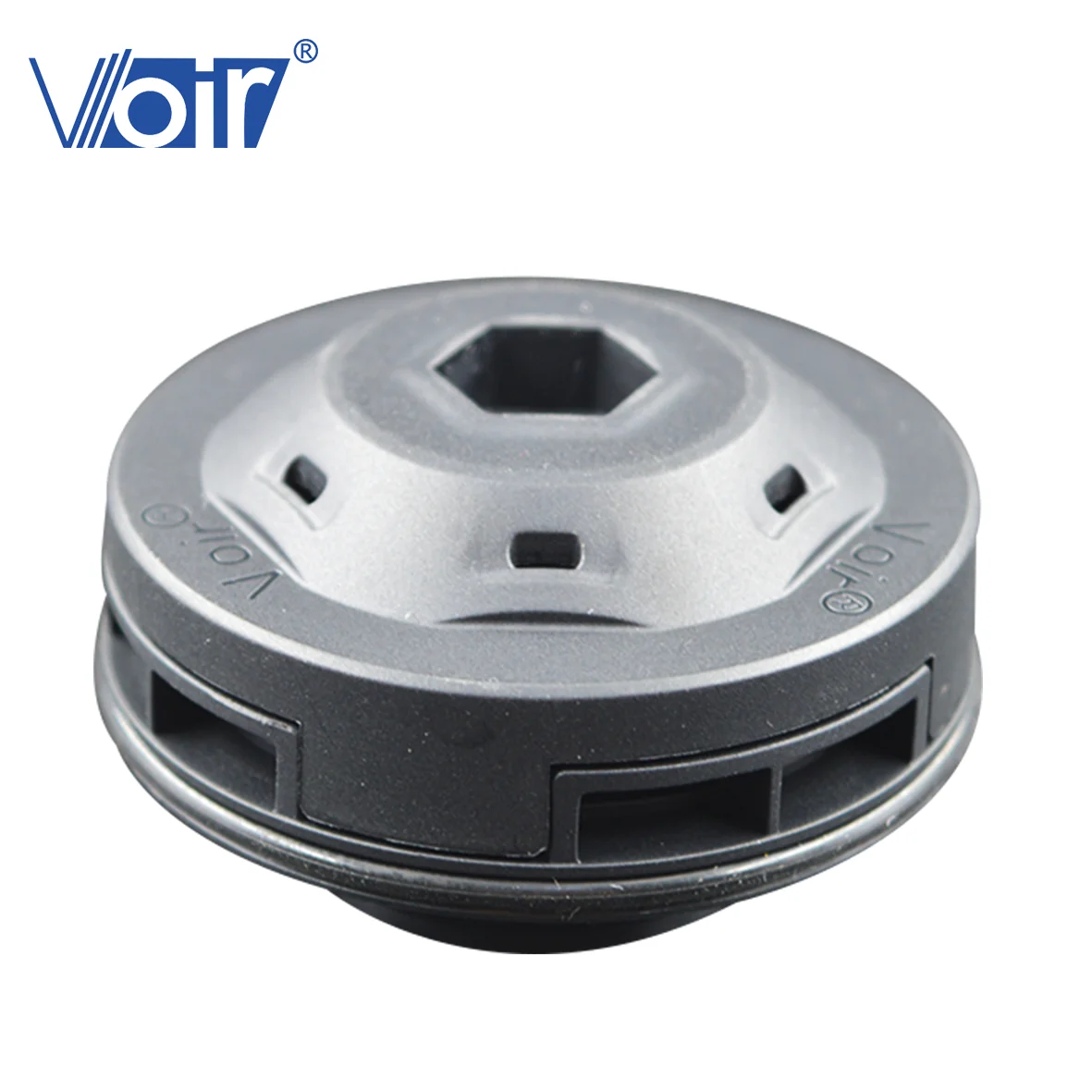

Voir e PTFE IP68/IP6K9K Balance Pressure and Release Gas M32*1.5 Screw in Thermal Runaway Explosion proof valve for Battery Pack
- Category: >>>
- Supplier: Huizhou Voir Science &technology Co. Ltd.
Share on (1600525489641):
Product Overview
Description
Specification
Items | Parameter |
P/N | VE-P650A-00-KS1 |
Main Material | PBT+GF15% |
Membrane | e-PTFE |

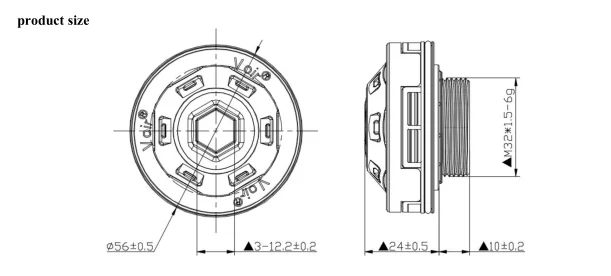

Specification | M32*1.5mm |
Airflow | ≥1L/min ;△p=1.5Kpa |
Burst Pressure | 3±1Kpa |
Application | Battery Pack |
Color | Black |
IP rate | IP67、IPX8(1m24h)、IPX9K |
Voir Spring-type explosion-proof valve (plastic parts) Srewn-in type
Product Description
Specific Application:
To balance the internal and external pressure difference of high sealing products such as battery box to ensure the products under normal working conditions.When the external environment changes (such as temperature and altitude
change), there will be no sealing failure due to the difference of internal and external pressure exceeding the tolerance of
the battery pack .

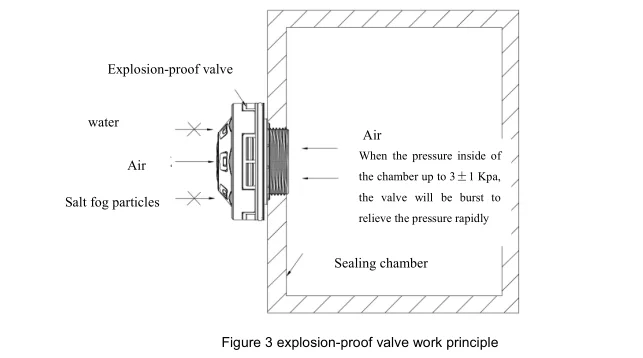

Work Principle:
（1）to balance the internal and external pressure difference of high sealing products such as battery box to ensure the products under normal working conditions.When the external environment changes (such as temperature and altitude change), there will be no sealing failure due to the difference of internal and external pressure exceeding the tolerance of the battery pack .
To balance the internal and external pressure difference of high sealing products such as battery box to ensure the products under normal working conditions.When the external environment changes (such as temperature and altitude
change), there will be no sealing failure due to the difference of internal and external pressure exceeding the tolerance of
the battery pack .
Work Principle:
（1）to balance the internal and external pressure difference of high sealing products such as battery box to ensure the products under normal working conditions.When the external environment changes (such as temperature and altitude change), there will be no sealing failure due to the difference of internal and external pressure exceeding the tolerance of the battery pack .
（ 2 ） Greatly reduce fog and condensation, avoid electric drive electric internal fog and moisture generation in extreme environment long service life and trouble-free maintenance, expanded polytetrafluoron (E-PTFE) film can prevent salt crystal moisture and moisture permeability
Installation:

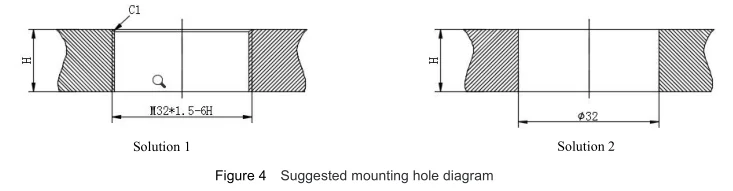

nstallation interface requirements: flatness、 roughness、 profile、 thickness、 tolerance Installation hole opening requirements, flatness ＜ 0.3， roughness l＜ Ra3.2，profile ＜ 0.5
（1）Remark:H- wall thickness unit: mm advice installation torque 4.5±0.5N.m，limited torque value：≥7N.m；
（2）When H ＞4mm，advice to open threaded hole such as solution 1，Screw in and tighten；
（3）When H ≤4mm，advice to open straight-through hole such as solution 2，Fit the nut to install and tighten.
Installation:
nstallation interface requirements: flatness、 roughness、 profile、 thickness、 tolerance Installation hole opening requirements, flatness ＜ 0.3， roughness l＜ Ra3.2，profile ＜ 0.5
（1）Remark:H- wall thickness unit: mm advice installation torque 4.5±0.5N.m，limited torque value：≥7N.m；
（2）When H ＞4mm，advice to open threaded hole such as solution 1，Screw in and tighten；
（3）When H ≤4mm，advice to open straight-through hole such as solution 2，Fit the nut to install and tighten.
* Caution: for industrial use only, not for food, medicine, cosmetic or medical facility etc.
