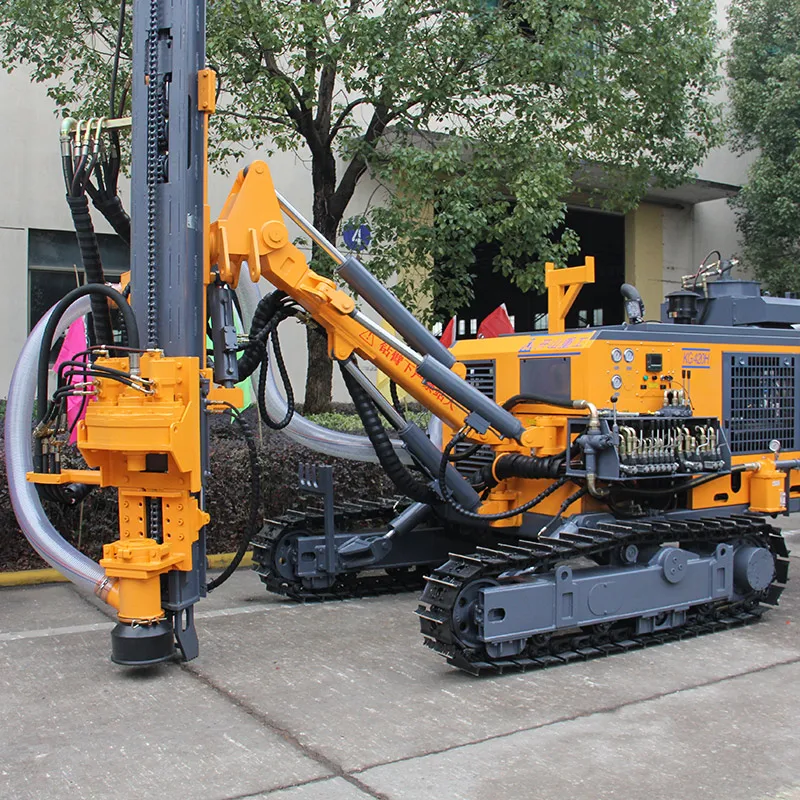

zhejiang kaishan brand crawler type mining drilling rig machine portable KG420TH
- Category: >>>
- Supplier: Zhejiang Xinyu Machinery Co. Ltd.
Share on (1600525499468):
Product Overview
Description
Product Description

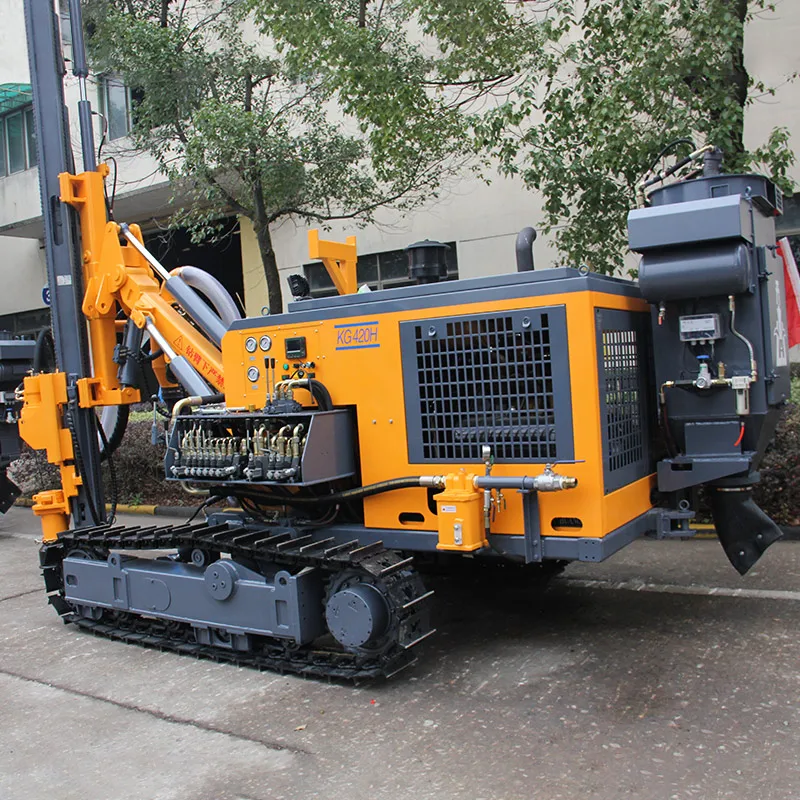

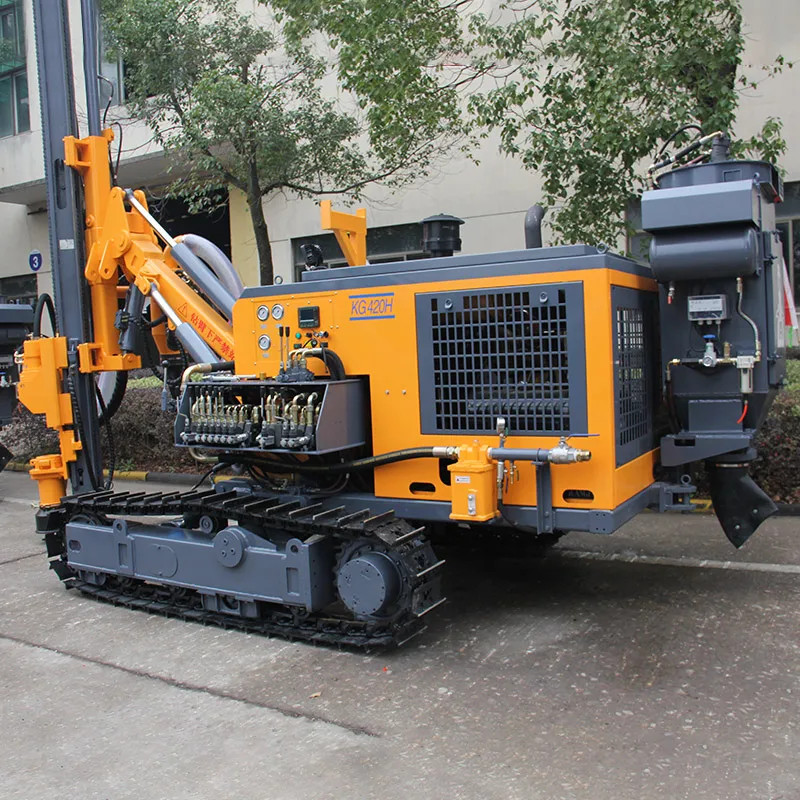

The KG420T/KG420TH down the hole drill rig for open use is an improved device in compliance with national regulations on environmental protection. Equipped with Yuchai engine(China III), the drill rig meets national standards for emissions and environment. The tramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use. Meanwhile, the hydraulic system is improved, thereby proving increased system flow and rotary speed. The hydraulic cylinder has been optimized, thus making it more reliable. The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used for the housing; and the additional ring makes handling and lifting convenient.

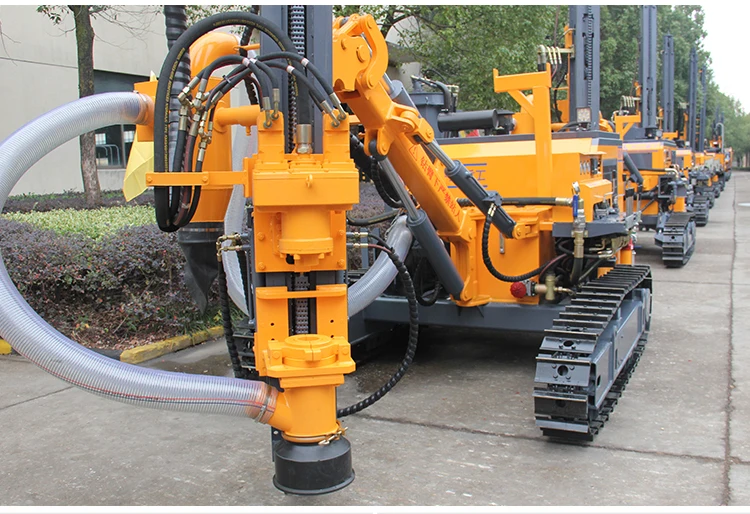

The KG420TH down the hole drill rig for open use is equipped with dust collector, thus making operation more environment-friendly and reliable.
The KG420TH down the hole drill rig for open use is equipped with dust collector, thus making operation more environment-friendly and reliable.

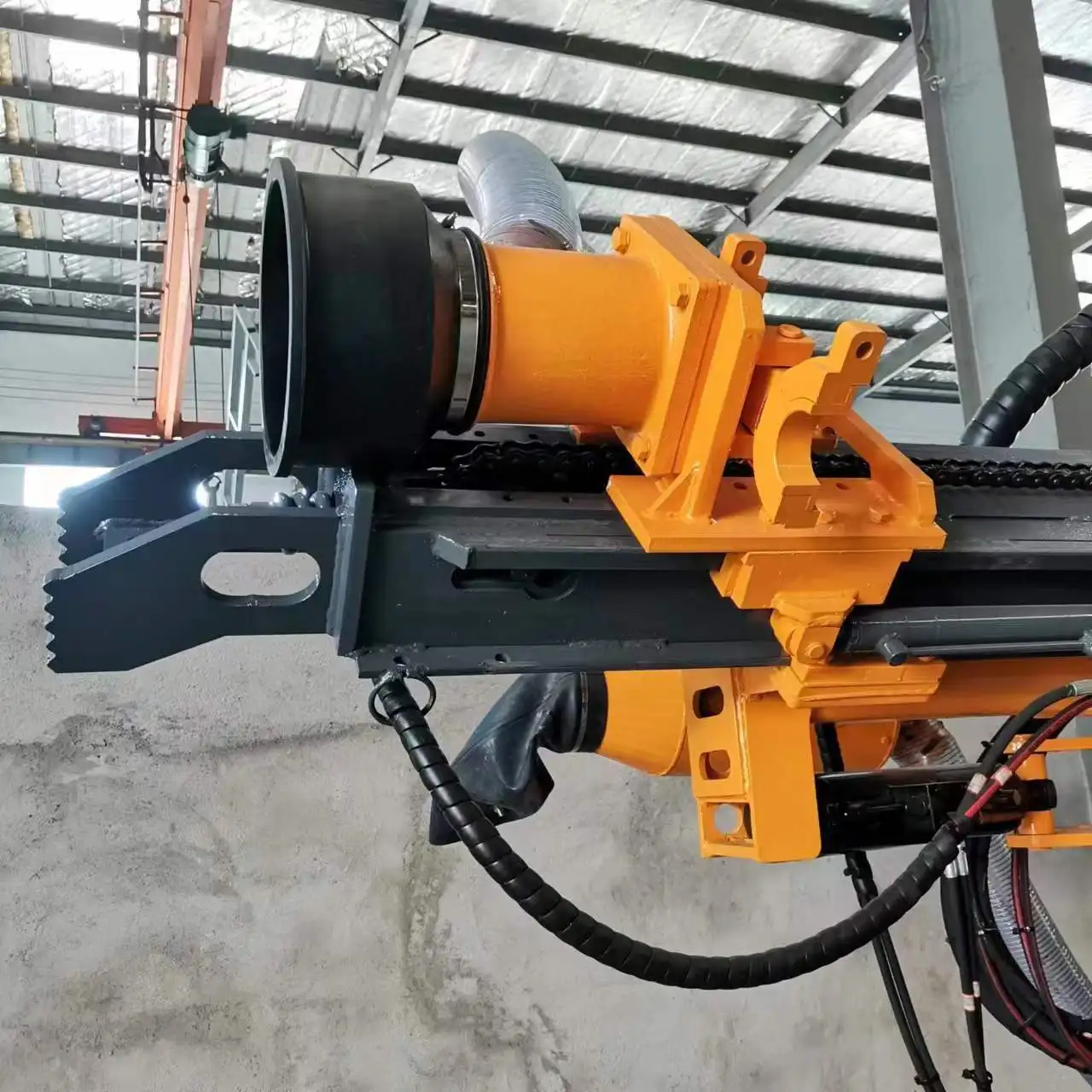

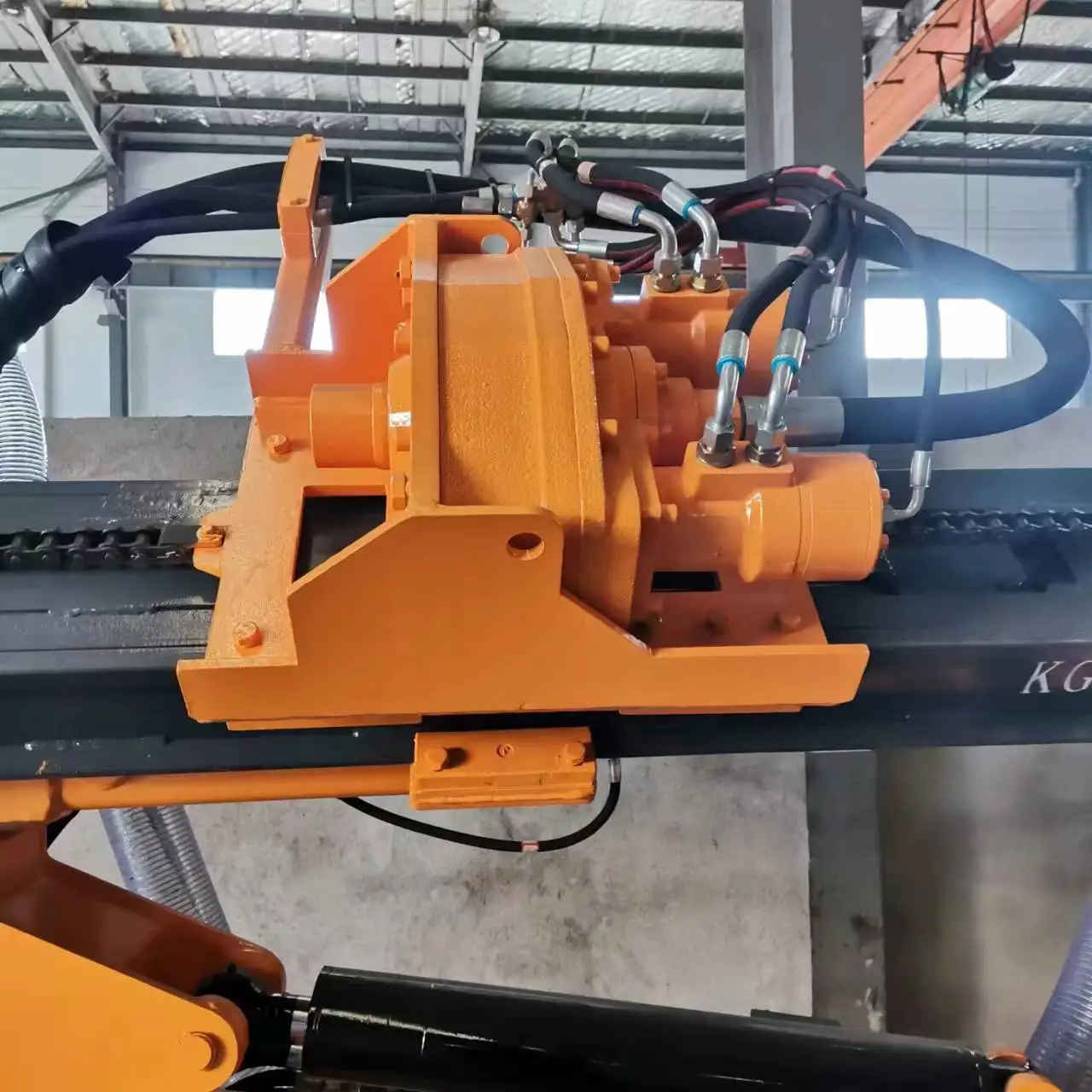

Detailed Images
Model | KG420T | KG420TH | |
Weight | 5200KG | 5700KG | |
Dimension | 5900*2250*2700mm | 6200*2250*2700mm | |
Drilling hardness | f=6-20 | ||
Drilling diameter | 90-152mm | ||
Economical Drilling depth | 20m | ||
Why Choose Kaishan
1.High rock rigidity, hard to move or low efficiency?
KG420T series drilling rig's max climbing capacity is 30°, and ground clearance is 500mm, so it can be easily overcome obstacles and be better to achieve climbing and mining. The Rotation speed and torque have a direct impact on the drilling speed and the drilling cost. KG420T series' Rotation speed is controlled within a reasonable range of 0-90 r/min. Although the machine vibration is reduced, the drilling speed is guaranteed.The greater the rotation torque, the stronger the ability to prevent stuck drilling. KG420T series drilling rig's Max rotation torque is 5000N.m. Even if the drilling rig is on a slope, it can be keep working high efficiently.
2.More conditional restrictions, hard to drill or less workload?

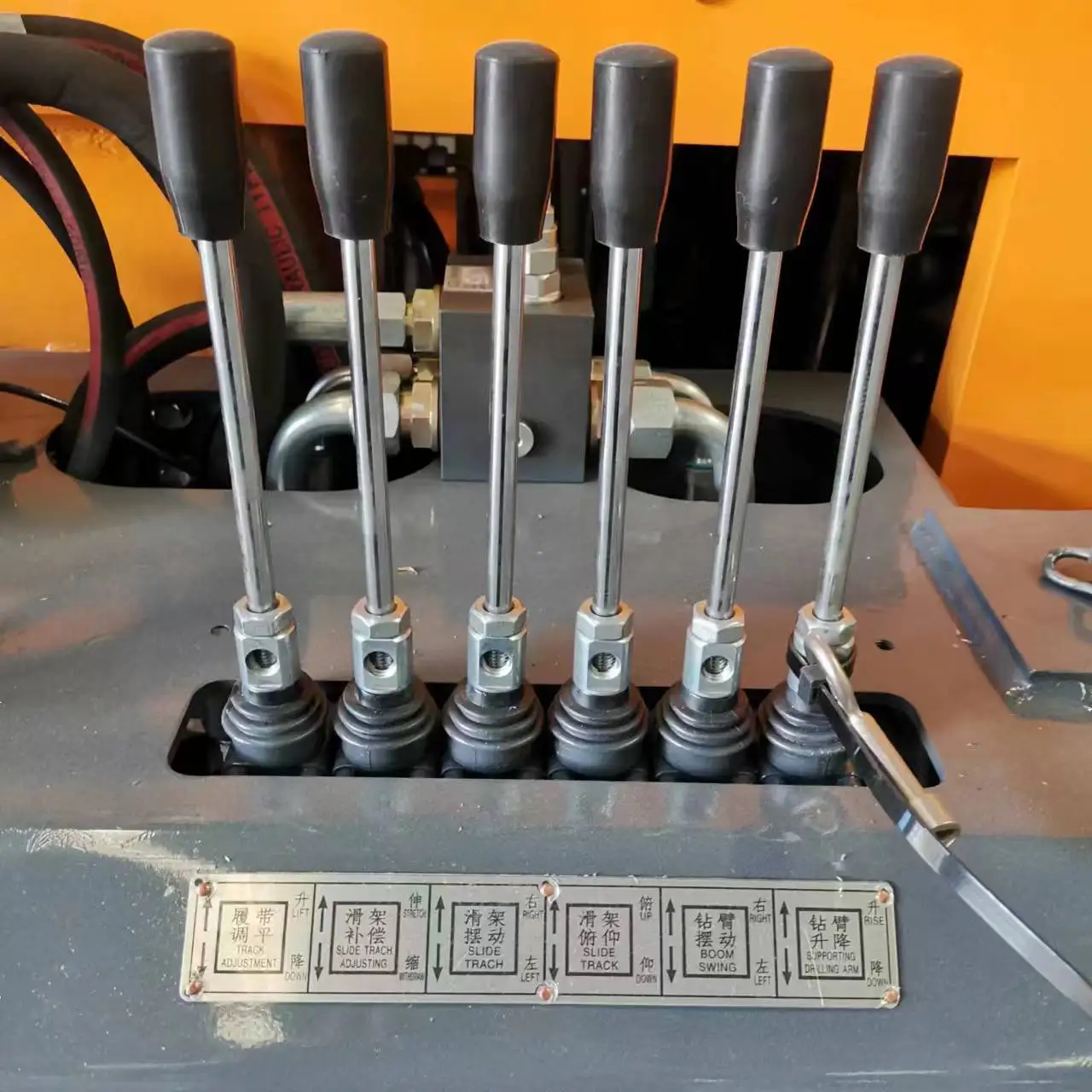

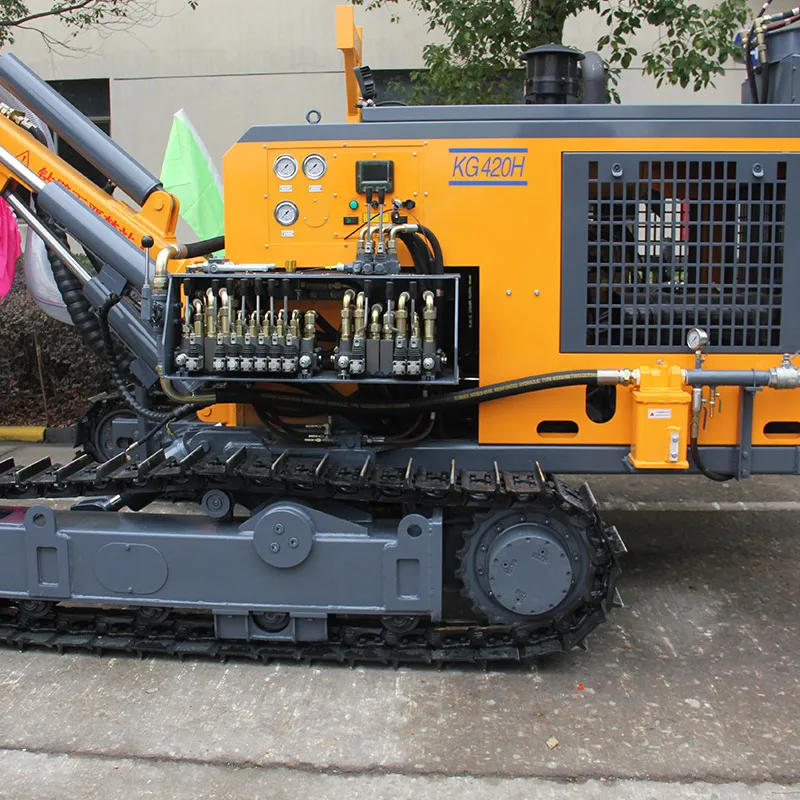

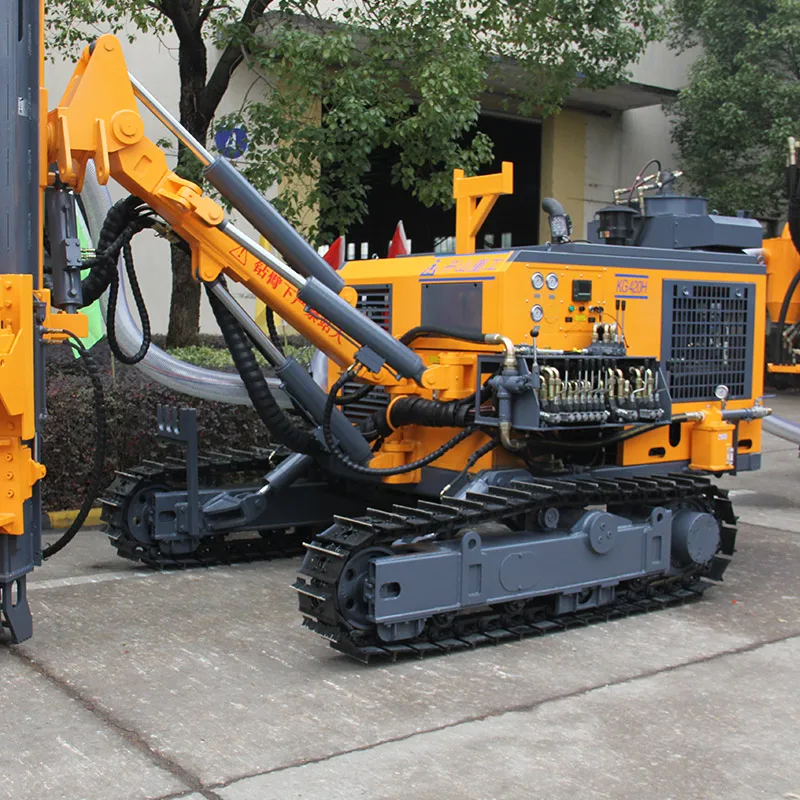

KG420T series drilling rig' hydraulic system has been updated and upgraded. The range of Boom lift is wide, such as 15°up, 55°down. Also the range of Boom swing has tow ranges. The range of Guide Tilt Has 35°up, 110°down, also Guide swing has seven ranges. Even the compensation stroke can reach 900mm. Greatly expanded the drilling range,so KG420T series drilling rig has strong environmental adaptability.
3.Unstable gas supply affects project progress?

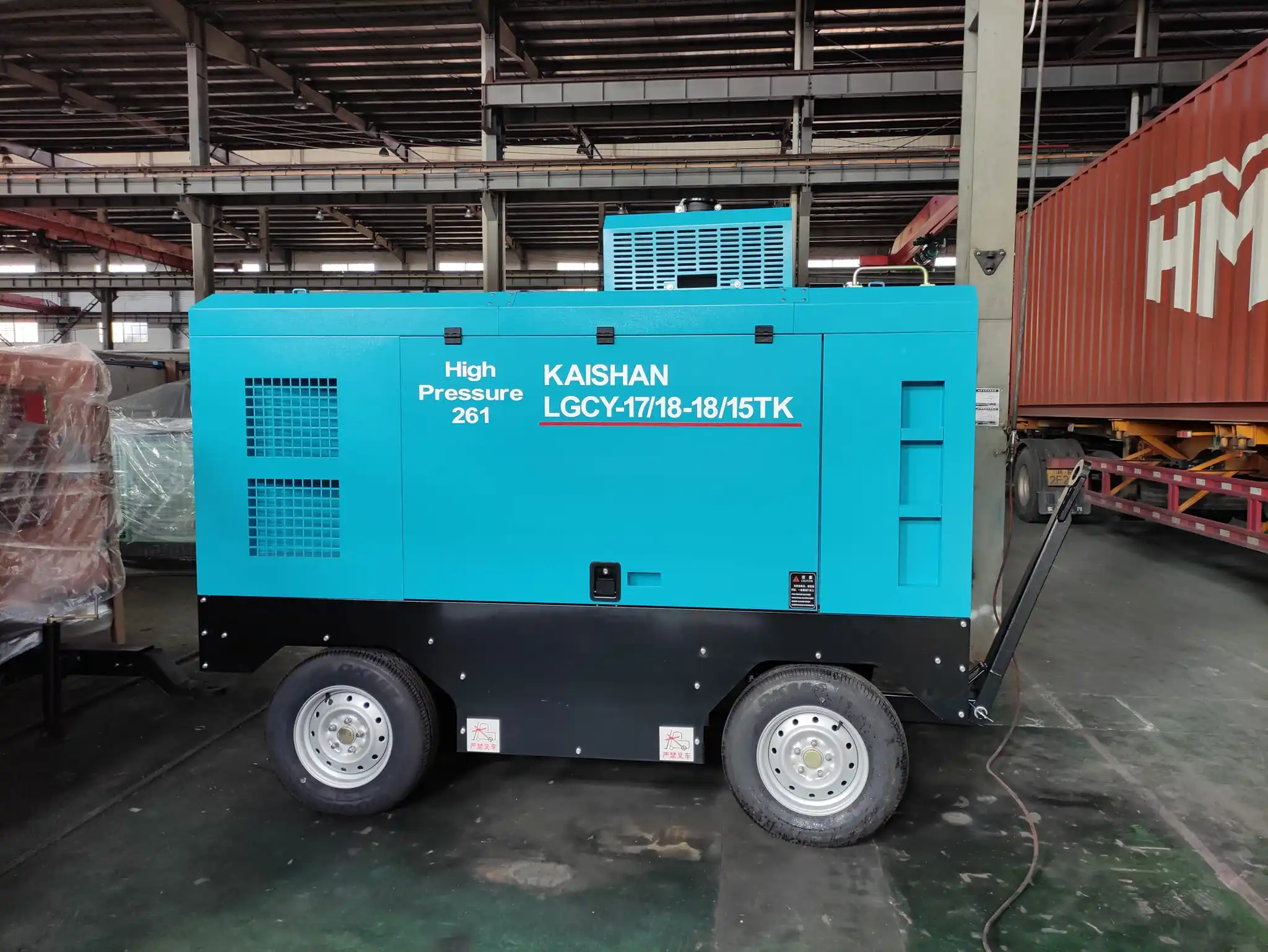

Kaishan LGCY-17/18-18/15T series portable diesel screw air compressor often provide power for KG420T series drilling rig. The efficiency of the screw air compressor depends on the rotor, also the life of the screw air compressor depends on the bearing and the shaft seal. The bearing of screw air compressor generally use SKF, and low speed,the bearing no extra force,the work-life of the screw air compressor will be longer. Kaishan compressor's rotor is direct driven,no speed gear,lower speed, higher efficiency. So the work-life of Kaishan compressor is longer than other brand compressor. Kaishan compressor can continue to provide stable and efficient power for the mechanical equipment and support the equipment at a high speed and stability.
Usage Scenarios
Our Company
Certifications
Packing & Delivery
FAQ
Q1: What’s the exactly address of your company?
A1: Room 102, Building 3, No. 12, Bailing Middle Road, Qujiang District, Quzhou, Zhejiang,China.
Q2: Are you factory or trading company?
A2: Now, we are a trading company. But our enterprises are transforming and upgrading to a manufacturer.
Q3: Do you supply spare parts of machines?
A3: Yes, we do. Not only air compressor spare parts like filter elements, but only drilling machine spare parts like drill bits, pipes and so on could be provided to you.
Q4: How about payment terms?
A4: Ordinary, our customers pay 30%T/T first as deposit, then we prepare the goods, the balance should be paid before delivery.
Q5: How about trade terms?
A5: EXW, FOB, CIF and CFR are the trade terms we often use, but others are also available. It’s up to our customers.
If you want to know more, feel free to contact us!
A1: Room 102, Building 3, No. 12, Bailing Middle Road, Qujiang District, Quzhou, Zhejiang,China.
Q2: Are you factory or trading company?
A2: Now, we are a trading company. But our enterprises are transforming and upgrading to a manufacturer.
Q3: Do you supply spare parts of machines?
A3: Yes, we do. Not only air compressor spare parts like filter elements, but only drilling machine spare parts like drill bits, pipes and so on could be provided to you.
Q4: How about payment terms?
A4: Ordinary, our customers pay 30%T/T first as deposit, then we prepare the goods, the balance should be paid before delivery.
Q5: How about trade terms?
A5: EXW, FOB, CIF and CFR are the trade terms we often use, but others are also available. It’s up to our customers.
If you want to know more, feel free to contact us!
