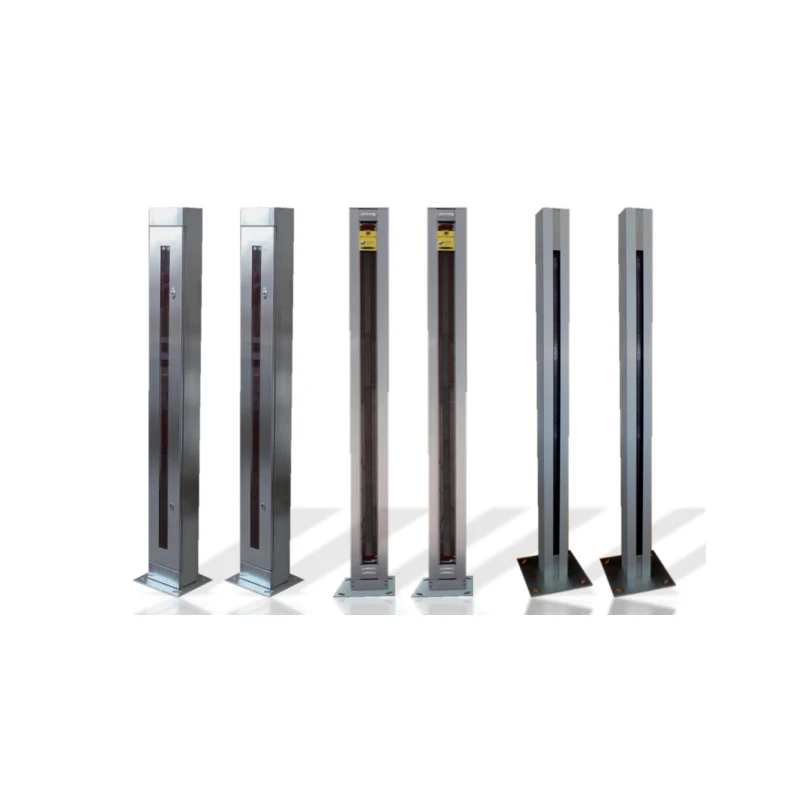

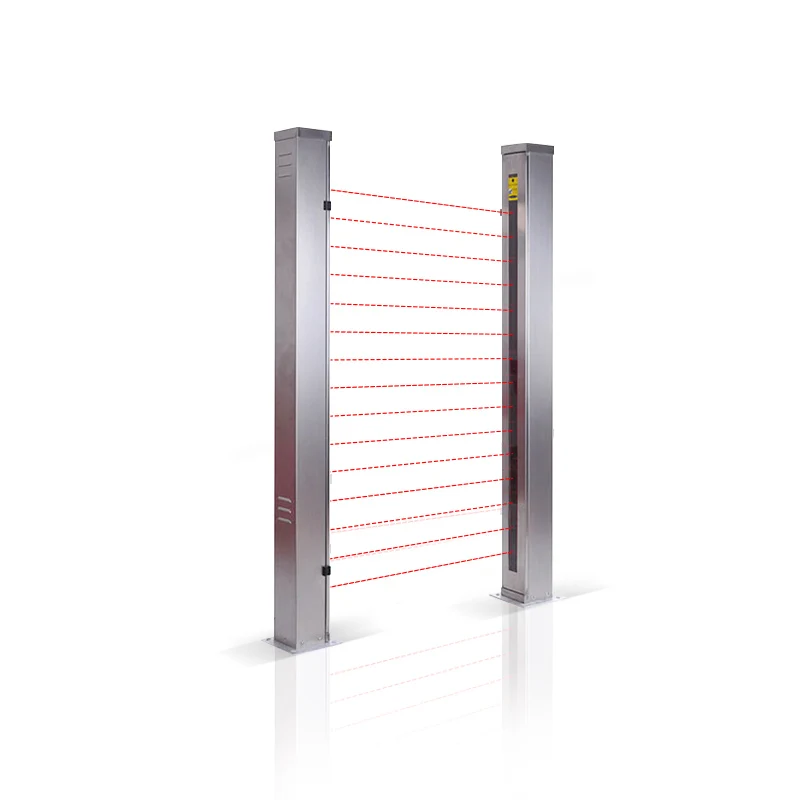

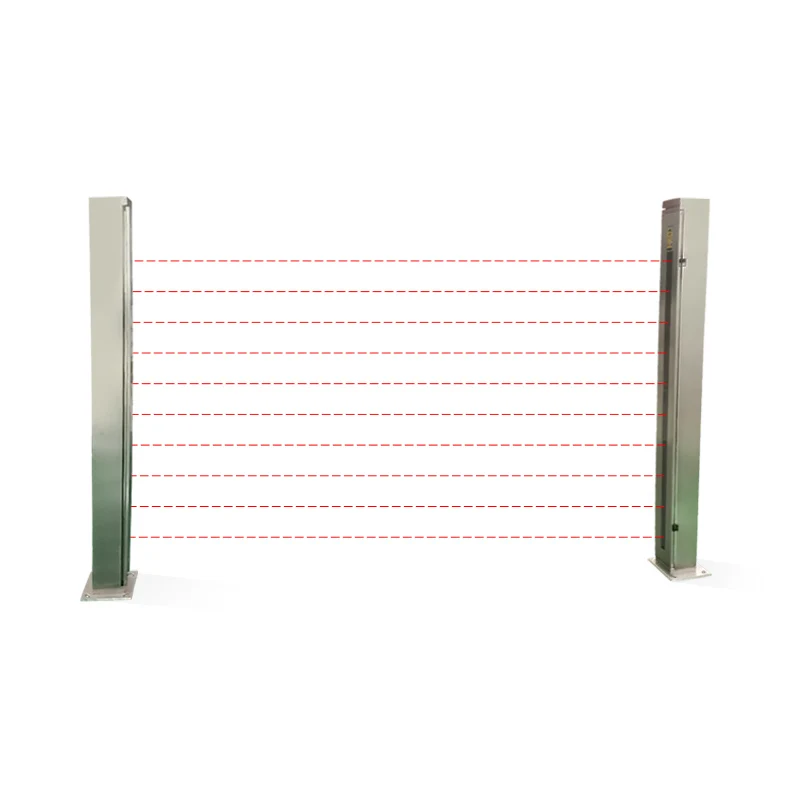

Custom Anti Sun Infrared Vehicle Separator Light Curtain For Vehicle Separation Car Detection Parking Light Curtain Sensor
- Category: >>>
- Supplier: Shenzhen Laoen Technology Co. Ltd.
Share on (1600525508658):
Product Overview
Description
Why Choose Us
——High-strength anti-sunlight interference, integrated design, no controller, easy to use;
——Light curtain height: 200mm to 2500mm;
——Optical axis spacing: 10, 20, 30, 40mm, other spacing (precision) can be customized;
——Detection distance: 0.5-5m, 1-10m, 1-15m;
——LED indicator can display the working status and fault status of the light curtain;
Dual NPN output or dual PNP output:
Output 1: Vehicle detection signal output;
Output 2: light curtain fault alarm output;
——Using a unique algorithm, the light curtain only detects objects above 150mm, and has a resolution of 15/25/35/45mm, which can not only avoid misoperation caused by sunlight, birds, mosquitoes and sludge, but also can detect reliably vehicle hook;
——Automatically detect the fault, and ignore (shield) the problematic beam, still keep working normally, and output the alarm signal at the same time;
——Using high-energy, high-penetration photocells for easy installation and maintenance;
——It can realize the automatic separation, counting, presence detection, classification detection, and determination of the headway of vehicles;
——Completely eliminate the phenomenon of car following, and reliably separate semi-trailers, full-trailers and bicycles;
——The special protective shell is made of sturdy aluminum profiles to ensure that the vehicle separation light curtain can be reliably used in harsh outdoor environments;
——Standard temperature: -20C-+70"C; Ambient humidity: RH≤85% (20 °C)
——Light curtain height: 200mm to 2500mm;
——Optical axis spacing: 10, 20, 30, 40mm, other spacing (precision) can be customized;
——Detection distance: 0.5-5m, 1-10m, 1-15m;
——LED indicator can display the working status and fault status of the light curtain;
Dual NPN output or dual PNP output:
Output 1: Vehicle detection signal output;
Output 2: light curtain fault alarm output;
——Using a unique algorithm, the light curtain only detects objects above 150mm, and has a resolution of 15/25/35/45mm, which can not only avoid misoperation caused by sunlight, birds, mosquitoes and sludge, but also can detect reliably vehicle hook;
——Automatically detect the fault, and ignore (shield) the problematic beam, still keep working normally, and output the alarm signal at the same time;
——Using high-energy, high-penetration photocells for easy installation and maintenance;
——It can realize the automatic separation, counting, presence detection, classification detection, and determination of the headway of vehicles;
——Completely eliminate the phenomenon of car following, and reliably separate semi-trailers, full-trailers and bicycles;
——The special protective shell is made of sturdy aluminum profiles to ensure that the vehicle separation light curtain can be reliably used in harsh outdoor environments;
——Standard temperature: -20C-+70"C; Ambient humidity: RH≤85% (20 °C)
Product Description
Specification

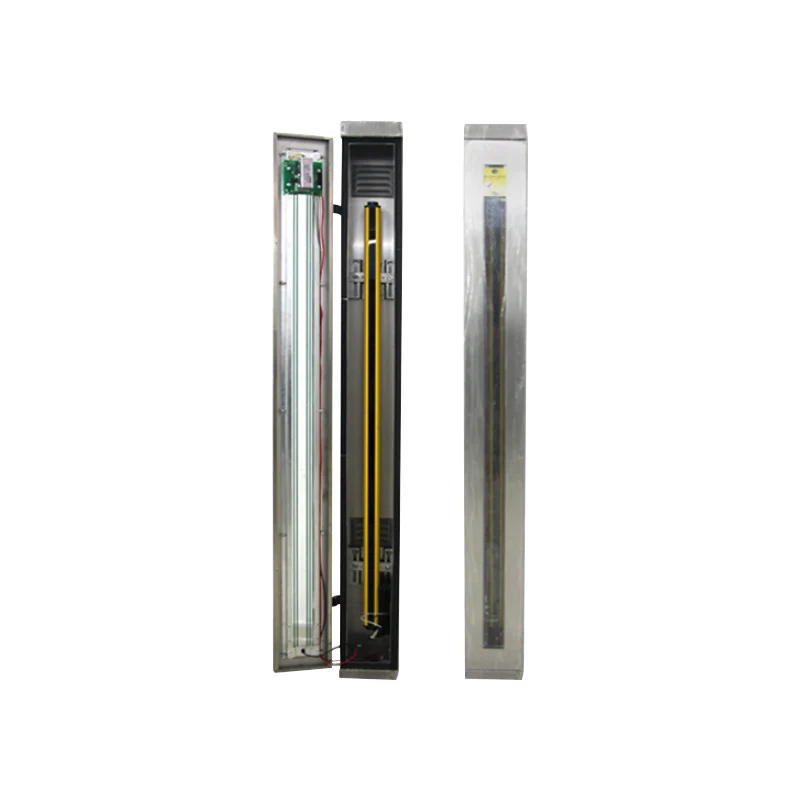

★Section size: 120*120*1600- -2500mm (other shell specifications can be customized)
★Heating power supply: 24V/10A;
★Main thermostat: disc package, closing temperature 4°C, breaking temperature 29°C;
★Spare thermostat: disc package, closing temperature 55"C, breaking temperature 36°C;
★Humidity switch: mechanical nylon membrane trigger switch, relative humidity 20-80%;
★Status indicator: When the heating part starts, the red LED light on the front glows;
★Temperature range: normal working temperature -20°C-+70°C;
★Structural shell: stainless steel or aluminum alloy; .
★Window: heated glass;
★Protection class: NEMA 3R (IEC IP54);
★Opening method: rear door, hinged.
★Opening method: rear door, hinged.
Key name | Vehicle Separator Light Curtain |
Model Number | LC |
High | 200mm~2500mm |
Detection distance | 0.5-5m/1-10m/1-15m |
Brand Name | LERAUN |
Usage | Vehicle Separator |
Output | Duan NPN/PNP |
Voltage | 24V/10A |
Working temperature | -20℃~+70℃ |
