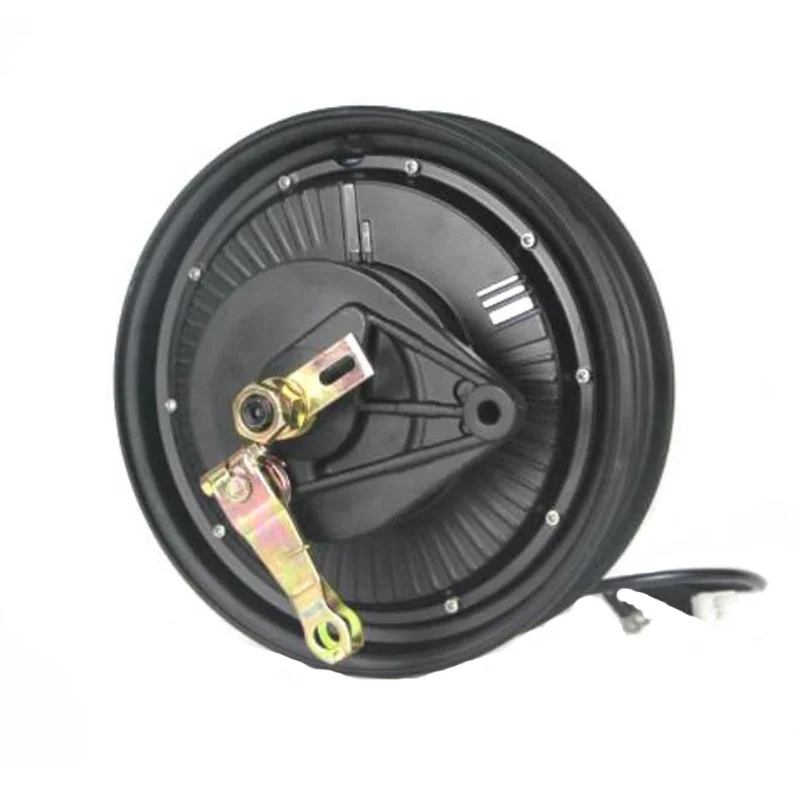

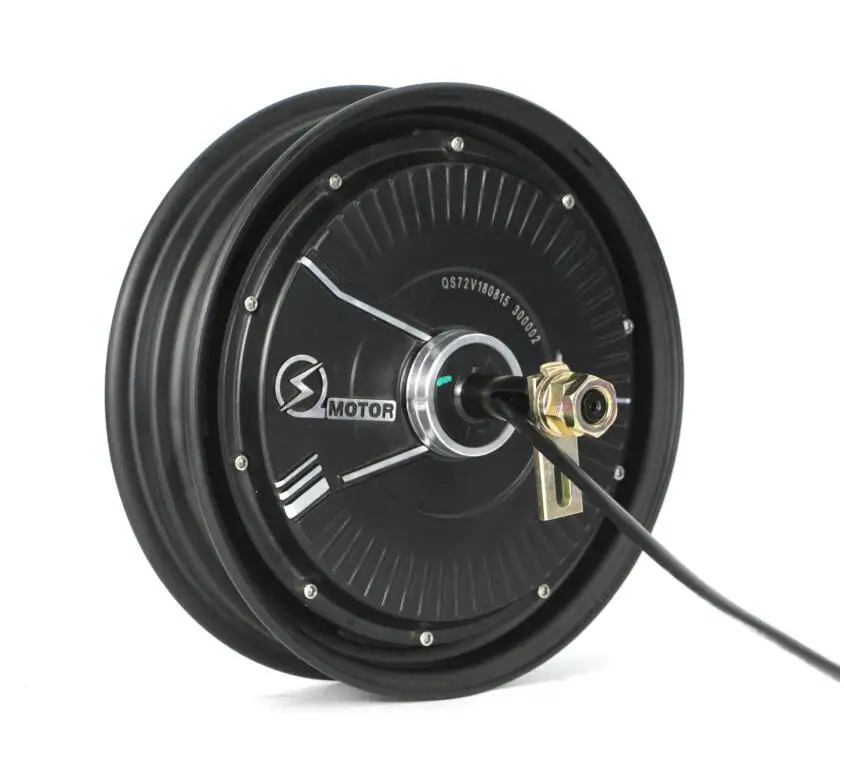

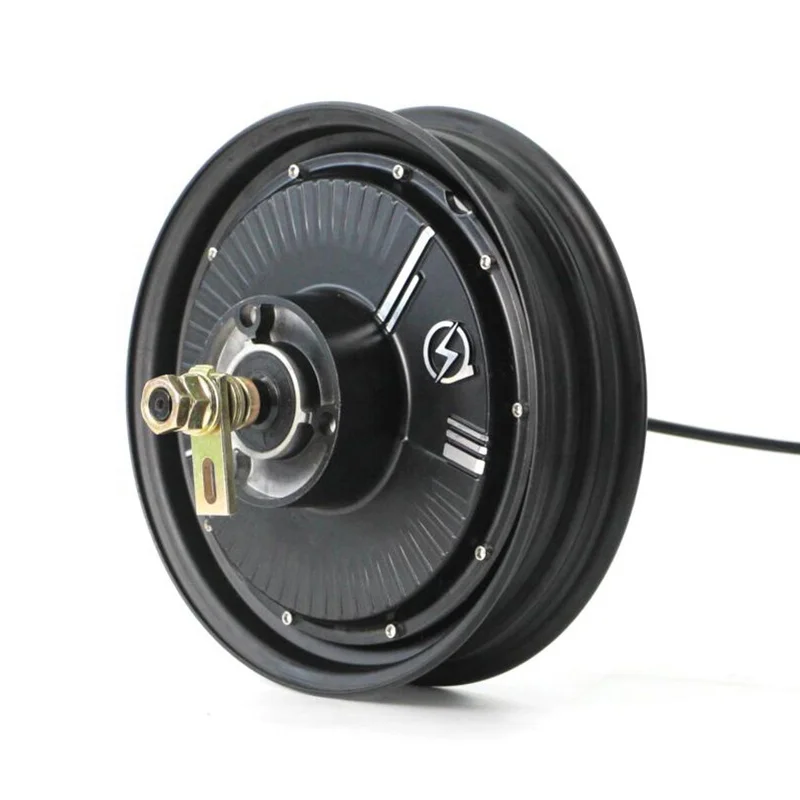

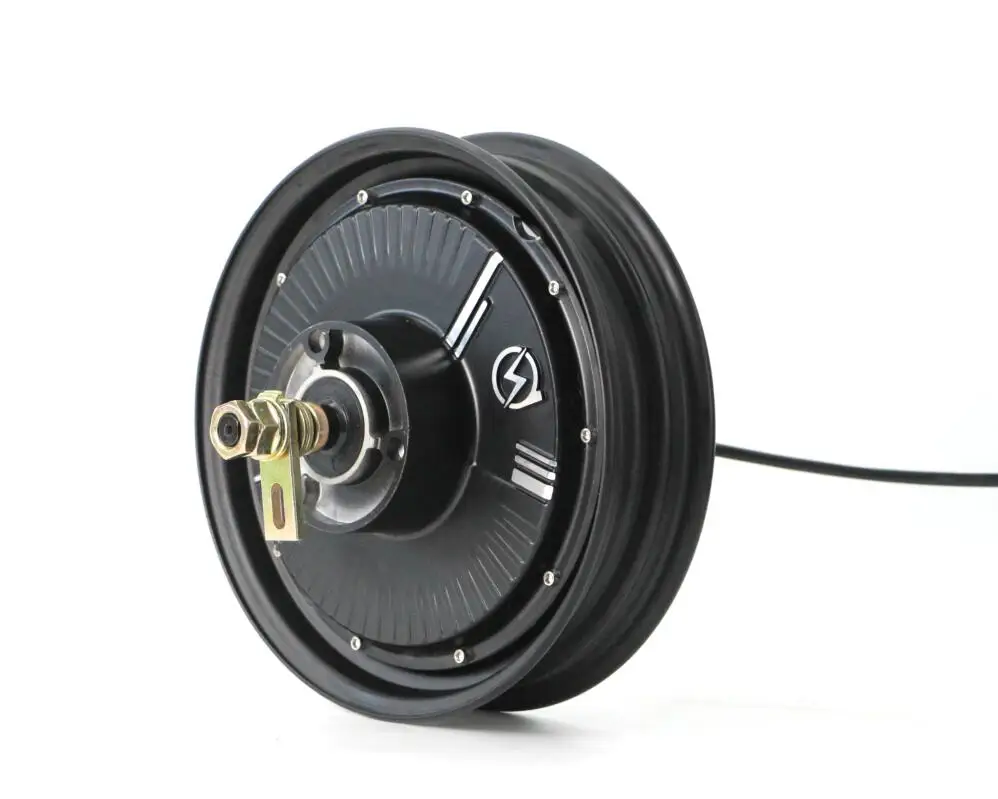

QS MOTOR QS212 1000W 48V 72V 30H V1 10inch Brushless Hub Motor for electric scooter

QS212 10INCH E-Scooter In-Wheel Hub Motor(30H) 1000W V1 Type

10inch 1000W Hub Motor specially designed for electric scooters, drum brake or disc brake type can be optional, speed can be customized from 25-50KMPH.

Motor Specification:

1.   Motor type: BLDC Hub Motor

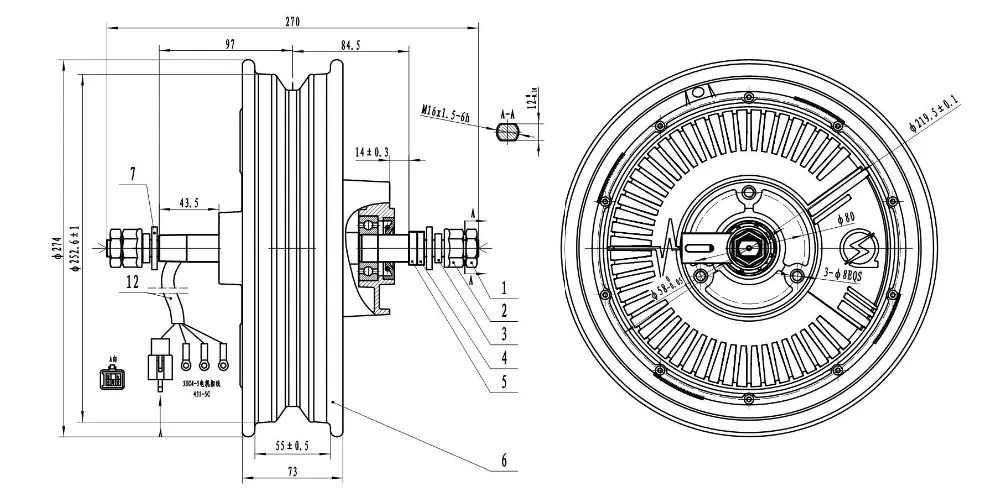

2.    Motor design: Double axle out with 10inch rim

3.    Rim size:2.15x10

4.    Matached Tire: 3.0-10 / 3.5-10

5.    Magnet Height: 30MM

6.    No. of Pole Pairs: 23 pairs(46pcs straight magnets)

7.    Rated Power: 1000W

8.    Max Power: 1500W

9.    Rated Voltage: 72v

10.  Speed:50kph

11.  Max No-load RPM: 600RPM

12.  Max Torque: 80N.M

13.  Max Efficiency: 86%

14.  Continious current:25A

15.  Max current:45A

16.  Brake type: Disc brake or Brum brake(Optional)

17.  Rear Fock width for installation: 200mm

18.  Winding Holder material: IRON

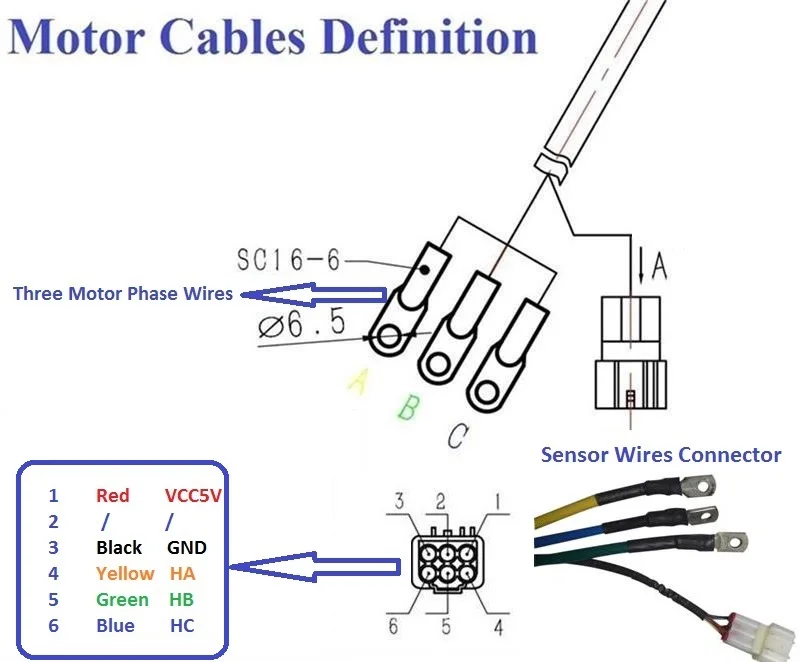

19.  Cross Section of Phase wire: 6 mm2

20.  Hall sensor phasing angle: 120 degree

21.  Temperature Sensor: Optional

22.  Max. Working Temperature: 70 degree, Peak 120 degree

23.  Waterproof Grade: IP66

24.  Color: Black

25.  N.W./ G..W. : 11kgs / 12kgs

26.  Package Size: 34*34*33CM
