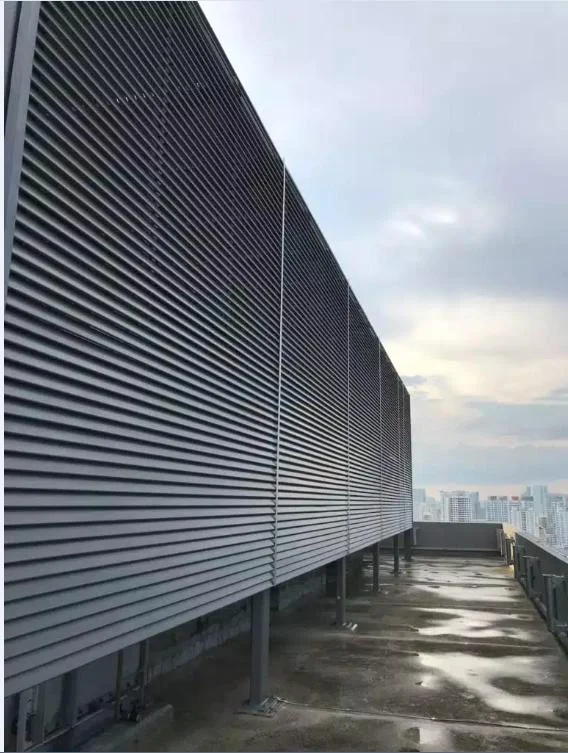

ACOUSTIC LOUVRE

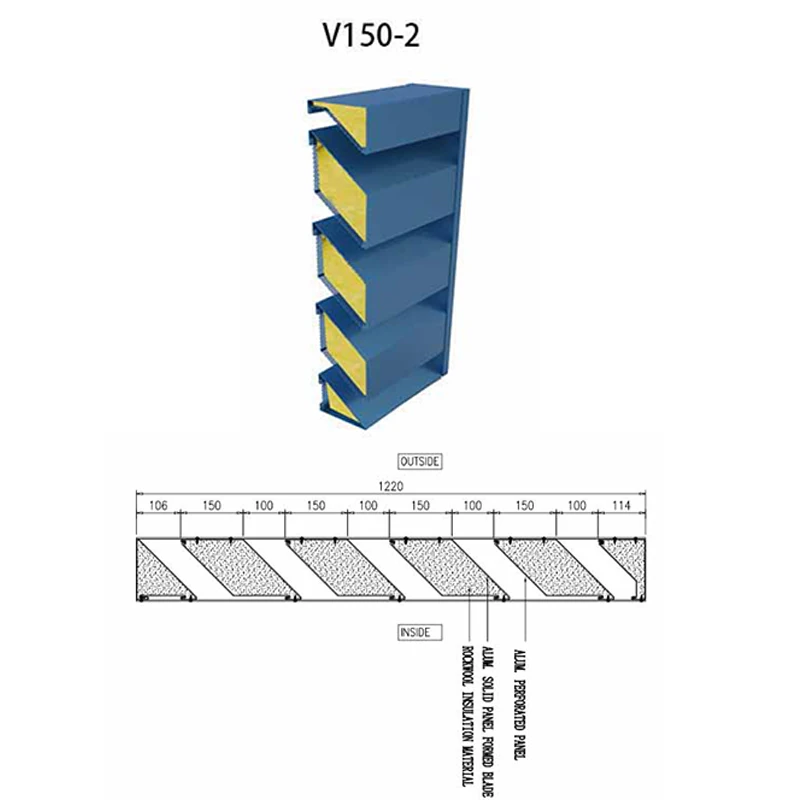

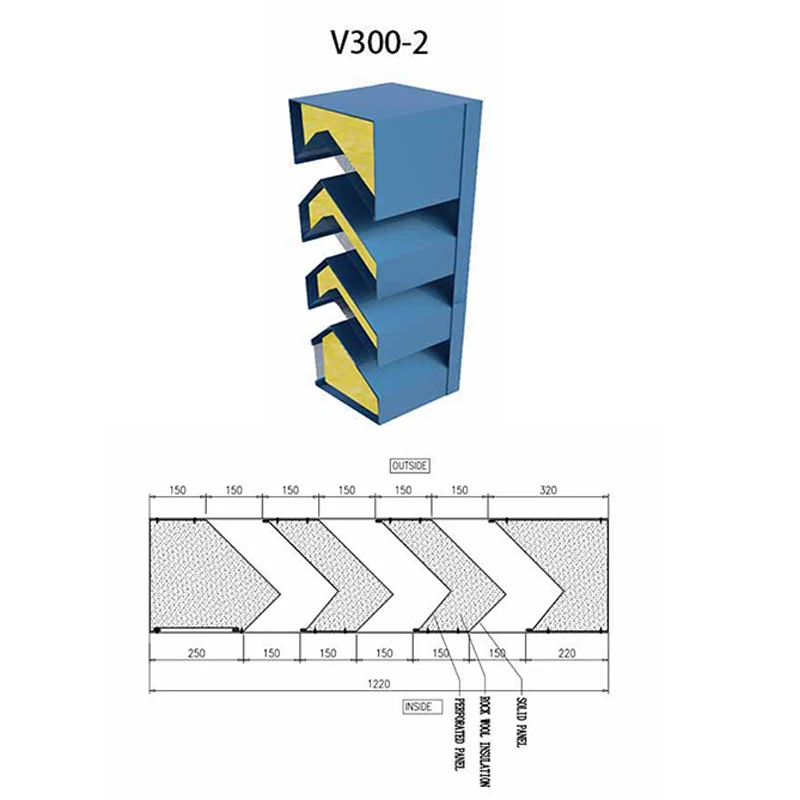

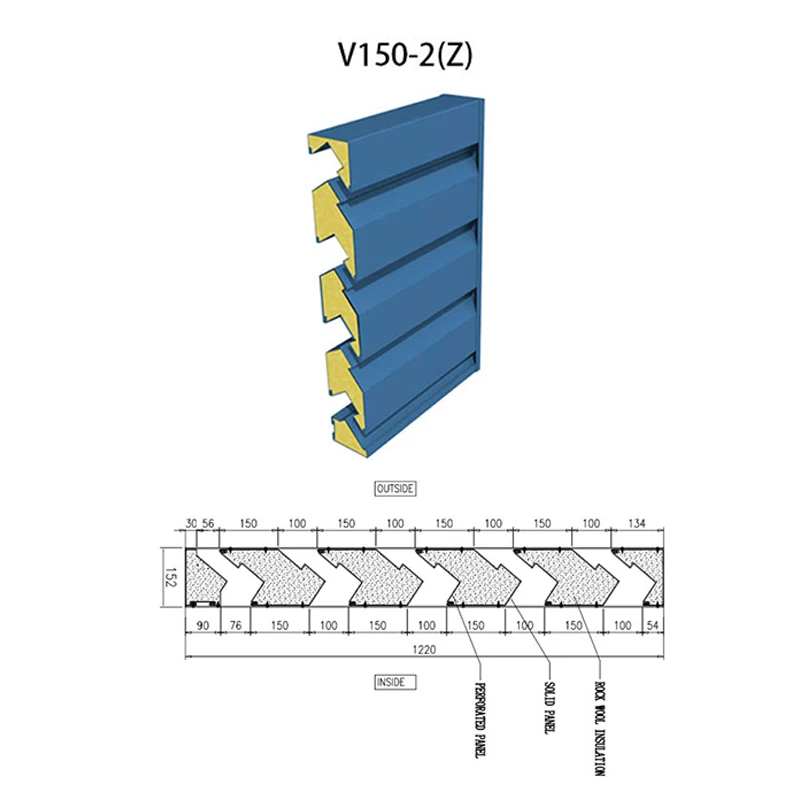

Product Drawing
Material
Fixed single piece blade profile. Fixed blades, heads, sills and mullions to be manufactured from 1100 series aluminum alloy with 2.0mm thickness. Interior acoustic material to be 60kg/m3 density rock wool insulation protected by non-woven fire retardant 100% polyester sheeting and perforated bent sheet. Louvre pitch to be spaced at 300mm. Total system depth not to exceed 150 mm. All screws to be non-corrosive SS316.
Louvre Model | V300-2 | V150-2 | V150-2(Z) | ||
System Depth | 305 mm | 152 mm | 152 mm | ||
Pitch | 300 mm | 250 mm | 250 mm | ||
Visual Impact | Visible | Visible | Visible | ||
Octave Band Centre Frequency, HZ | 63 | 11 | 10 | 11 | |
125 | 13 | 12 | 12 | ||
250 | 15 | 11 | 11 | ||
500 | 19 | 14 | 15 | ||
1K | 24 | 18 | 20 | ||
2K | 28 | 22 | 23 | ||
4K | 28 | 22 | 25 | ||
8K | 31 | 24 | 27 | ||
Performance(ASTM-90-09)
Test data shall be from an accredited acoustical laboratory tested in the US (Riverbank Acoustical Laboratories) in accordance with ASTM E-90-09. The minimum acceptable performance through all octave bands is as follows:
V150-2（Z）：STC = 13, Free Area = 17%
V150-2: STC = 12, Free Area = 24%
V300-2：STC = 17, Free Area = 28%
V150-2: STC = 12, Free Area = 24%
V300-2：STC = 17, Free Area = 28%
Testing
Acoustic Louvre: US River Bank Acoustical Laboratories Testing
Tested by Accredited acoustical laboratory in the US (Riverbank Acoustical Laboratories) in accordance with ASTM E-90-09.
PROJECT REFERENCE
Hoi An South Development -- Vietnam

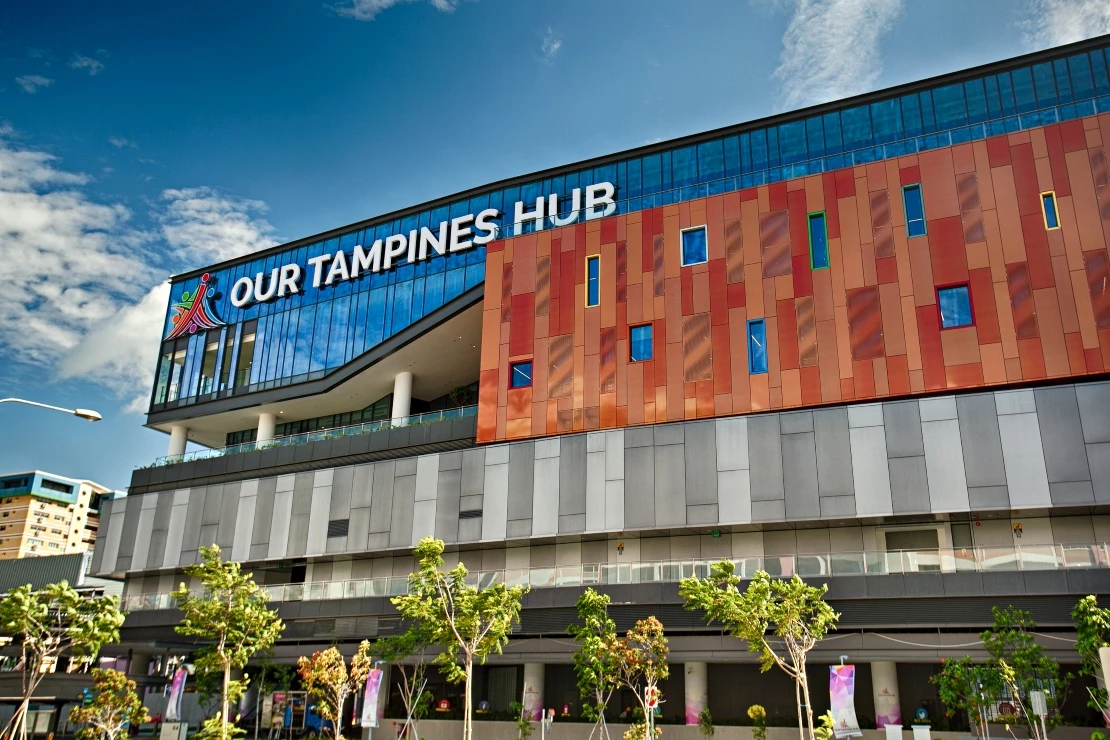

Our Tampines HUB -- Singapore
