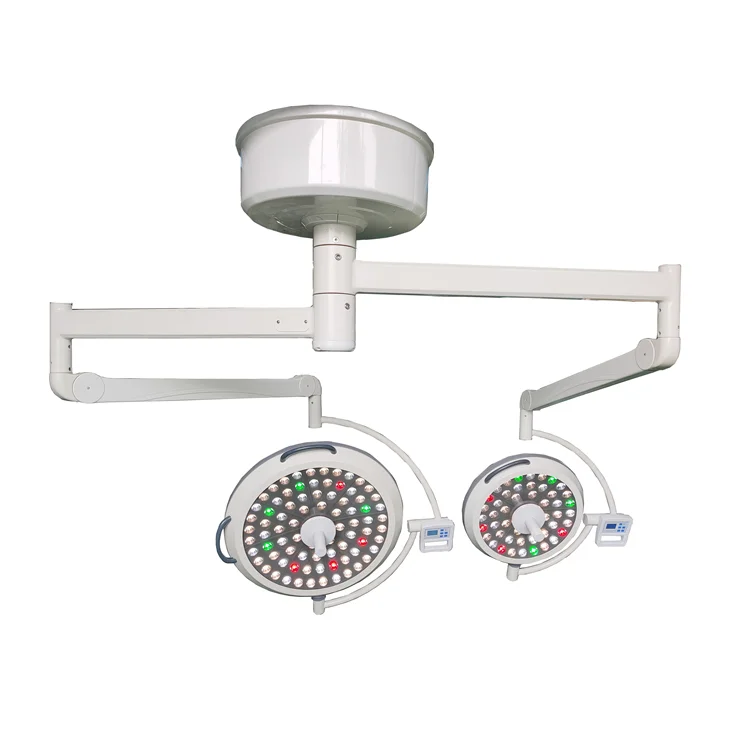

China Medical Equipment Supplier Surgical lamp Led endoscopy Surgery Lamp Operating Light

Product Overview

Description







Description:

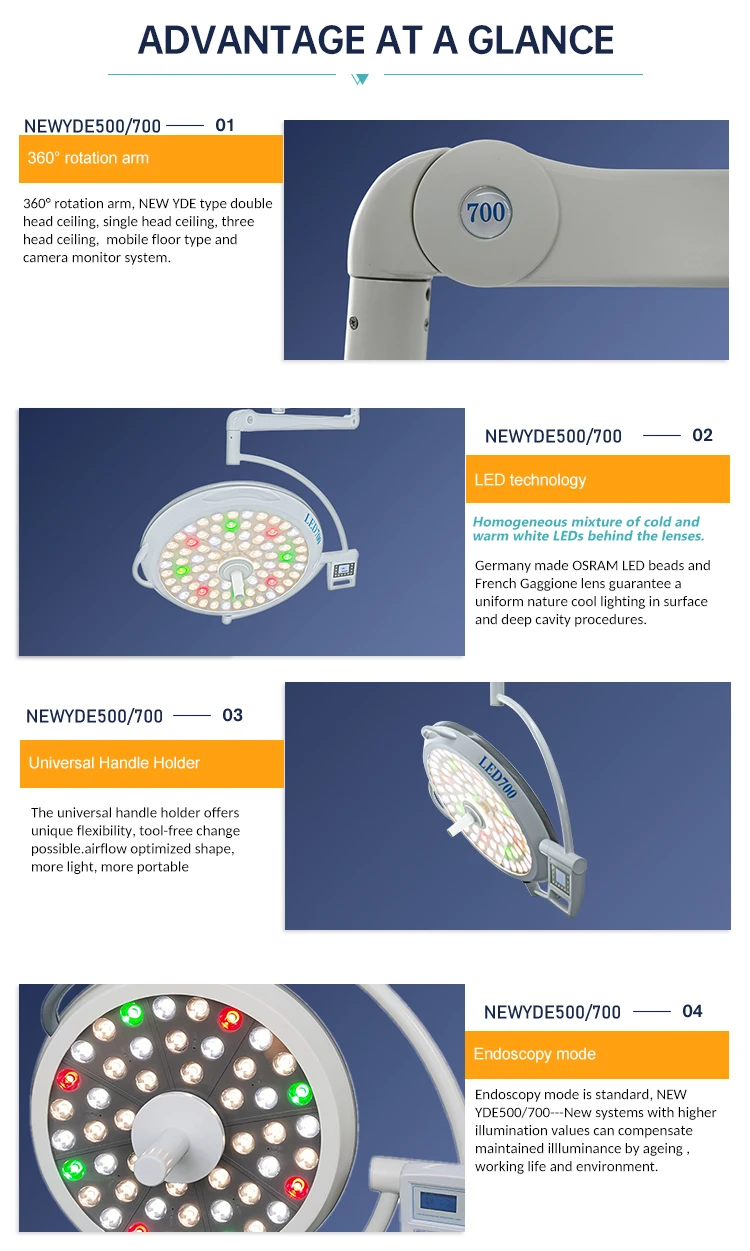

1. NEW systems high illumination

NEW YDE500/700,  New systems with higher illumination values can compensate maintained illluminance by ageing , working life and environment.



2. Manual Focus,optional: electric focus

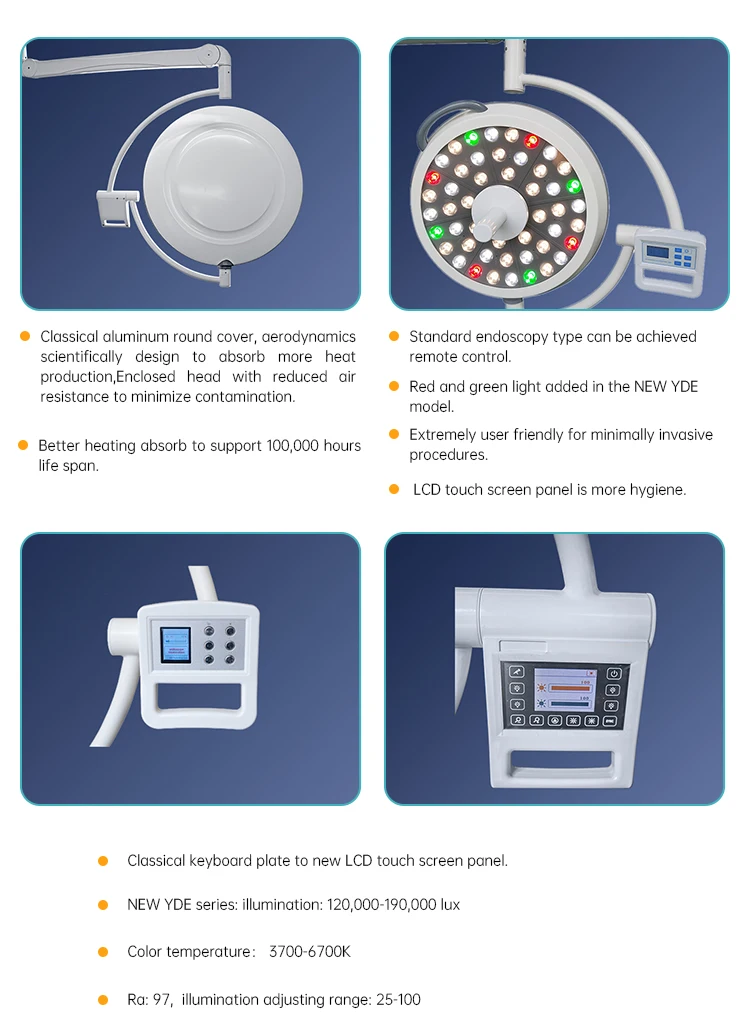

LCD screen panel control, endoscopy standard.



3. Double traverse lighting + Automatic Shadow eliminate technology+ anti-dizziness resolve

Greater light output is 2 or 3 times higher than other lights, clear spot profile and uniform illumination to deep cavity procedures.

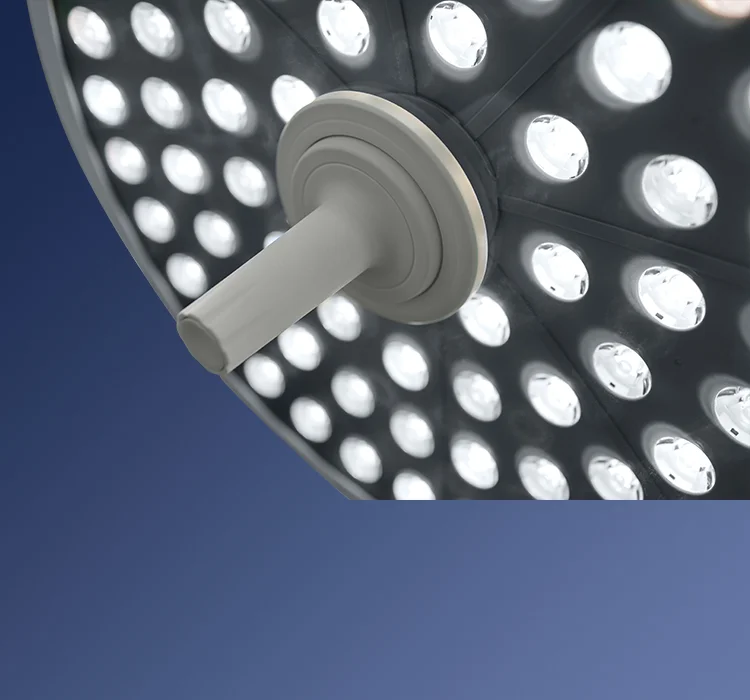

4.New Cold LED light Source

Lowest ultraviolet and infrared in light spectrum, temperature rising less than 2℃. single 3V German LED cost effective for hospitals.



5.Long Service Life Span

At least 100,000 hours LED life span, no need to replace LED beads. Low lifetime maintenance cost.



6.Multi-patch superposition tech

on spot light, getting indirect lighting for comfort.



Technical data	unit	500 lamp head	700 lamp head
Spot center illumination in color temperature 5000K	Lux	120,000--190,000	120,000-190,000
Color temperature	K	3700-6700	3700-6700
Ra		97	97
50% Spot diameter d50	mm	150	150
10% Spot diameter d50	mm	290	290
Lighting adjustment		1%-100%	1%-100%
Illuminance depth	cm	130	100
Illuminance adjusting range	%	25-100	25-100
Ultraviolet irradiance wavelength under 40nm	W	≤0.002	≤0.002
Focal distance adjusting mode		Manual/electric(optional)	Manual/electric(optional)
Beads power	W	3V,1W/unit×80beads	3V,1W/unit×48beads
Head temperature		Less than 2 ℃	Less than 2 ℃
Power supply		110V/220V  50Hz/60Hz	110V/220V  50Hz/60Hz
Input power	W	100	100
LED average life	H	≥100,000	≥100,000
Installation ceiling height	m	2.65-3.2	2.65-3.2
