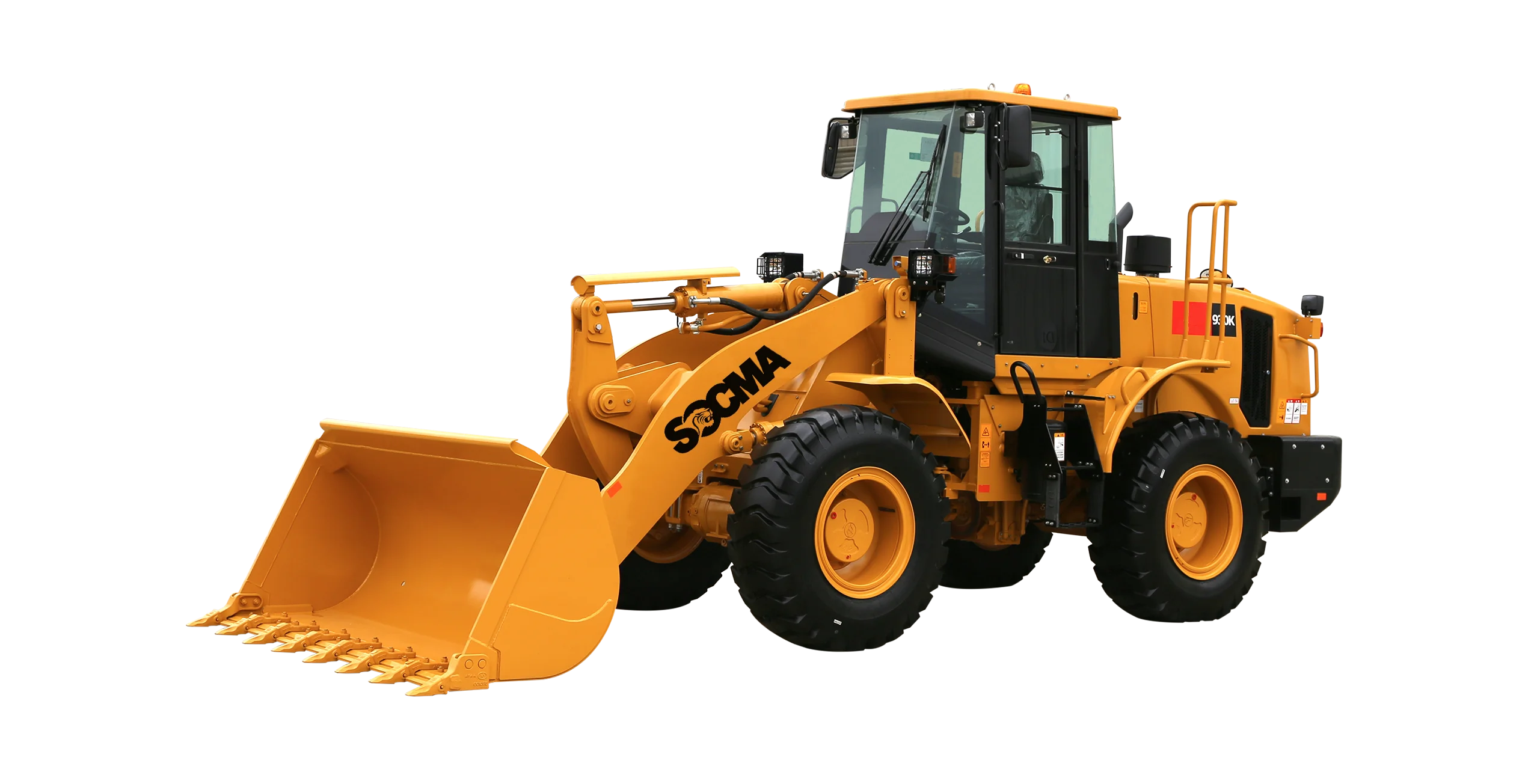

SOCMA 3t Diesel Wheel Loader 930 Grab Loader
- Category: >>>
- Supplier: Fujian Southchina Heavy Machinery Manufacture Co. Ltd.
Share on (1600525596288):
Product Overview
Description
Product Description
Specification
Performance | rated loading | 3000kg |
overall weight | 10200kg | |
bucket capacity | 1.8-2.6m³ | |
maximum traction force | 106KN | |
maximum breakout force | 102KN | |
maximum grade ability | 28° | |
maximum dump height | 2964mm | |
maximum dump reach | 950mm | |
overall dimension (L×W×H) | 7132*2551*3193mm | |
minimum turning radius | 6159mm | |
Engine | model | WEICHAI enginesWP6G125E333 |
type | Electronically controlled, inline, water cooled four stroke, supercharged | |
NO. of cylinder-bore*stroke | 6-105*300mm | |
rated power | 92kw | |
maximum torque | 570N.m | |
Transmission system | torque converter | CG30 |
torque converter type | Single stage, double turbine, Single stage, four components | |
gears | 2 forward 1 reverse | |
maximum speed | 33km/h | |
Drive axles | main transmission type | 1st level spiral gear deceleration |
Wheel side braking type | Planetary reducer | |
wheel base (mm) | 2760mm | |
ground clearance | 390±20mm | |
Hydraulic system | system working pressure | 19MPa |
total time | ≤9.8s | |
Brake system | service brake | air over oil brake |
parking brake | Manual shaft caliper disc brake | |
Tyre | type specification | 17.5-25-12PR |
front tyre pressure | 0.34Mpa | |
rear tyre pressure | 0.23Mpa |
