Заводская поставка, машина для изготовления бамбуковых палочек для барбекю, машина для изготовления палочек, машина для изготовления деревянных зубочисток, линия

Product Overview

Description



Wooden Bamboo Toothpick Chopstick Making Machine



Wooden Toothpick Technical Process:

Saw(1400,1050,700,350)×60×35(mm)square dry wooden block-----slice------ Drawbench----------set size of wirelike stick(cut wirelike stick to three times of toothpick length)-------set size of small wirelike stick to toothpick  length stick -----polishing-------- aligning(making all this small polished stick in order)  --- sharpen ends(or milling and sharpen)---packing

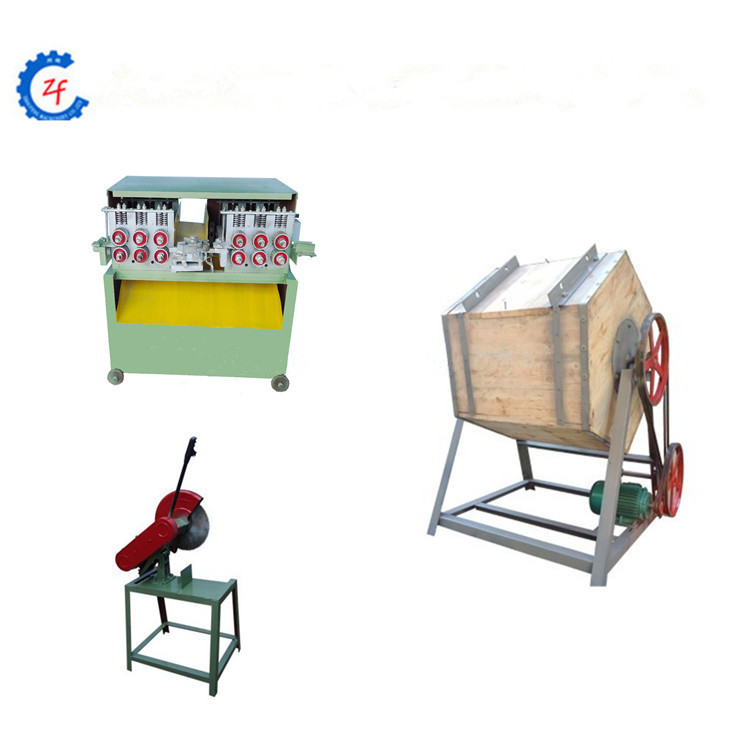

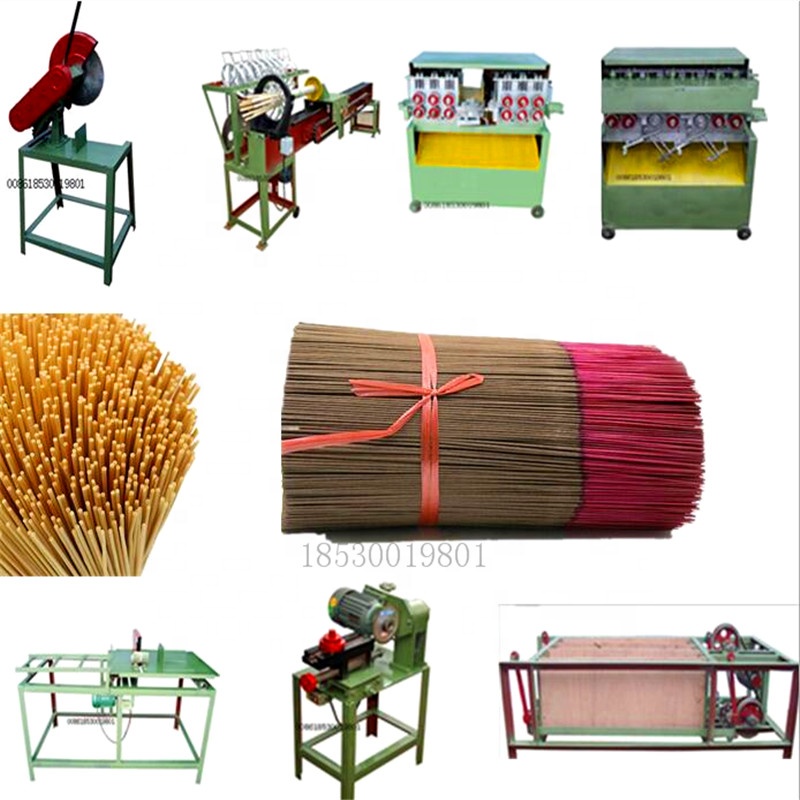

Toothpick Machine is composed of 7 machines which is used for producing woodentoothpick from square timber to finished products.

Toothpick Making Machine Parameters:

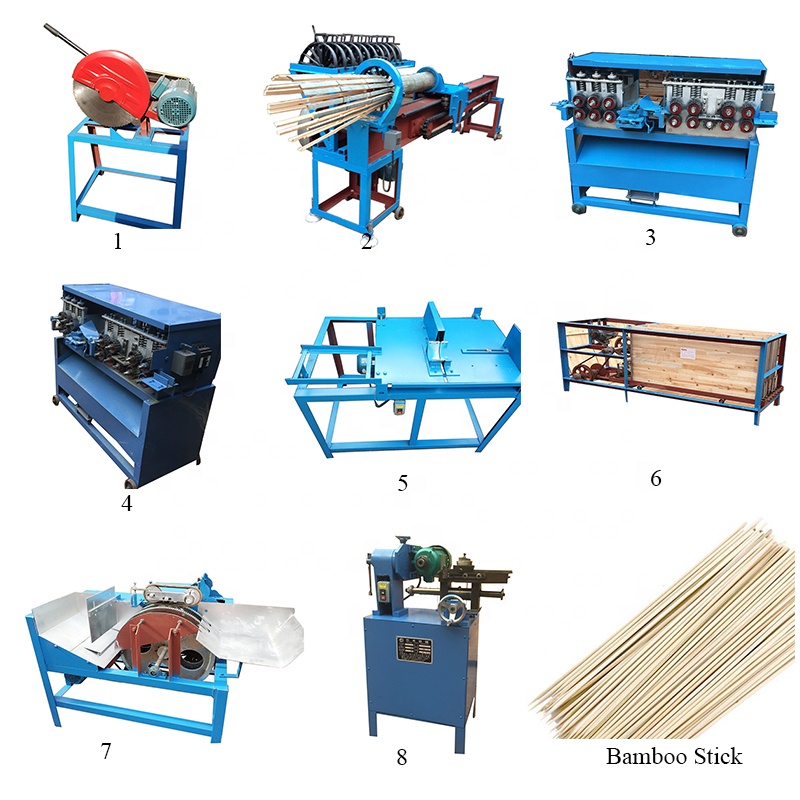

Name	Motor	Weight	Machine Size
Original bamboo sawing machine	1.5kw	60kg	750x600x1300mm
Original bamboo slitting machine	3.0 kw	530 kg	3000x950 x 1200 mm
Fixed width opener	3.0 kw	260 kg	1180 x 680 x 1100 mm
Bamboo wire forming machine	9.1 kw	400 kg	1020*690*1050 mm
Bamboo wire sizing machine	0.75 kw	75 kg	800 x 700 x 900 mm
Toothpick sizing machine	2.75kw	140kg	900x700x950mm
Roller Polisher	1.5 kw	110 kg	1050x 1050 x 1200mm
Toothpick finishing machine	0.55kw	65 kg	1050 x 900 x 850 mm
Toothpick sharpener	1.65 kw	160 kg	950 x 650 x 1050mm
knife sharpener	0.55 kw	50 kg	450 x 400 x 870mm
Toothpick bottling machine	1.5kw	50kg	600*350*1400mm
Individual Toothpick packing machine	0.75kw	400kg	1700*600*1300mm
