4700CFM Recirculation Units and Supply Air Units for Heating And Cooling High Spaces Air Conditioning Unit industria fan heater
- Category: >>>
- Supplier: Shenyang Qiaogong Cooling And Heating Technology Co. Ltd.
Share on (1600525613323):
Product Overview
Description
Product Description
The unit is used to heat and cool in circulated air mode; It was developed specially for use in high spaces such as factories, warehouses, stadiums and other places. The heating medium is hot water, the cooling medium is cold water,it has the characteristics of energy saving and low investment, etc.
Features

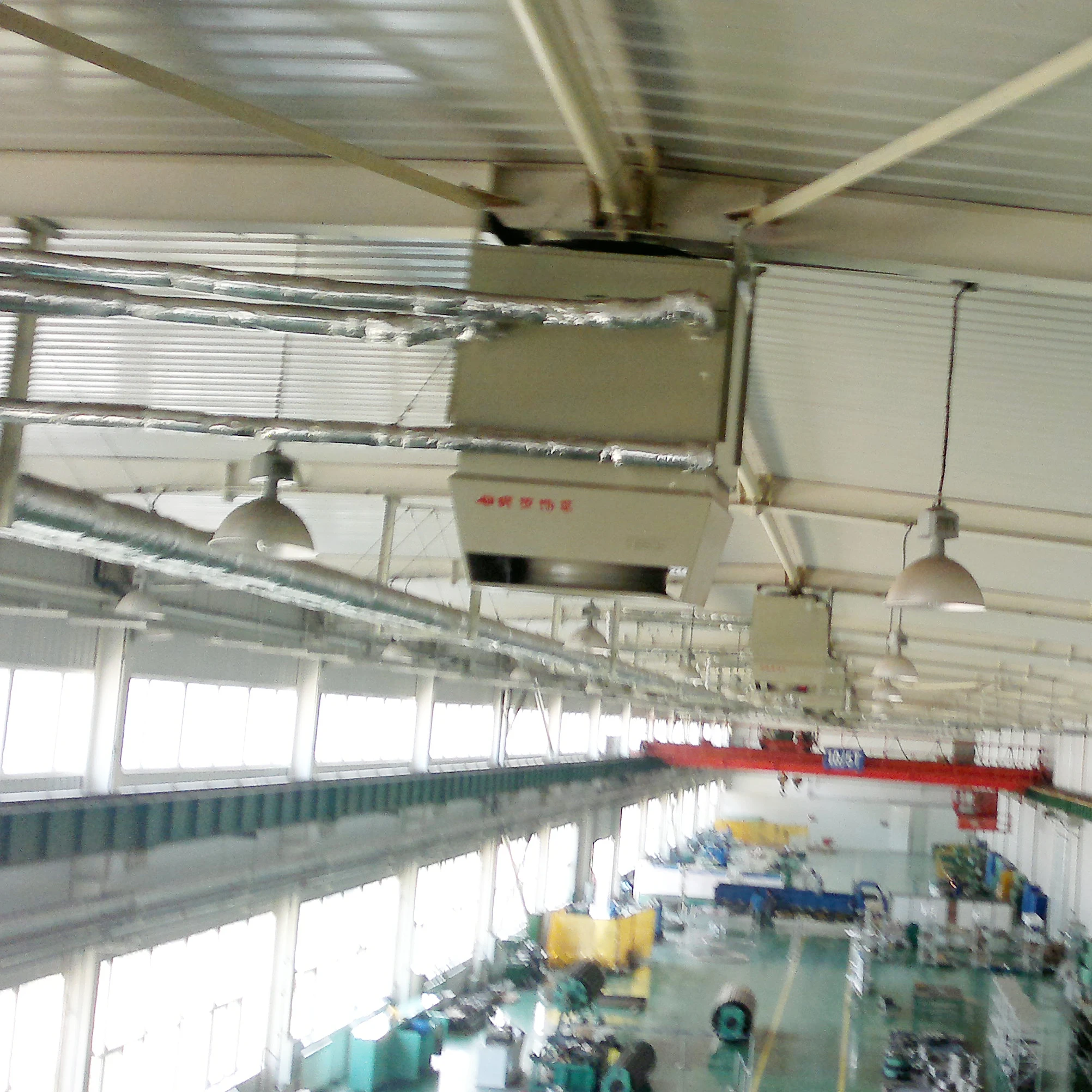

The DKK unit is used to heat and cool in circulated air mode; It was developed specially for use in high spaces. The unit is
installed under the ceiling. It takes in indoor air, heats or cools it and blows it back into the room through the air-injector.
Thanks to its high performance and efficient air distribution the DKK series products covers a large area. Therefore, compared to other systems, fewer units are needed to achieve the required conditions.
2 unit sizes, 2-speed fans, various coil types and a series of accessories make it possible to provide a customized solution for any spaces.
The heating medium is hot water, the cooling medium is cold water, it has the characteristics of energy saving, low investment and high efficiency, etc. It is more effective when used with air curtain.
The voltage of the motor can be customized 380V, 400V, 440V, etc. The common voltage is 380V～/50HZ.

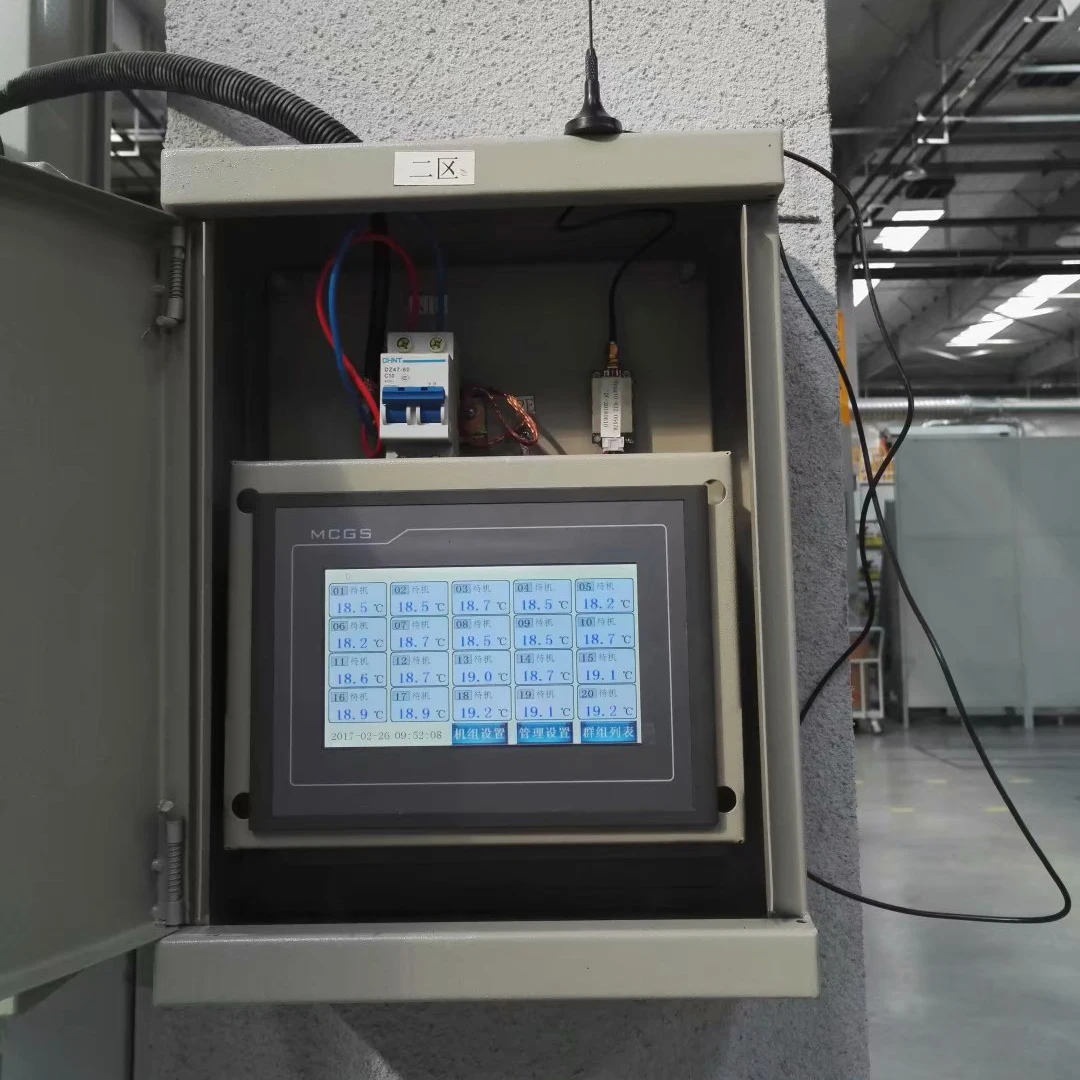

* The control method can choose intelligent network control system or Multi-unit synchronous control system;
* A single group of intelligent network control system can control a maximum of 24 units, and the whole control system does not limit the number of units;
* A variety of accessories are available for selection, which is convenient for installation and maintenance;
installed under the ceiling. It takes in indoor air, heats or cools it and blows it back into the room through the air-injector.
Thanks to its high performance and efficient air distribution the DKK series products covers a large area. Therefore, compared to other systems, fewer units are needed to achieve the required conditions.
2 unit sizes, 2-speed fans, various coil types and a series of accessories make it possible to provide a customized solution for any spaces.
The heating medium is hot water, the cooling medium is cold water, it has the characteristics of energy saving, low investment and high efficiency, etc. It is more effective when used with air curtain.
The voltage of the motor can be customized 380V, 400V, 440V, etc. The common voltage is 380V～/50HZ.
Product features
* Reasonable heating and cooling layout, energy saving, high comfort, low carbon and environmental protection;

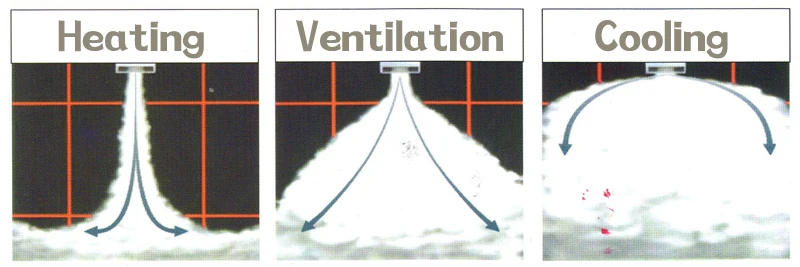

* Automatic or manual adjustment of air supply angle and air supply speed, easy to control.* The control method can choose intelligent network control system or Multi-unit synchronous control system;
* A single group of intelligent network control system can control a maximum of 24 units, and the whole control system does not limit the number of units;
* A variety of accessories are available for selection, which is convenient for installation and maintenance;
Installation

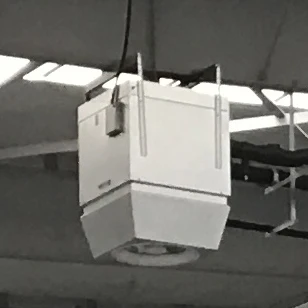

Ceiling suspended,Vertical air delivery
Optional
* Air Filter
* The angle of air supply is not adjustable (simple configuration)
* Intelligent network control system or Multi-unit synchronous control system
Ceiling suspended,Vertical air delivery
Optional
* Air Filter
* The angle of air supply is not adjustable (simple configuration)
* Intelligent network control system or Multi-unit synchronous control system
Specification
Model | - | DKK-6/C | DKK-9/C | ||||
Fan speed | - | I | II | I | II | ||
Rotational speed (nominal) | min-1 | 680 | 900 | 660 | 860 | ||
Nominal air flow rate | m3/h | 3900 | 4900 | 6600 | 8700 | ||
Max. floor area reached | m2 | 324 | 400 | 625 | 900 | ||
Power consumption (at 380 V / 50 Hz) | kW | 0.7 | 0.98 | 1 | 1.65 | ||
Current consumption (at 380 V / 50 Hz) | A | 1.15 | 1.75 | 1.8 | 3.5 | ||
Heating capacity（HWS/HWR 70/50℃,Eentering air 10℃） | kW | 50 | 59 | 82 | 100 | ||
Cooling capacity（HWS/HWR 6/12℃,Eentering air 28℃,Humidity 70%） | kW | 38 | 45 | 63 | 77 | ||
Model | - | DKK-9/D | ||
Fan speed | - | I | II | |
Rotational speed (nominal) | min-1 | 660 | 860 | |
Nominal air flow rate | m3/h | 6200 | 8100 | |
Max. floor area reached | m2 | 576 | 784 | |
Power consumption (at 380 V / 50 Hz) | kW | 1 | 1.65 | |
Current consumption (at 380 V / 50 Hz) | A | 1.8 | 3.5 | |
Heating capacity（HWS/HWR 70/50℃,Eentering air 10℃） | kW | 105 | 130 | |
Cooling capacity（HWS/HWR 6/12℃,Eentering air 28℃,Humidity 70%） | kW | 81 | 101 | |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1. Where is your company located? Are you a factory or a trading company?
A: Our factory located in Tieling City, Liaoning Province, China.
B: We are a factory.
2. What products your factory supply ?
Hot water unit heater, Steam unit heater, Electric unit heater, Gas fired unit heater, Warm air curtain, axial fans, air heater
etc.
3. Can Electric parameter be customized?
Yes, pls let us know '?Voltage-?Phases-?Hz'.
4. Can you do our logo or brand on the fan?
Yes, OEM & ODM are all available.
5. Can I order some samples at first to see the quality?
Yes, of course.
6. What's your trade term & payment term?
Trade terms: EXW/ FOB/ CFR/ CIF;
Terms of payment: T/T, L/C, D/P, or paid by third party are available.
7. Do you have the products in stock?
Yes. There are some series products in stock.
8. What's the delivery time?
Normally, it will take 30 days .
9. Can I mix different models in one container?
Yes, but need to meet the MOQ.
A: Our factory located in Tieling City, Liaoning Province, China.
B: We are a factory.
2. What products your factory supply ?
Hot water unit heater, Steam unit heater, Electric unit heater, Gas fired unit heater, Warm air curtain, axial fans, air heater
etc.
3. Can Electric parameter be customized?
Yes, pls let us know '?Voltage-?Phases-?Hz'.
4. Can you do our logo or brand on the fan?
Yes, OEM & ODM are all available.
5. Can I order some samples at first to see the quality?
Yes, of course.
6. What's your trade term & payment term?
Trade terms: EXW/ FOB/ CFR/ CIF;
Terms of payment: T/T, L/C, D/P, or paid by third party are available.
7. Do you have the products in stock?
Yes. There are some series products in stock.
8. What's the delivery time?
Normally, it will take 30 days .
9. Can I mix different models in one container?
Yes, but need to meet the MOQ.
