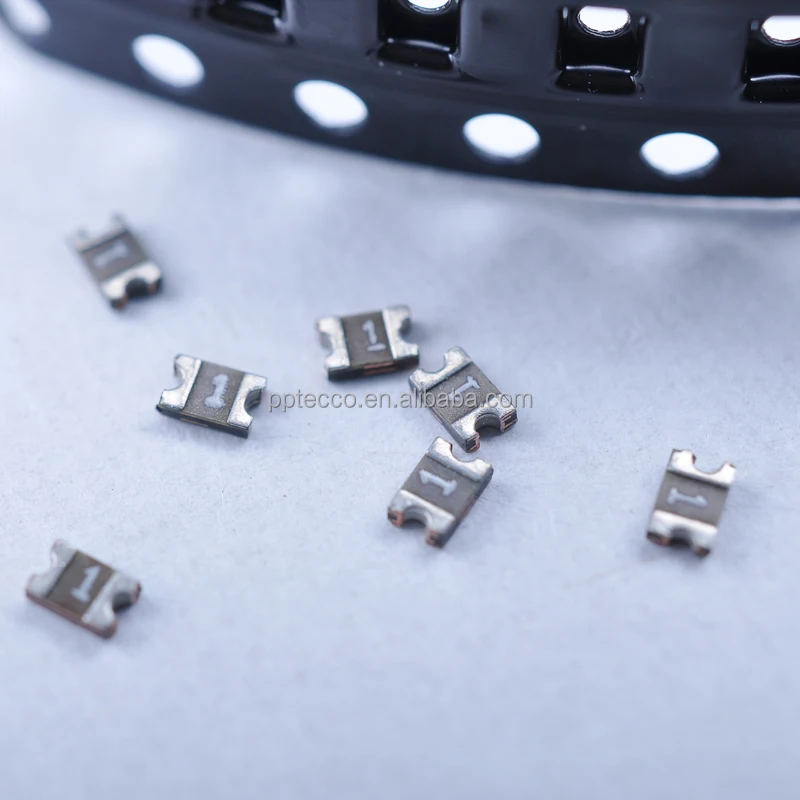

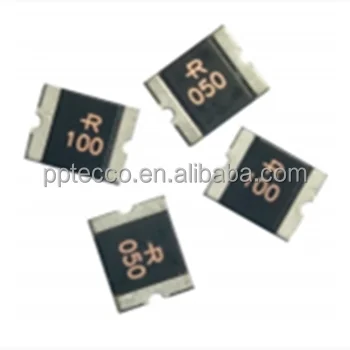

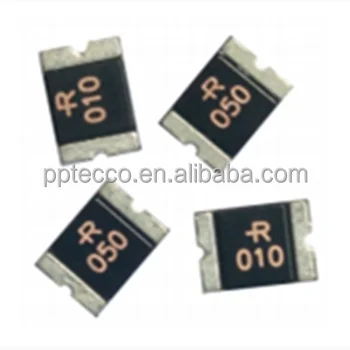

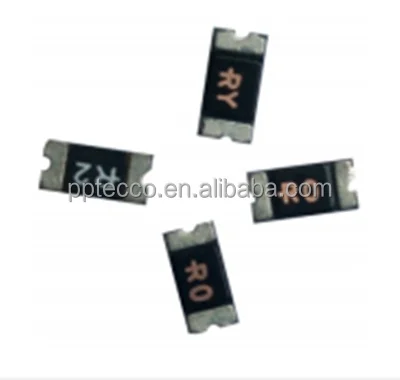

PicoSMDC010S MF PSMF010XF SMD0805 010 0805L010 FSMD010 0805 R SMD0805P010TF PPTC Resettable Fuse

Description of Positive Temperature Coefficient PPTC Resettable Fuse:

The 0805 series provides miniature surface mount resettable Over-current protection with holding current from 0.05A to 1.50A. This world’s smallest PTC is suitable for ultra portable applications where space is at a premium and the device current is low.

Features of Positive Temperature Coefficient PPTC Resettable Fuse:

• I(hold): 0.05~1.50A
• Very high voltage surge capabilities
• Available in lead-free version
• Fast response to fault current
• RoHS compliant, Lead- Free and Halogen-Free
• Low resistance
• Compact design saves board space
• Compatible with high temperature solders

Applications of Positive Temperature Coefficient PPTC Resettable Fuse:

• USB peripherals
• Disk drives
• CD-ROMs
• General electronics
• Set-top-box and HDMI
• Mobile Internet Device (MID)
• PDAs / digital cameras

• Game console port protection
• Plug and play protection for motherboards and peripherals
• Mobile phones - battery and port protection

Part Number Code of Positive Temperature Coefficient PPTC Resettable Fuse:

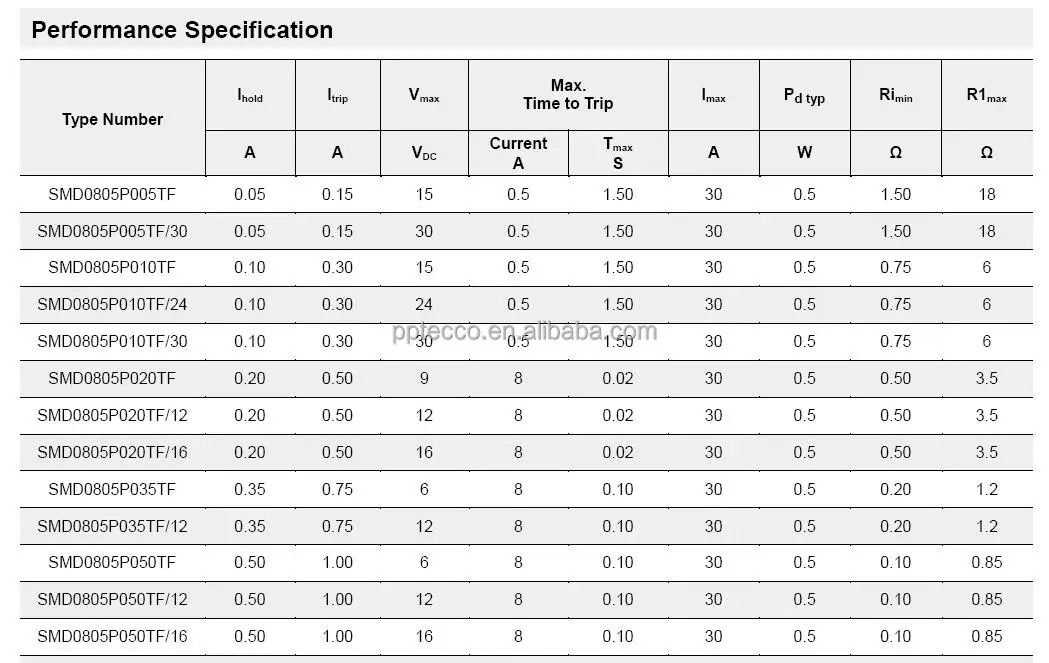

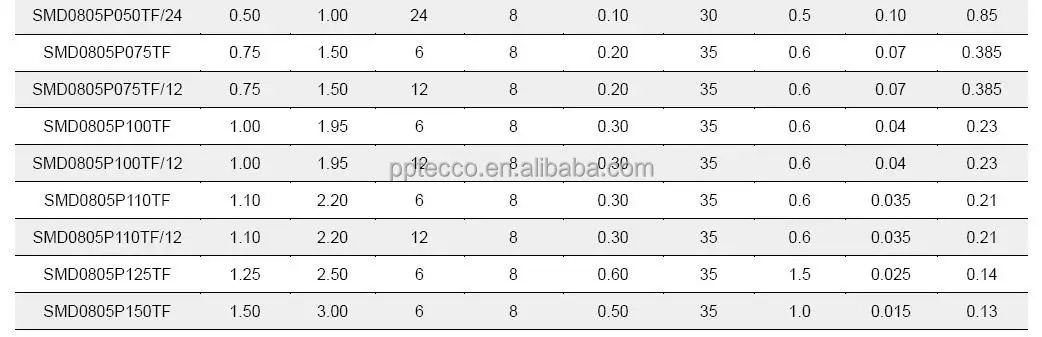

Characteristics of Positive Temperature Coefficient PPTC Resettable Fuse:

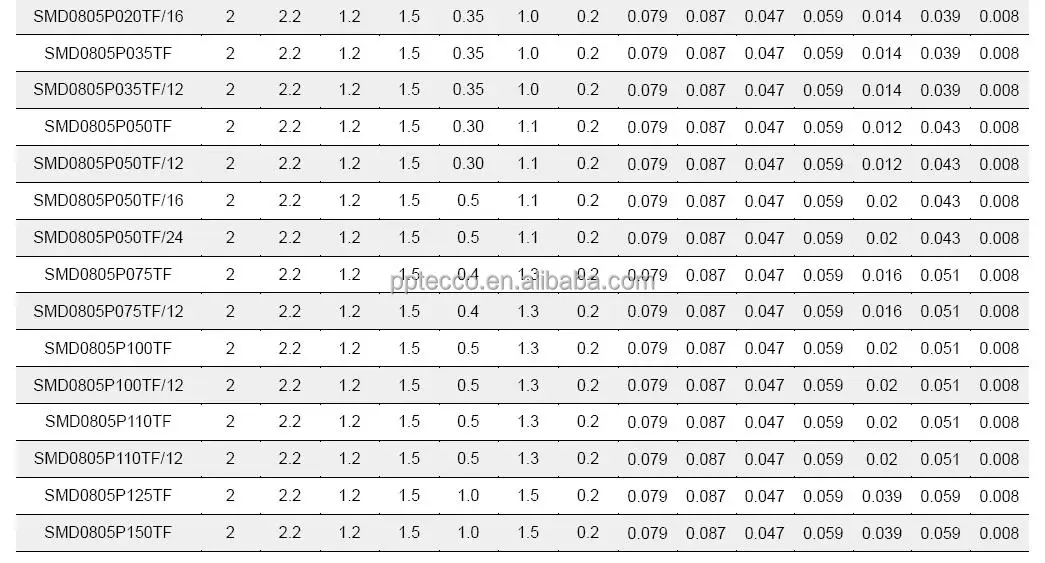

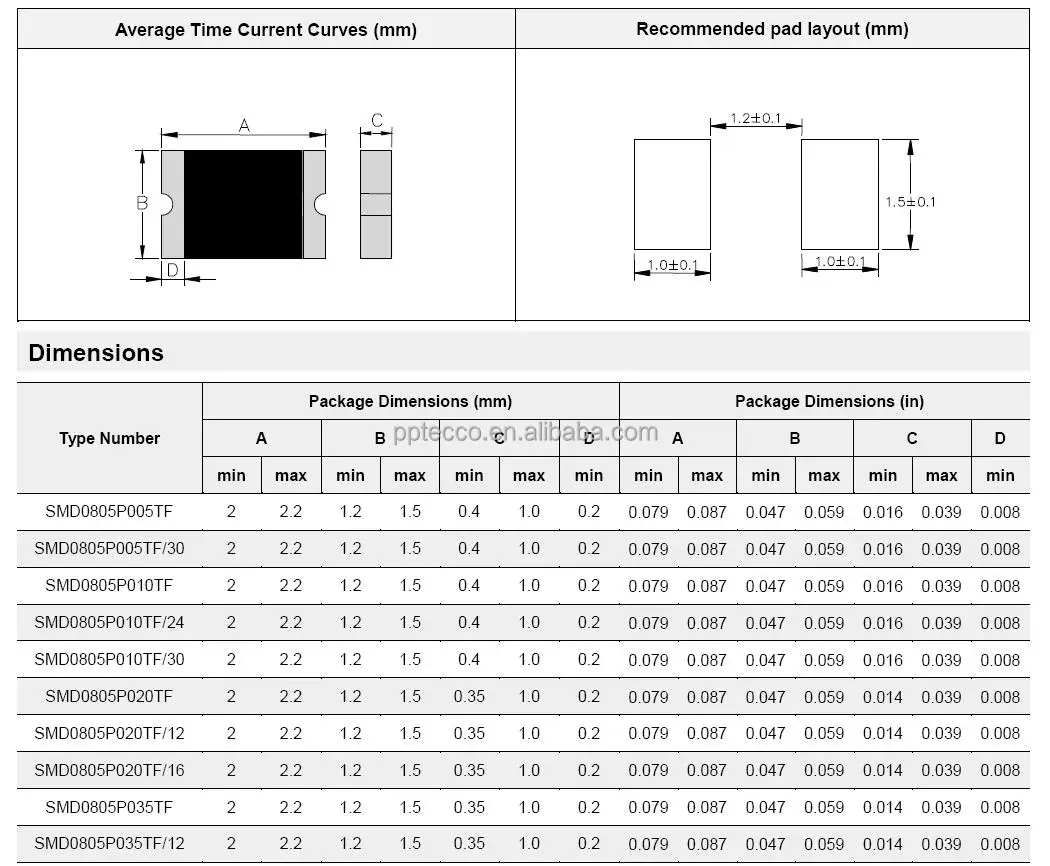

Dimension of Positive Temperature Coefficient PPTC Resettable Fuse:

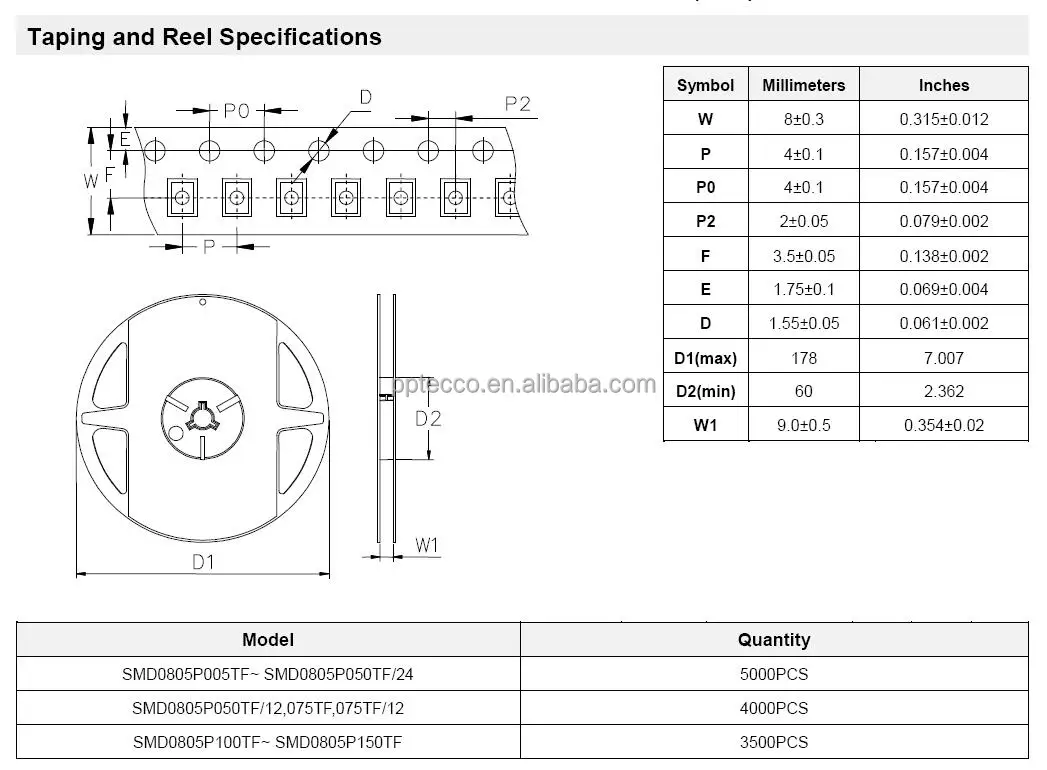

Packing of Positive Temperature Coefficient PPTC Resettable Fuse:

Payment Options of Positive Temperature Coefficient PPTC Resettable Fuse:

Shipping Options of Positive Temperature Coefficient PPTC Resettable Fuse:
