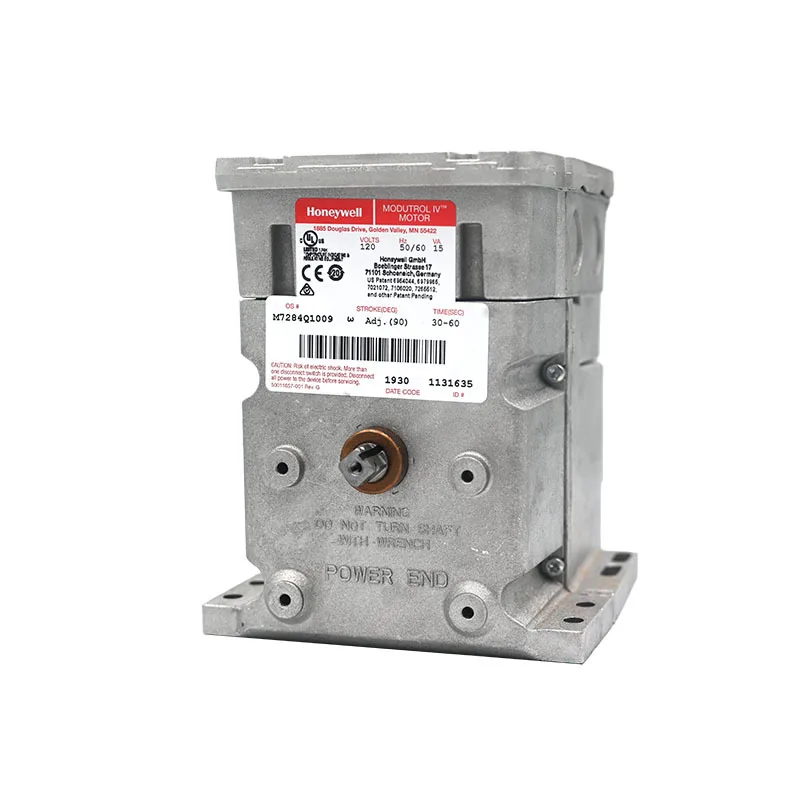

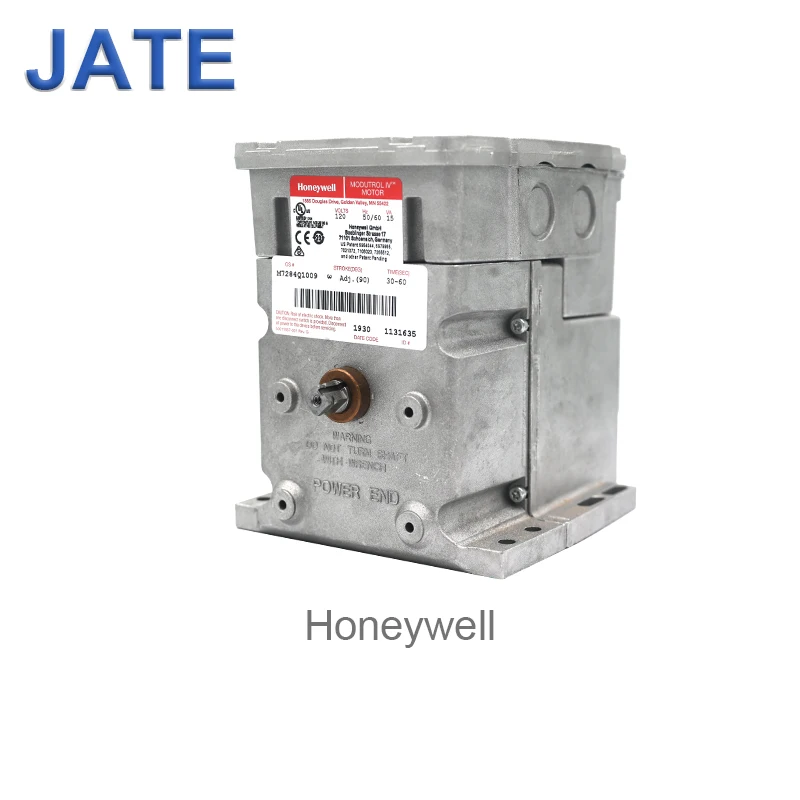

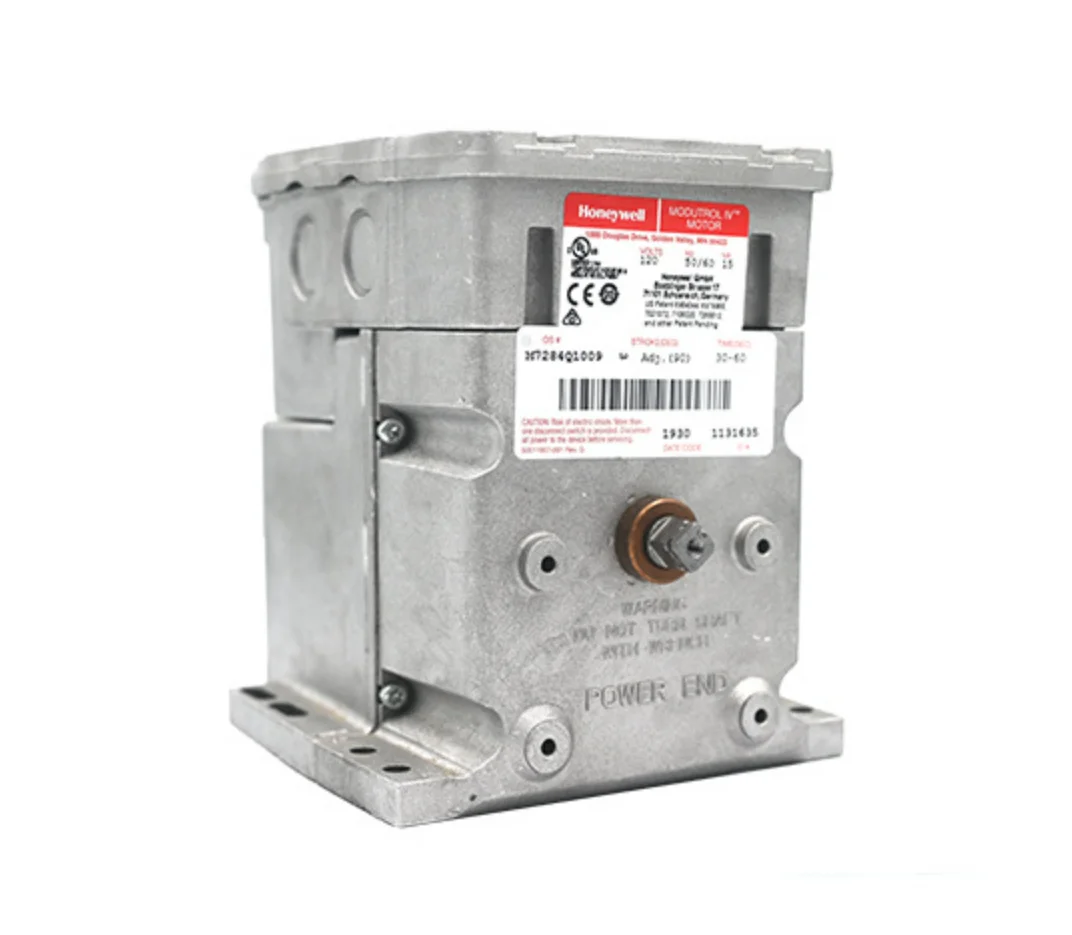

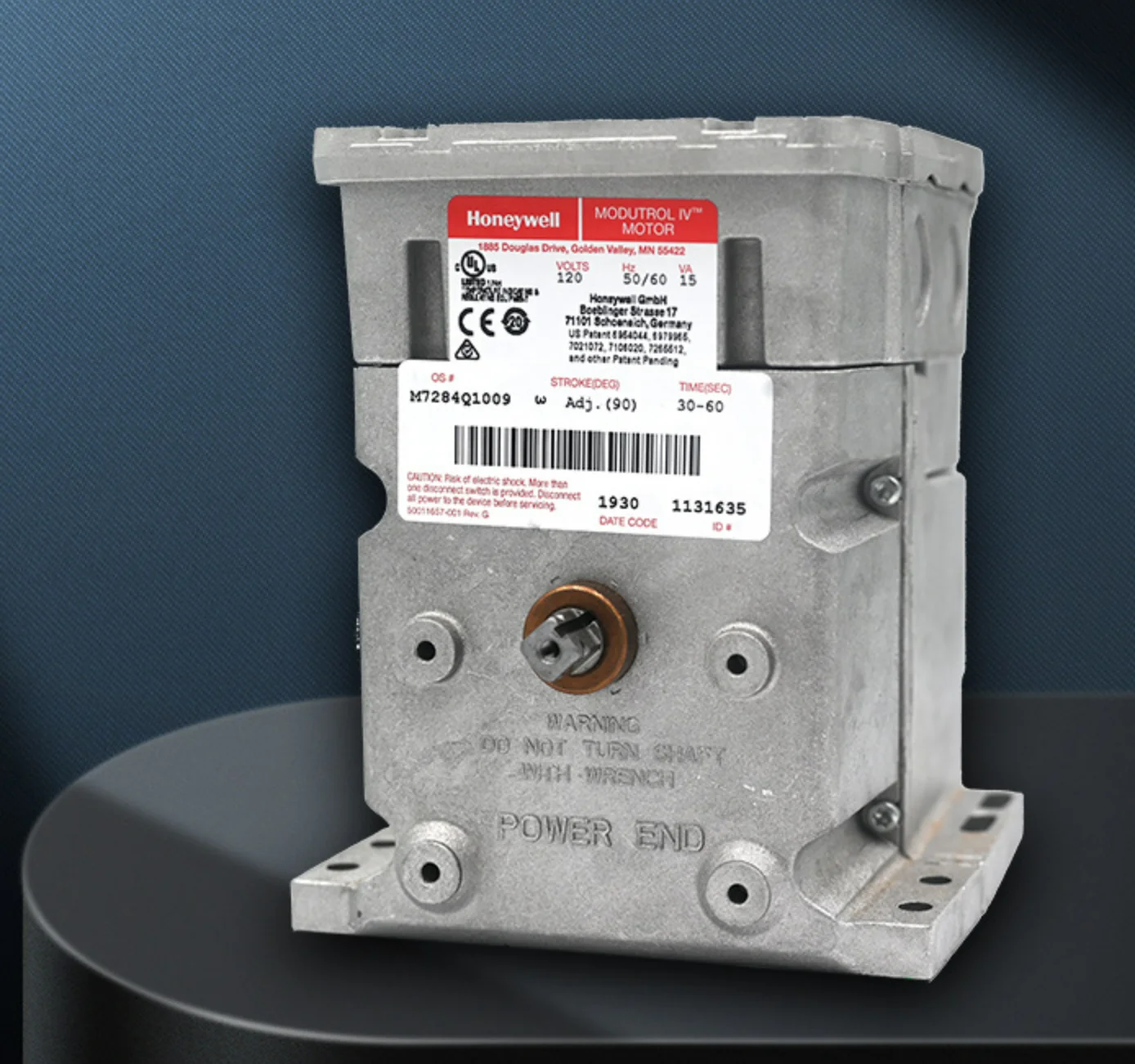

HoneyWell M7284Q1009 Damper Actutors Servo Motor Industrial Combustion Product Accessories
- Category: Boilers & Parts >>>
- Supplier: Shenzhen Jate Burners Co. Ltd.
Share on (1600525660278):
Product Overview
Description

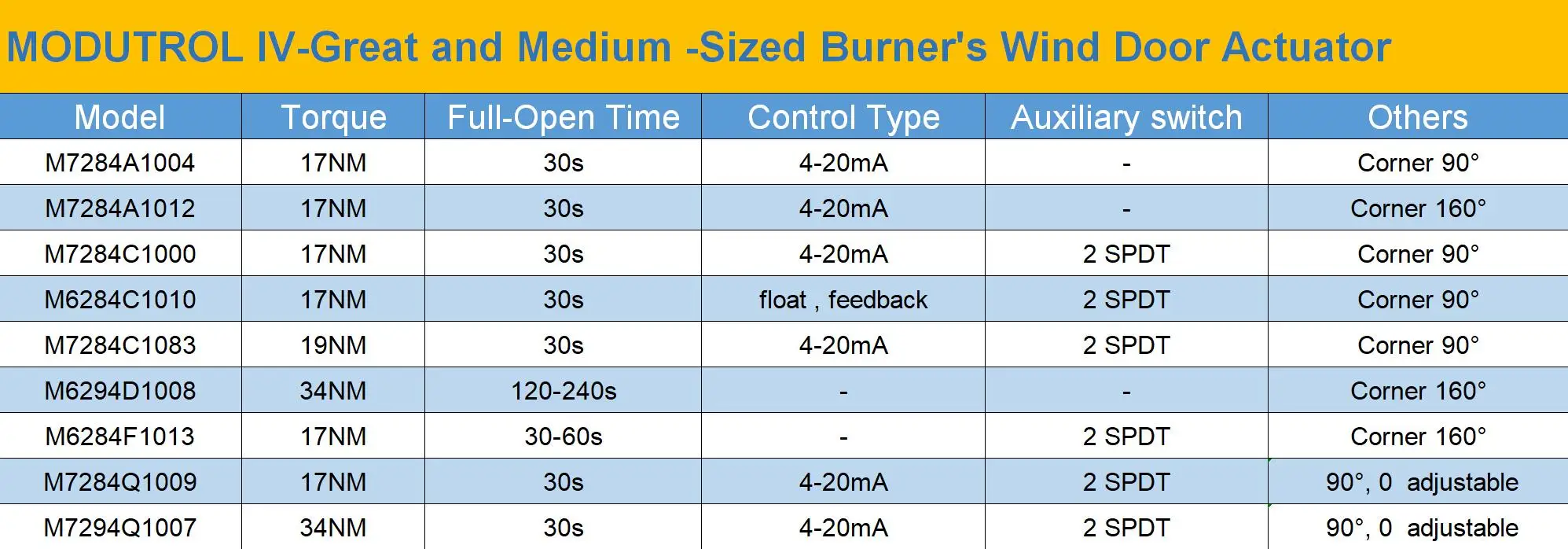

PRODUCT SPECIFICATIONS
Model | M7284Q1009 |
Torque | 17NM |
Full-Open Time | 30s |
Control Type | 4-20mA |
Auxiliary switch | 2 SPDT |
Others | 90°, 0 adjustable |
Action:
According to the actual use requirements of the customer, the switch angle of the proportional motor is controlled by conducting 4-20MA analog signal through the thermostat, so as to control the gas/air flow rate of the solid line of the proportional butterfly valve, realize the precise ratio of gas and air, and realize precise temperature control. The effect of saving traffic.
Features:
Oil -soaked motor and chain with gears to ensure their reliability and long life
· Provide NGMA3 wiring box
· Built -in 24VAC transformers for motor actuator working power, optional
· On -site 90 to 160 adjustable itinerary.
· 90˚ The schedule is 30 seconds, 160˚ 30 seconds, and other can be selected at the same time
time.
· Accessories with valve and wind door connecting rods, explosion -proof shells and auxiliary switches are available.
· Provide NGMA3 wiring box
· Built -in 24VAC transformers for motor actuator working power, optional
· On -site 90 to 160 adjustable itinerary.
· 90˚ The schedule is 30 seconds, 160˚ 30 seconds, and other can be selected at the same time
time.
· Accessories with valve and wind door connecting rods, explosion -proof shells and auxiliary switches are available.
M7284Q1009
M7284Q1009
M7284Q1009
