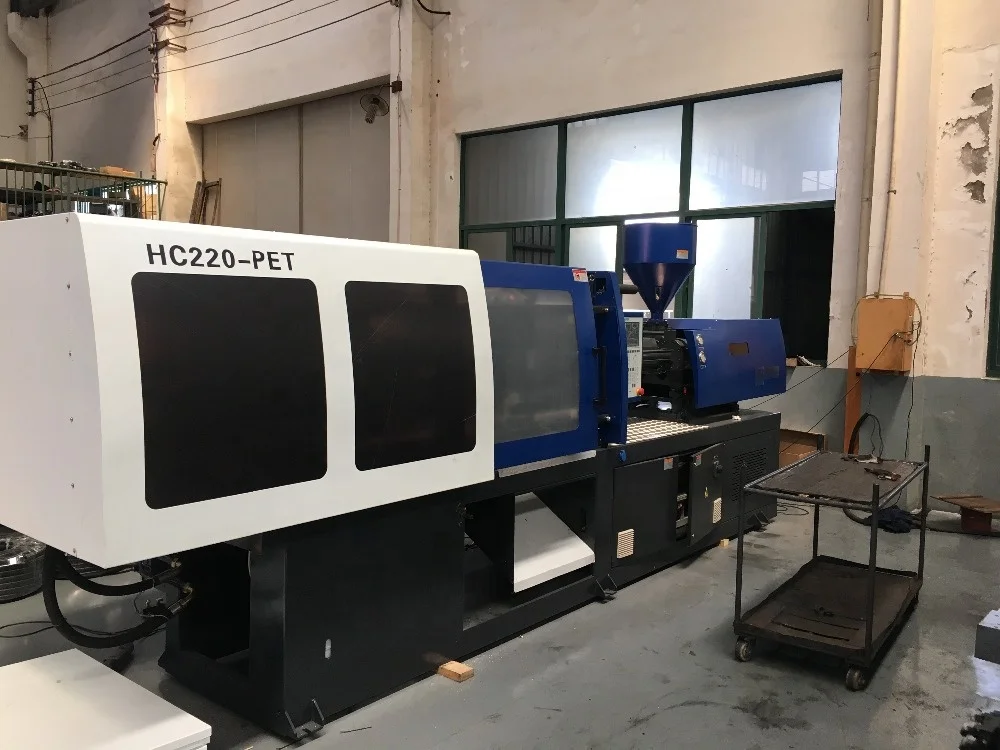

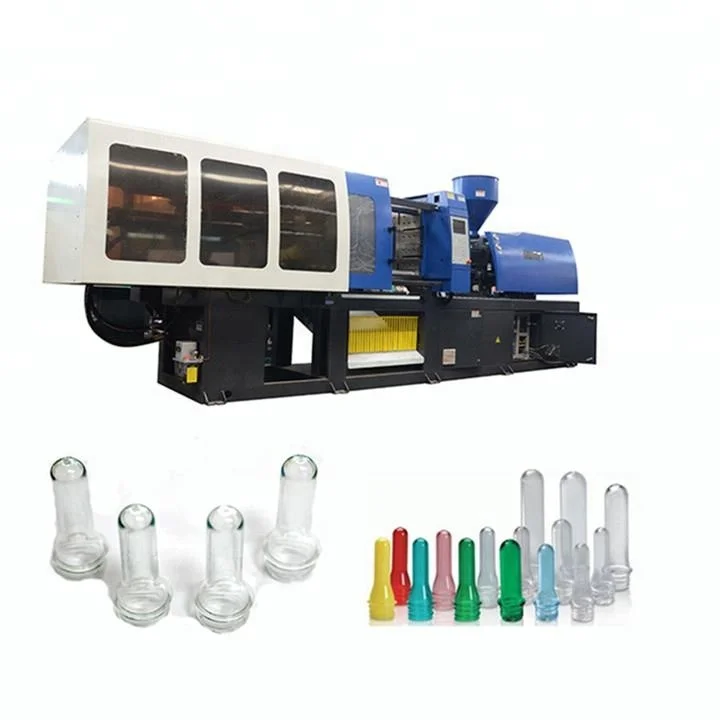

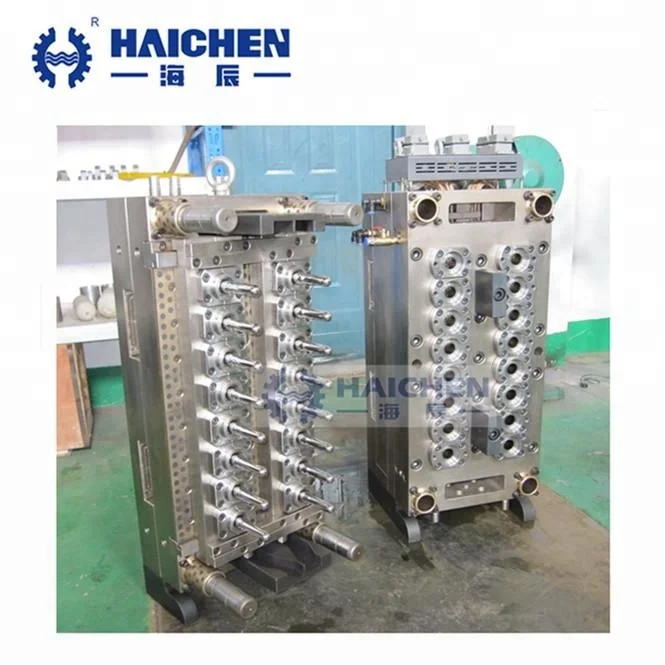

haichen servo motor hot runner plastic pet preform bottle making injection molding machine

SERVO ENERGY-SAVING

FEATURS:

• There is no extra energy consumption due to output

  volume changes according to load alteration.

• In the phase od holding pressure,servo motor lowers

  rotate speed and consumes a little of energies.

• In the phase of cooling,motor doesn’t work and

  consumes no energy.

• The noise is below 78bd.Servo motor has almost no       noise huring no operation.

• No constant flow pump and speed set motor overflow     heating.When the temperature of hydraulic oil is             lower,the cooling water is reduced greatly.

According to different products,servo energy-saving injection molding machines will save 20%-80%energy and bring you prominent economic benefit.

Is equipped with high performance servo motor controlling system,the machine’s output power can vary in accordance with the loading changes.

Which reduce energy consumption and noise.The motor rotates at lower speed in holding pressure stage,and doesn’t work in cooling time.

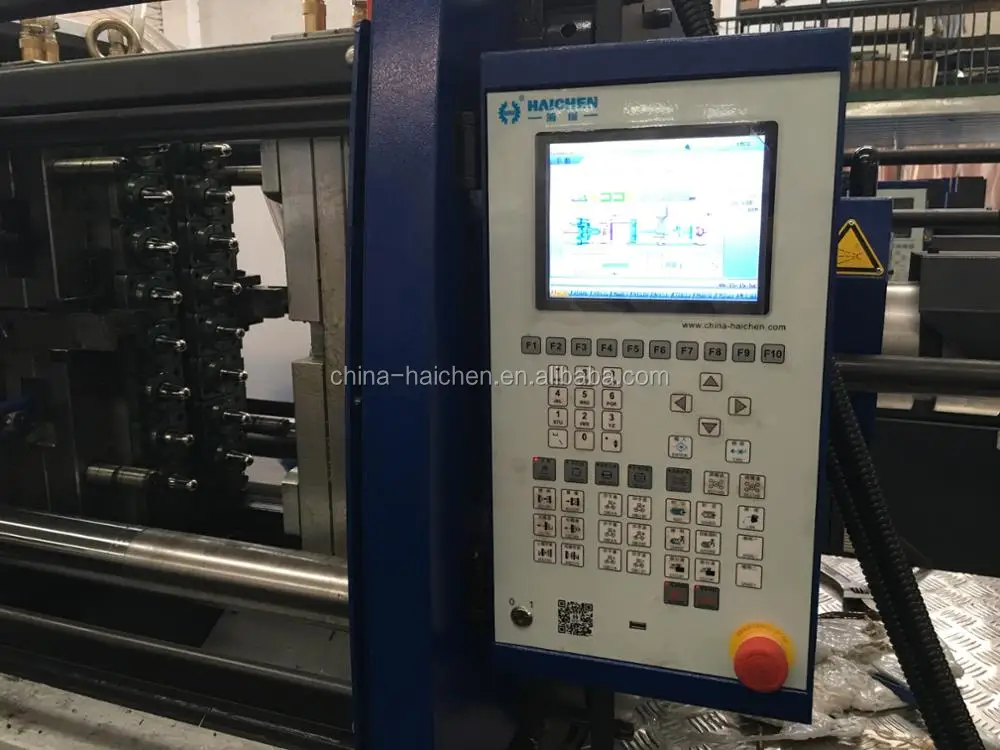

CONTROL SYSTEM

 FEATURES:

 • A variety of text can be switched.
 • Manual,semi-automatic and fully automatic mode.
 • To provide EUROMAP robot interface.
 • Automatic movement monitoring with alarm and fault      diagnosis.

 • Function of slope setting can set the start and stop of    movements,so as ensure the smooth movement.

 • Screen protection function,prolong the life of screen      using.

 • Electrical motor safety protection device.

 • Robotic pincher interface.

All-digital control system uses dedicated controller,multiple CPU processing division,a multi-functional automatic fault detection,alarm system,certificates 99 mold of processing procedures,with remote control interface.System is of high stability and responsiveness.System uses color LCD,man made interface for easy operation and with a number of peripheral interface.

CLAMPING SYSTEM

 FEATURE:

• Security doors fitted with hydraulic, mechanical and       electrical interlocking triple safety device. When the       safety door is open, the machine cannot clamp.
• Low pressure mold protection device to prevent             damage to platen.
• Plywood, frame, the bridge, and the template                 attached structure, the finite element analysis.
• Hydraulic ejector, adjustable stroke, and top speed of   ejector in and out, for multiple actions.
• Flexible tie bars but eliminates fatigue fracture;             assure the working life of tie bars.

• Automatic adjustment. The replacement of different mold, the parameters set by clamping force to achieve the           automatic adjustment.

• High-precision electronic detection device, multi-stage control of opening stoke, speed and location, location             accuracy.

• Arch splint piece of the tail plate use the finite element analysis. It features as light weight, high-intensity, and high-   rigidity.

• Flexible core programming control, and independent hydraulic pump station to provide power.

The following should be focused on when using the lubricating oil:

• For the selection of the lube oil and grease,please refer to the recommendation in the above chapter;
Store some lube oil for maintenance need,take care of storage:
a.The oil barrel oil should be properly sealed;Keep away from water;
b.Protect the oil containers from exposure to sundhine;
c.The storage temperature for the oil should not exceed 40

• Proper lubrication will lengthen the service life;on the contrary ,poor lubrication will result in the wear and heat of parts.The clamping unit of the machine employs auto central lubricating device,and the other necessary moving parts have grease nipples for lubrication.

Lubrication oil is an important factor of the machine.No operation without lubricating,otherwise the equipment will be seriously damaged.
