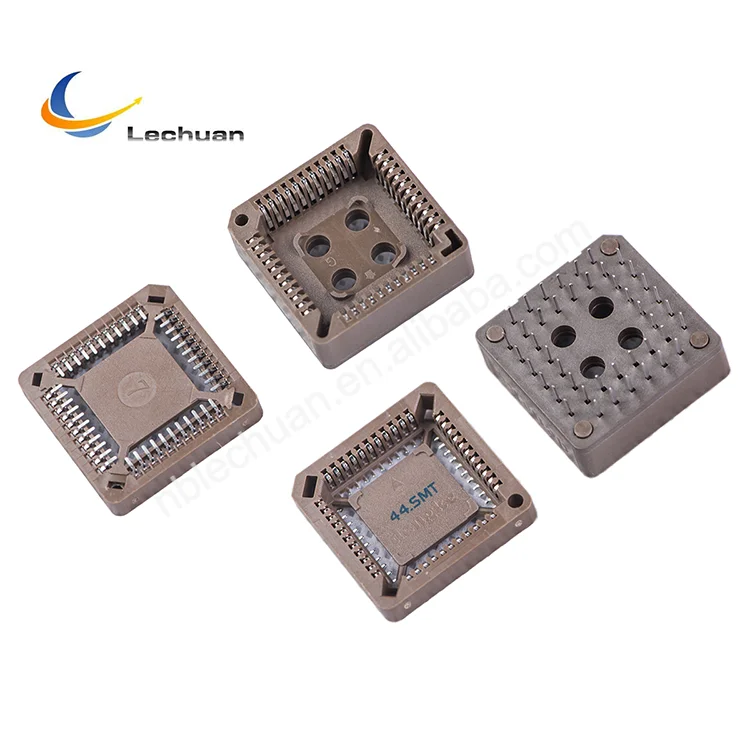

PLCC socket 68 848Pin SMT DIP IC Socket Adapter Converter
- Category: Plugs & Sockets >>>
- Supplier: Cixi Lechuan Import And Export Co. Ltd.
Share on (1600525696820):
Product Overview
Description
Material | Insulator: Glass filled PPS UL94V-0 |
Contacts: Phosphor Bronze | |
Plating: Whole Tin plated over Nickel | |
Electrical Characteristic | Contact Resistance: 30mΩmax. at DC 100mA |
Insulator Resistance: 100MΩmin. at 500V DC | |
Insulator Resistance: 500MΩmin ,at 500V DC | |
Withstanding Voltage: 500V AC/rms 50Hz For 1 minute | |
Current Rating: 1 AMP | |
Environment | Operating Temperature: -55℃～+100℃ |
