PFA 16inch industrial wood thickness planer combined universal wood machines combination woodworking machine

Product Overview

Description

PFA 16inch industrial wood thickness planer combined universal wood machines combination woodworking machine

 PFA 16inch 400MM is a multi-functional heavy-duty woodworking combination machine, which has multiple functions such as cutting, planing, planing, grooving, tenoning, drilling, sharpening, sharpening saw blades, and cutting. The cast iron of the planer is finely ground as a whole, with high machining accuracy and good jointing effect. Standard mobile sliding table, can cut and cut small materials at an oblique angle, standard saw blade and planer guard, safer to use.

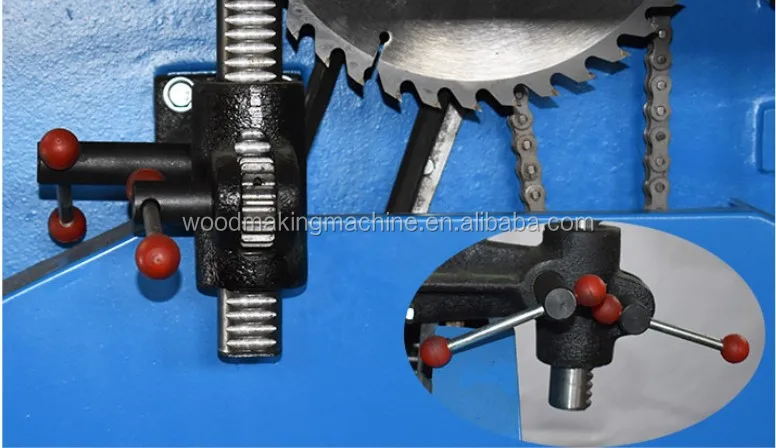

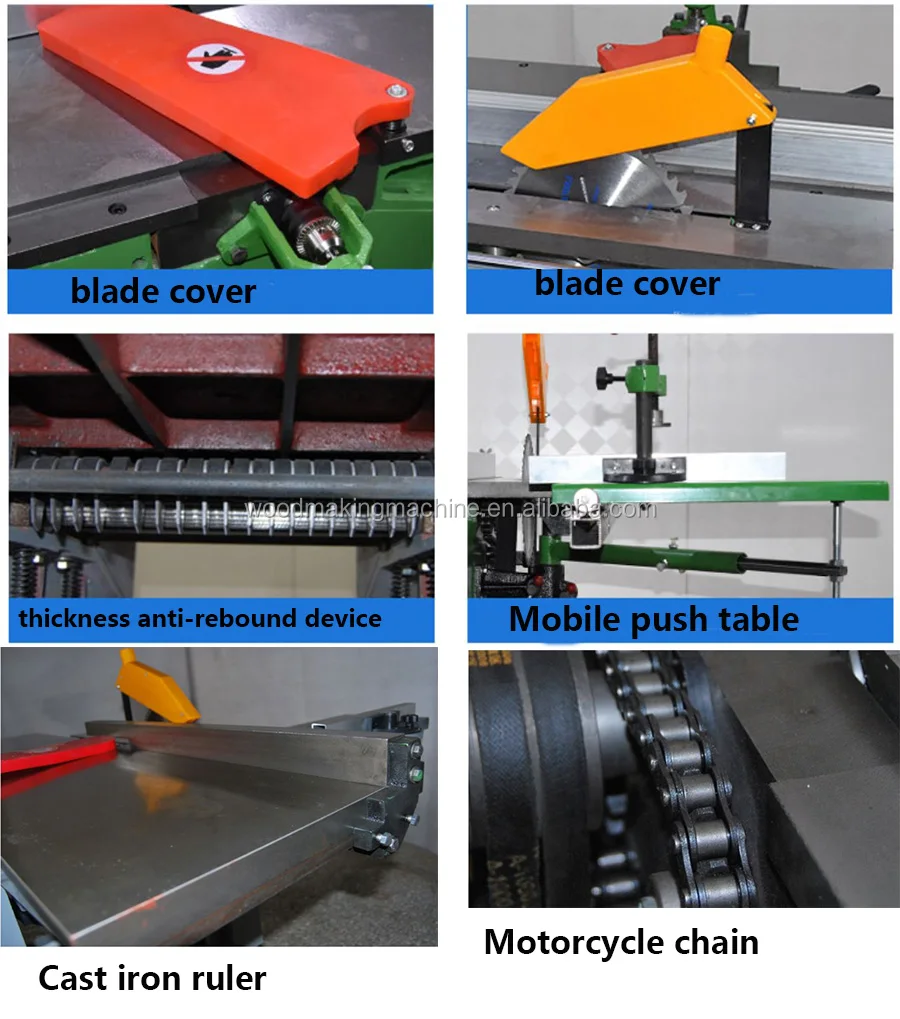

Feature of PFA 16inch industrial wood thickness planer combined universal wood machines combination woodworking machine

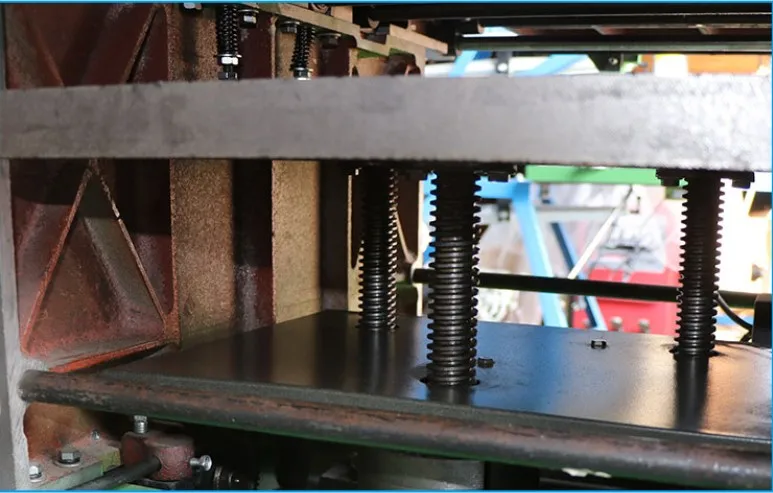

 Three screws used for thickness planing

Parameter of PFA 16inch industrial wood thickness planer combined universal wood machines combination woodworking machine

Model	PFA 16"

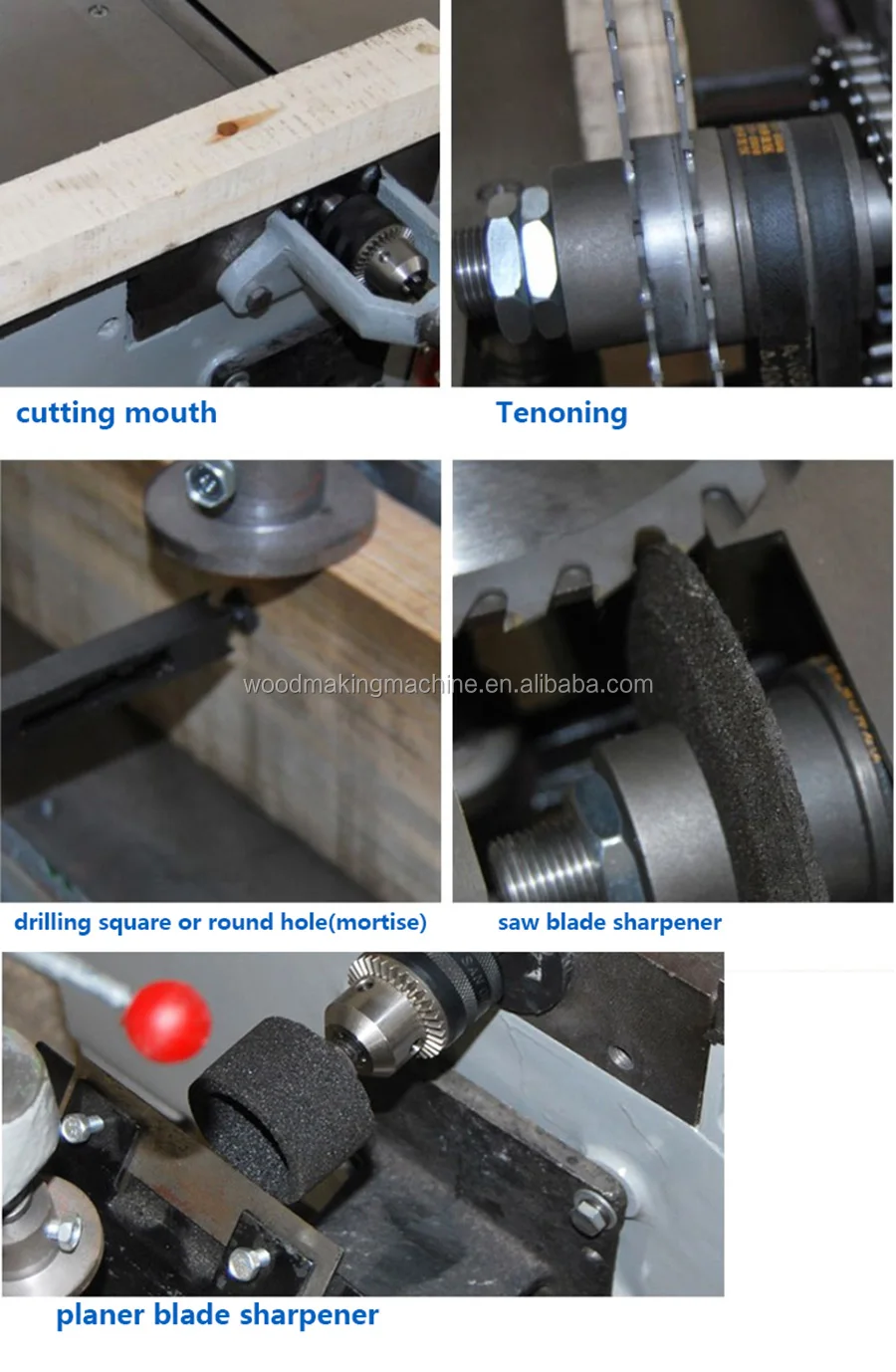

Function (10 )	Sawing, planing and jointing, thicknessing, sharpening saw blade and planing blade, drilling square or round hole(mortise), chop spring, grooving, cutting mouth, tenoning
Max.planing width	400mm
Max.planing depth	3mm
sawing thickness	10~120 mm
Max.sawing depth	100mm (when use 12inch saw )
Motor power	3kw
Min. thickness length	150mm
Max. Mortise depth	10mm
Feeding speed	10m/min
Spindle speed	4200RPM
Net weight	235kg
Working table length	1500mm
Dimension	1500*1000*810mm
Package list (1 piece)	40T 10inch alloy saw blade, thicknss planer blade, Square bit 10mm , Sharpening grinding wheel, Sharpening saw blade grinfing wheel, Slotting saw balde , Cast iron ruler and sliding table, saw blade prot

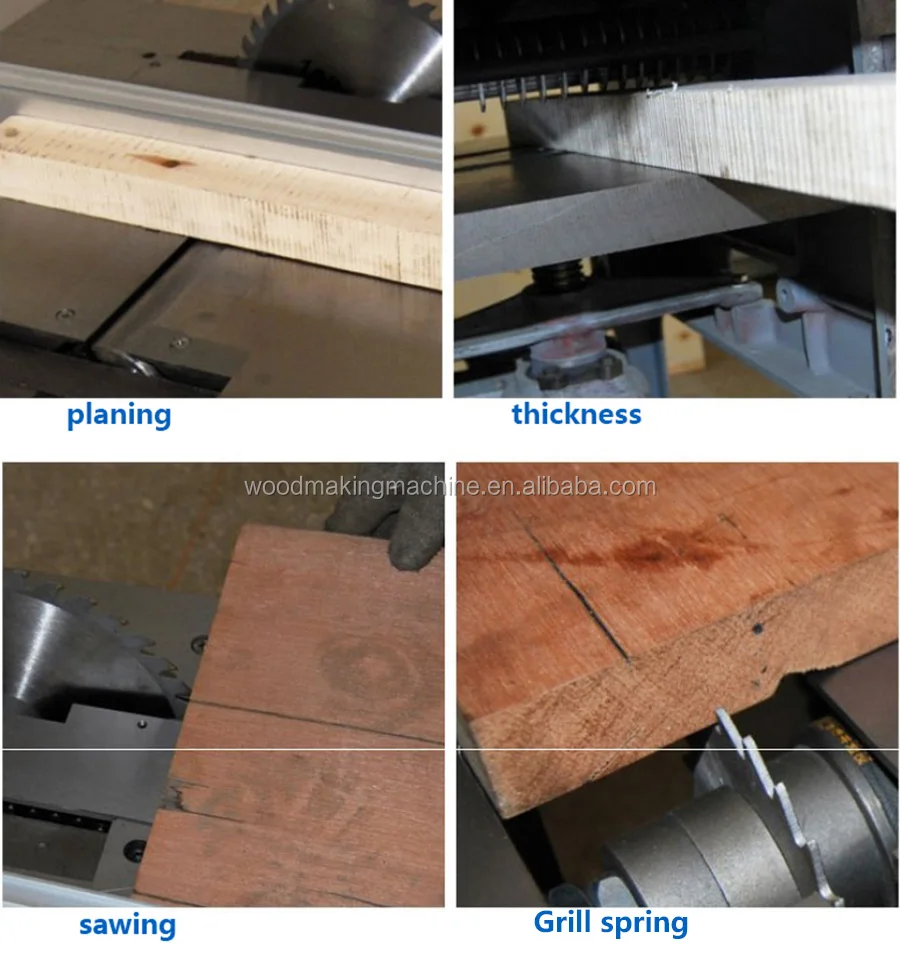

Usage of PFA 16inch industrial wood thickness planer combined universal wood machines combination woodworking machine

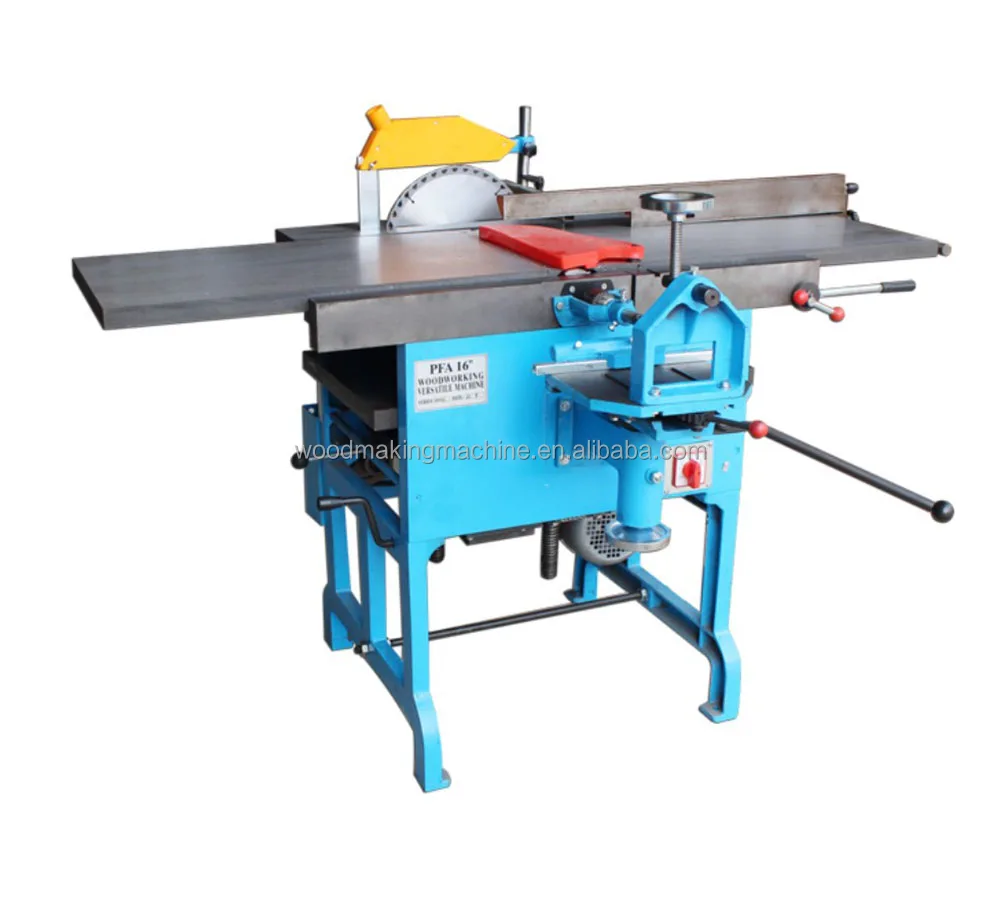

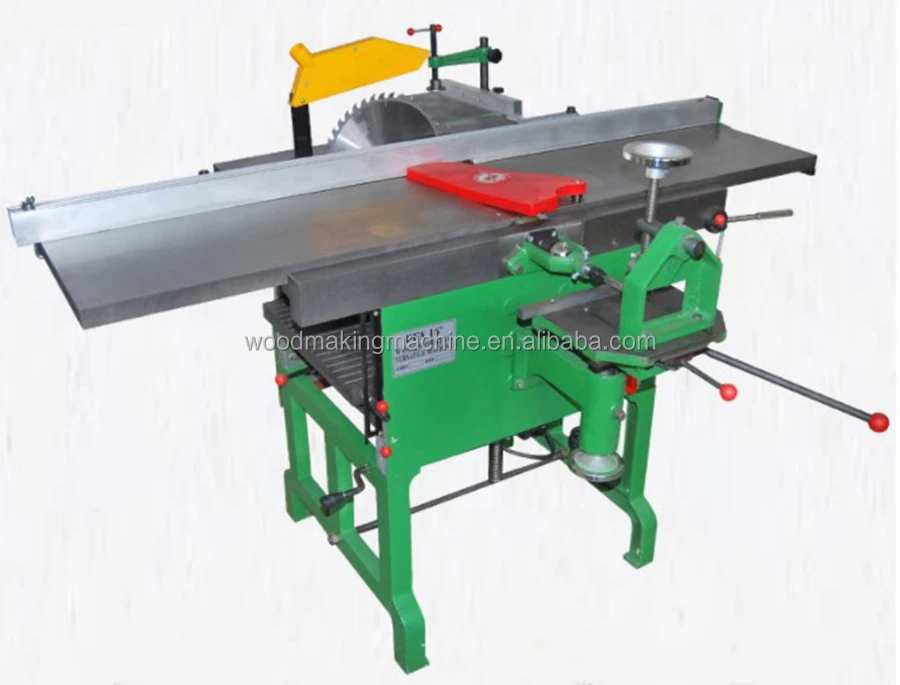

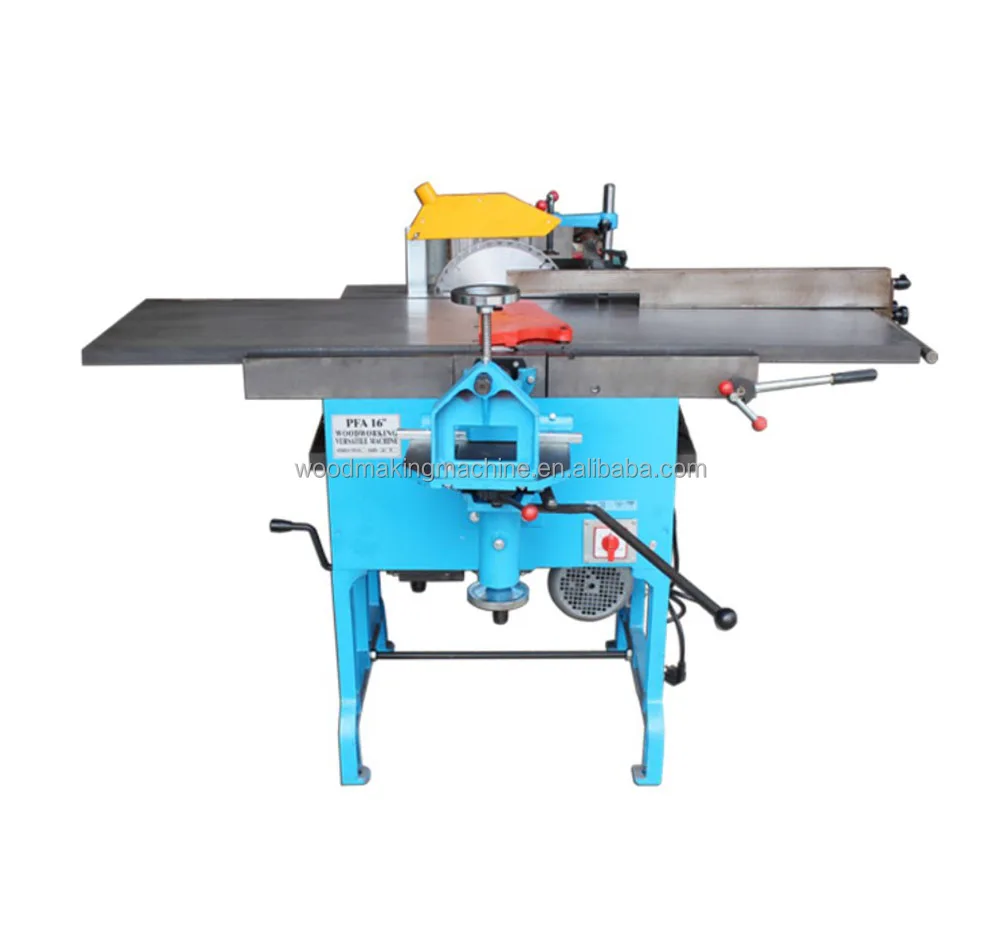

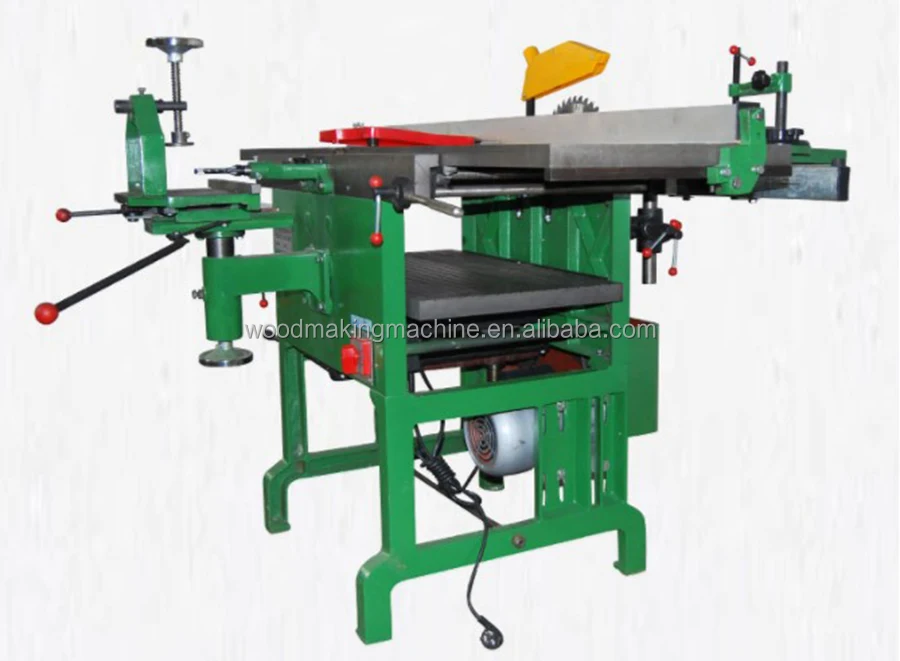

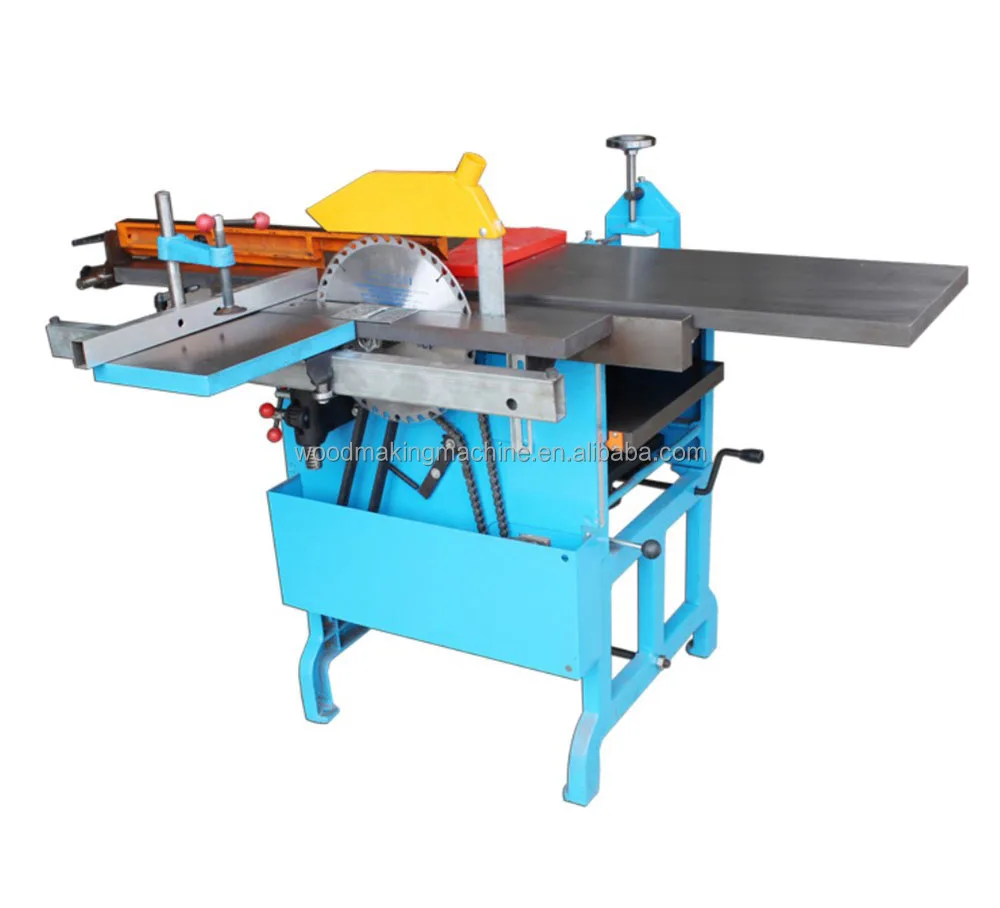

Photo of PFA 16inch industrial wood thickness planer combined universal wood machines combination woodworking machine





Package and delivery of 16inch 400mm industrial combined machine surface planer and thicknesser with circular saw and mortiser
