TD5 Table top 5000 rpm low speed centrifuge lab
- Category: >>>
- Supplier: Hunan Cenlee Scientific Instruments Co. Ltd.
Share on (1600525707318):
Product Overview
Description
TD5 Table top 5000 rpm low speed centrifuge lab
Rotor type | No. | Capacity | Max Speed(r/min) | Max RCF(×g) |
Main machine | TDZ5-WS |
| 5000 | 4390 |
Swing out rotor | NO.1 | 4×100ml | 5000 | 4390 |
Pipe racks | 4×100ml | |||
Swing out rotor | NO.2 | 8×50ml | 4000 | 2810 |
Pipe racks | 8×100ml | |||
Pipe racks | 32×15 /10/7ml vacuum tubes | |||
64×7/5ml vacuum tubes | ||||
Bucket | 72×7/5ml vacuum tubes | |||
Bucket | 48×5/7ml vacuum tubes | |||
Enzyme Plate rotor | NO.3 | 2×2×96 well | 4000 | 2200 |
Swing out rotor | NO.4 | 4×250ml | 4000 | 3000 |
Round cup | 4×250ml |
Technical Parameter
Model | TDZ5-WS | Power supply | AC 220V 50Hz 5A |
Maximum speed | 5000r/min | Machine noise | ≤58dB(A) |
Maximum RCF | 4390×g | Power | 400W |
Max capacity | 1000ml | Chamber diameter | Φ360 |
Sample capacity | 10ml-250ml | Dimensions | 415×590×355mm |
Speed Accuracy | ±20r/min | Net weight | 44kg |
Timing range | 0-99min | ||
TDZ5-WS Rotor options
Rotor type | No. | Capacity | Max Speed(r/min) | Max RCF(×g) |
Main machine | TDZ5-WS |
| 5000 | 4390 |

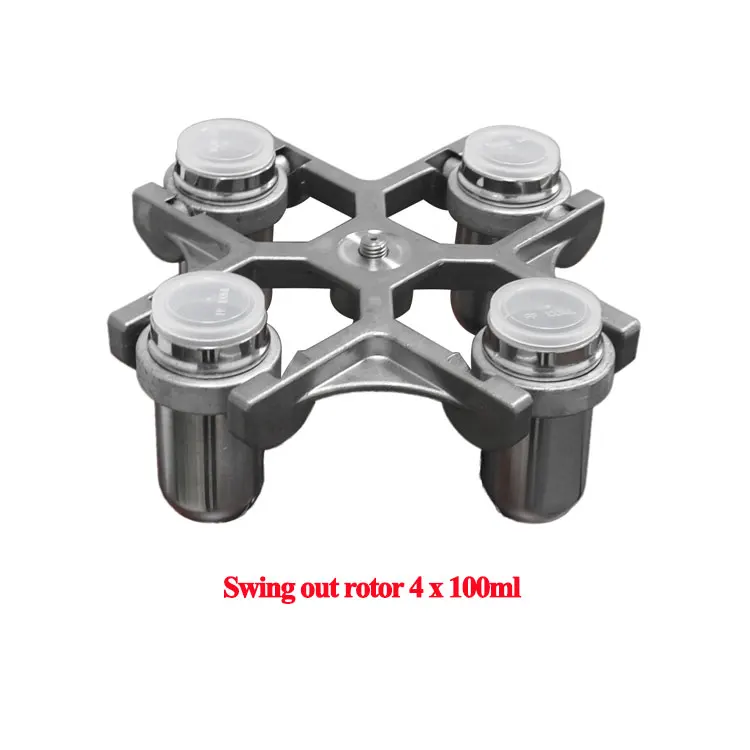

Swing out rotor | NO.1 | 4×100ml | 5000 | 4390 |
Pipe racks | 4×100ml | |||
Swing out rotor | NO.2 | 8×50ml | 4000 | 2810 |
Pipe racks | 8×100ml | |||
Pipe racks | 32×15 /10/7ml vacuum tubes | |||
64×7/5ml vacuum tubes | ||||
Bucket | 72×7/5ml vacuum tubes | |||
Bucket | 48×5/7ml vacuum tubes | |||
Enzyme Plate rotor | NO.3 | 2×2×96 well | 4000 | 2200 |

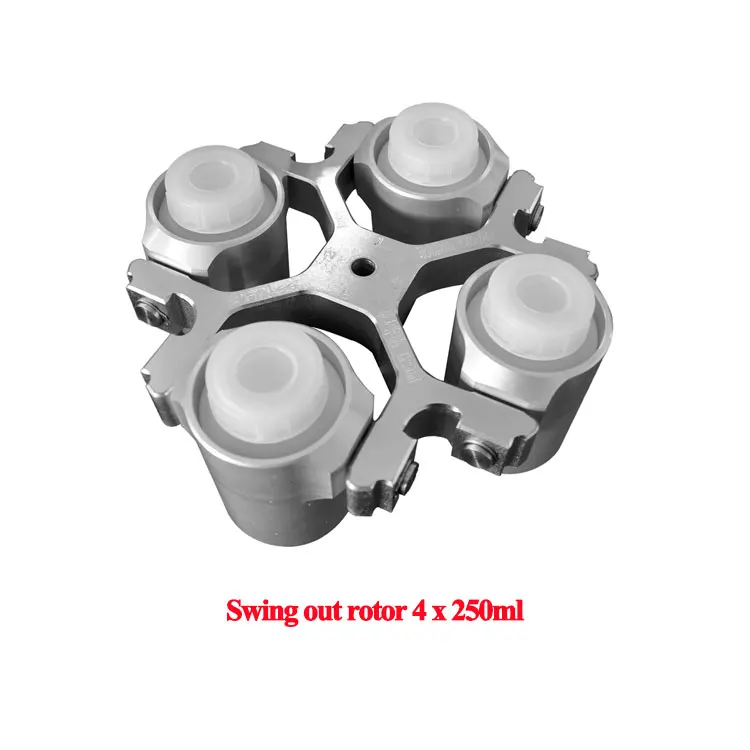

Swing out rotor | NO.4 | 4×250ml | 4000 | 3000 |
Round cup | 4×250ml |

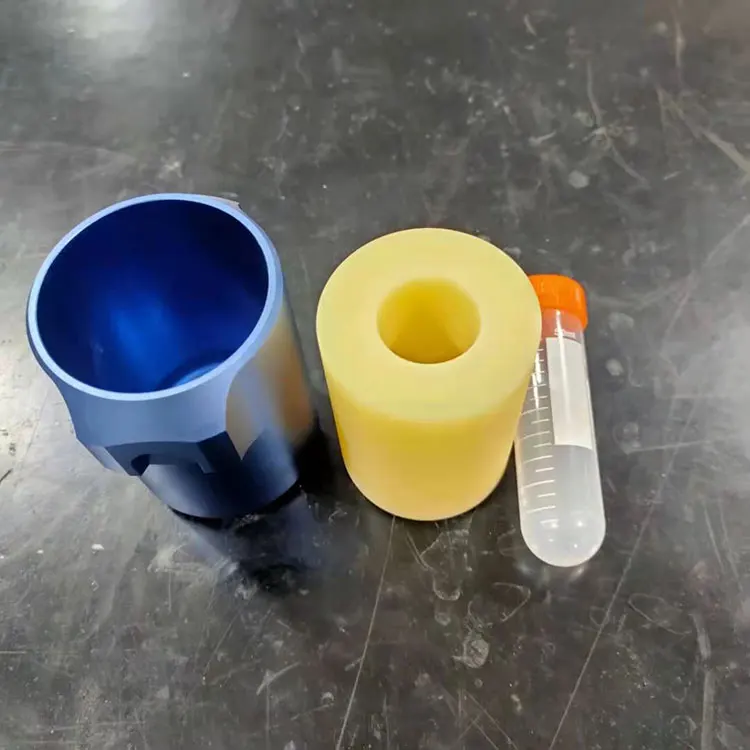

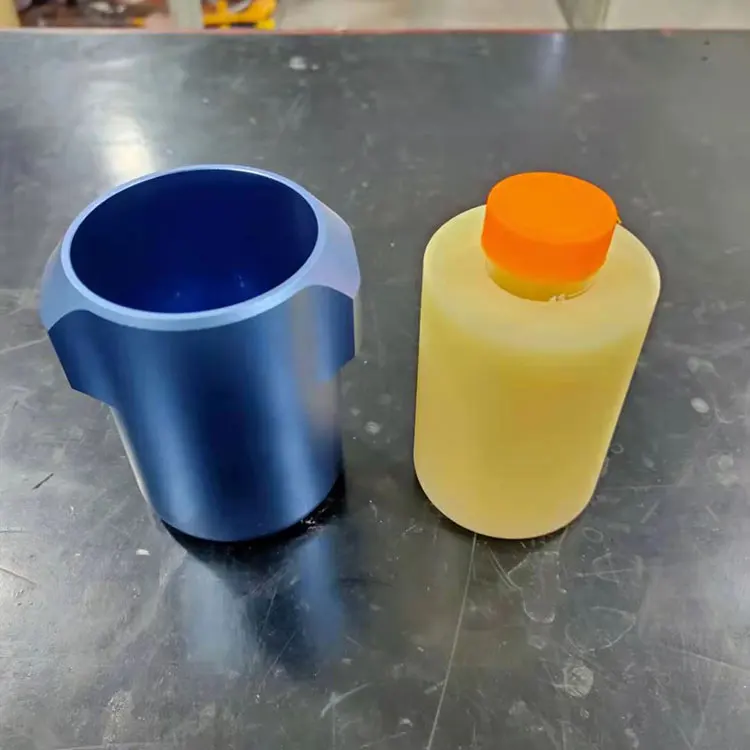

250ml to 50ml adapter

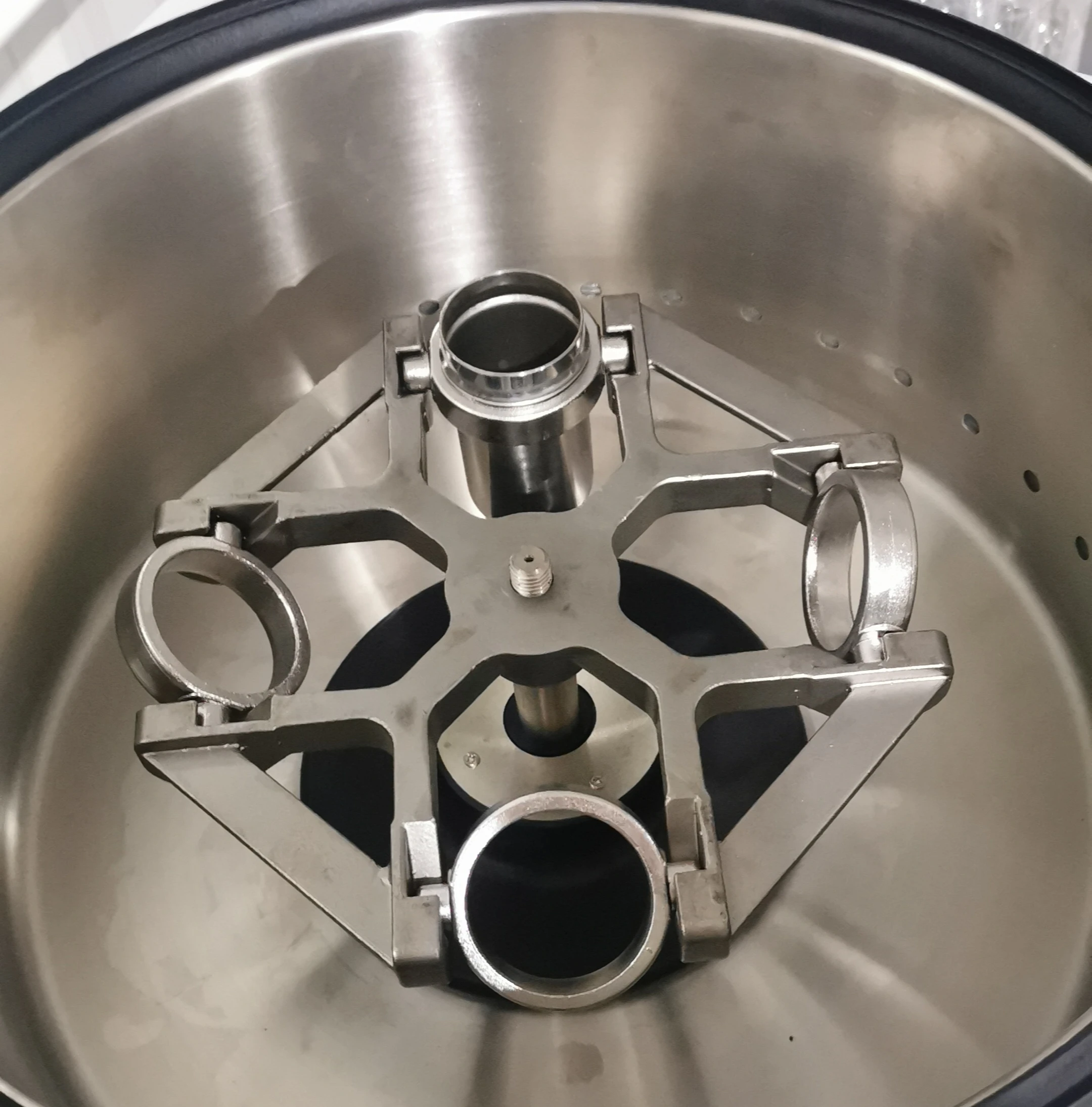

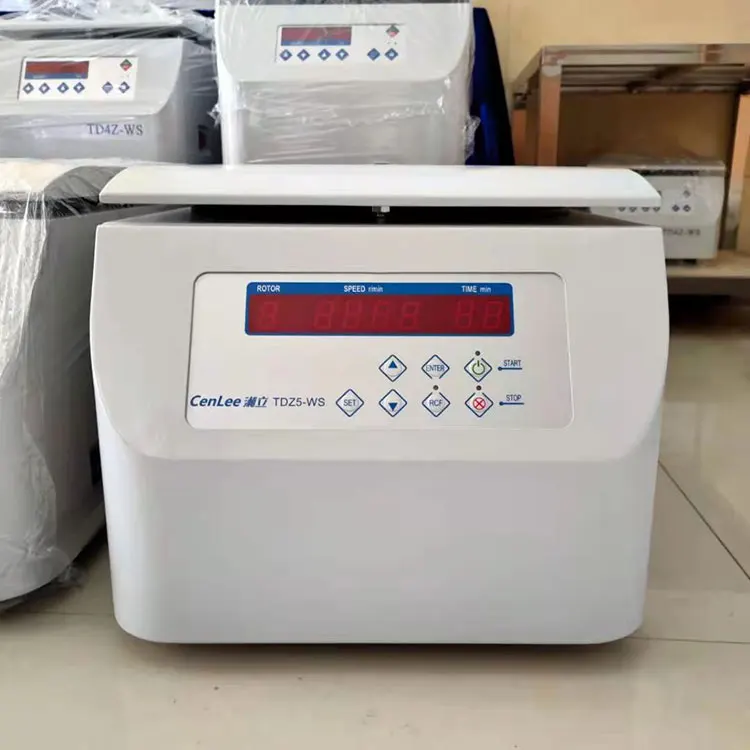

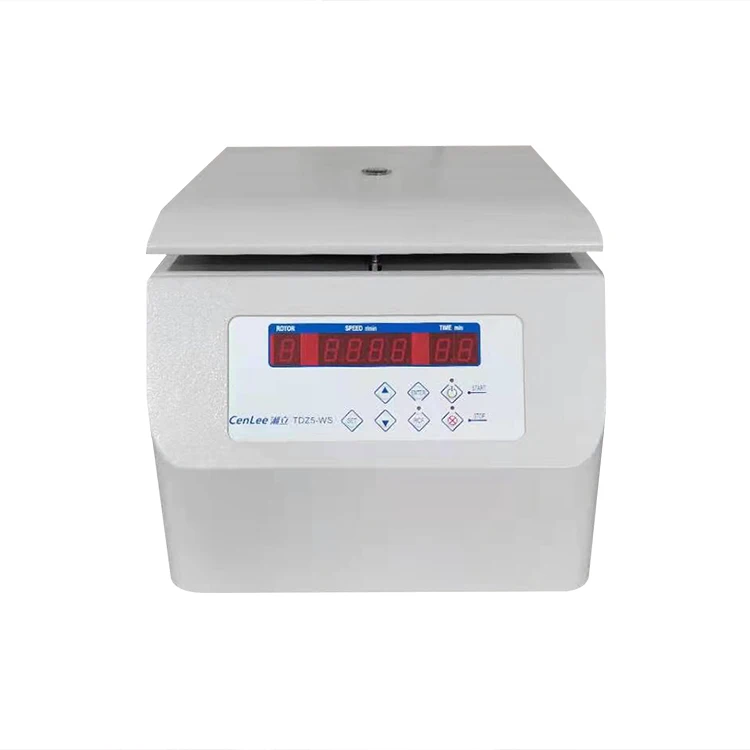

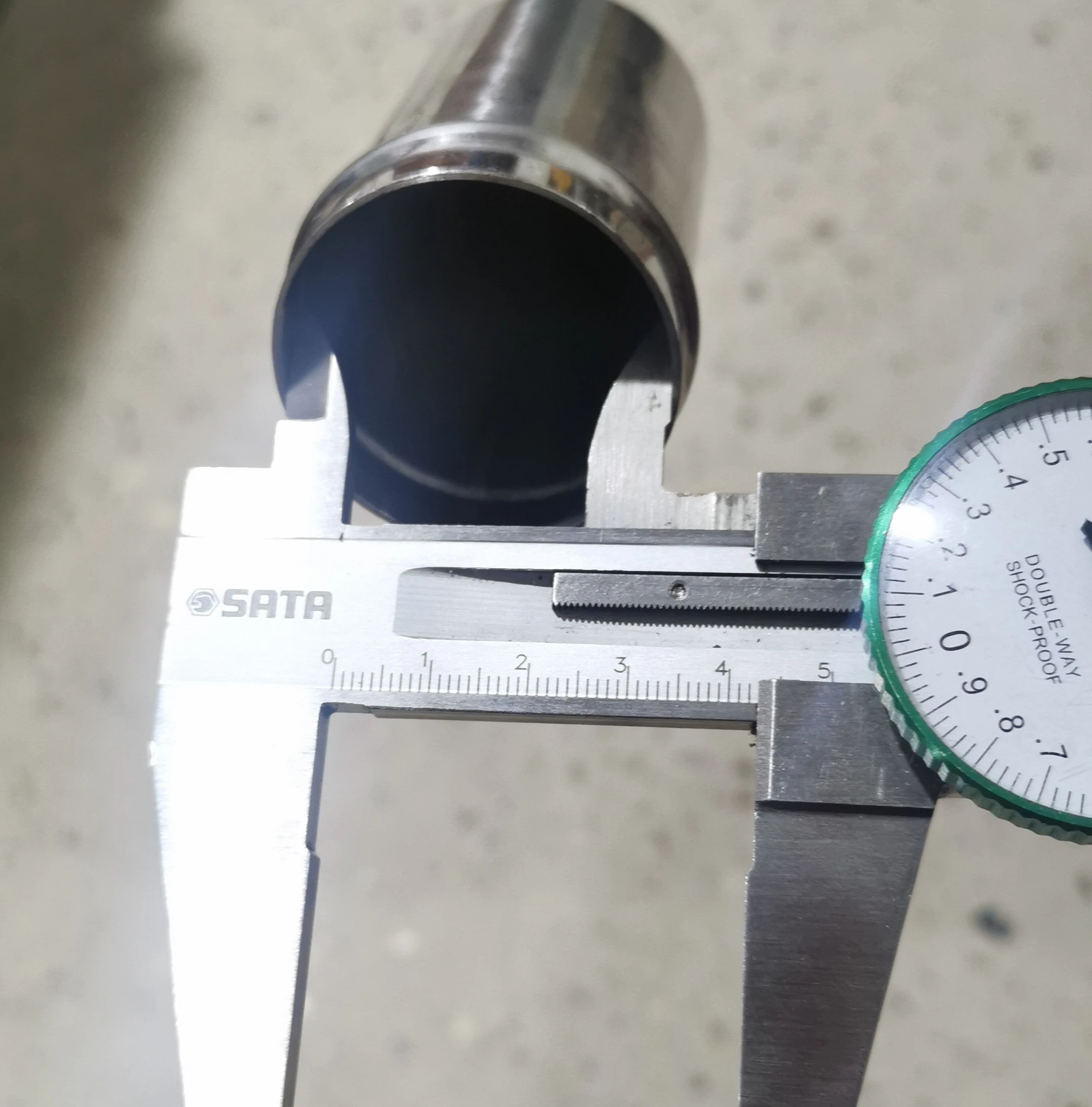

Product real display:
Cenlee Centrifuge
