Product Description


SOPHX-003 20,200, 5000kg Load Cell Ring Type Column Load Cell for packaging scale
⭐ Made of stainless steel
⭐ Washer load cell/ Donut Load Cell/ Ring Type Load Cell
⭐ Compact, flat disc design, small diameter, low overall height
⭐ Completely welded body, central clearance hole
⭐ Thru-hole structure,easy to install ⭐ Suitable for force measurement where space is limited




This load cell is a variation of the compression load cell and features a through-hole design for use as a load washer to measure bolt loading, clamping forces, and overloads. Rugged stainless steel construction and reliable strain gage technology make this unit popular for a variety of industrial applications.


Specification


Model Number
SOPHX-001
Capacity
50kg, 200kg, 300kg, 500kg,1000kg,3000kg,5000kg(Can customized capacty and size)
Rated Output
2.0±10% mV/V
Accuracy
0.20%F.S
Linearity
±0.5%F.S
Hysteresis
±0.1%F.S
Repeatibility
±0.1%F.S
Zero Balance
±2%F.S
Comprehensive Error
0.5%FS
Insulation
≥5000MΩ
Temperature range
-20~+80℃
Safe Overload
120%F.S
Ultimate overload
150% F.S
Excitation Voltage
5-10VDC
Water proof grade
IP65
Cable length
dia.2 × 2000 mm, 4 core shield cable
Material
stainless steel
Cable definition
RED:EXC+ /Black:EXC-/Green:Signal +/White:Signal -


Packing & Delivery


SOPHX-003 20,200, 5000kg Load Cell Ring Type Column Load Cell for packaging scale

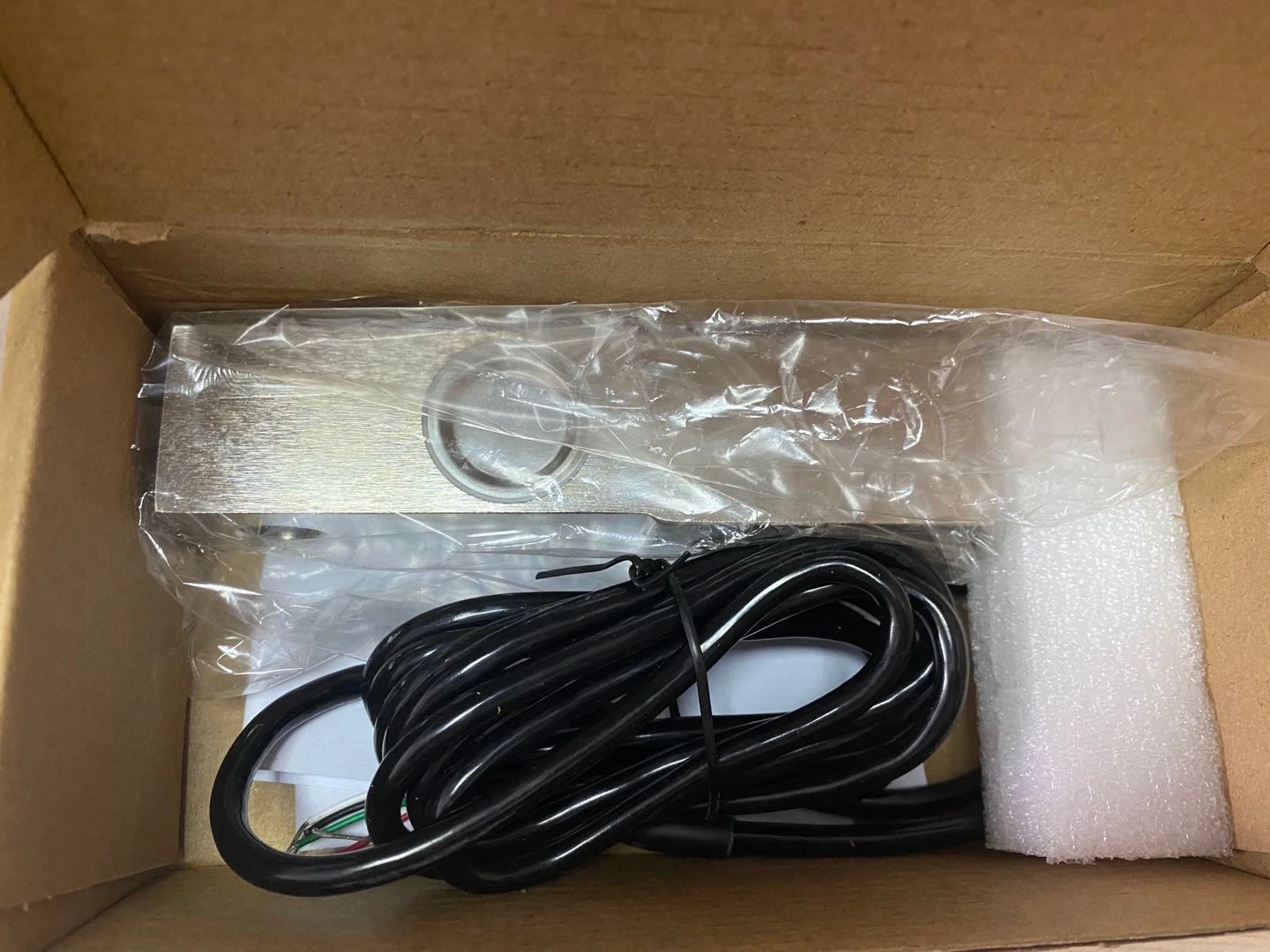

♦ Packing:
1* Load cell
packing materials are eco-friendly and really protect your product well. Each item has its own independent foam/sponge/plastic bag
packaging, then packed in a carton
♦ Delivery:
A wide range of options : Express(Fedex, DHL, TNT, EMS, UPS etc.) air and shipping
