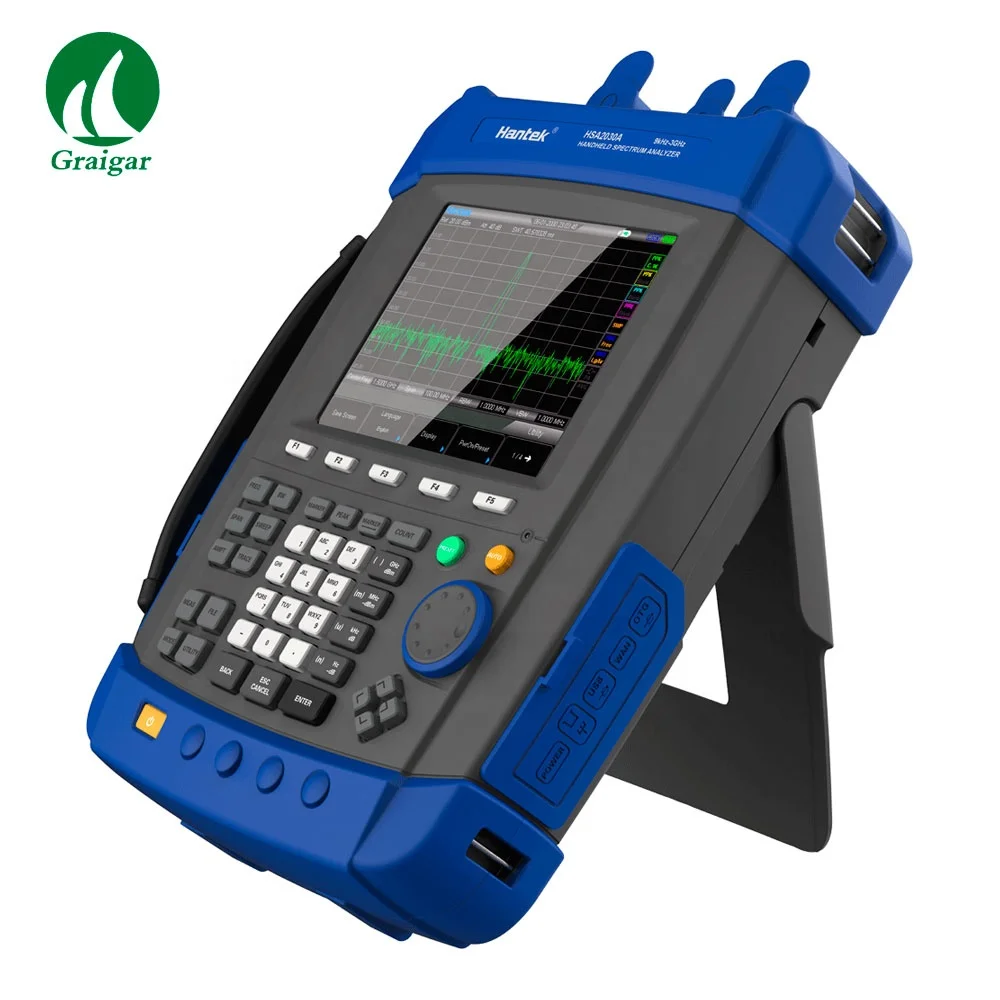

Hantek HSA2030A andheld Spectrum Analyzer AC Coupled 9KHz~3.2GHz

Product Overview

Description



Hantek HSA2030A andheld Spectrum Analyzer AC Coupled 9KHz~3.2GHz



Features

• Frequency range: 9KHz-3.2GHz (tunable to 9KHz) AC Coupled


• Optimal sensitivity: -161dBm   RBW:10Hz to 1MHz


• IP-51 High protection portable design, sturdy and durable, can be used in laboratory, more suitable for field mobile use.


• built-in large capacity lithium battery, can work for more than 4 hours. 18650 rechargeable battery.



• 5.6 inch highlight color display, 640*480 resolution, waveform display clearly.



• HSA2000 Series spectrum analyzer has the lowest DANL and SSB phase noise, and narrowest RBW. It greatly enhances the recognition ability to the spurious signal and noise signal.


• Optional FM/AM modulation analysis, including carrier power, modulation rate, AM depth/FM deviation, SINAD and carrier frequency offset.


• Standard spectrum feature. It can analyze the signal time stability, and find out lacunar signal in communication system accurately.


• Strong field strength test function, fit for the test work in transmitter, base station and the antenna coverage site. It can show the density of field strength or power. The user could also calibrate gain or loss by using amplitude offset function.


• HAS2000 Series has least RBW in the same level of analyzers, and can easily confirm, distinguish and measure two similar signals.


• The 5.7 inch highlight color display can provide accurate, bright and clear trace both inside and outside, no need to move to shading place for work.


• Short scanning time. It can fast catch the data and help to locate and recognize the irregular transient disturbance signal, and then optimize the testing time and accuracy.


• Advanced built-in battery management system is adopted. Standard super large capacity-7800mAh lithium battery, and support 6 packs of 18650 battery pack which can keep measurement working in site for over 4 hours.


• Firm and tight mechanical structure, close rubber sleeve pack, which is fit for harsh site work environment.


• Integration USB Host & Device, support USB flash disk memory, optional WIFI/LAN, which is convenient for networking and long-range control.


• Its PC software can achieve the management and storage of testing data.


•



























































































































































  Parameters
  Model		HSA2030A	HSA2030B
  Frequency
  Frequency Range	9KHz~3.2GHz AC Coupled		9KHz~3.2GHz AC Coupled 5M~3.2GHz TG
  Frequency Resolution	1Hz
  Reference Frequency	10MHz
  Frequency Readout Accuracy	±(frequency indication*frequency reference uncertainty+1%*span+20%RBW+marker resolution+1Hz)
  Internal 10MHz Reference Accuracy	Aging rate		±1ppm/year(0℃~50℃,Reference is 25℃)
  	Temperature stability		±1ppm/year
  Marker Resolution	(Frequency span)/(number of sweep points-1)
  Resolution Bandwidth(RBW)
  -3dB Bandwidth		10Hz to 1MHz,1-3-10 sequence
  Accuracy		±5%  RBW=10Hz~1MHz nominal
  Resolution Filter Shape Factor		<5:1 nominal
  Video Bandwidth(VBW)		-3dB bandwidth	1Hz to 1MHz,1-3-10 sequence
  		Accuracy	±10% VBM=1Hz~1MHz nominal
  Sweep Time
  Range		Span >100Hz	2ms to 1000s
  		Span=0Hz	600ns to 200s
  Sweep Mode		Continuous, single
  Trigger Source		Free run; video; external
  Trigger slope		Selectable positive or negative edge
  Trigger delay		Span =0Hz	±12ms to ±12s nominal
  10MHz Reference/External Trigger Input
  Reference Iinput Frequency	10MHz
  Reference Input Amplitude	0~10dBm
  Trigger Voltage	5V TTL level
  Gennral Feature
  Interface Language		English,Chinese,Chinese Traditional
  Display Index		5.7 inch,640*480 resolution,64M color LCD display
  Temperature Range		Working	-10℃ to +50℃,(battery:0℃ to 50℃)
  		Storage	-40℃ to +70℃,(battery :-20℃ to 50℃)
  Relative Humidity		<95%
  Weight		2.9kg(with battery),2.6kg(without battery)
  Power		Input voltage range	DC: 12-17V, maximum 2.8A input  220VAC±15%
  		AC frequency range	40Hz to 60Hz
  		Power consumption	Maximum 32W
