Automatic Cnc Milling Machine Cnc Vertical Milling Machine For Sale XK6325 (1600525717885)

Share on:


Price:$12,857.00
Price in USD:Details

Quantity:


Product Overview

Description

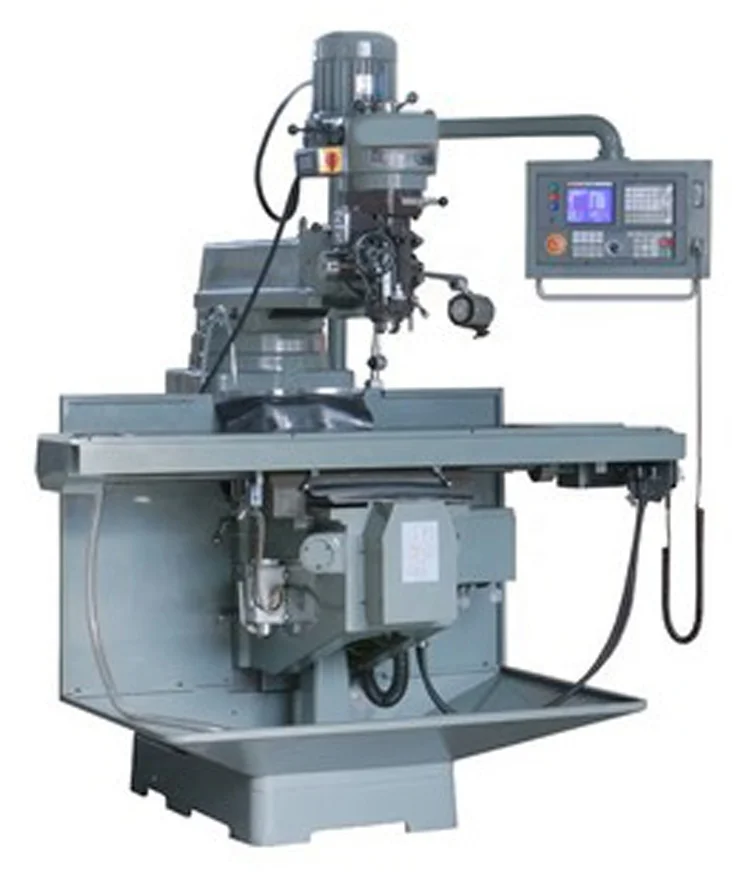

XK6325 China Mini Metal CNC Milling Machine


Products Description




The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of
machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
The cnc milling machine can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing,oil, electronics and other industries.

Product main technical parameters:


Item
set
XK6325
Table size
mm
254x1270
Tslots
3x16
Table loading
kg
280
X axis(table longitudinal movel)travel
750/850
Y axis(table cross movel)travel
400
X/Y/Z axis rapid feed
mm/min
5000mm/min
X/Y/Z axis servo motor
Kw
1
Knee verical travel
mm
400
Ram travel
mm
465
Distance from spindle table
mm
0-400
Milling head
Spindle speed
Standard:16steps
rpm
50HZ:60-4500/60HZ:80-5440
Optional:Varable
65-4200
Spindle taper
Standard:R8/Optional:ISO40
Motor power
HP
3HP
Head rotating
Swiveling
90°
Tilting
45°
CNC
/GSK
Package size
cm
190x200x223
G.W
kg
1500


Standard Equipment:
Spindle taper hole cleaning system;
10pcs Armless type Tool Magazine
Cooling system;
Automatic Lubrication Systems;
Pneumatic system;
Full splash guard;
Lighting;
Stainless steel protection plate;
Tri-color alarm lamp;
Air gun;
Fixed sizing block;
Cool-heat exchanger. Taiwan Spindle;

Optional Equipment:
Air condition
4th axis
Spindle central water discharge
Infrared probe
Hexagon tool setting gauge
Germany Linear guideway
Spindle Speed 10000rpm


Details Display






Recommend Products




Company Profile






FAQ


1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

3. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact
model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
5. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

6. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
