Australia Pellet Manufacturing Equipment 3 Ton Per Hour Flat Die Cardboard Pellet Mill For Sale
Australia Pellet Manufacturing Equipment 3 Ton Per Hour Flat Die Cardboard Pellet Mill For Sale
Australia Pellet Manufacturing Equipment 3 Ton Per Hour Flat Die Cardboard Pellet Mill For Sale
Australia Pellet Manufacturing Equipment 3 Ton Per Hour Flat Die Cardboard Pellet Mill For Sale
Australia Pellet Manufacturing Equipment 3 Ton Per Hour Flat Die Cardboard Pellet Mill For Sale
Australia Pellet Manufacturing Equipment 3 Ton Per Hour Flat Die Cardboard Pellet Mill For Sale
Australia Pellet Manufacturing Equipment 3 Ton Per Hour Flat Die Cardboard Pellet Mill For Sale

Australia Pellet Manufacturing Equipment 3 Ton Per Hour Flat Die Cardboard Pellet Mill For Sale

Share on (1600525719808):


Price:

Quantity:


Product Overview

Description




Australia Pellet Manufacturing Equipment 3 Ton Per Hour Cardboard Pellet Mill For Sale


Products Description


1.This system pellet machine is suitable for making biomass particles such as sawdust,rice husk,paddy straw,sunflower
stalk.hulls,forestry wastes,pellet,etc.
2.Use Cold-pressing molding technology, the raw material is under dried,condition,which is compressed,and formed into small eraser-sized bits, the final pellets is clean,pleasant and smooth:its density is more than 1.0g/cm3.

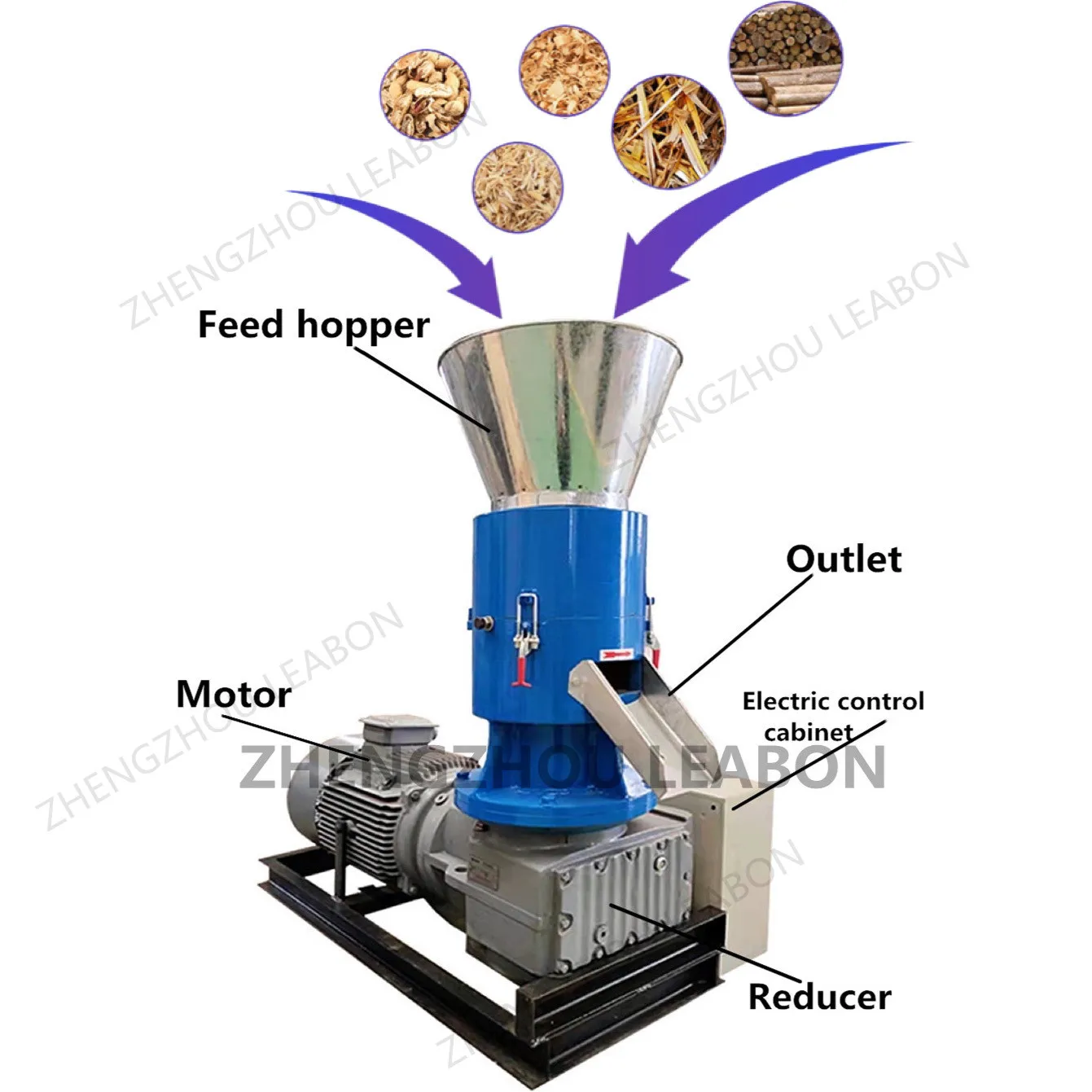

3.It has been installed with the KAF gear reducer and electrical control box.key components are made of high quality alloy steel adds wear-resisting material, Using heat treatment;Service life can be extended 5-7 times.
4.High output, low consumption and noise, better stability and lower fault rates, improved fatigue resistance, continuous production, economy and durability.

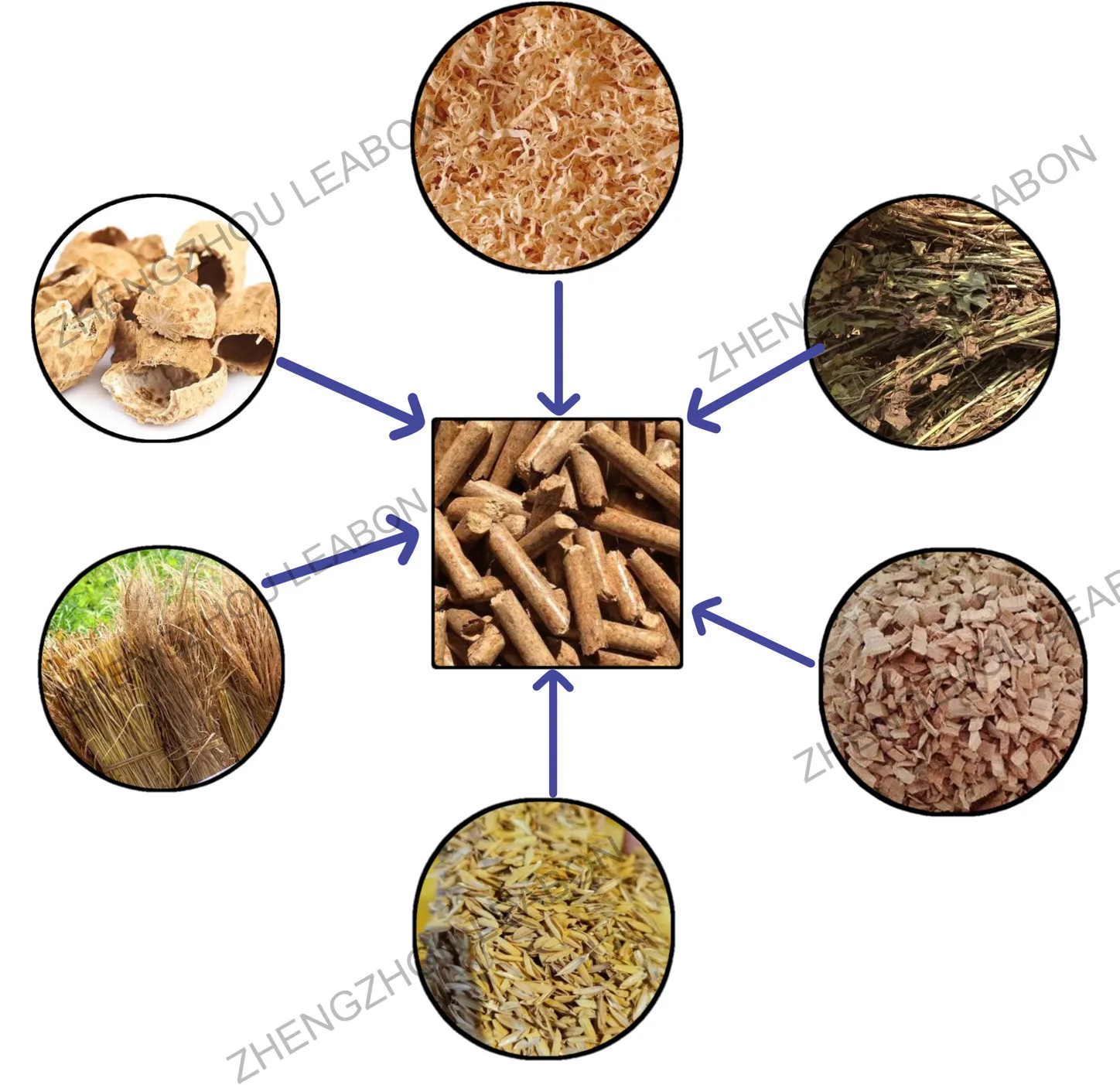

Raw Material & Final Products




Application


Wood pellets can be used as fuel.

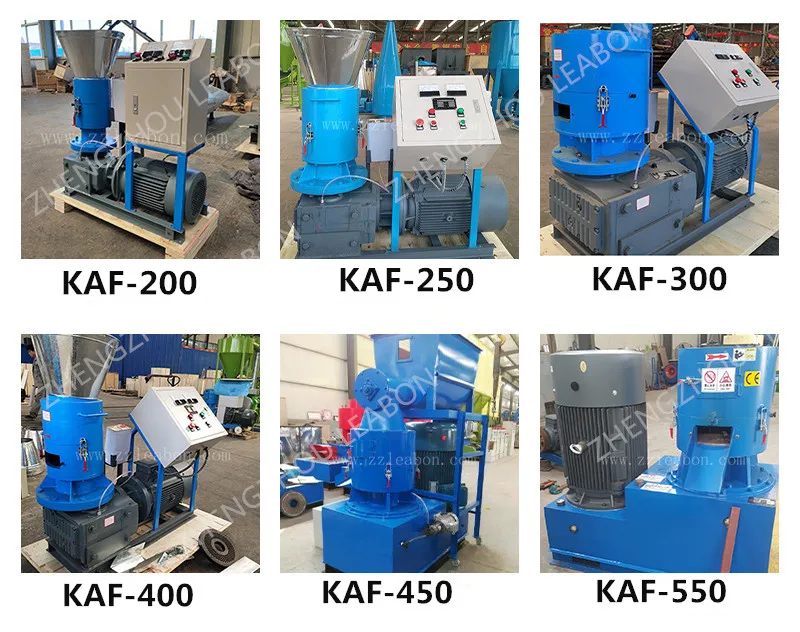

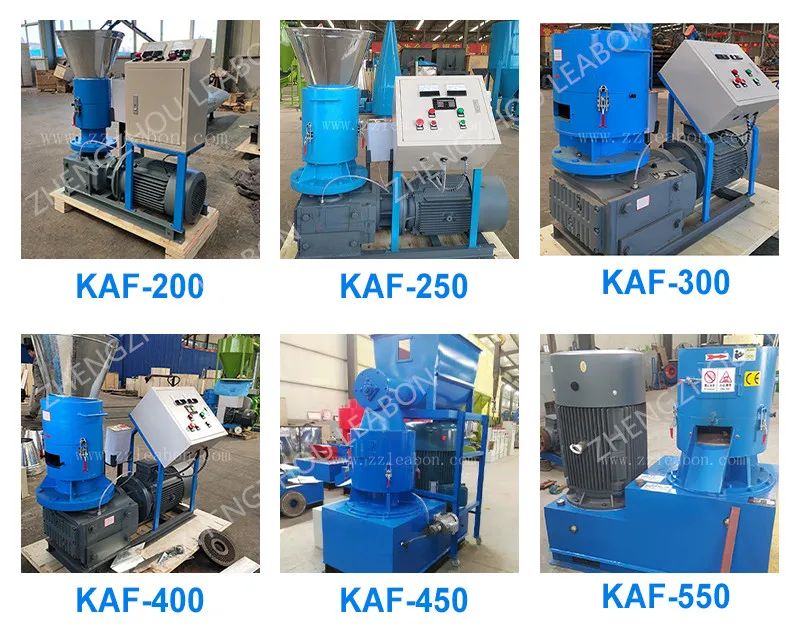

Product Parameter


Model
Capacity (kg/h)
Motor (KW)
Pellet Size (mm)
Pellet density
(g/cm3)
Dimension (m)
Weight (kg)
KAF-200
80-120
7.5
6,8
1.0-1.3
1.15* 0.5* 0.8
320
KAF-250
100-150
15
6,8
1.0-1.3
1.25* 0.6* 0.85
400
KAF-300
200-300
22
6,8,10
1.0-1.3
1.3* 0.6* 0.9
550
KAF-350
300-400
30
6,8,10
1.0-1.3
1.65*1*1.3
850
KAF-450
450-550
45
6,8,10,12
1.0-1.3
1.8* 1* 1.65
1300
KAF-550
500-800
55
6,8,10,12
1.0-1.3
2*1.1*1.8
1600
KAF-800
1200-1500
90
6,8,10,12
1.0-1.3
2*1.1*1.9
3500
KAF-1000
1500-2000
110
6,8,10,12
1.0-1.3
2.2*1.25*2.05
5000

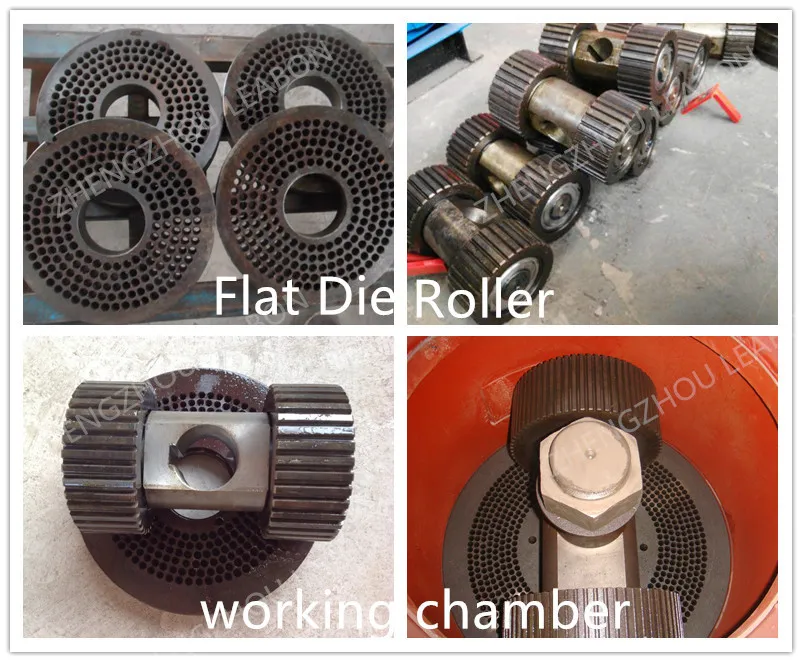

Spare Parts

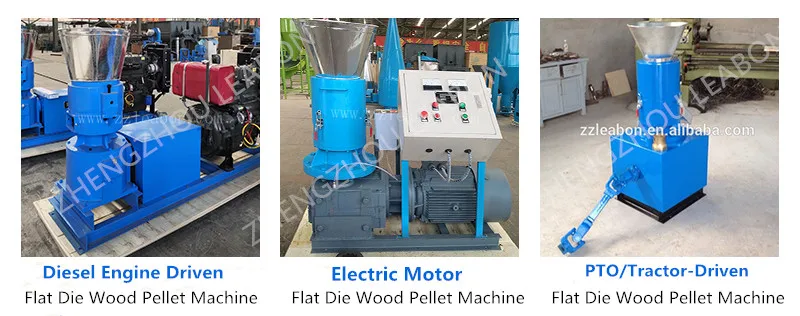

Other Type Wood Pellet Machine
Leabon Machinery also has other different type sawdust pellet machines,which are Flat Die Wood Pellet Machine (Tractor-Driven/PTO), Flat Die Wood Pellet Machine(Diesel Engine Driven)







In addition to the Flat Die Wood Pellet Machine, Leabon Machinery also has Ring Die Wood Pellet Machine.


Model
Main Power
(kw)
Capacity
(t/h)
Feeding Power
(kw)
Conditioner Power (kw)
Die Diameter (mm)
Pellet size
(mm)
LH- 350
55
0.5-0.7
1.5
3
350
6,8，10,12
LH- 420
90
0.8-1
2.2
5.5
420
6,8，10,12
LH- 508
132
1.5-2
2.2
5.5
508
6,8，10,12
LH- 678
185
2.5-3.5
3
11
678
6,8，10,12
LH- 768
250
4-5.5
4
18.5
768
6,8，10,12

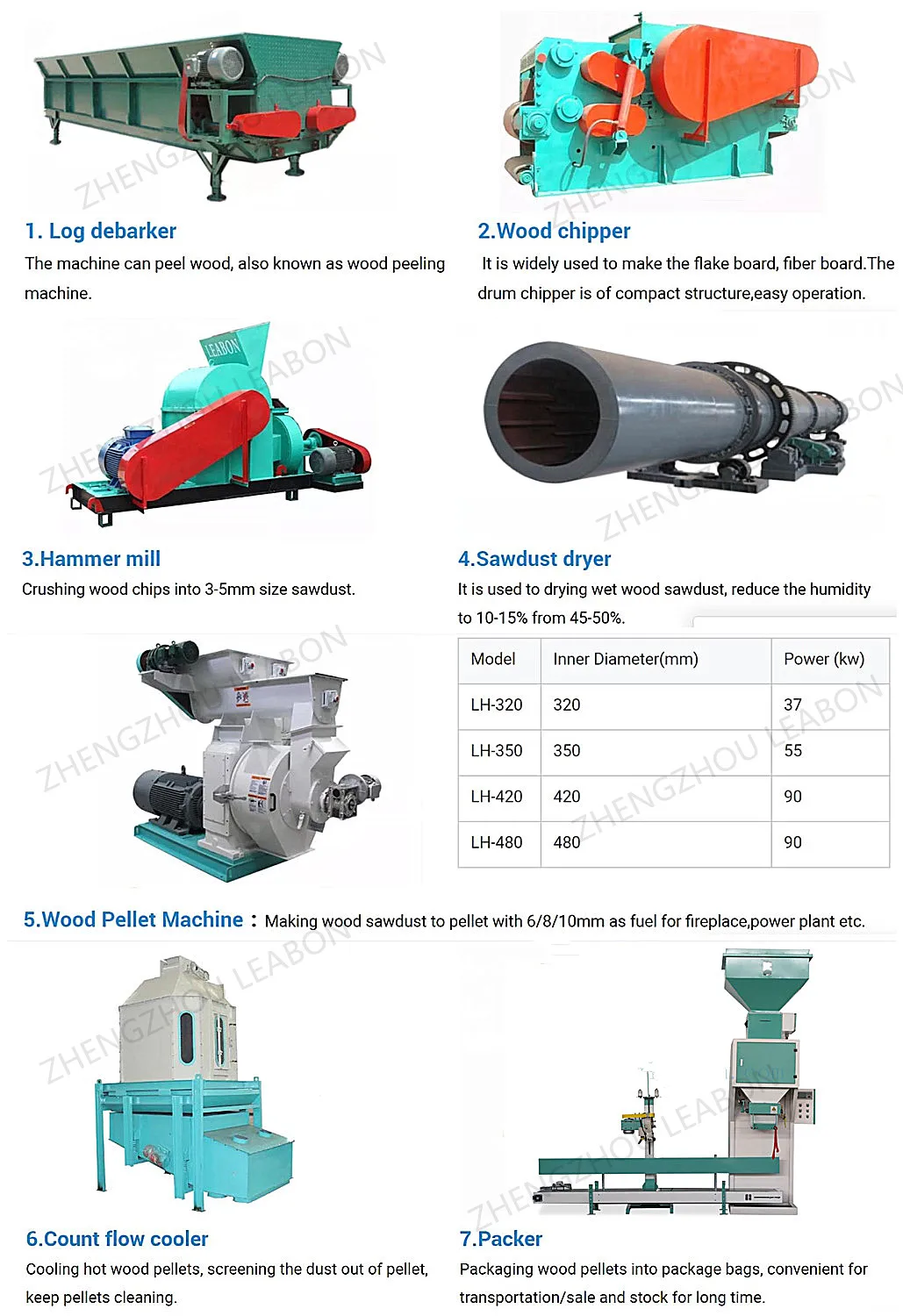

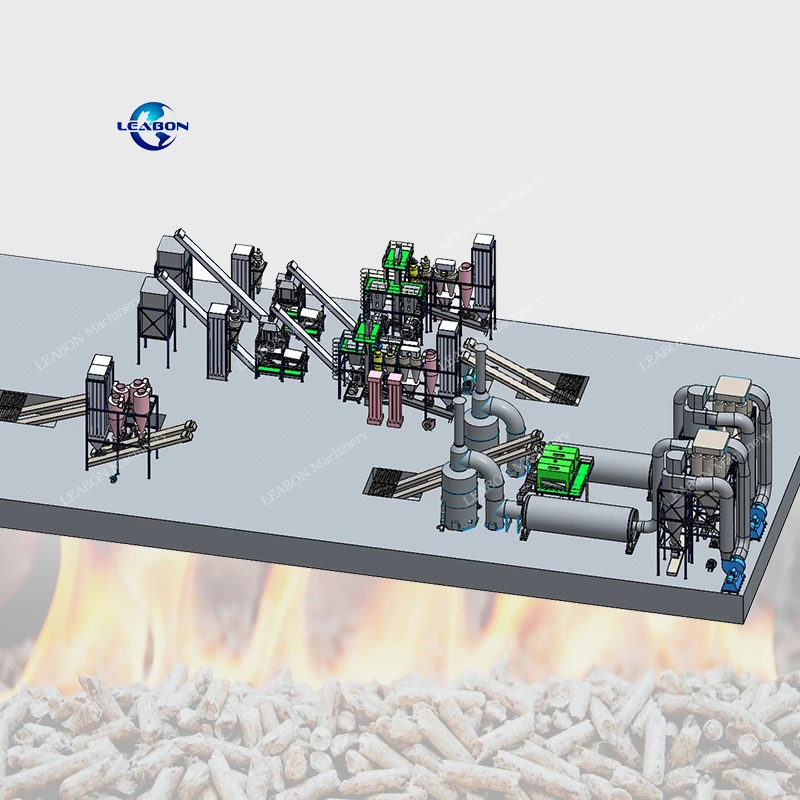

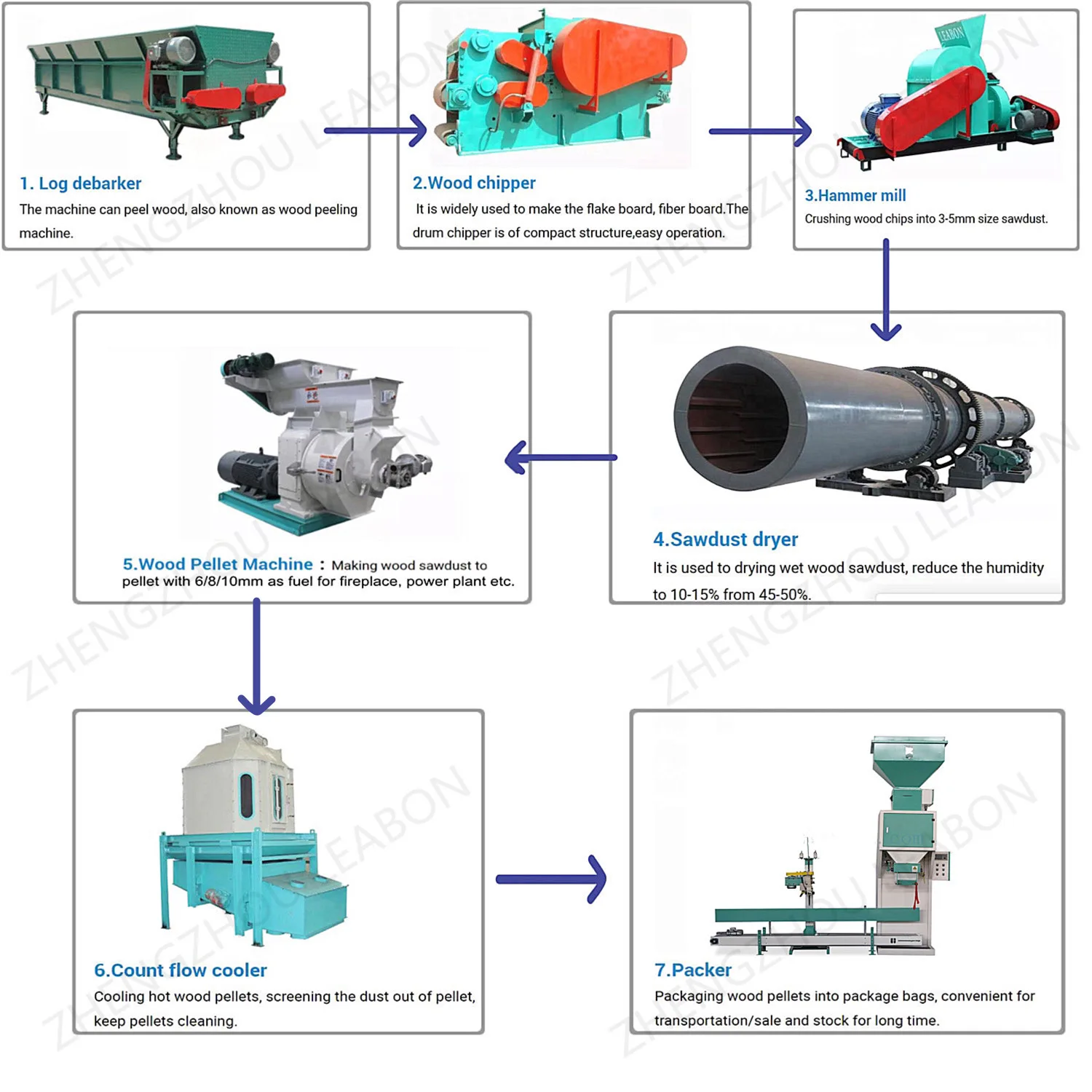

Complete Wood Pellet Production Line

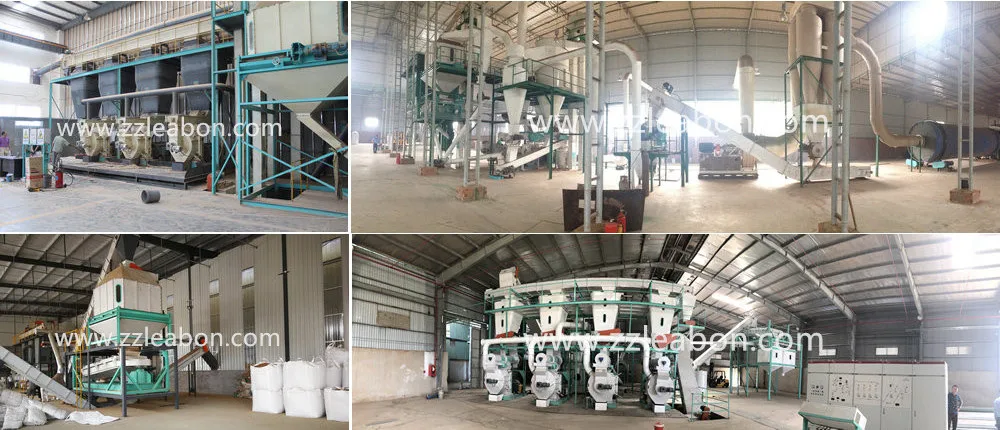

Project Case

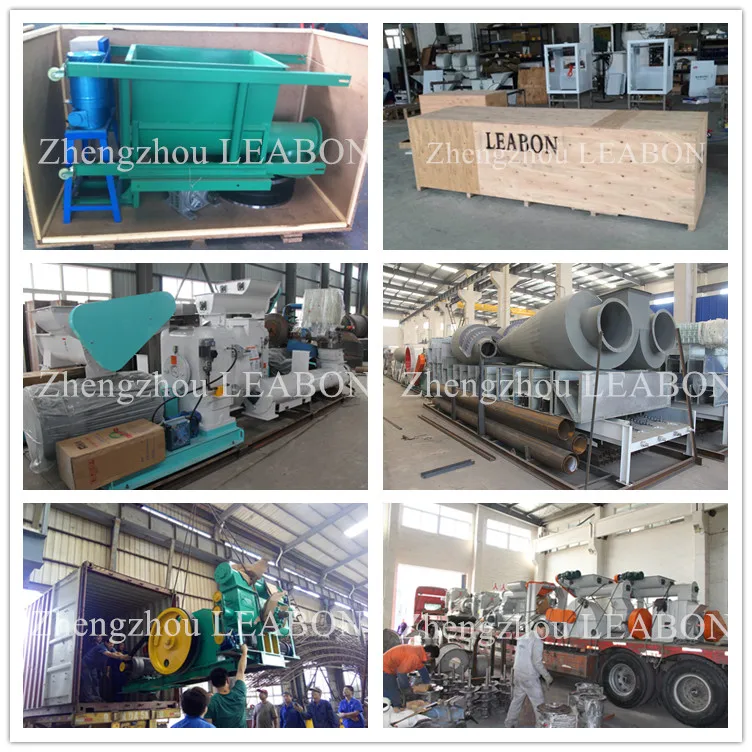

Packing&Shipping




Company Information






FAQ


(1). What capacity would your need?
-----The Capacity Range of Wood Pellet Machine: 0.5T/H; 0.8-1T/H; 1.5-2T/H; 2-3T;3-4T/H.

(2).What is your raw material?
-----suitable for different raw material such as wood/logs, sawdust, straw,wood chips,nuts shell,waste wood etc.

(3).What is your raw material size?
----Best size for pressing high quality pellets is 3mm-5mm.

(4).What is the moisture of your raw material?
----Better to be 10-15%.( If large than this, then we will recommend your Dryer Machine)

(5).Final Pellets Size?
----We have Diameter for Pellets:6mm, 8mm, 10mm, 12mm, (Different Diameters for your Different Requirement.)
