Instant heater 220v 2200W electric water heating element for purifier

Product Overview

Description

Product Description

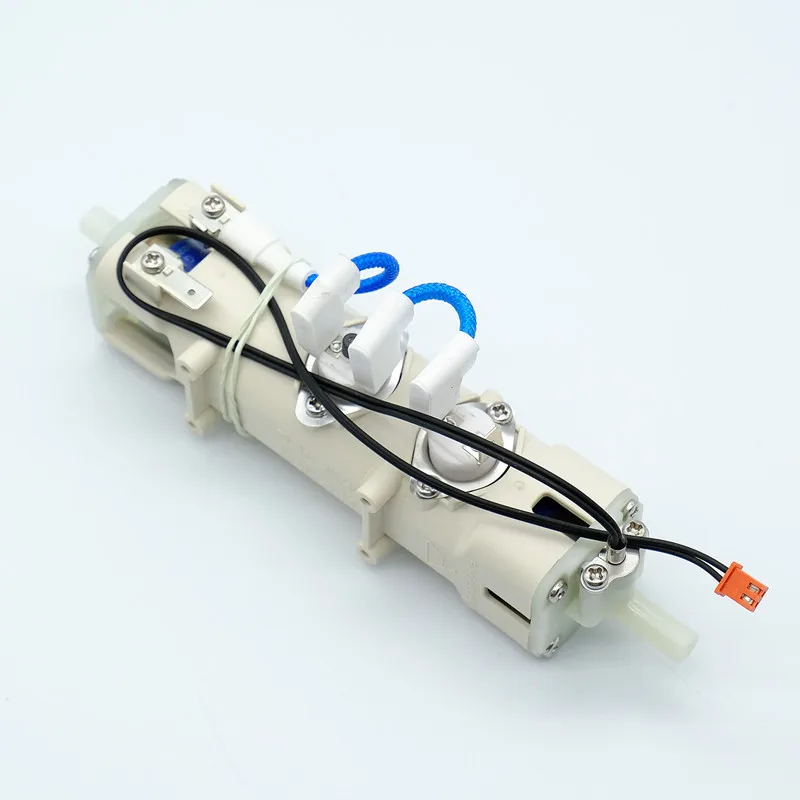

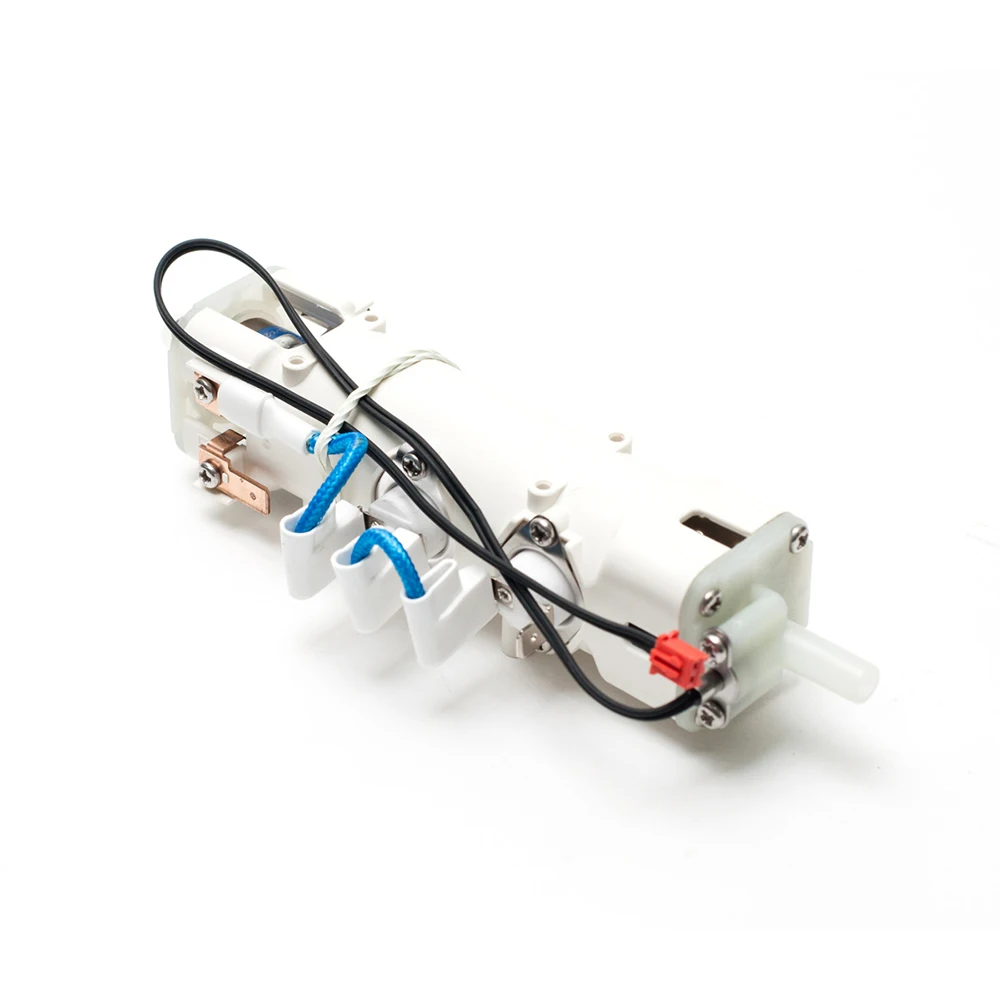

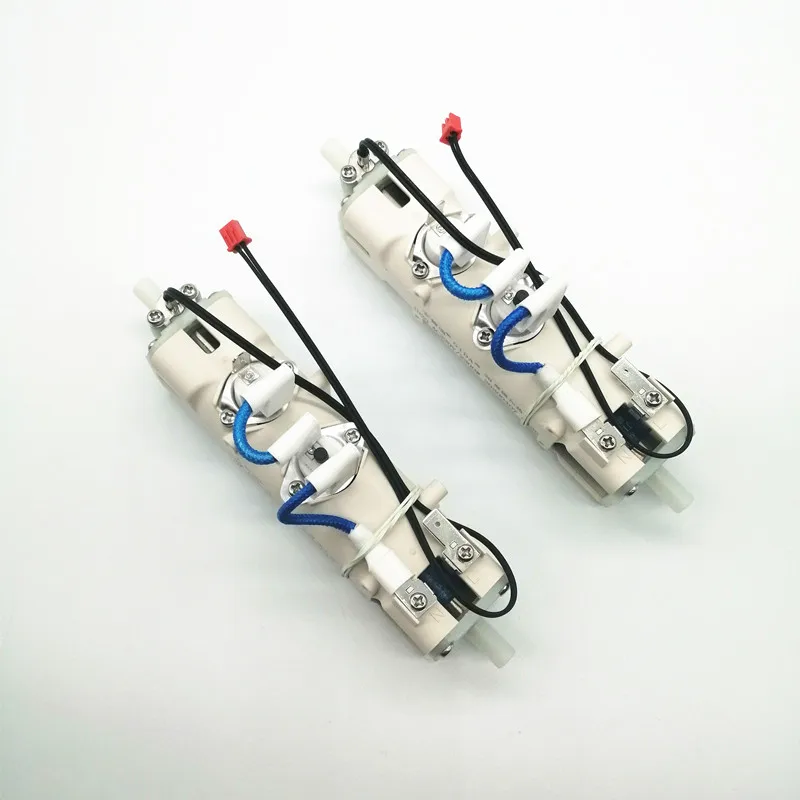

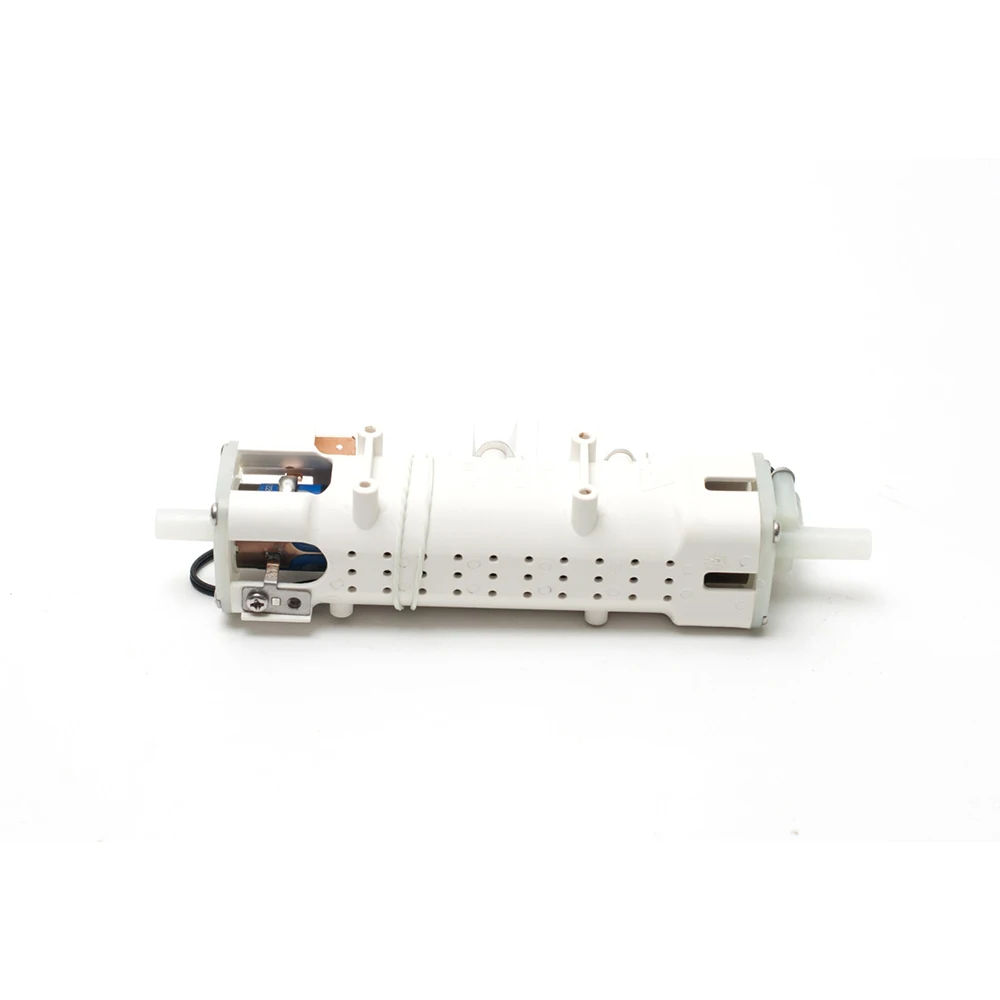

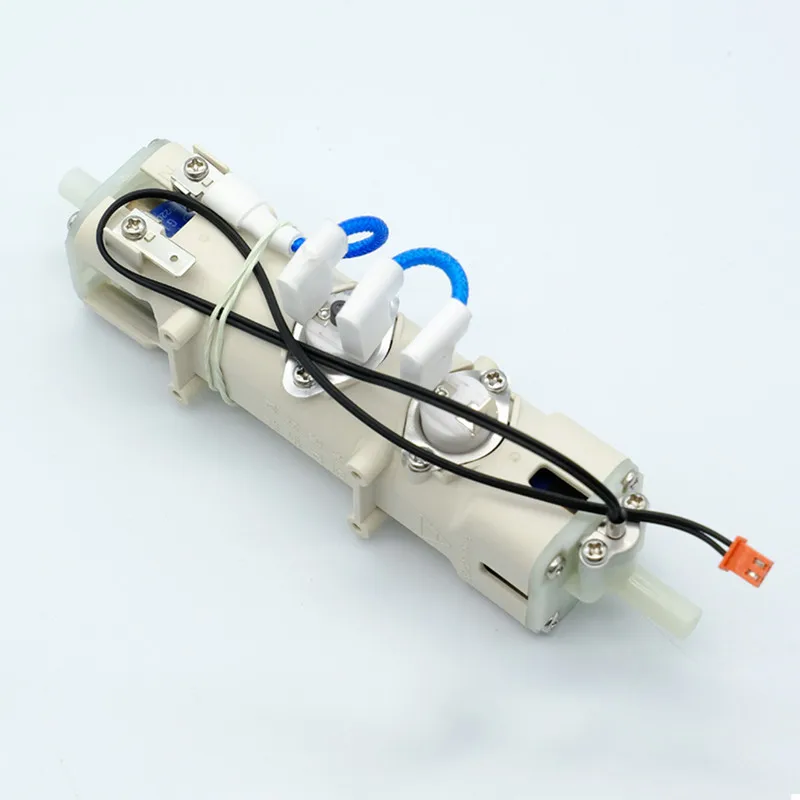

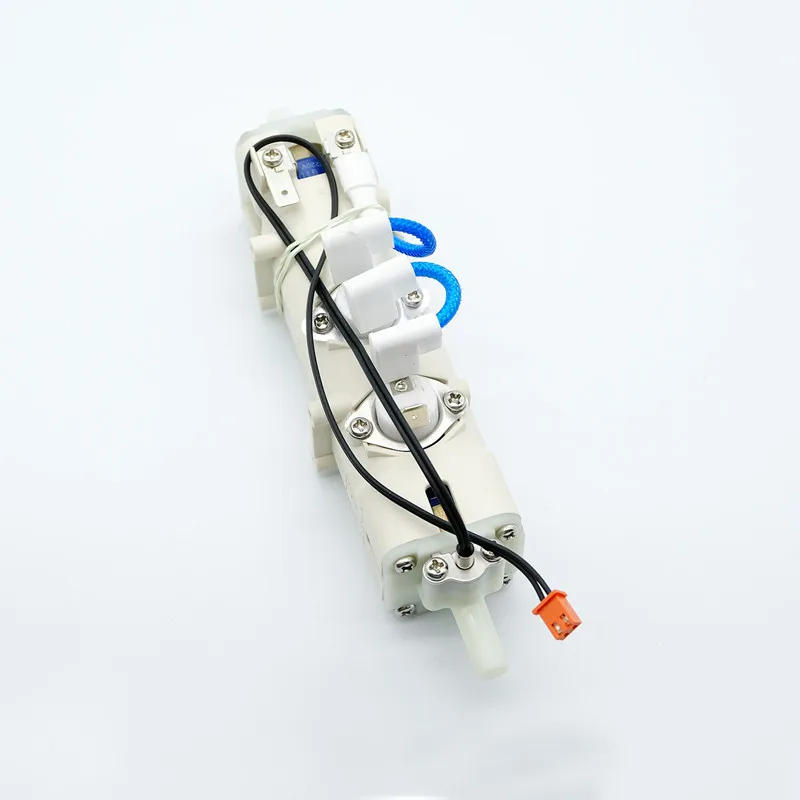

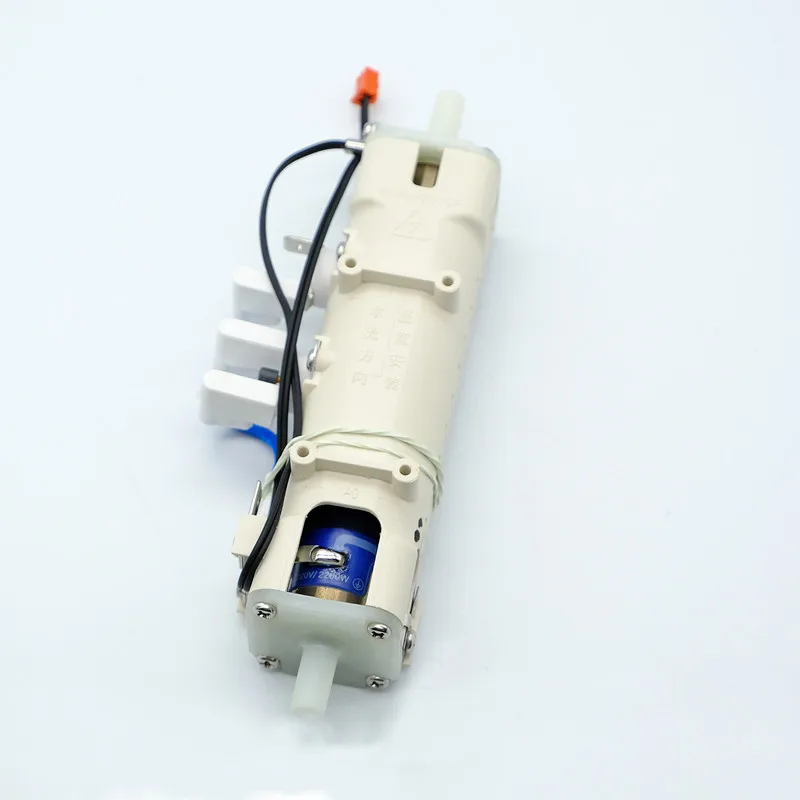

Instant heater 220v  2200W electric water heating element for purifier

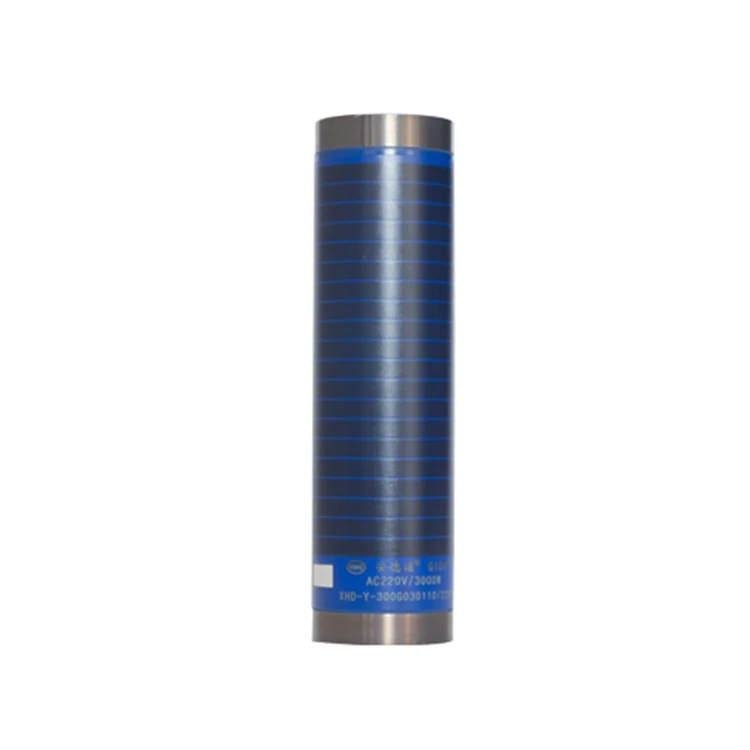

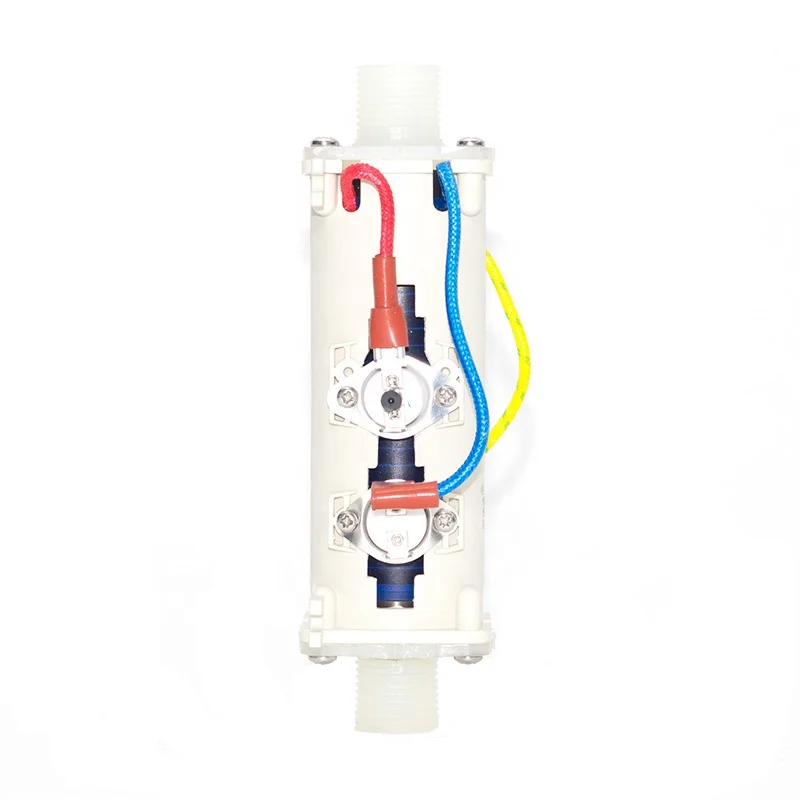

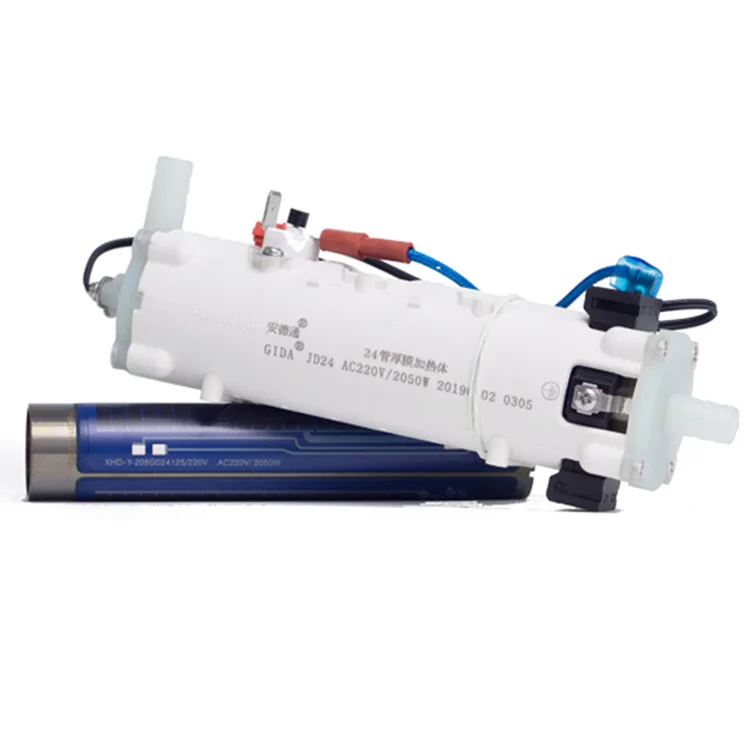

Thick Film Heating Element Assemble is made up by Stainless Steel Tube Thick Film Heater, plastic shield, interface connectors, thermostats, NTC Sensor, wire leads etc.
We supply two types TF Heating Elements:
1.Thick Film Instant Water Boiling Heating Element (supply boiling water only)
2.Thick Film Instant Water Heating Elements (it works with PCB control system to get target temperature hot water)
Thick Film Heater Elements are widely applied in instant hot water dispenser, instant boiling water heaters, sous vide circulate cooker, instant coffee maker, electric heating water faucet, instant water flow heater under sink, formula dispenser, etc.



Technical Parameters

Instant heater 220v  2200W electric water heating element for purifier



Outside Dimension	168mm*56mm*33mm	Heat Intensity	>60W/cm²
Ramp-Up Rate	80℃/s	Thermal Efficiency	>96%
Heating Power	2200W	Service Life	>10,000 hours
Rated Voltage	220v	Certificate	CQC, RoHS
Electric Intensity	1,500V/5mA/60s	Power Deviation	-10% - +5%
Leakage Current	≤0.25mA	Insulation Resistance	≥200MΩ
Thermistor Type	PTC	Snap Action Thermostat	16A, installed close to the heating tube's heating circuit
Shield	PA66+ glass fibre, temperature resistance≥250℃	Boiling Water Tank	Food Grade PP; Temperature resistance≥150℃
Water Inlet & Outlet	Φ16mm	Heating Tube Dimention	Φ20*110mm
Tube Materials	SUS430	Customized Service	Available







Main Features

Instant heater 220v  2200W electric water heating element for purifier



1. Electric Circuit printed on stainless steel tube surface, to heating the water flow inside,5 isolation layers sintered on the surface.
2. Large heat transfer area on tube surface; Ramp up and Cool down quickly; High utilization rate up to 93% or above.
3. Fast temperature response, power density is as high as 60W/cm² and heating circuit's temperature raising rate exceeds 80℃/s.
4. Simple structure, compact profile, various applications.





                                                                   Click here for more information





Applications

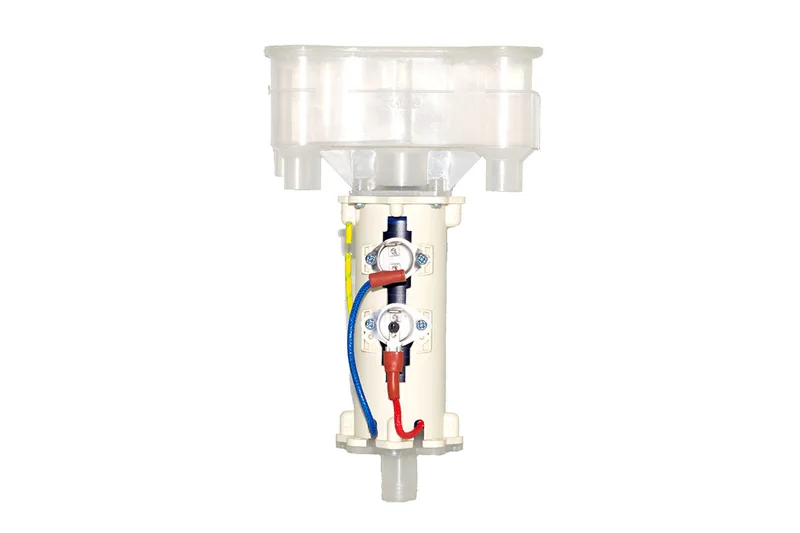

Those products are widely applied in water boilers, water dispensers, water heaters , electric faucet, pipeline machine, under sink instant water flow heater, coffee machine, commercial vending machine, as well as business field like circulating heating of swimming pool water, industrial equipment, vehicle air-conditioner etc.
It can successfully upgrade regular type water boiler or water dispenser to instant type, without change their present structure and increase performance, which can reduce energy consumption, increase energy utilization.







Company Information



Jieda was founded in 2012, is a high-tech manufacturer that specializes in design, research, produce and sales rare-earth metal thick film heating tubes(elements).



1. About 10 years experiences in Stainless Steel Thick Film Heating Element. Available various solutions for water flow instant heating, especially for Home Appliances Instant Water Heaters, Water Flow Heating in Industry.

2. Professional in screen printing on tube surface in 10,000+ Grade Air Purification Workshop and Sintering process.

3. First manufacturer to mass produce Thick Film Heater Tube in China.

4. Monthly production capacity up to 300,000 pieces.

We have obtained CQC certificate for our heater tubes(elements) and ISO9001:2015 Quality Management Certificate.







Certifications











FAQ

Q: What's Thick Film Heating Element? A: Thick Film Heater is a new technical art which is use screen printing technology and new thick film material.       It is printed with isolation dielectric, heating element and glass prevent on a substrate that is made by stainless steel,       amd through drying firing process with 800°C. Thick Film Heater has become a new type of heater.

Q: What’s the advantages of Jieda Thick Film Heating Element? A: We fully master screen printing and sintering technology on curved surface stainless steel tubes, which makes it              possible  to heat continuous water flow without water tank.     60W/CM² POWER DENSITY     up to 150℃/S TEMPERATURE RANP UP

Q: What's the lifespan of Thick Film Heating Tube / Thick Film Heating Element?  A: It can work more than 10,000 hours, in case of no DRY HEATING.

Q: What's the inlet and outlet diameter?  A: Thick Film Heating Tube      :  Ø18, Ø20, Ø30, Ø35, Ø40, Ø50mm     Thick Film Heating Element :  Available with Ø10mm, Ø16mm, G1/2 G1/4 and G1/8

Q: Can I DIY it for personal use by myself? A: Our Products are mainly used as heating spare parts for water heaters in mass production,      not recommended for Personal DIY.

Q: Can the Thick Film be applied to Copper Pipe or Aluminum Pipe? A: It can not be applied on Copper pipe, but can work on Aluminum pipe.

Q: How to get the suitable model for our application? A: We need to know the water temperature in inlet and outlet port, water flow rate, connection port details      and other special requirements, to recommend the suitable Thick Film Heating Elements

Q:  What's the operation attentions? A: 1. The temperature ramp-up above 80°C/s, please make sure the tube fulfilled with water before use.      2. Please install it vertically, make sure water flow direction from bottom to top, to prevent DRY HEATING in partial           area of heating tube.      3. Set the minimum flow rate according to tubes' power watts, ensure smooth flowing of water, to prevent vaporizing       and dry heating      4. Make sure reliablility grounding.
