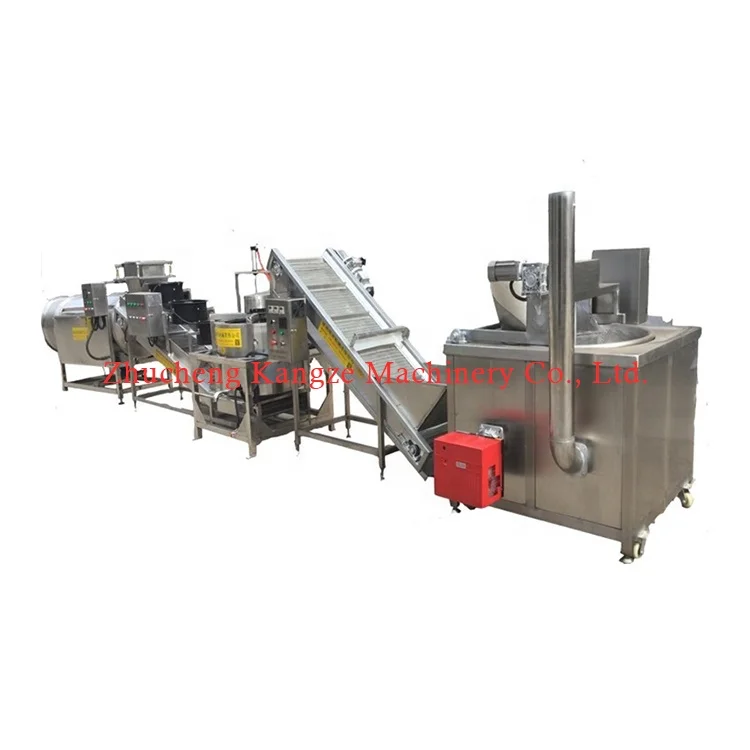

Small semi automatic French fries frying machine potato chips frying production line for good price
- Category: >>>
- Supplier: Zhucheng Kangze Machinery Co. Ltd.
Share on (1600525748817):
Product Overview
Description
Products Description

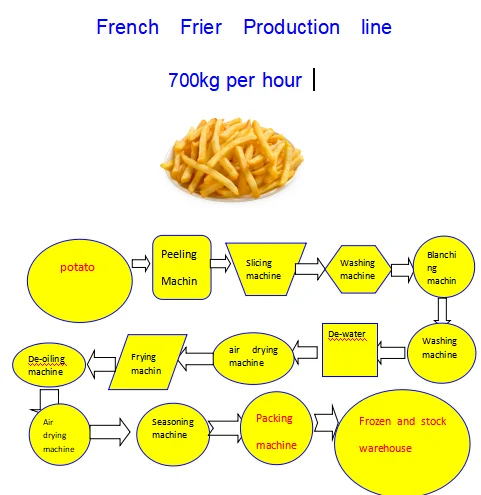

production line design 700kg per hour
700kg per hour for potato chips french fryer and crisps

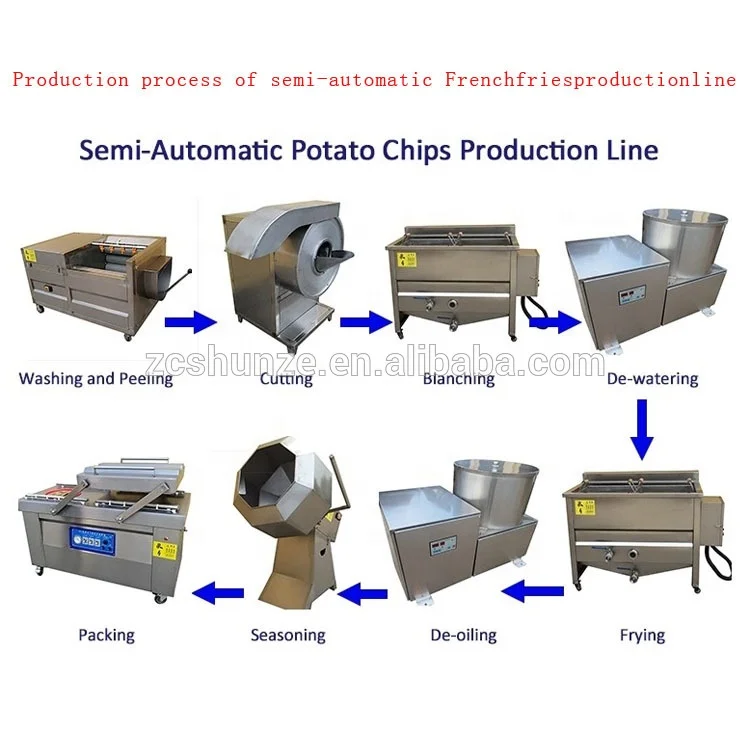

potato - -- lifting machine --- peeling machine -- conveyor --- slicer ---lifting machine ---washing machine --blanching machine--washing machine (cold water pool ) --vibration ---air drying --lifting machine ---fring machine -- vibration --air drying--lifting machine --seasoning machine --conveyor -- packing machine
suitable range
french frier pototo chips
crisps
Details Images
lifting machine
(1) usage : Can be pre-washed and remove sand and stones and put potatoes into the peeling machine
(2) Features: food grade SUS304,
Easy to maintain, easy to clean, no rust.
(3) Technical parameters:
Size: 2000*800*1600mm (confirm with actual size )
Power: 0.5KW/380v/50Hz
Mesh belt width: 700mm, 60*40*2mm rectangular frame, stainless steel square tube
(2) Features: food grade SUS304,
Easy to maintain, easy to clean, no rust.
(3) Technical parameters:
Size: 2000*800*1600mm (confirm with actual size )
Power: 0.5KW/380v/50Hz
Mesh belt width: 700mm, 60*40*2mm rectangular frame, stainless steel square tube
peeling machine
1) Application: Wash potatoes and peel them
(2) Features: spiral unloading realizes automatic unloading,
Imported nylon brush roller, durable stainless steel frame structure.
(3) Technical parameters:
Size: 2600*900*1600mm,
Brush roller length: 2000mm (confirm with actual size )
Power: 4.75kw/380v/50Hz
12pcs emery roller
(4) Material configuration
Drive motor: speed can be adjusted
Speed regulating motor
Spiral teeth: stainless steel plate bending production
Other materials: 304 stainless steel
Sheets, welding and shearing
(2) Features: spiral unloading realizes automatic unloading,
Imported nylon brush roller, durable stainless steel frame structure.
(3) Technical parameters:
Size: 2600*900*1600mm,
Brush roller length: 2000mm (confirm with actual size )
Power: 4.75kw/380v/50Hz
12pcs emery roller
(4) Material configuration
Drive motor: speed can be adjusted
Speed regulating motor
Spiral teeth: stainless steel plate bending production
Other materials: 304 stainless steel
Sheets, welding and shearing
conveyor
(1) application: Wash the artificially selected potatoes after peeling to remove unclean areas, such as
And unqualified materials
(2) Features: stable operation, stainless steel frame structure, easy to maintain and easy to clean.
(3) Technical parameters:
Size: 3000*800*1300mm (confirm with actual size )
Power: 0.75kw/380v/50Hz
Conveyor belt width: 700mm,
(4) Material configuration
Conveyor motor: adjustable speed, conveyor belt: PVC mesh belt
60*40*2mm rectangular frame.Stainless steel square tube
And unqualified materials
(2) Features: stable operation, stainless steel frame structure, easy to maintain and easy to clean.
(3) Technical parameters:
Size: 3000*800*1300mm (confirm with actual size )
Power: 0.75kw/380v/50Hz
Conveyor belt width: 700mm,
(4) Material configuration
Conveyor motor: adjustable speed, conveyor belt: PVC mesh belt
60*40*2mm rectangular frame.Stainless steel square tube
slicing machine
1) application : Wash potatoes after peeling, it can cut potatoes into strips chips crisps .
(2) Features: The blade is durable and runs smoothly. Good cutting effect.
(3) Technical parameters:
Size: 1100*800*1100mm (confirm with actual size )
Power: 1.5kw/380v/50Hz
Cutting size: 7-16mm(ahead confirm the cutting size )
Capacity: 1100kg/h
4)Brand :taiwan
(2) Features: The blade is durable and runs smoothly. Good cutting effect.
(3) Technical parameters:
Size: 1100*800*1100mm (confirm with actual size )
Power: 1.5kw/380v/50Hz
Cutting size: 7-16mm(ahead confirm the cutting size )
Capacity: 1100kg/h
4)Brand :taiwan
lifting machine
(1) use : Can be pre-washed and remove sand and stones and put potatoes into the peeling machine
(2) Features: food grade SUS304,
Easy to maintain, easy to clean, no rust.
(3) Technical parameters:
Size: 2000*800*1300mm (confirm with actual size )
Power: 0.5KW/380v/50Hz
Mesh belt width: 700mm, 60*40*2mm rectangular frame, stainless steel square tube
(2) Features: food grade SUS304,
Easy to maintain, easy to clean, no rust.
(3) Technical parameters:
Size: 2000*800*1300mm (confirm with actual size )
Power: 0.5KW/380v/50Hz
Mesh belt width: 700mm, 60*40*2mm rectangular frame, stainless steel square tube
washing machine
1) application : remove starch
On the surface
(2) Features: food grade 304sus,
It has a bubble function to prevent the stickiness of French fries, and the stainless steel chain mesh belt conveyor removes the residual skin.
(3) Technical parameters:
Size: 5000*1000*1300mm(confirm with actual size )
Conveyor belt width: 800mm Conveyor motor:
Frequency conversion transmission power: 1.5kw/380v/
50hz, bubble machine power: 2.2kw
Capacity: 1000kg/h
60*40*2mm rectangular stainless steel square tube
On the surface
(2) Features: food grade 304sus,
It has a bubble function to prevent the stickiness of French fries, and the stainless steel chain mesh belt conveyor removes the residual skin.
(3) Technical parameters:
Size: 5000*1000*1300mm(confirm with actual size )
Conveyor belt width: 800mm Conveyor motor:
Frequency conversion transmission power: 1.5kw/380v/
50hz, bubble machine power: 2.2kw
Capacity: 1000kg/h
60*40*2mm rectangular stainless steel square tube
blanching machine
(1) usage: Scald in water at 90-92℃ for 3-6 minutes
(2) Features: easy overall maintenance and easy cleaning.
(3) Technical parameters:
Size: 5000*1000*1350mm(confirm with actual size )
Transmission power: 1.5kw/380v/50Hz
Conveyor belt width: 800mm,
(4) Material configuration
Conveying motor: 1.5kw,
Bubble machine power: 2.2kw
Conveyor belt: stainless steel
Chain mesh belt 60*40*2mm rectangular frame stainless steel square tube
5)Steam heating boiler
6)Blanching in 40s and adjustable in 90s to make sure chip crisps .
7)Temperature :80℃ (blanching machine water temperature )
8)Steam consumption is 300kg per hour
(2) Features: easy overall maintenance and easy cleaning.
(3) Technical parameters:
Size: 5000*1000*1350mm(confirm with actual size )
Transmission power: 1.5kw/380v/50Hz
Conveyor belt width: 800mm,
(4) Material configuration
Conveying motor: 1.5kw,
Bubble machine power: 2.2kw
Conveyor belt: stainless steel
Chain mesh belt 60*40*2mm rectangular frame stainless steel square tube
5)Steam heating boiler
6)Blanching in 40s and adjustable in 90s to make sure chip crisps .
7)Temperature :80℃ (blanching machine water temperature )
8)Steam consumption is 300kg per hour
Vibrating drainage
(1) Function: remove water droplets on the surface of the product after blanching
(2) Voltage: 380V/50hz/1.5kw
(3) Dimensions: 1500*1000*900mm(confirm with actual size )
(4) There is a drain pan at the bottom
Frame square tube is 80*40*3.0mm
(2) Voltage: 380V/50hz/1.5kw
(3) Dimensions: 1500*1000*900mm(confirm with actual size )
(4) There is a drain pan at the bottom
Frame square tube is 80*40*3.0mm
Air drying machine
1) Usage: further remove the moisture on the surface of the product, and can quickly cool down.
(2) Features: large air volume, good water removal effect.
(3) Dimensions: 4000*1200*1400mm.(confirm with actual size )
Total power: 6.75kw/380v/50Hz,
Transmission power: 0.75kw, fan: 8 centrifugal fans, square tube: 60*40*2.0mm
(2) Features: large air volume, good water removal effect.
(3) Dimensions: 4000*1200*1400mm.(confirm with actual size )
Total power: 6.75kw/380v/50Hz,
Transmission power: 0.75kw, fan: 8 centrifugal fans, square tube: 60*40*2.0mm
lifting machine
1) usage: Lift the air-dried and drained product into the fryer
(2) Features: food grade SUS304,
Easy to maintain, easy to clean, no rust.
(3) Technical parameters:
Size: 1500*800*1300mm(confirm with actual size )
Power: 0.75KW/380v/50Hz
Mesh belt width: 700mm
60*40*2mm rectangular frame stainless steel square tube
(2) Features: food grade SUS304,
Easy to maintain, easy to clean, no rust.
(3) Technical parameters:
Size: 1500*800*1300mm(confirm with actual size )
Power: 0.75KW/380v/50Hz
Mesh belt width: 700mm
60*40*2mm rectangular frame stainless steel square tube

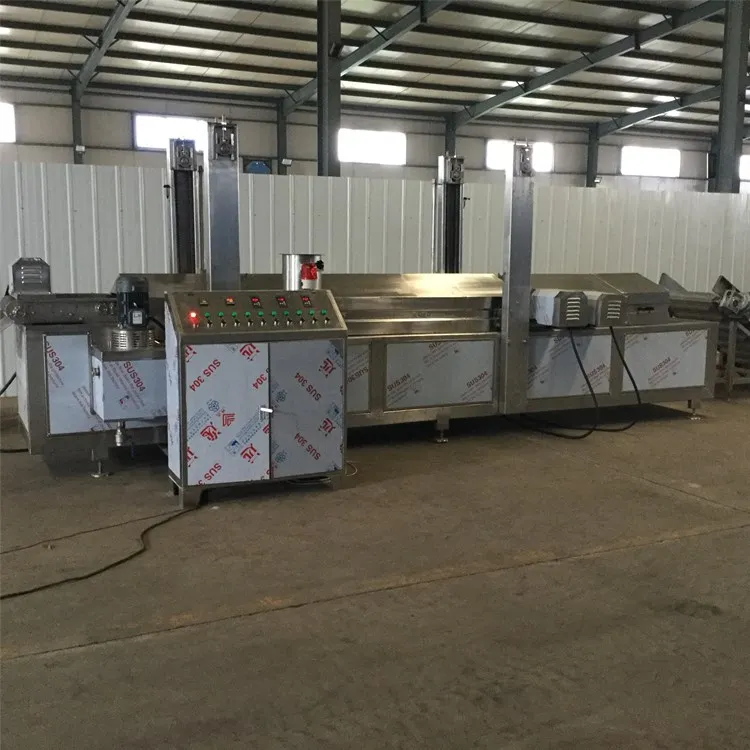

frying machine 1
(1) usage: Fry the dried and de water products
(2) (2) Features: SUS304 stainless steel material,
(3) Technical parameters:
Size: 8000x1200x2100mm(confirm with actual size )
Power: 203kw/380v/50Hz electric heating
Mesh belt width: 800mm, 60*40*2mm rectangular frame stainless steel square tube, plate thickness is 3.0mm
With lifting device, easy to clean
(3) Heating pipe group control
(2) (2) Features: SUS304 stainless steel material,
(3) Technical parameters:
Size: 8000x1200x2100mm(confirm with actual size )
Power: 203kw/380v/50Hz electric heating
Mesh belt width: 800mm, 60*40*2mm rectangular frame stainless steel square tube, plate thickness is 3.0mm
With lifting device, easy to clean
(3) Heating pipe group control
seasoning machine
(1) Purpose: to season the fried products
(2) The diameter of the drum is 800mm
(3) Technical parameters: 1.5kw/380v/50hz
Dimensions: 1500*800*1500 (confirm with actual size )
(2) The diameter of the drum is 800mm
(3) Technical parameters: 1.5kw/380v/50hz
Dimensions: 1500*800*1500 (confirm with actual size )
frying machine 2
4) With circulating pump to prevent uneven heating5)gas: 60-80 cube per hour consumption 6)electricity :180-240kw per hour
7) frying machine are including oil tank and oil filter and oil heating 8) frying time no more than 60s ,as usual 40s .frying temperature :185℃ there are three stage One stage is low temperature about 120-150℃ ( because of potato chip have some water ,lead to cant reach 185℃)Second stage is middle temperature frying ,the temperature will be 150-170℃Third stage high temperature ,the temperature will reach 185℃ 9)Electric heating 10)There are three temperature control device in one box to measure temperature and install three detective in enter of frying machine (120℃)Middle of frying machine (150℃)and exist of frying machine to measure temperature (185℃).
7) frying machine are including oil tank and oil filter and oil heating 8) frying time no more than 60s ,as usual 40s .frying temperature :185℃ there are three stage One stage is low temperature about 120-150℃ ( because of potato chip have some water ,lead to cant reach 185℃)Second stage is middle temperature frying ,the temperature will be 150-170℃Third stage high temperature ,the temperature will reach 185℃ 9)Electric heating 10)There are three temperature control device in one box to measure temperature and install three detective in enter of frying machine (120℃)Middle of frying machine (150℃)and exist of frying machine to measure temperature (185℃).

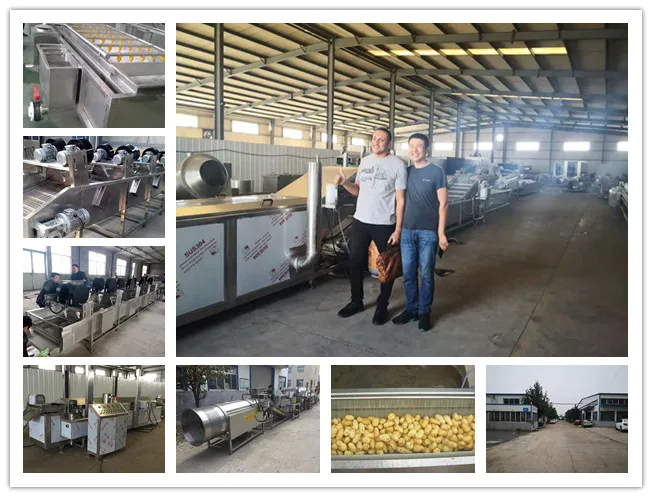

workshop and warehouse logistic
