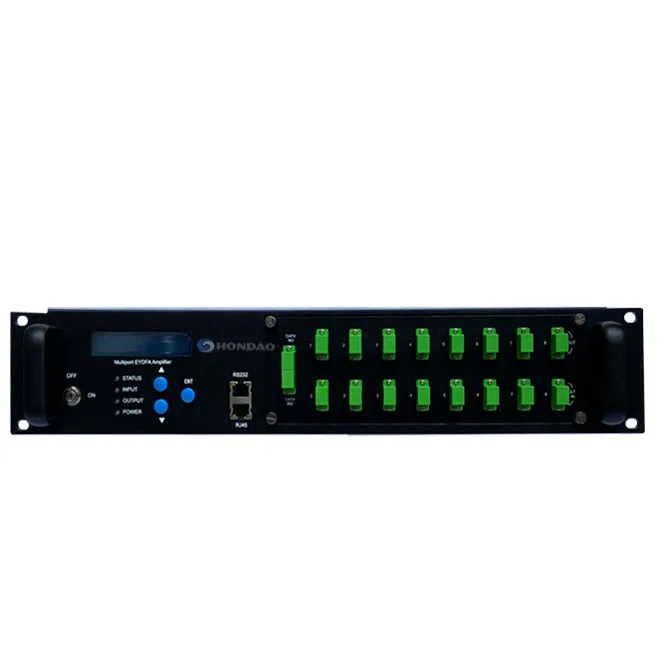

HONDAO EDFA WDM 8 ports AC/DC Opticl EDFA Amplifier for CATV
- Category: >>>
- Supplier: Hangzhou Hondao Optic Co. Ltd.
Share on (1600525750201):
Product Overview
Description
Product Description
HONDAO EDFA-XXdBm-WDM 1550nm High Power Opticla Amplifier
PON WDM is built in well-performed CWDM . Integrated 1490/1310 data stream from the OLT and ONU into single fiber transmission through EDFA . Adopt GPON/GEPON signal.
Feature
1540~1563nm operating bandwidth.
Output ports :16~64 optional , total up to 2W.
Each output ports with WDM . 1310/140/1550nm single fiber . XPON Adopt .
APC,ACC,ATC controlled selecion.
Efficient space , flexible installation and easy operation.
Power RS232 supervisory instruction Excellent.
Output ports :16~64 optional , total up to 2W.
Each output ports with WDM . 1310/140/1550nm single fiber . XPON Adopt .
APC,ACC,ATC controlled selecion.
Efficient space , flexible installation and easy operation.
Power RS232 supervisory instruction Excellent.
Specification
Product name | 1550nm High Power Opticla Amplifier |
Model | OT1500D |
Brand | HONDAO |
model | EDFA-XXdBm-WDM |

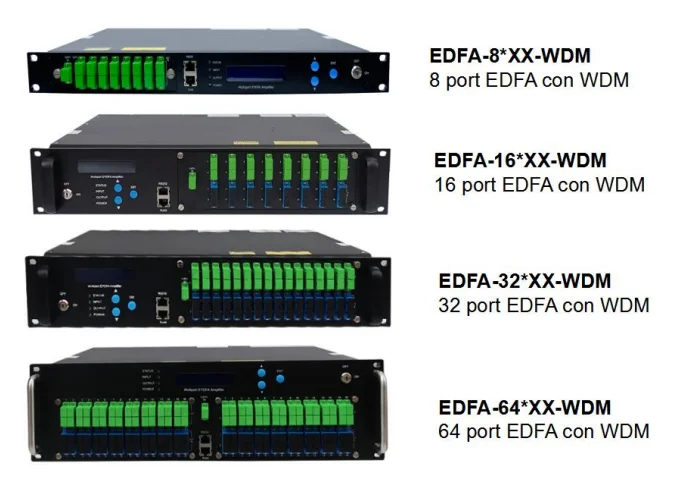

Ports | 8/16/32/64 ports |

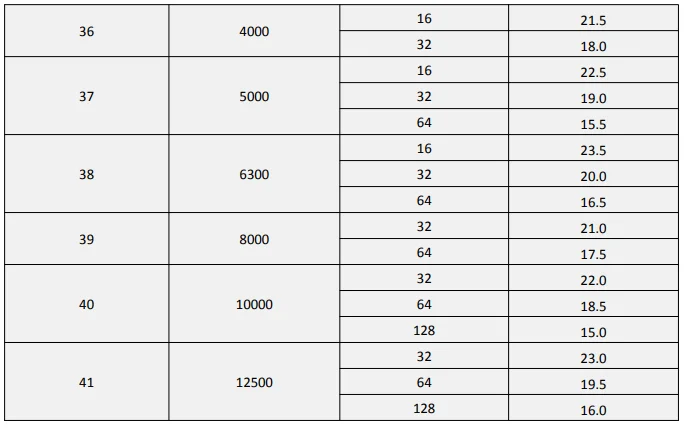

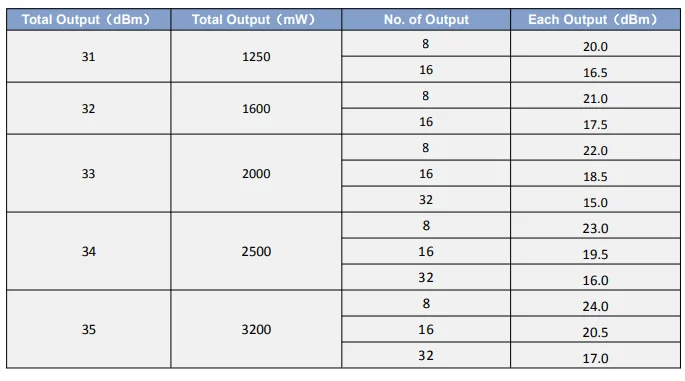

Output | 31,32,33,34,35,36,37,38,39,40(dBm) |
Output | 1250,1600,2000,2500,3200,4000,5000,6400,8000,10000(mW) |
Input | -8～+10(dBm) |
Range of output adjustment | Up 0.5、down 4.0(dBm) |
Wavelength | 1530～1565(nm) |
Output stability | <±0.3(dB) |
Optical Return Loss | ≥45(dBm) |
Fiber Connector | FC/APC、SC/APC |
Noise Figure | <6.0(input 0dBm) |
Web port | RJ45(SNMP) |
Power Consumption | ≤80(W) |
Voltage | 220VAC(90～265)、-48VDC |
Working Temp | 0～55 |
Size (mm) | 370(L)×486(W)×88(H) |
NW | 13.0(kg) |
Details Images

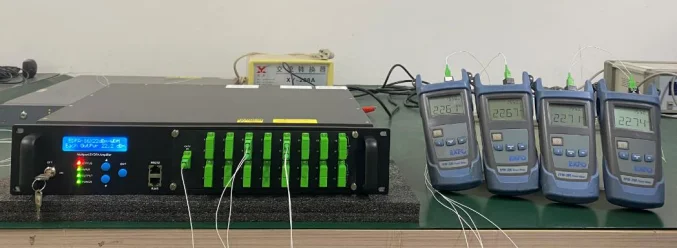

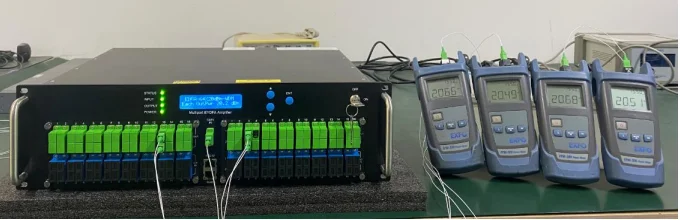

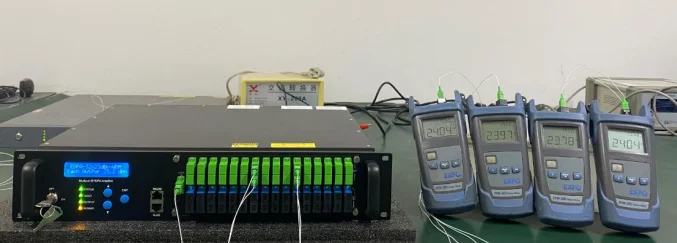

Our QC team do second test for every EDFA
