Product Overview

Description



Product Description


Based on the new 32-bit DSP platform and adopting the micro-stepping technology and PID current control algorithm\u2029 design, Rtelligent R series stepper drive surpasses the performance of common analog stepper drive comprehensively.\u2029

• PID parameter adjustment function, meeting different types of load applications better.\u2029
• Micro-stepping control algorithm, improving the stationarity of motor within each speed range
• Command smoothing function, enabling the smoother speed reduction process of the motor.\u2029
• Low speed vibration control, lowering down the low speed vibration amplitude of the motor by 80%.
• Application areas: engraving machine, filature, wire-stripping machine, marking machine, cutting machine, die bonder\u2029plotter numerical control machine, automatic assembly equipment etc.


Open loop stepper driver and closed loop stepper servo driver:
Model
Peak current
Weight
Input voltage range
Dimension
Micro-stepping level number
Pulse level
Matching Motor
R42
2.2
106g
24-48VDC
92.6X56X21
200-25600
3.3-24V
20、28、35、39、42
R60
5.6
278g
24-50VDC
118X76X33
200-25600
3.3-24V
57、60

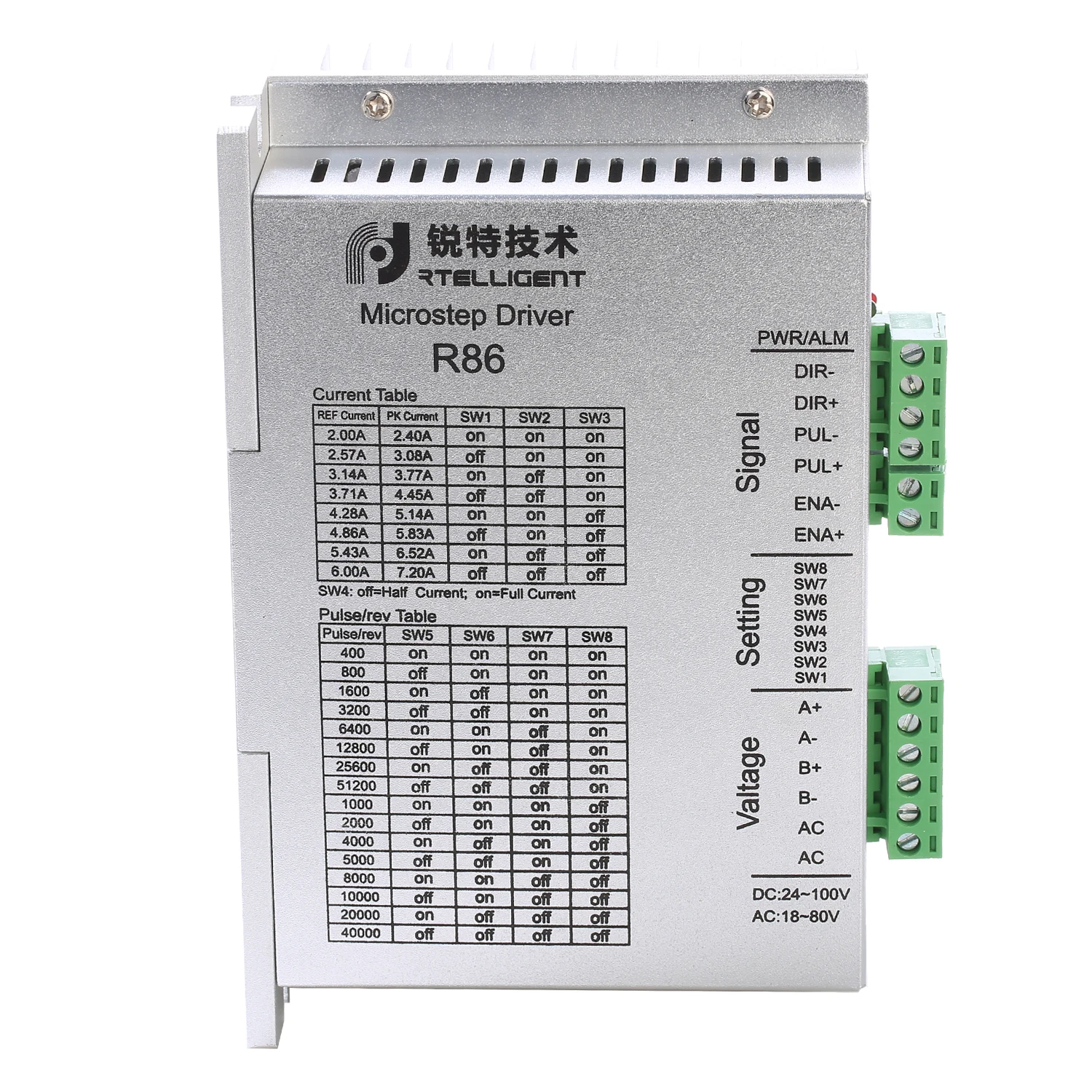

R86
7.2
580g
24-100VDC; 18-80VAC
151X97X52
400-51200
3.3-24V
86
R130
8.0
1345g
110-240VAC
203X147X78
400-60000
3.3-24V
110/130
3R60
8.0
285g
24-50VDC
118X76X33
200-25600
3.3-24V
Three-phase 57 and 60
3R86
8.0
586g
24-100VDC; 18-80VAC
151X97X52
400-51200
3.3-24V
Three-phase 86
3R130
8.0
1345g
110-240VAC
203X147X78
400-60000
3.3-24V
Three-phase 110/130

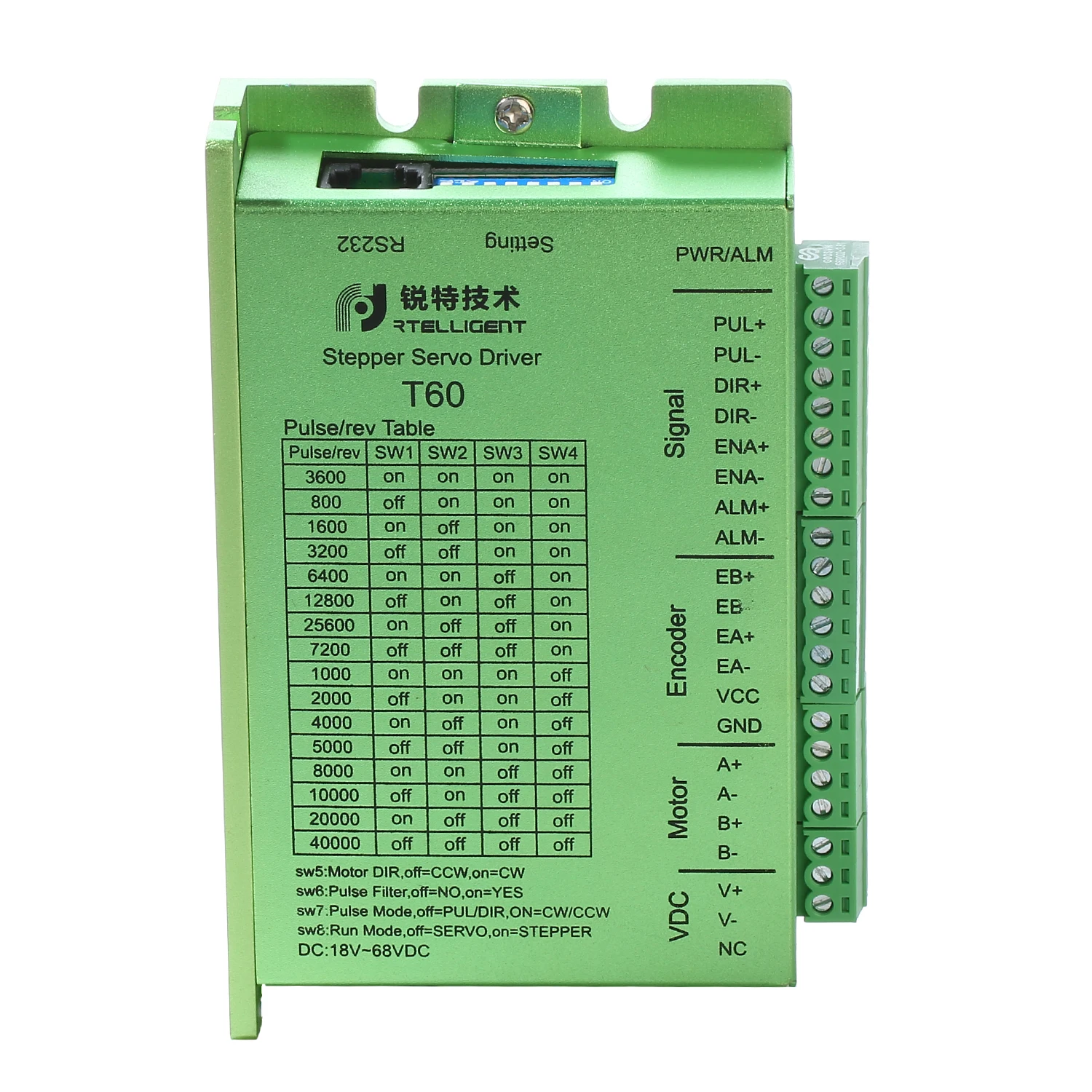

T60
6.0
220g
18-50VDC
116X68X26.5
200-51200
3.3-24V
Closed loop 42、57、60
T86
8.0
600g
18-80VDC
151X97.5X52
200-51200
3.3-24V
Closed loop 42、57、60、86


Details Images




Remarks
If you have questions about stepper drivers or need more detailed information(user manual or debugging software) , please feel free to contact us.
