Large cube ice making machine 10 ton per day cube ice machine price for Malaysia
- Category: >>>
- Supplier: Jinan Robin Machinery Co. Ltd.
Share on (1600525776632):
Product Overview
Description

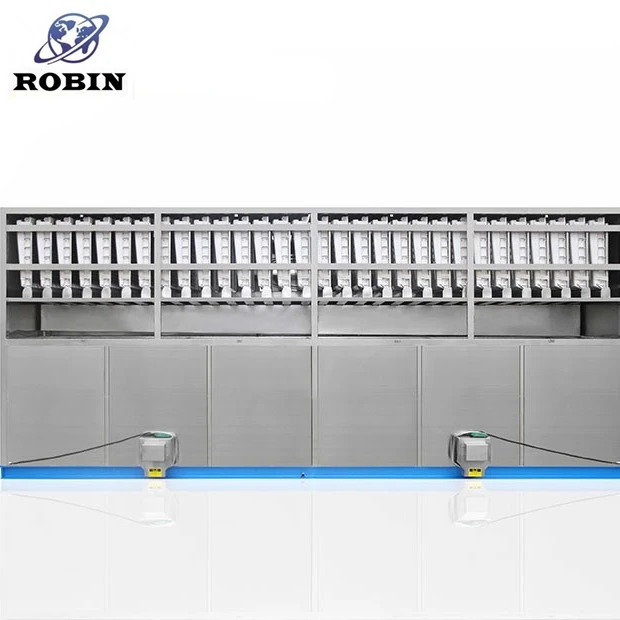

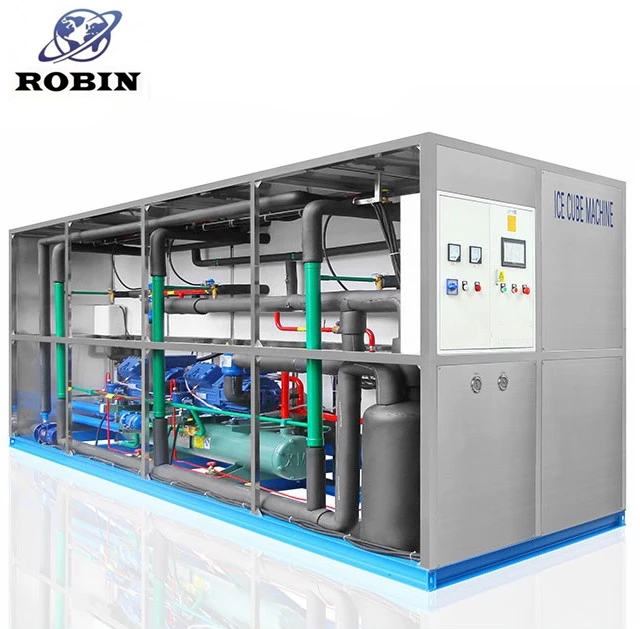

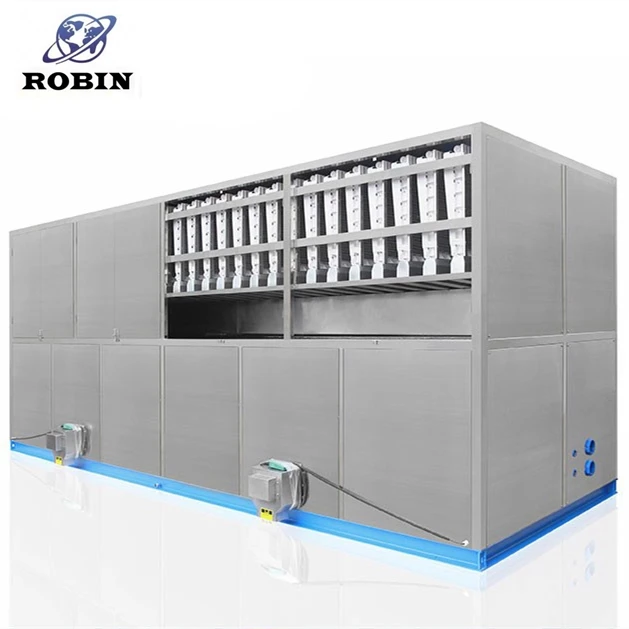

Large cube ice making machine 10 ton per day cube ice machine price for Malaysia
Product Description

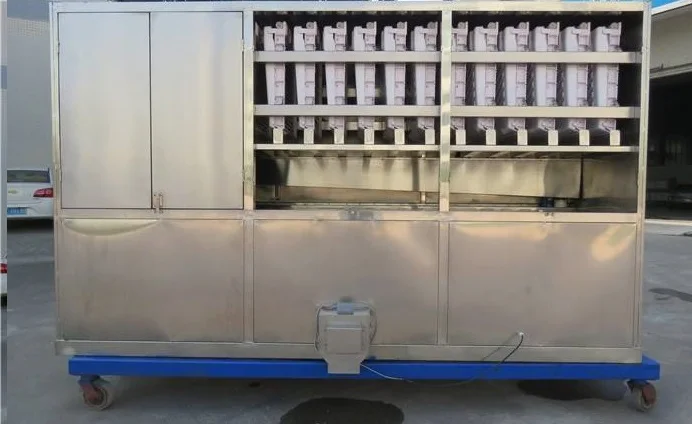

Robin 10 ton cube ice machine is a large-scale production of edible cube ice making equipment. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place.

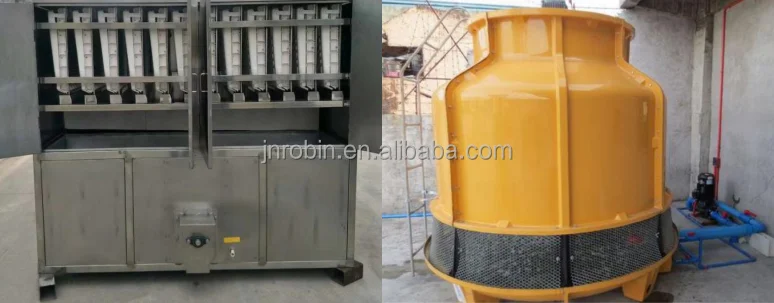

This machine consists of 2 parts: cube ice maker part and cooling tower, they are connecting by water pump and water pipes.
1.Safety and sanitation:The machine is made of 304 stainless steel. The water sink is specially designed to avoid incrustation. The machine also has an automatic cleaning function, to make sure the cube ice is sanitation, safety, and meeting international standards.
2.Low power consumption:Power consumption is 85-90 degrees/ton in summer, if the ambient temperature is below 23 degrees, and the power consumption is 70-85 degrees/ton.
3.Automatic operation:Cube ice machine adopts PLC centralized control, so the machine has the following automatic functions, automatic adjustment of ice thickness, automatic ice formation, automatic ice harvest, and automatic water replenishment.
4.Large ice production:The output of a single machine is stable from 1 ton to 20 tons. Summer output can reach 90%-95%; when the ambient temperature is below 20 degrees, the output can reach 100%-130%.
5.Stable performance:ice cubes are crystal clear, have high hardness, uniform rules, beautiful appearance, long storage time, clean and hygienic, and fully meet the national hygienic requirements for edible ice.
6.Brand accessories:the compressor adopts German Bitzer or Italy Frascold, and the electrical accessories adopt Siemens, LG brand, etc.;

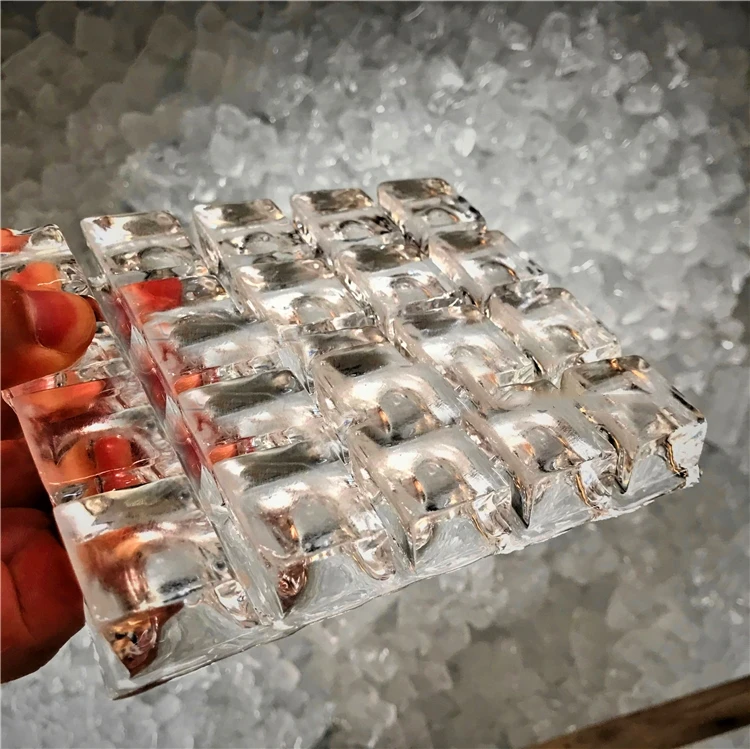

7.Edible ice cube size:22*22*22mm / 29*29*22mm / 38*38*22mm and many other models.
Technology

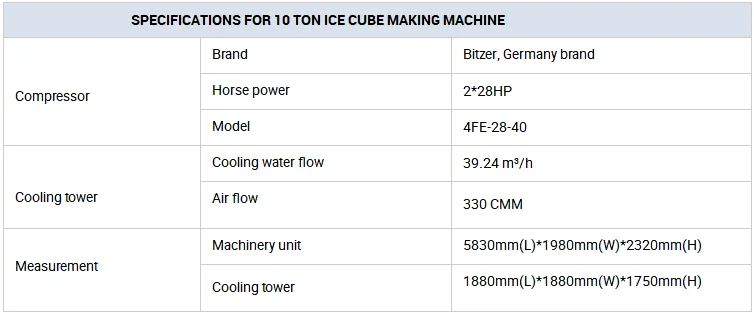

10 ton cube ice machine paremeters | ||||||
Model Parameters | RBC-1T | RBC-2T | RBC-3T | RBC-5T | RBC-10T | |
Daily output (T/24 h) | 1 | 2 | 3 | 5 | 10 | |
Compressor Power | 4.34 kw | 7.88 kw | 10.58 kw | 21 kw | 42 kw | |
Fan Power of Cooling Tower | 0.18 kw | 0.37 kw | 0.56 kw | 0.75 kw | 1.5 kw | |
Cooling Pump Power | 1.1 kw | 1.5 kw | 1.5 kw | 2.2 kw | 4 kw | |
Unit Size | L (mm) | 1800 | 1630 | 1980 | 2890 | 5730 |
W (mm) | 1000 | 1600 | 1630 | 1780 | 1780 | |
H (mm) | 1700 | 1706 | 1860 | 1860 | 2130 | |
Unit N.W. (kg) | 800 | 1000 | 1200 | 1600 | 3000 | |
1. Size of cube ice: 22*22*22 mm ; 29*29*22 mm ; 38*38*22 mm. 2. Compressor brand: Bizter / Frascold; refrigerant: R22/ R404A; Cooling Method: Water Cooling / Air Cooling. 3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). 4. Operating Conditions: T(water supply):20 ℃, T(ambient):32 ℃, T(condensing): 40 ℃, T(evaporating):-10 ℃. 5. Note: The actual ice production varies due to the influence of the water supply temperature and ambient temperature. 6. The final interpretation of the above mentioned parameter is in Robin, there will be further notice, if there any technical change. | ||||||

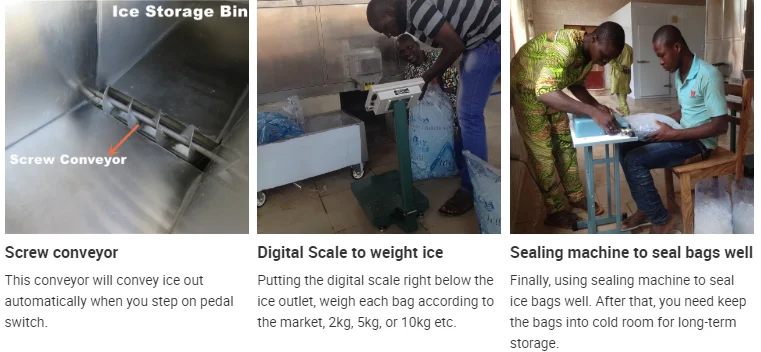

Packing system
Functions
Detailed Images
Our Services
♦ Installation & Training
All the working units of the machine are installed and fixed in a SUS304 frame, easy for on-site installation, customers just need to connect the power and water supply.
ROBIN company can provide on-site or online training on installation and daily maintenance according to customers’ requirements.
♦ Warranty & Service
All the ROBIN ice machines will be tested for 72 hours before shipment.
All the ROBIN ice machines enjoy 12 months warranty in free of charge ever since B/L date.
All the ROBIN ice machines enjoy lifelong free technical support.
♦ 24*7 hours phone service
♦ On-site & online training service
♦ Engineers available service machinery overseas
♦ ROBIN service centre working time: 8:30-18:00, from Monday to Sunday.
Packaging & Shipping
FAQ
Q:Can we get some samples?
A:Of course, we can supply samples,but the sample cost and postage charge is on buyer's account.
Q:when we received the goods, if there have defecitve ice machines ice makers, how would you solve this problem?
A:If there has any defective ice machines,just take pictures, we will replace good machines to you one to one.
A:If there has any defective ice machines,just take pictures, we will replace good machines to you one to one.
Q:Can you print my logo on the ice machines?OEM? and produce ice maker as our design?
A:Yes, we can supply label printing service, we alsp can do silk-screen printing and hot stamping.We also can do customized packing for customers.If you need we can produce ice machines as your design.
Q:What' s your normal lead time?
A:We will send out goods in 20-35 days after received your payment.
Q:How to install the ice machine?
A:when we ship the machine to you ,instructions booklets along with the machine,you can read it ,any problem our technicians team will solve at first time.
large ice block machine,tube ice machine ,flake ice machine , we will let our engineers help you install and debug in your country,pls rest about that.
Q:How about after-sales?
A:We have a large after-sale service team. All the technicians are very experienced, they always go to different countries to serve customers like you.
Whole machine 12 months warranty, the compressor 5 years. Maintenance for life!
A:Yes, we can supply label printing service, we alsp can do silk-screen printing and hot stamping.We also can do customized packing for customers.If you need we can produce ice machines as your design.
Q:What' s your normal lead time?
A:We will send out goods in 20-35 days after received your payment.
Q:How to install the ice machine?
A:when we ship the machine to you ,instructions booklets along with the machine,you can read it ,any problem our technicians team will solve at first time.
large ice block machine,tube ice machine ,flake ice machine , we will let our engineers help you install and debug in your country,pls rest about that.
Q:How about after-sales?
A:We have a large after-sale service team. All the technicians are very experienced, they always go to different countries to serve customers like you.
Whole machine 12 months warranty, the compressor 5 years. Maintenance for life!
