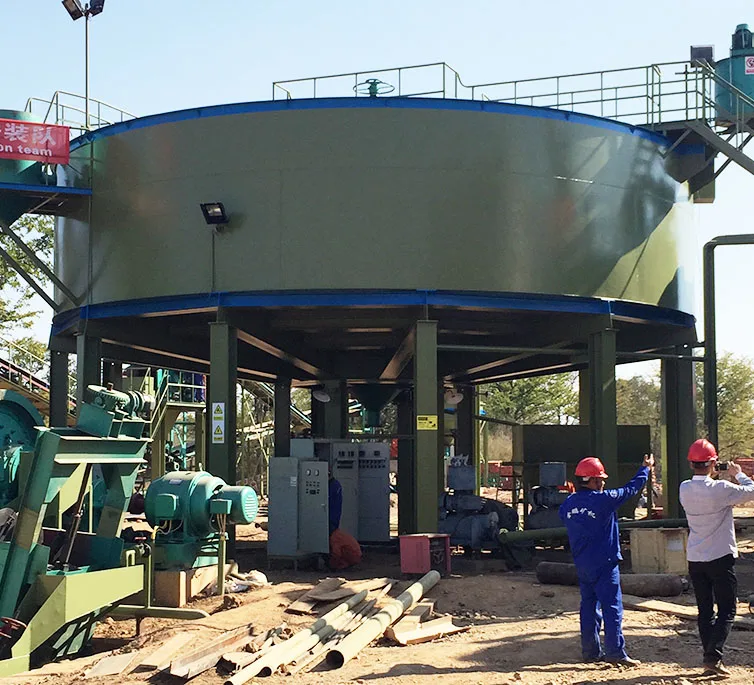

5 10 Tons Per Hour Small Scale Gold Ore Beneficiation Plant Complete Activated Carbon Leaching CIL CIP Gold Processing Plant
- Category: >>>
- Supplier: Sino Mining Co. Ltd.
Share on (1600525810783):
Product Overview
Description
Products Description
Gold CIL (carbon in leach) Processing Plant

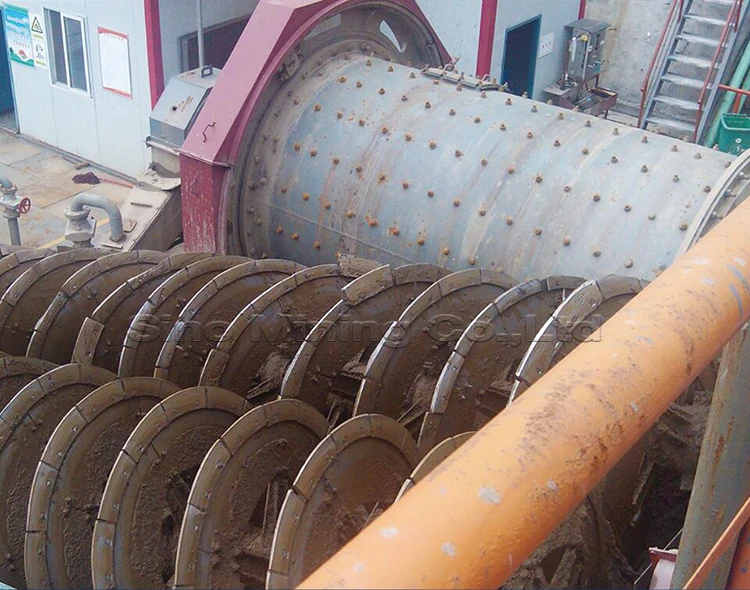

Gold CIL (carbon in leach) Processing Plant is a cyanide gold extraction process. Firstly, raw material is crushed into less than 10mm by different types of crushers; secondly, the crushed material will be ground and classified into 90% of 200mesh, then the fine powder will get thicker, after concentration, add chemical and leach in the leaching tank. After leaching, we can use activated carbon to adsorb gold, then get gold-loaded carbon. Finally, we can use electrolysis equipment or fire to get the gold bar.

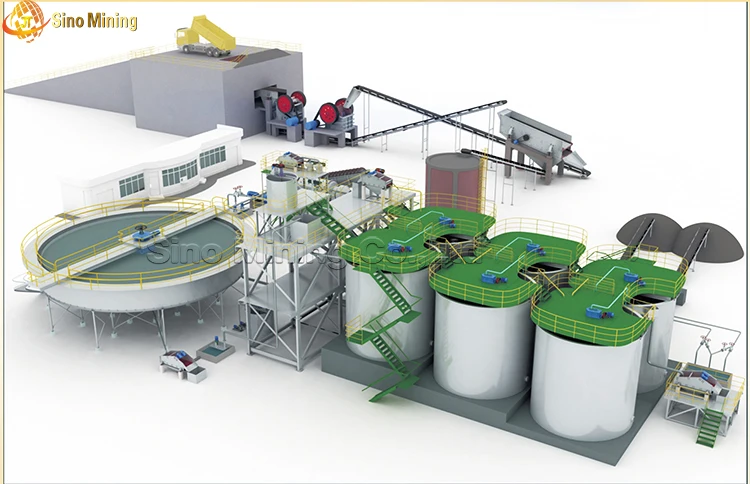

Flow Chart of CIL Gold Processing Plant

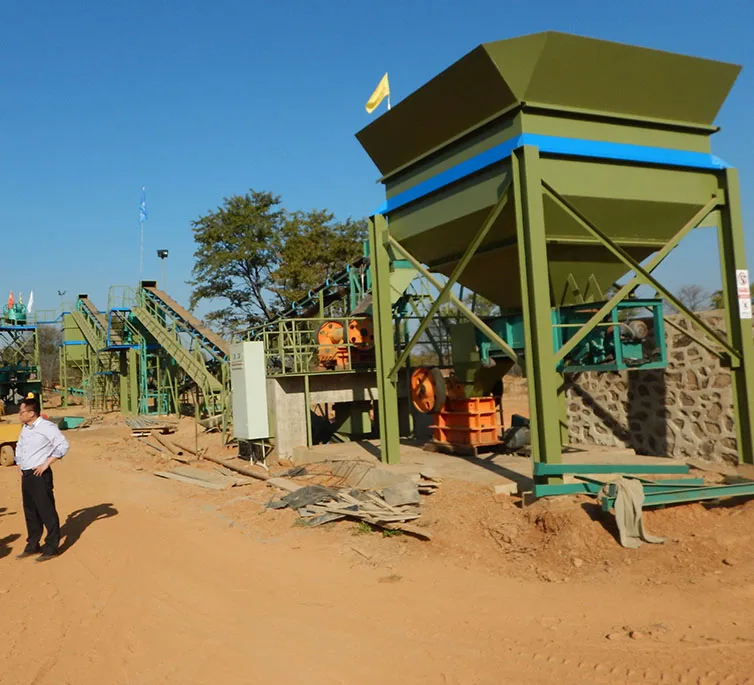

A. Raw materials preparation:

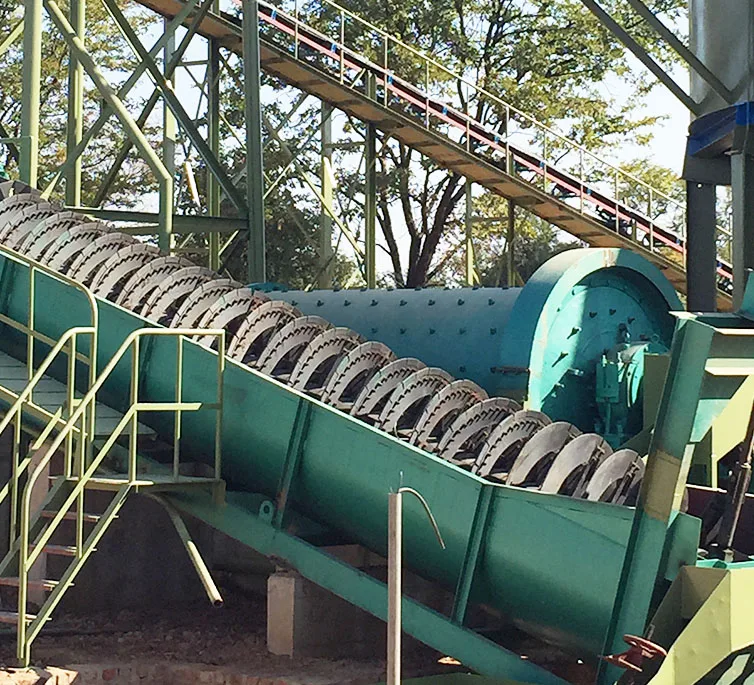

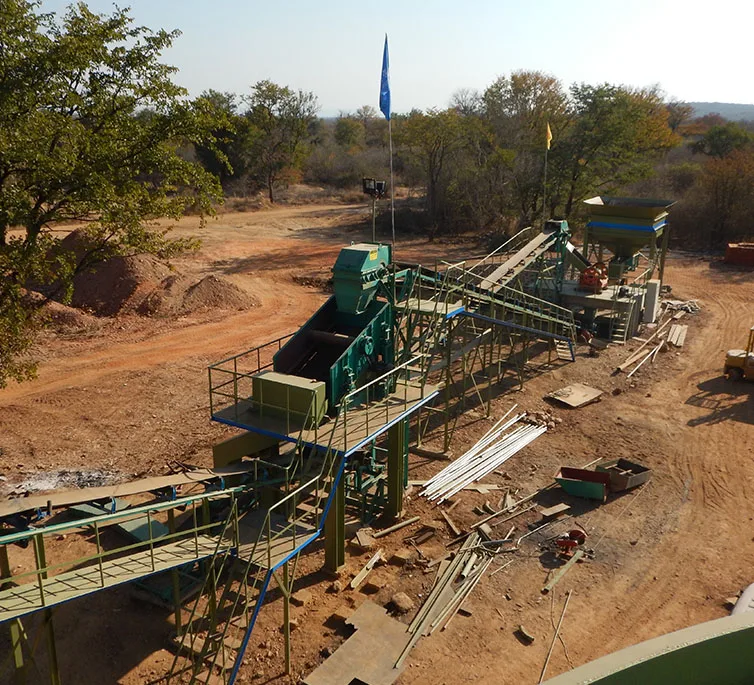

Raw ores are sent to the primary crusher by vibrating feeder, then sent to the secondary crusher by belt conveyor; the crushed ores will be sent to a vibrating screen for separating. Under the screen, ores will be sent to a powder silo. Upper screen ores will be sent to the tertiary crusher by belt conveyor for re-crushing, and the crushed ores will be sent to the screen again to be separated. It is named a three-step one closed circle crushing flow chart.
B. Leaching and adsorption:

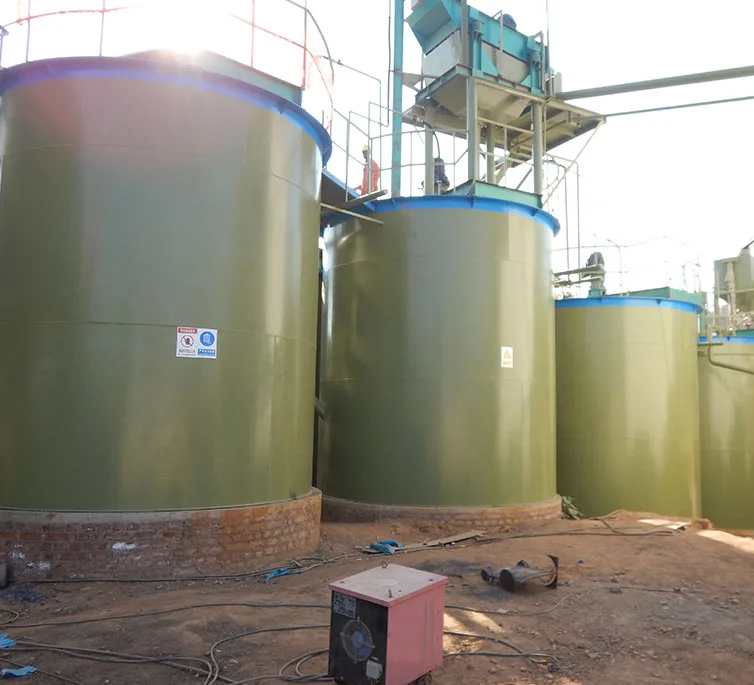

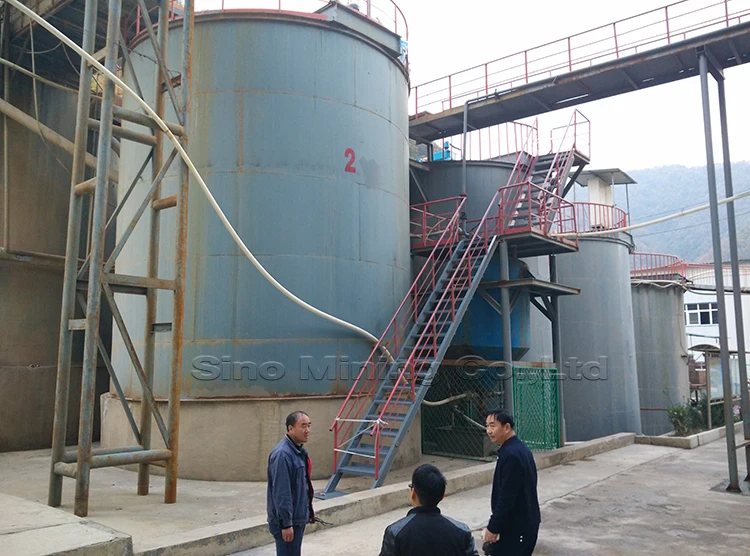

The slurry will enter into 8 sets of double impeller leaching tanks; well-mixed sodium cyanide agents are added to the first tank; active carbon is added to the tanks from the second to the eighth; active carbon from the second agitator is lifted to the carbon screen to get gold-loaded carbon, and after cleaning, the gold loaded carbon enters into the desorption & electrolysis system; while the slurry left goes back to the second tank; active carbon is lifted by air lifter from the tank next to the tank before against the current; the tailing goes through safety screen to recycle fine-size gold-loaded carbon, and then goes to tailwater treatment stage.
C. Tail water treatment:
The tailings are lifted to the filter press, and the filter cake is so-called tailings, which are transported by belt conveyor and truck to the yard, while filter liquor goes to a circulating water tank for recycling, which helps save the lime and sodium cyanide.
D. Gold-loaded carbon treatment:
The gold-loaded carbon is processed by Desorption&Electrolysis equipment in batches to get gold dust. The gold dust goes to the gold melting furnace and turns into a gold bar. The gold loaded carbon after the Electrolysis process could return to the last stage in the flow chart for reprocessing.
1. We have engineers in Kenya, Sudan, Uganda, Professional installation and training skills.
2. We have a factory and warehouse in Kenya and China, Fast pre-sale and after-sale service, Wear Parts in stocks, You can get it soon.
3. Our products have been spread all over China, and also exported to European, American, Asian, African countries. Our sales managers and engineers know the local condition very well, We will supply the most suitable solution for you.
transportation
Ways of Packing:
1.Sand blasting, coat with high quality paint;2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival

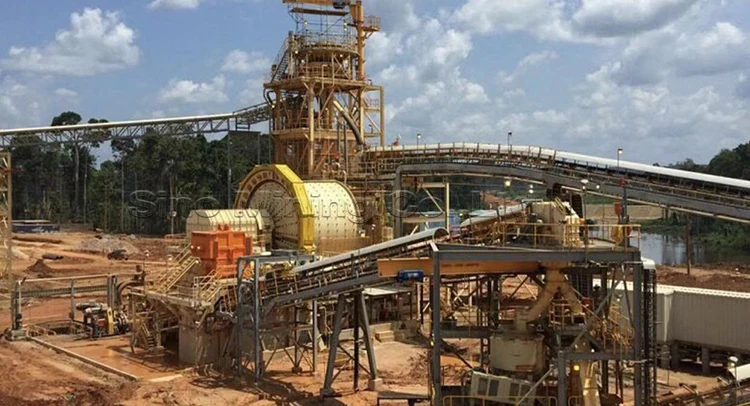

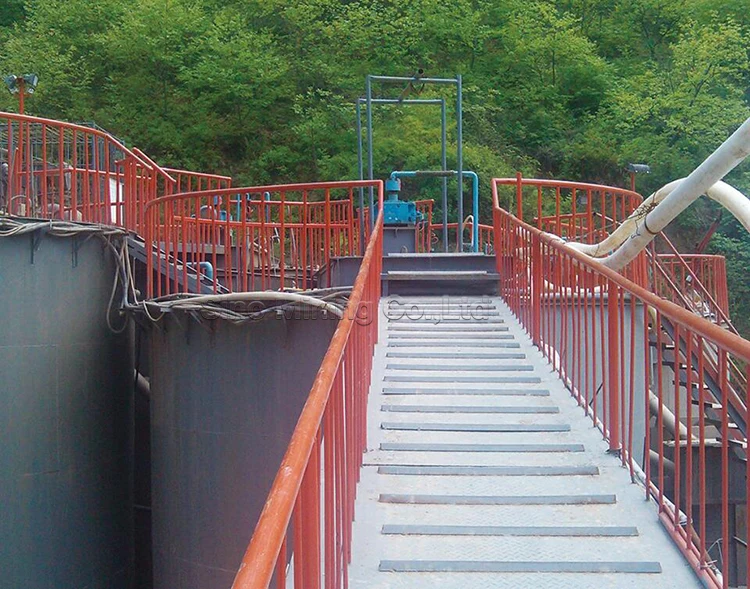

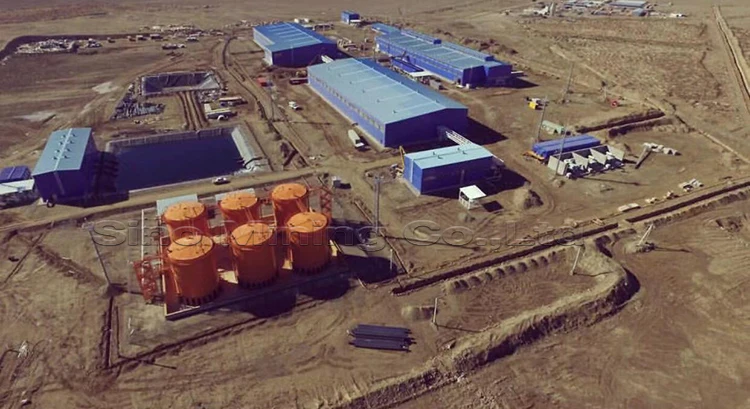

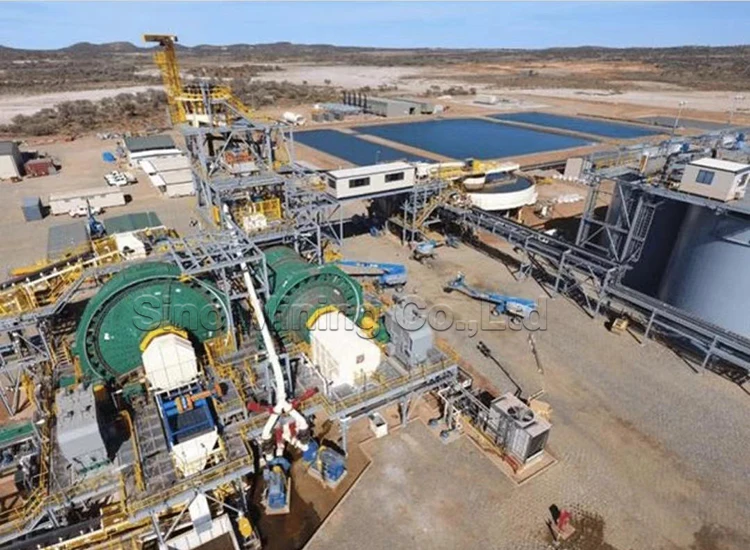

Customer Case
Overseas Service
1. We have engineers in Kenya, Sudan, Uganda, Professional installation and training skills.
2. We have a factory and warehouse in Kenya and Sudan, Fast pre-sale and after-sale service, Wear Parts in stocks, You can get it soon.
3. Our products have been spread all over China, and also exported to European, American, Asian, African countries. Our sales managers and engineers know the local condition very well, We will supply the most suitable solution for you.
Company Profile
Since its establishment in 1987, Sino Mining has gradually grown into an important force to push forward the reform and
development of the nonferrous metal industry thanks to the concerted efforts of generations of management team and all staff. In the process of international cooperation, Sino Mining has accumulated rich experience in resources development, engineering project contracting, international trade and related services, cultivated a professional team and formulated several valuable qualities. It has become one of the earliest and most successful enterprises in China's nonferrous metal industry implementing “going out” strategy.
development of the nonferrous metal industry thanks to the concerted efforts of generations of management team and all staff. In the process of international cooperation, Sino Mining has accumulated rich experience in resources development, engineering project contracting, international trade and related services, cultivated a professional team and formulated several valuable qualities. It has become one of the earliest and most successful enterprises in China's nonferrous metal industry implementing “going out” strategy.
Packing & Shipping
FAQ
Q1: Are you factory or trade company?
A1: We are factory with CE. We have factory in China and Kenya .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A1: We are factory with CE. We have factory in China and Kenya .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
