double shaft coal mixer
US $7999-$8699

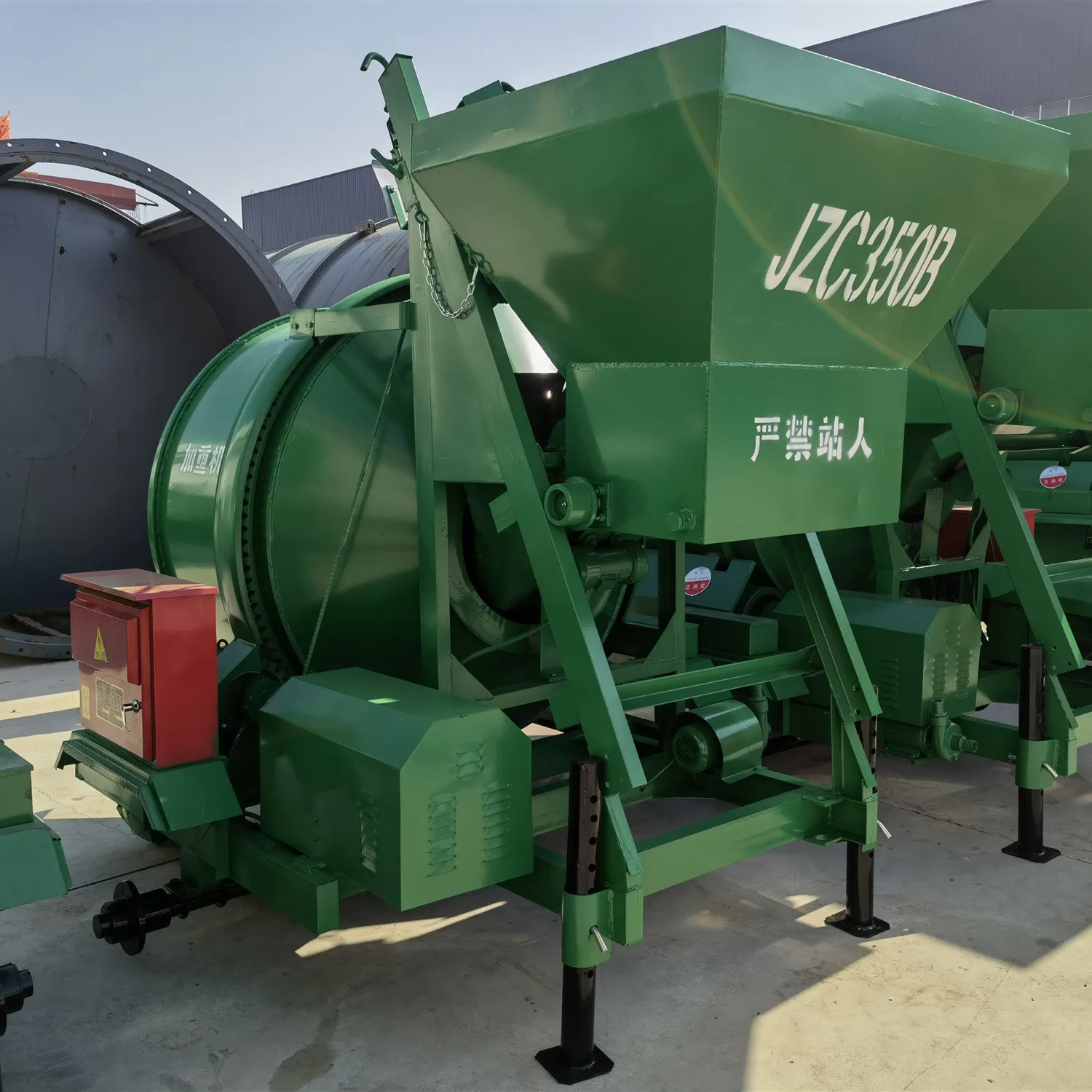

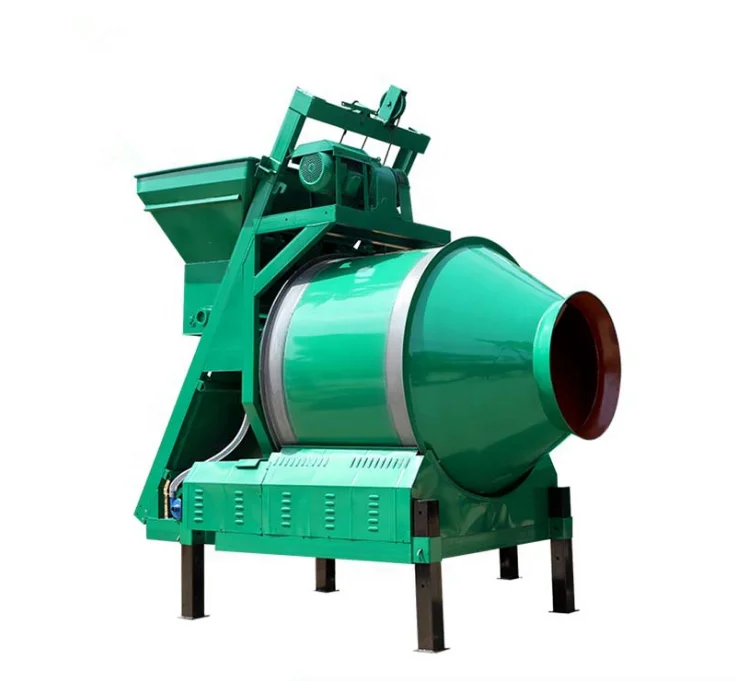

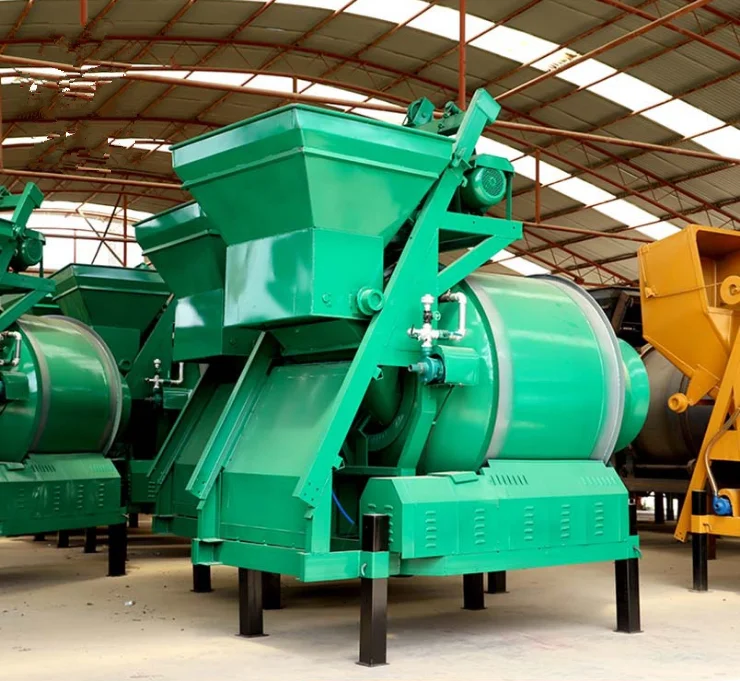

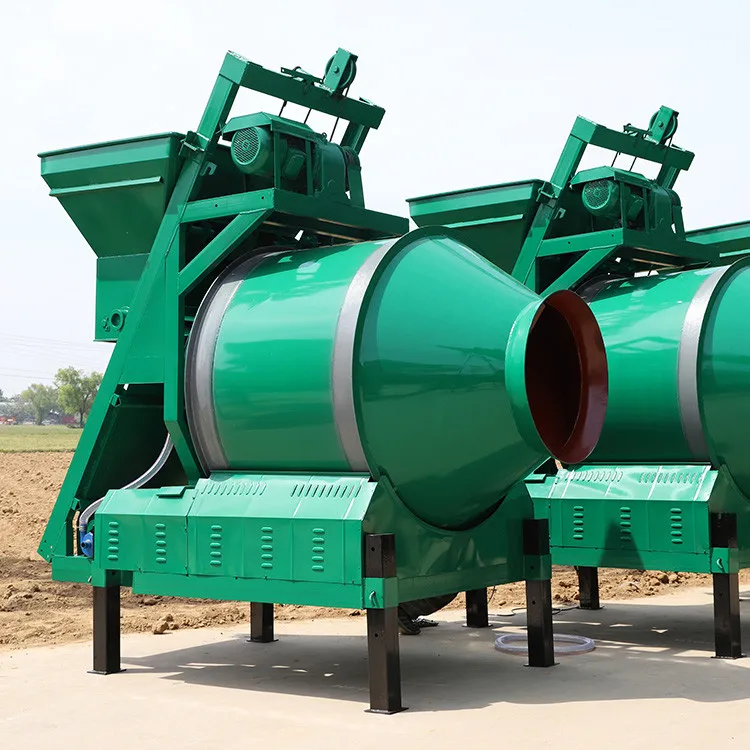

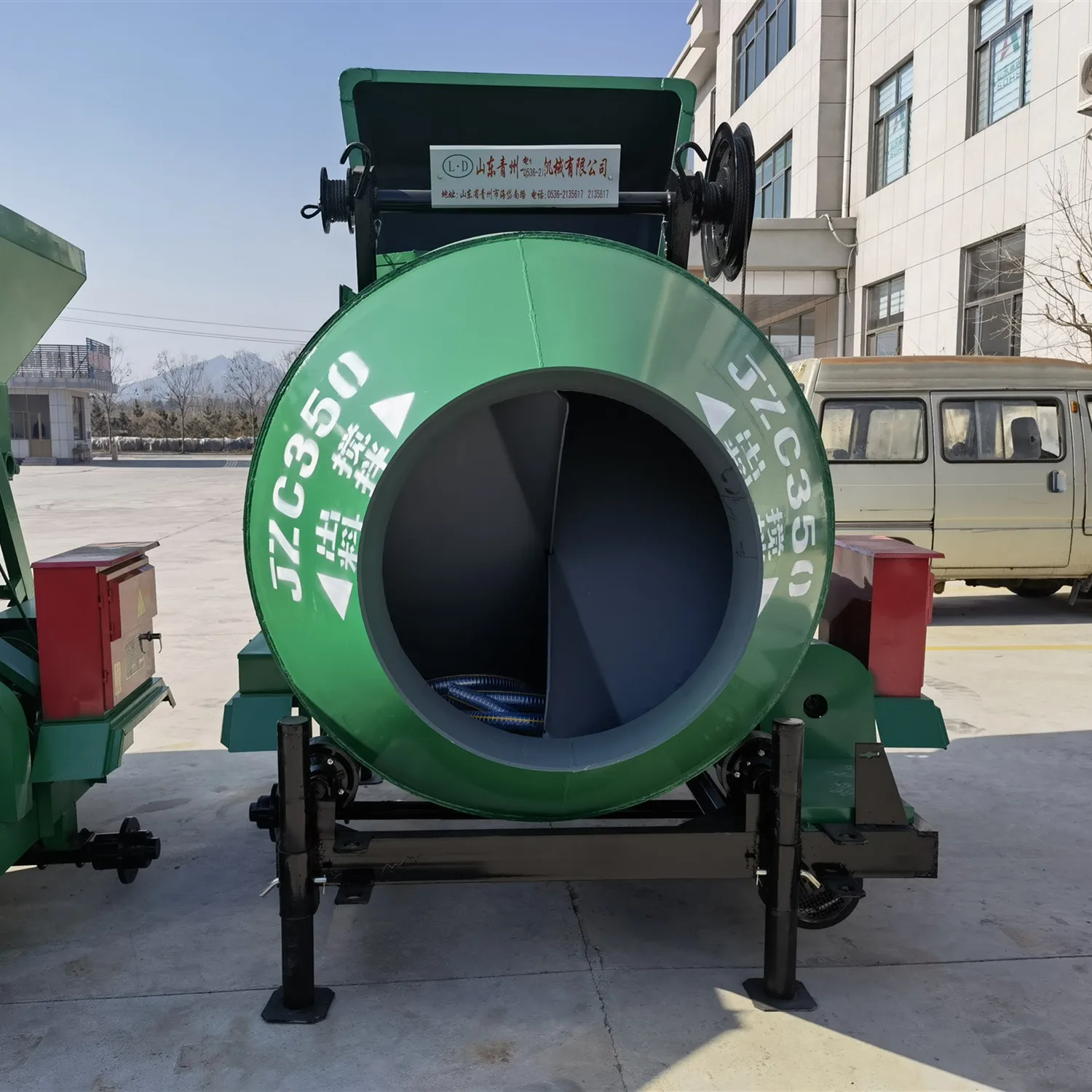

Concrete Mixer Machine with high load moment Cement Mixer
- Category: >>>
- Supplier: Shandong Ucarry Machinery Co. Ltd.
Share on (1600525813668):
Product Overview
Description
Product Description
Specification
Model | JZC350 | JZC350B | JZC500 | JZC750 |
Charging volume (L) | 560 | 560 | 800 | 1200 |
Discharging capacity (L) | 350 | 350 | 500 | 750 |
Productivity(m3/h) | 10 | 10 | 18.2 | 22.5 |
Rev of drum(r/min) | 14 | 14 | 15.7 | 13 |
Max size of aggregate(mm) | 60 | 60 | 80 | 80 |
Water-supply error | ≤2% | ≤2% | ≤2% | ≤2% |
Discharge height(mm) | 1250 | 1250 | 1500 | 1800 |
Mixing electromotor | Y132S-4,5.5kw | Y132S-4,5.5kw | Y160M-4,15kw | Y160L-4,15kw |
Improve motor | YEZ112M-4-B5, 4.5kW | YEZ132S-4-B5,7.5kw | YEZ132S-4-B5,7.5kw | |
Water pump electromotor | 40DWB-12-0.55kw | 40DWB-12-0.55kw | WB50-50-95-0.75kw | 65DWB-35-5- |
1.1kw | ||||
Tire size | 6.00-16 | 6.00-16 | 7.50-16 | |
Maximum towing speed (km/h) | 20 | 20 | 20 | |
Outline dimension | 4.01×2.14×3.34 | 4.31×2.14×4.18 | 5.23×2.3×5.45 | 6.107×2.05×6.07 |
L×B×H (m) | ||||
Machine weight (kg) | 1450 | 1710 | 3150 | 4340 |
Related Products
Packing & Delivery

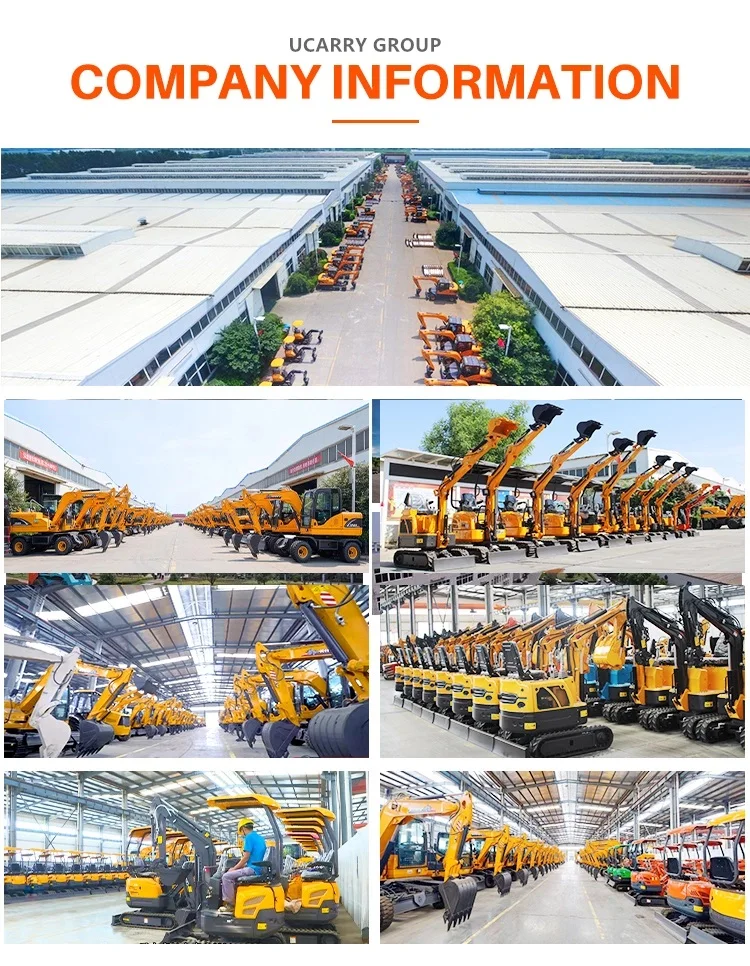

Company Profile
