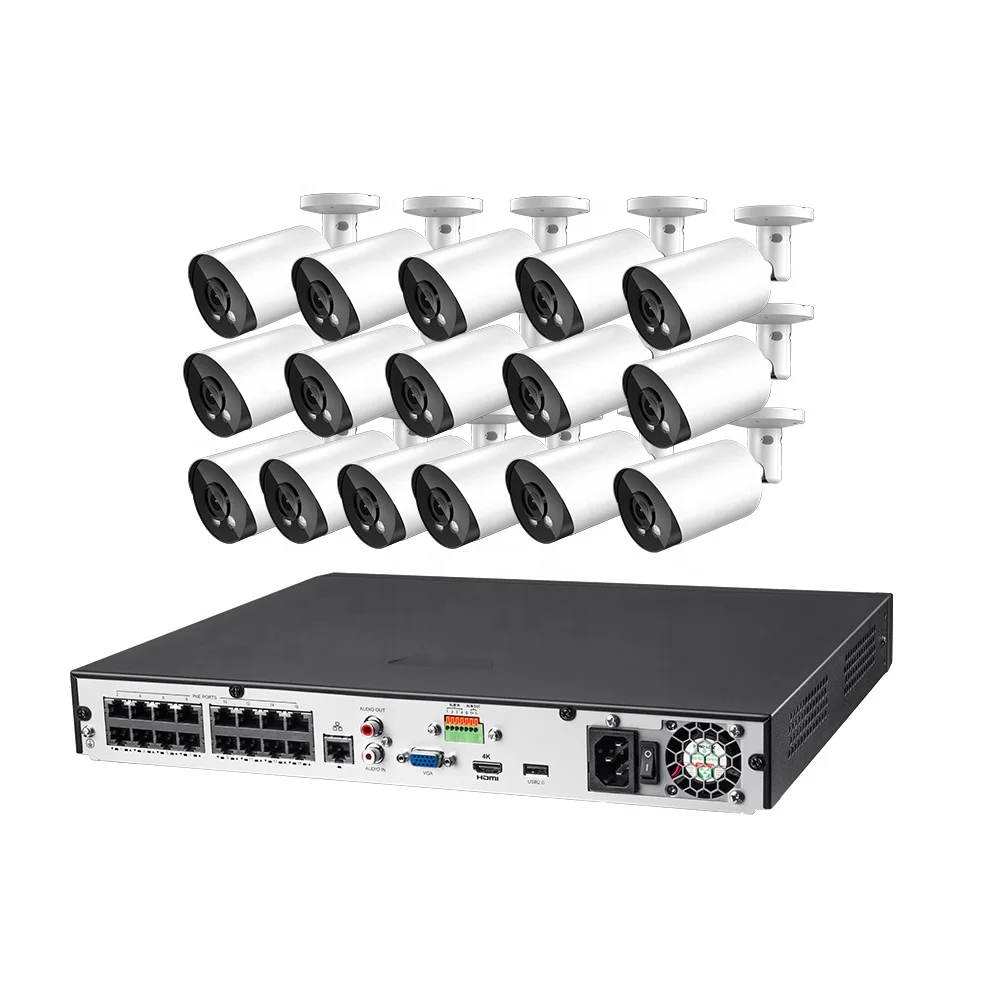

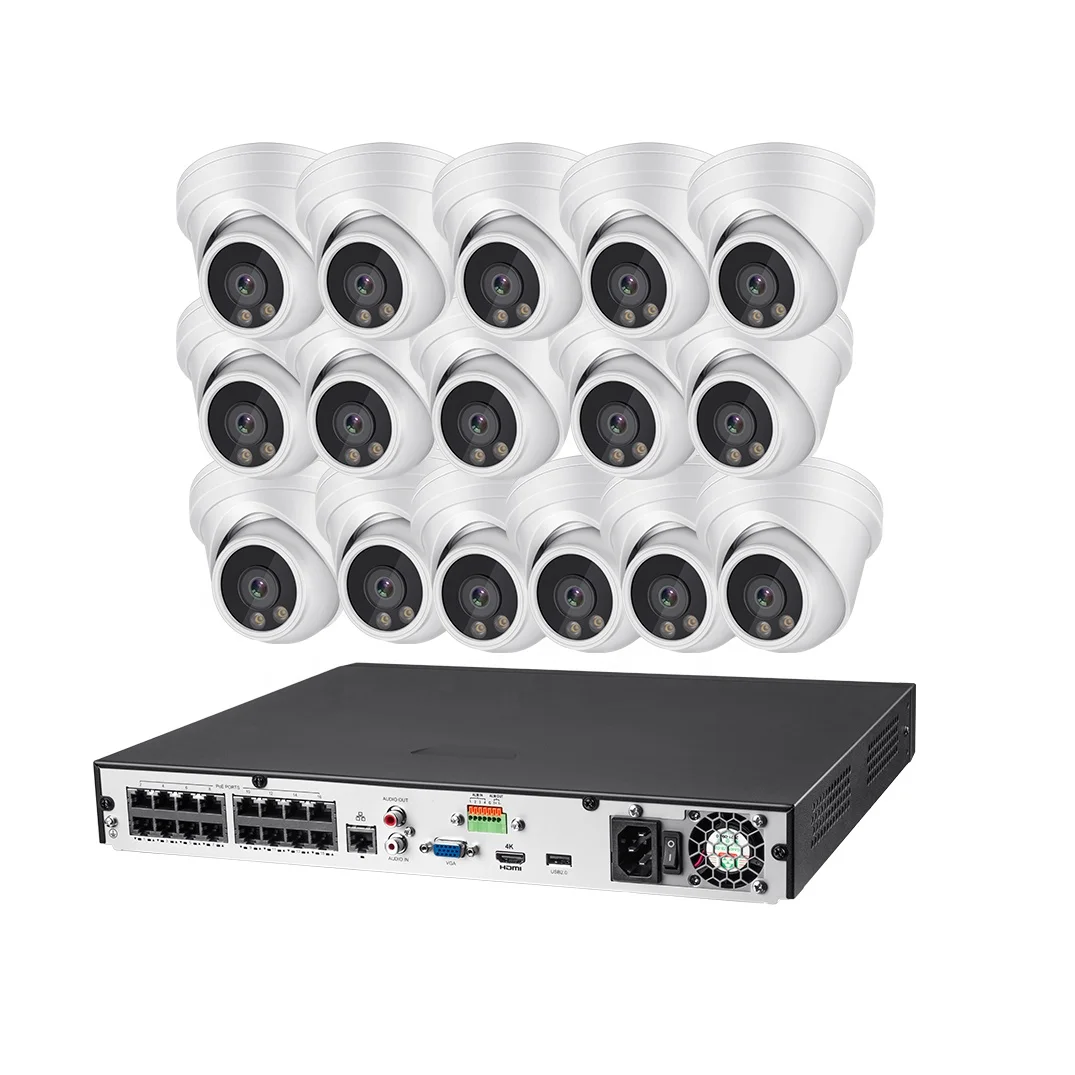

16CH NVR System 16ch PoE 5mp 8mp IR Camera kit Surveillance System 16 channel home cctv system
- Category: >>>
- Supplier: Shenzhen Ruoxi Technology Co. Ltd.
Share on (1600525824521):
Product Overview
Description
Product Description
16CH NVR System 16ch PoE 5mp 8mp IR Camera kit Surveillance System 16 channel home cctv system
Key Features Support Smart264 video formats
16-channel input
Plug & Play with 16 independent PoE network interfaces
Third-party IP cameras supported with O-N-V-I-F
conformance: Profile S, Profile G, Profile T
Support HD-MI and VGA simultaneous output
Up to 8 Megapixels resolution recording
2 SATA HDDs, up to 8TB for each HDD
2 SATA HDDs, up to 8TB for each HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Key Features

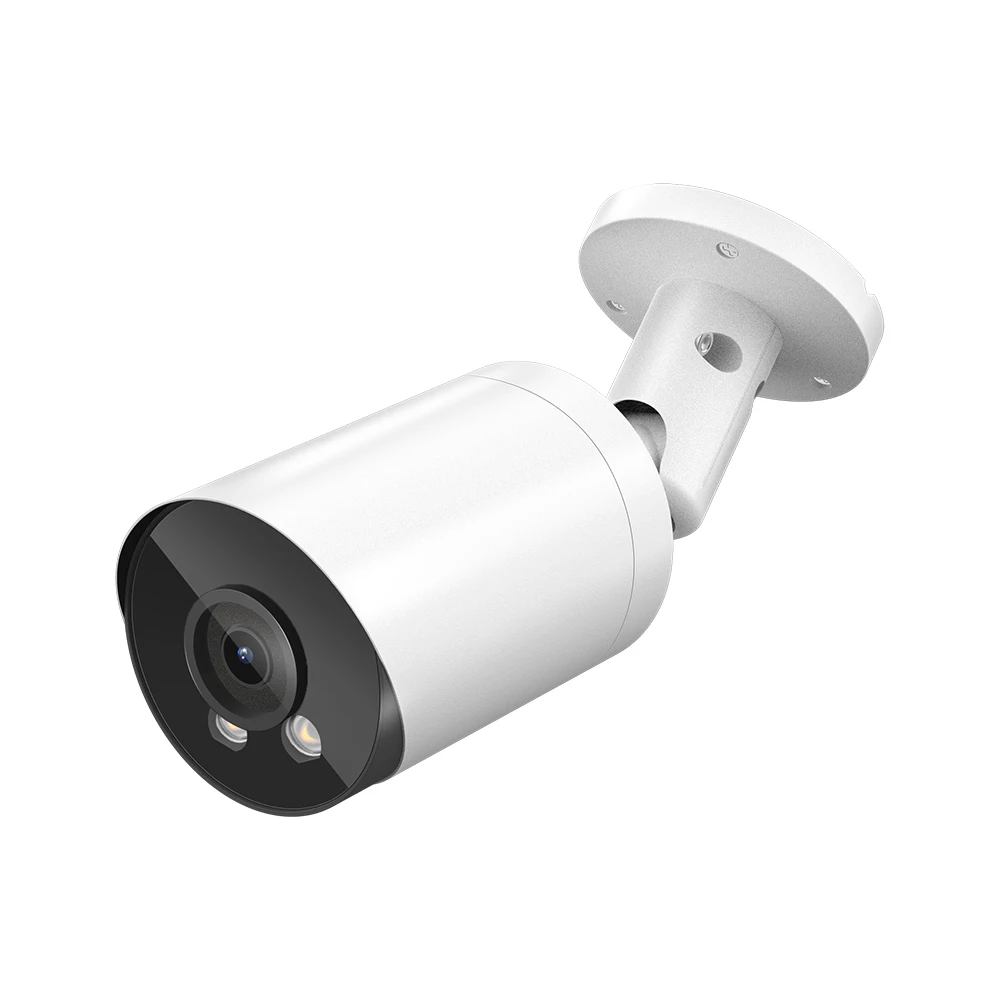

1/2.8" Sony CMOS sensor
4K resolution 3840 x 2160P
Low illumination 0.01Lux
Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
D-WDR,Mirror, rotate
Multiply Style OSD Overlay,Motion Detection, Privacy Mask
RTSP and 0-N-V-I-F 17.06 compatible with many third-party NVR
smart264 dual-stream media server
Easy-to-use P2P Cloud service
Support user authentication, video data encryption
Support Alarm Snapshot to Email and FTP
Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access
RJ45 100mbps network port, IEEE802.3af PoE
Lightning protection 4000V
Strong water-proof housing, IP66
Support Vehicle and Human Body detection( only for the 8mp support)
2 pcs Array IR Leds, IR distance 30 meters
External SD slot optional
1/2.8" Sony CMOS sensor
4K resolution 3840 x 2160P
Low illumination 0.01Lux
Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
D-WDR,Mirror, rotate
Multiply Style OSD Overlay,Motion Detection, Privacy Mask
RTSP and 0-N-V-I-F 17.06 compatible with many third-party NVR
smart264 dual-stream media server
Easy-to-use P2P Cloud service
Support user authentication, video data encryption
Support Alarm Snapshot to Email and FTP
Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access
RJ45 100mbps network port, IEEE802.3af PoE
Lightning protection 4000V
Strong water-proof housing, IP66
Support Vehicle and Human Body detection( only for the 8mp support)
2 pcs Array IR Leds, IR distance 30 meters
External SD slot optional
Image Sensor | 1/2.8" Sony CMOS | |
Effective Pixels | 8 megapixels | |
Electronic Shutter | AUTO, 1/25s ~ 1/100000s | |
Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on | |
Day/Night | Auto/Color/(B/W)/Timing | |
WDR | Digital WDR | |
White Balance | Auto/Manual | |
BLC /HLC | Support | |
DNR | 2D/3D DNR | |
Other | AGC,Motion Detection,Privacy Mask,Flip,Rotate,RIO,OSD overlay | |
Encode | ||
Video Standard | smart264 | |
Video Resolution | MainStream:20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc. | |
Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc. | ||
Video Bitrates | 512Kbps - 12Mbps, VBR/CBR | |
Audio Standard | G.711-u/G.711-a | |
Built-in Mic | yes | |
OSD Overlay | Title and Time overlay ,custom color adjustable | |
IR Led | ||
IR Led | 2 pcs array IR Led | |
IR Distance | 30 M | |
Lens | ||
Focal length | 2.8mm | |
Optional Function | ||
PoE, Audio, Human body detection, vehicle detection, External SD slot optional | ||
Network Services | ||
Protocol | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. | |
P2P | Yes | |
Web | IE , Firefox (32bit esr), etc. | |
Media | CMS, Android, IOS | |
0-N-V-I-F | 17.06 compatible | |
General | ||
Network Port | 1-RJ45, 100Mbps, POE optional | |
Power Supply | 12 VDC ± 10% | |
Power Consumption | < 8 W | |
Operating Temp. | -30_x005f_x005f_x005f_x005f_x001f_°C-(+60)°C, 10%-90%RH | |
Technical Specifications: | ||
Video/Audio Input | ||
IP Video Input | 16-ch | |
Two-way Audio Input | 1-ch, RCA | |
Network | ||
Incoming Bandwidth | 112Mbps | |
Outgoing Bandwidth | 96Mbps | |
Remote Users | 128 | |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
Video/Audio Output | ||
HD-MI/VGA Output | HD-MI: 3840x2160(4K), 1920x1080p, 1600x1200, 1280x1024, 1280x720, 1024x768 | |
VGA: 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 | ||
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Audio Output | 1-ch, RCA | |
Synchronous Playback | 16-ch | |
Corridor Mode Screen | 3/4/5/7/9/10/12/16 | |
Decoding | ||
Decoding format | Smart264 | |
Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Capability | 1 x 4K@30, 1 x 6MP@30,1 x 5MP@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30,16 x D1 | |
Hard Disk | ||
SATA | 2 SATA interfaces | |
Capacity | up to 8TB for each disk | |
Smart | ||
VCA Detection | Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking | |
External Interface | ||
Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |
USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0 | |
Alarm In | 4-ch | |
Alarm Out | 1-ch | |
PoE | ||
Interface | 16 independent 100Mbps PoE network interfaces | |
Max Power | Max 30W for single port | |
Max 240W in total ( 15W for each ) | ||
Supported Standard | IEEE 802.3af/at | |
General | ||
Power Supply | 100 ~ 240V AC | |
Power Consumption: ≤9 W( without HDD ) | ||
Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
Dimensions(W×D×H) | 380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" ) | |
Weight ( without HDD ) | ≤2.4kg (5.29 lb) | |
DS-2CD1043G0-I | DS-2CD2183G2-IU | DS-2CD2646G2-IZSU/SL | DS-7608NI-K1/8P |
DS-2CD1143G0-I | DS-2CD2183G2-ISBLACK | DS-2CD2683G2-IZS | DS-7608NI-K2/8P |
DS-2CD2043G2-IU | DS-2CD2186G2-I | DS-2CD2686G2-IZSU/SL | DS-7608NI-I2/8P |
DS-2CD2045FWD-I | DS-2CD2186G2-ISUBLACK | DS-2CD2746G2-IZS | DS-7616NI-K2/16P |
DS-2CD2046G2-IU/SL | DS-2CD2186G2-ISU | DS-2CD2H43G2-IZS | DS-7616NI-I2/16P |
DS-2CD2047G2-LU | DS-2CD2343G2-IU | DS-2CD2H83G2-IZS | DS-9664NI-I8 |
DS-2CD2047G2-LU/SL | DS-2CD2346G2-IU | DS-2CD2T43G2-4I | DS-KIS603-P(B) |
DS-2CD2065G1-I | DS-2CD2346G2-ISU/SL | DS-2CD2T83G2-4I | DS-KABV6113-RS |
DS-2CD2083G2-IU | DS-2CD2347G2-LU | DS-2CV2141G2-IDW | DS-KD8003-IME1/Flush |
DS-2CD2085G1-IBLACK | DS-2CD2347G2-LSU/SL | DS-2CD3686G2T-IZS | DS-KABV8113-RS |
DS-2CD2085G1-I | DS-2CD2383G2-IU | iDS-2CD75C5G0-IZHSYR | DS-KB8113-IME1 |
DS-2CD2086G2-I | DS-2CD2385G1-IBLACK | iDS-2CD7AC5G0-IZHSYR | DS-KH6320-WTE1 |
DS-2CD2086G2-IU/SL | DS-2CD2385G1-I | DS-2DE2A404IW-DE3/W(C0)(S6)(C) | DS-KH8520-WTE1 |
DS-2CD3086G2-IS | DS-2CD2386G2-IU | DS-2DE3A404IW-DE | DS-KH9310-WTE1 |
DS-2CD2087G2-LU | DS-2CD2386G2-ISU/SL | DS-2DE3A400BW-DE/W(F1)(S5) | DS-KH9510-WTE1 |
DS-2CD2143G2-IU | DS-2CD2387G2-LUBLACK | DS-2DE5432IW-AE(S5) | DS-KV6113-WPE1(B) |
DS-2CD2147G2-SU | DS-2CD2387G2-LU | DS-2DF6A836XS-AEL(T2) | DS-KV8113-WME1(B) |
DS-2CD2183G0-IU | DS-2CD2583G2-IS | DS-7604NI-K1/4P | DS-KV8213-WME1(B) |
DS-2CD2183G2-I | DS-2CD2643G2-IZS | DS-7608NI-Q2/8P | DS-KV8413-WME1(B) |
