Product Overview
Description
Product Description

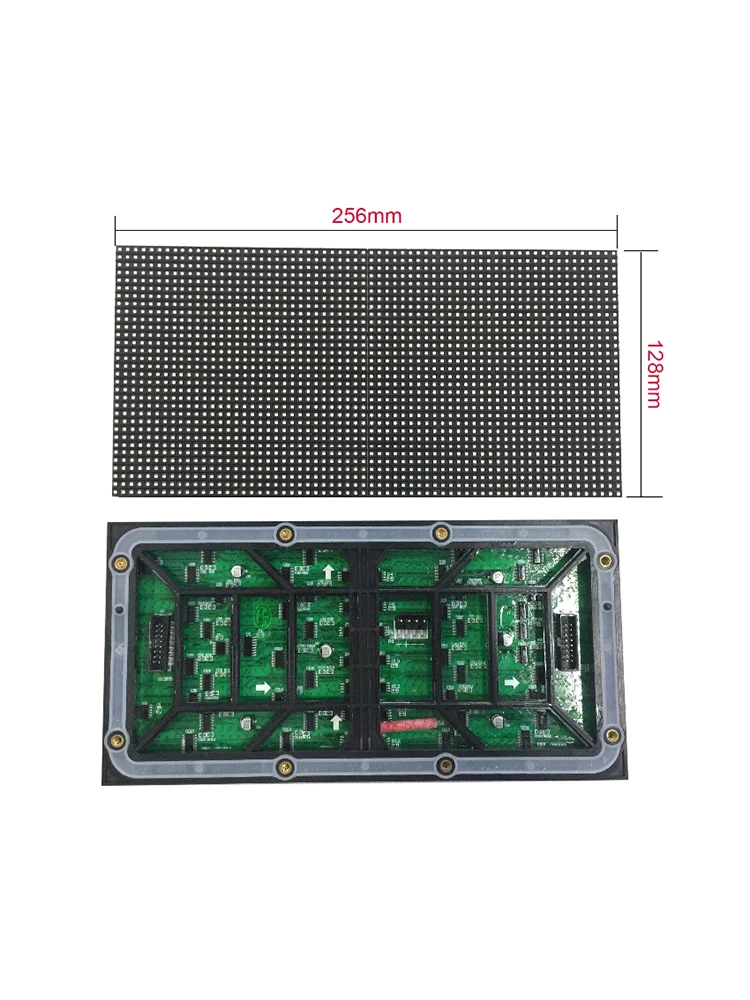

P4 SMD1921 Outdoor led display full color module 256*128mm 1/8S

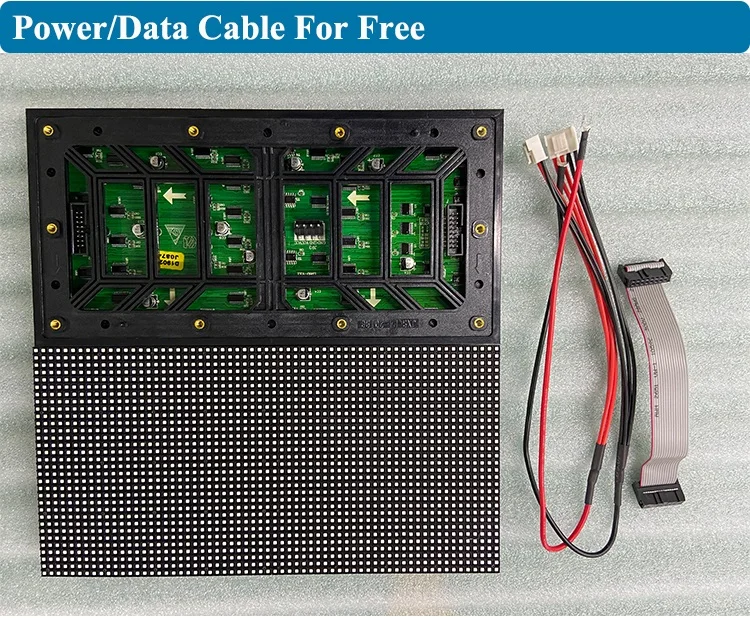

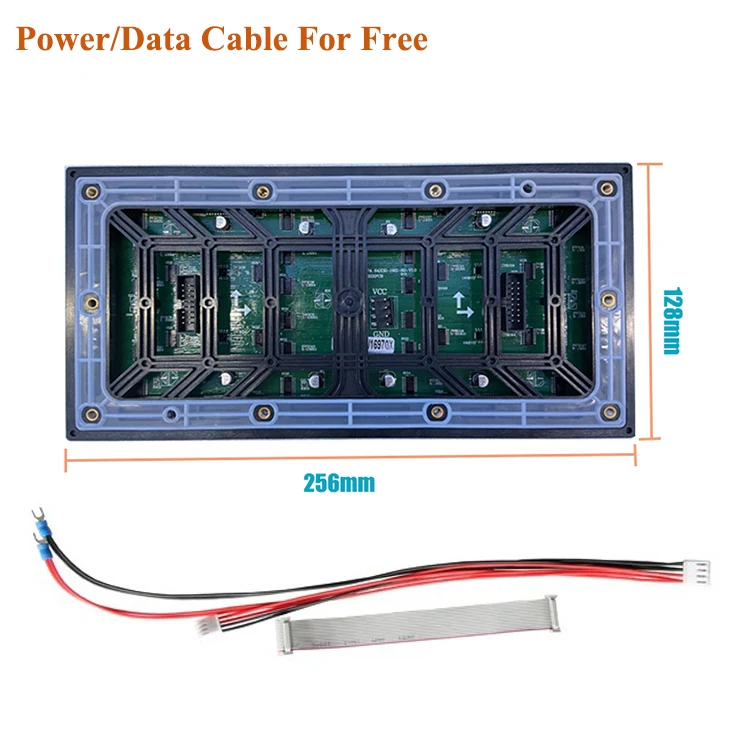

Packing List
* 1 pcs full color led module ( led panel )
* 1 pcs date cable
* 1 pcs power cable ( If you buy N pcs, we will supply N/2 pcs power cable, because 1 pcs power cable support 2 modules )
Technical Parameters
Item | P4 | Chip | Epstar |
Chip size | Red 9 mil, Green 12. Blue 12mil | Light type | SMD |

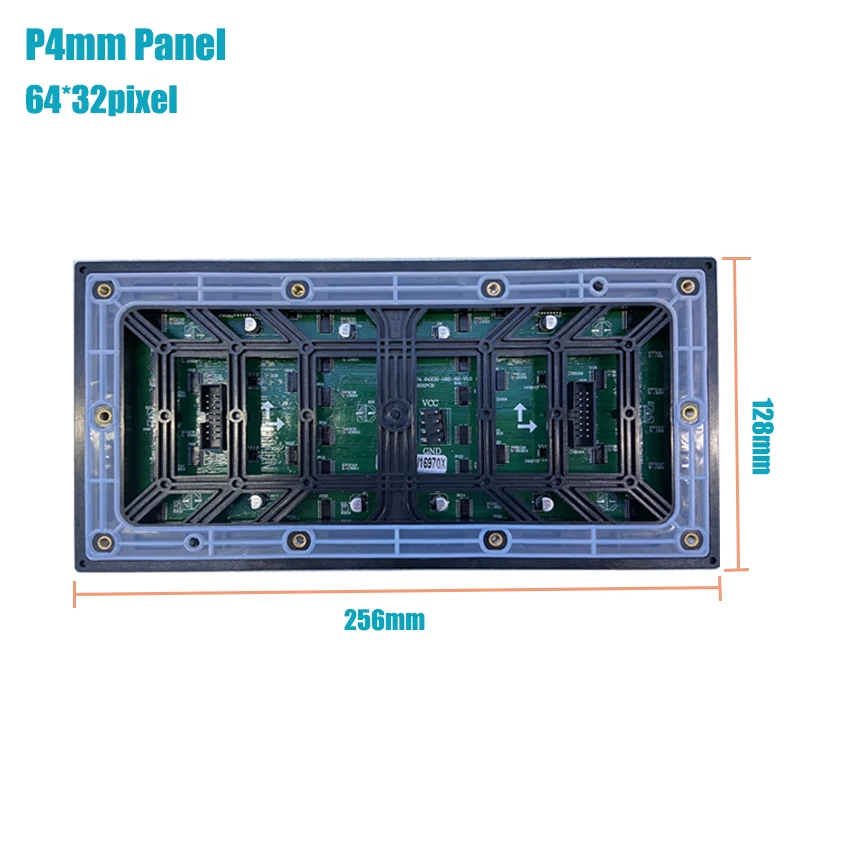

Pixel Pitch | 4mm | Module Size | 256mm*128mm |
Module Resolution | 64 X 32 (dots) | Density of pixel | 62500dots/m2 |
Pixel configuration | 1R1G1B | Red wavelength | 625±2nm |
Green wavelength | 525±2nm | Blue wavelength | 470±2nm |
Colors | 16777216 | Best viewing distance | ≥2m |
viewing angle | 120°/90° | Maximum power consumption | 13W |
Brightness | 1500cd/m2 | Gray scale | 16bits per color |
Color temperature | 6500k | Control method | Synchronization or Asynchronization |
Driving method | 1/8 scanning | Frame frequency | 60Hz |
Refresh frequency | ≥600Hz | Working Voltage | DC5V |
IP grade | IP54 | Warranty | 3 years |
Life Span | 100,000hours | Certificate | CCC, FCC, ROHOS, CE |
Module Detailed

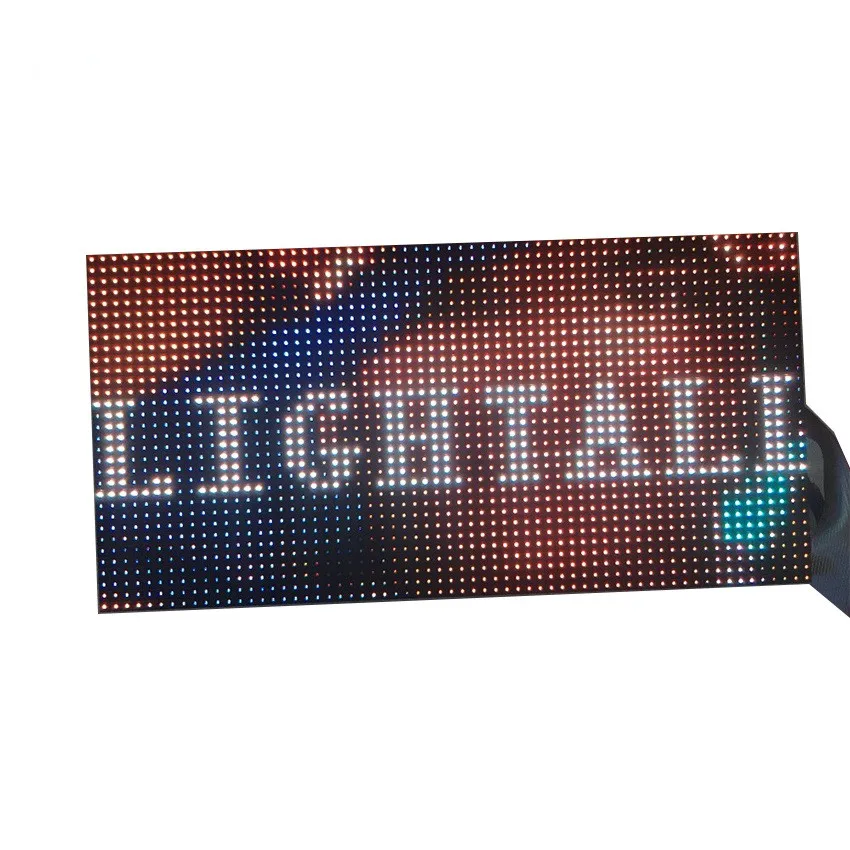

P4 Outdoor led display Full Color Module Show
Module Size: 192*192mm
Module Resolution: 64*64dots

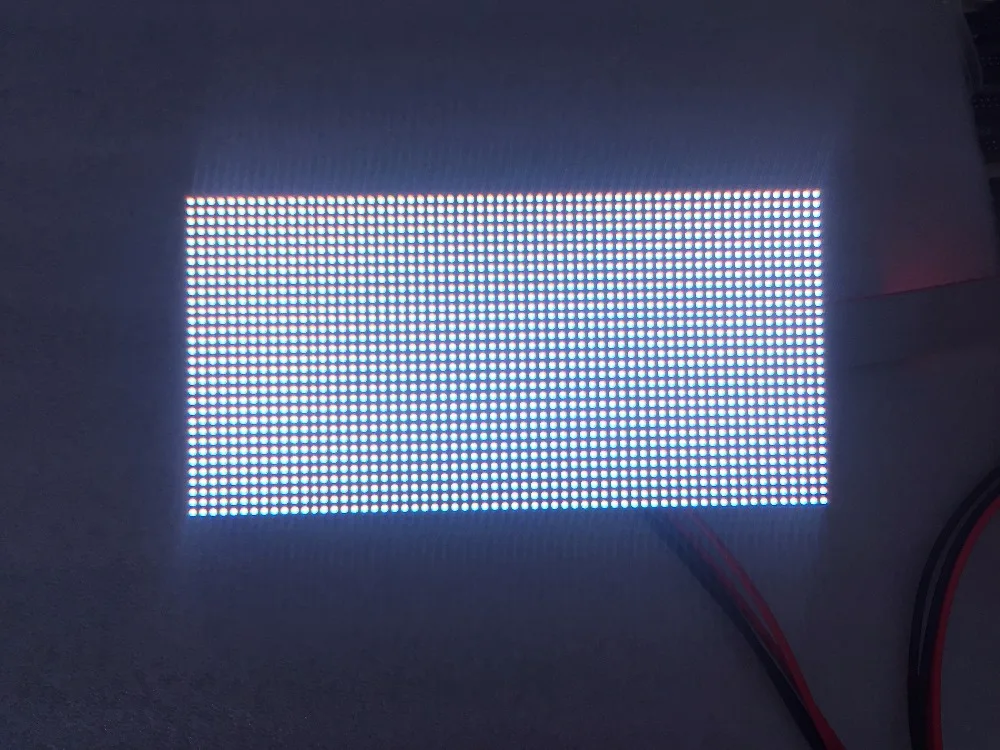

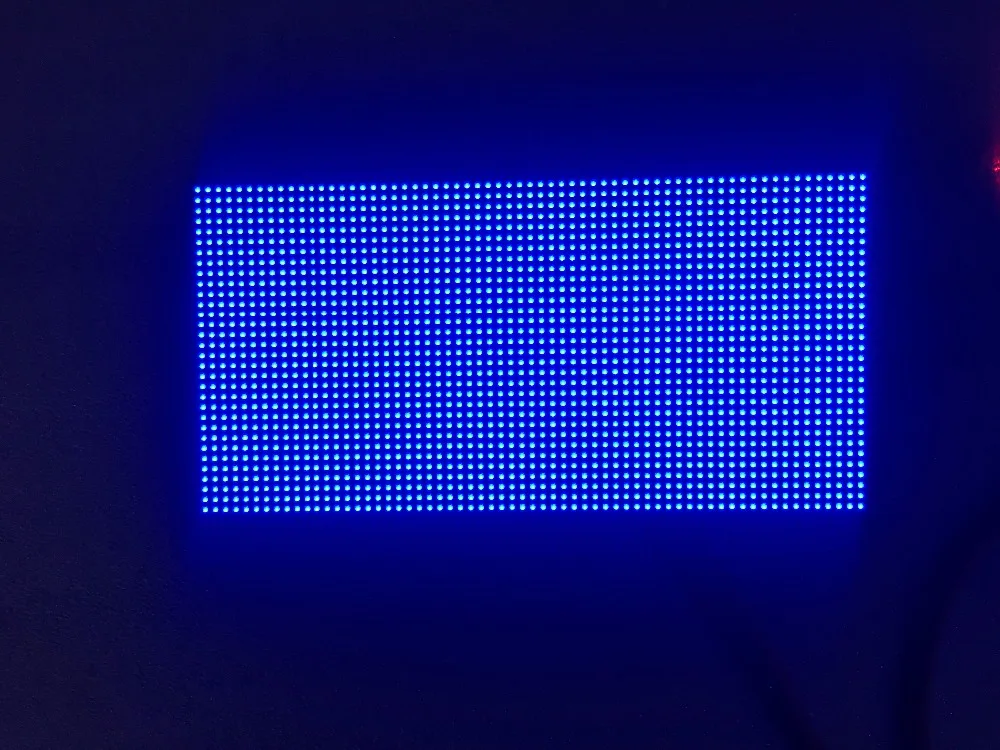

P4 Outdoor LED Display Module Testing
Working Voltage: DC5V
Modules Aging 72 Hours

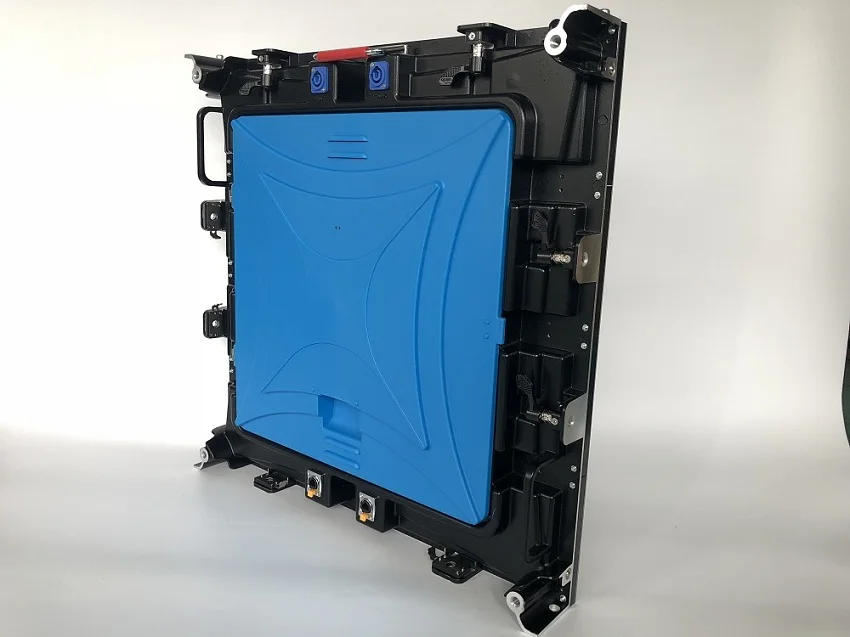

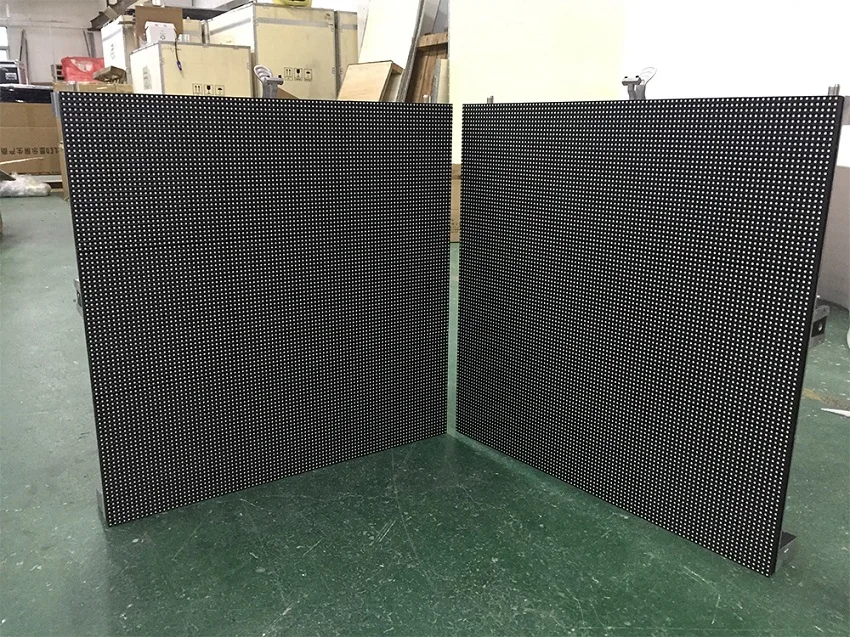

Die Casting Aluminum Cabinet
1. color uniformity, high contrast.
2. low power consumption, low heat, energy saving and environmental protection.
3. dual channel heat dissipation design, attenuation of small, long life.
4. signal, power supply is stable, safe and reliable.
5. ultra wide angle, any angle pictures are clear.
2. low power consumption, low heat, energy saving and environmental protection.
3. dual channel heat dissipation design, attenuation of small, long life.
4. signal, power supply is stable, safe and reliable.
5. ultra wide angle, any angle pictures are clear.
Cabinet Seamless Connection
■ Slim and lightweight, quick disassembly.
■ High degree of protection, high durability.
■ Good commonality, flexible and easy to use.
■ High degree of protection, high durability.
■ Good commonality, flexible and easy to use.

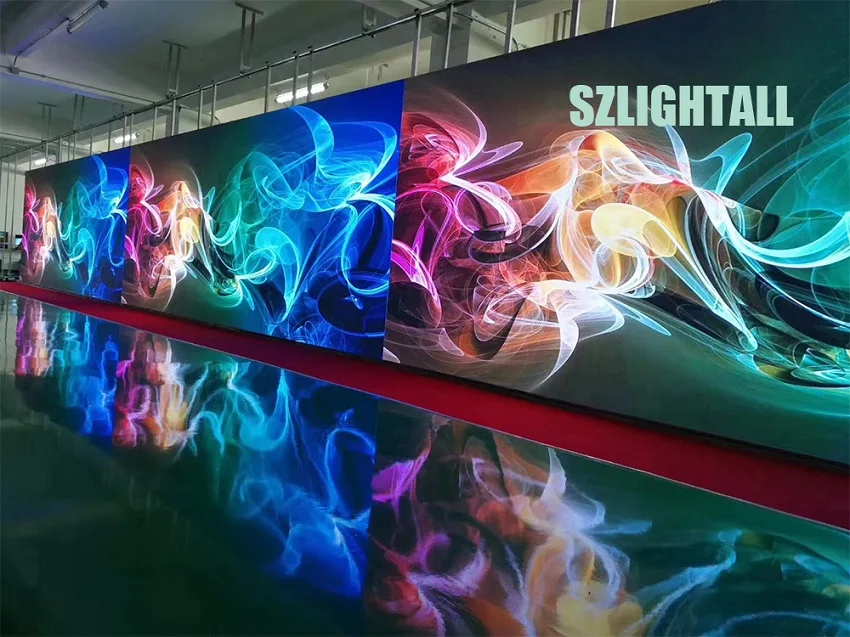

LED Display Case
Application Field:
* Business Organizations: Supermarket, large-scale shopping malls, star-rated hotels, travel agencies
* Financial Organizations:
Banks, insurance companies, post offices, hospital, schools
* Public Places:
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms
* Entertainments:
Movie theaters, clubs, stages.
Company Profile
Package & Shipping
Package
1. Carton case
2. Wooden Case
Shipping
By Express
1. We Ship to Worldwide.
2. Items are shipped from China via EMS, UPS, FedEx, DHL, TNT and airmail (with tracking number) etc.
3. Delivery time depends on the courier company ,the destinations, the local customs and other factors; We hope it arrive on time, but this international delivery shipping time will be highly depends on the courier company and local customs, hope you can understand if there are any shipping delay caused by above reasons.
By Sea
If you want to deliver the led display board by sea pls tell us, we will quote you the ocean freight.
Payment
* Payment term: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
* Lead time: Normally in 15~18 days after receiving your advance payment. The specific delivery time depends on the items and quantity of your order.
* Sample policy:
1) We can produce by your samples or technical drawings. We can build the molds and fixtures.
2) We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
* Shipping port: Shenzhen, China
* Discounts: We offer discount for big quantity.
