Automatic cosmetic essence bottle filling and capping machine production line with automatic induction filling
- Category: >>>
- Supplier: Guangzhou Silian Machinery Co. Ltd.
Share on (1600525837582):
Product Overview
Description
Product Overview

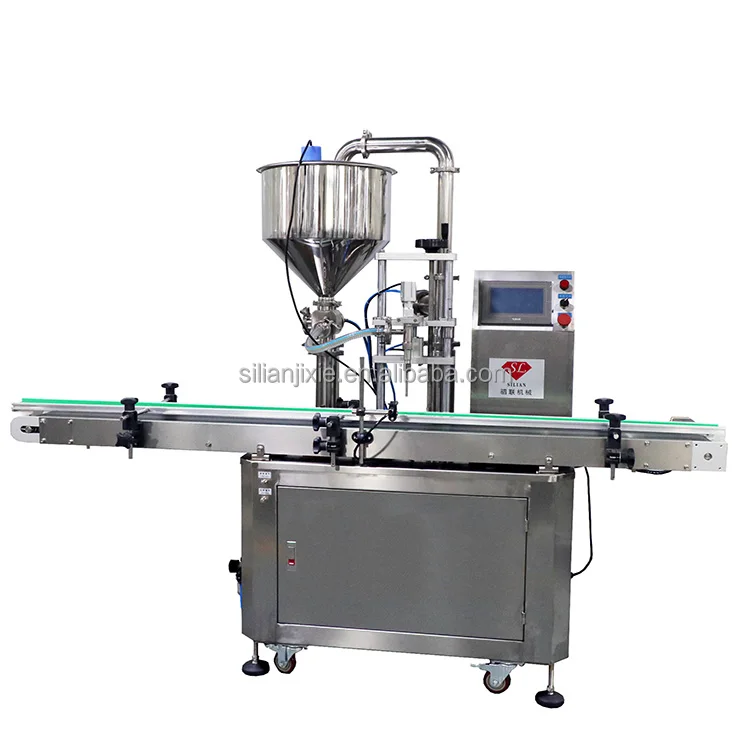

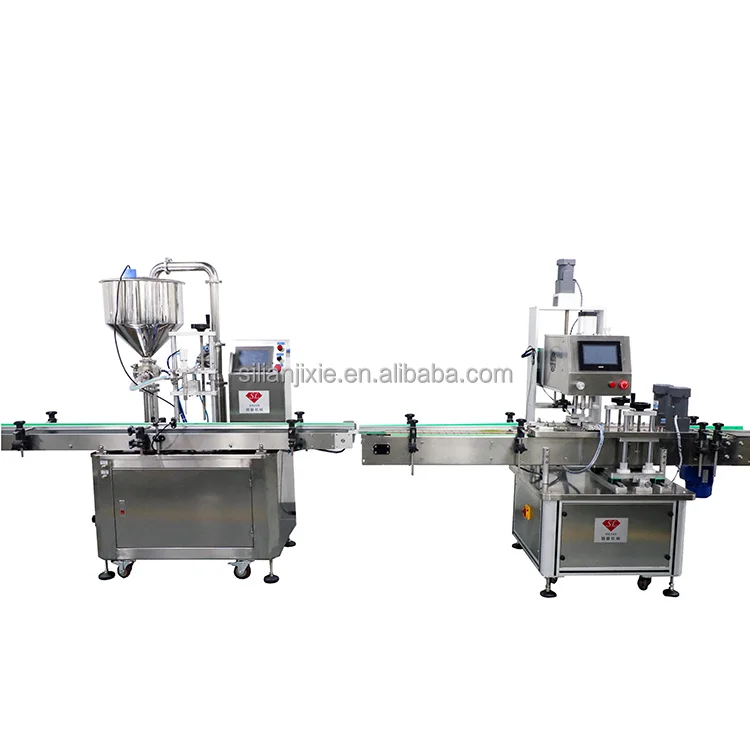

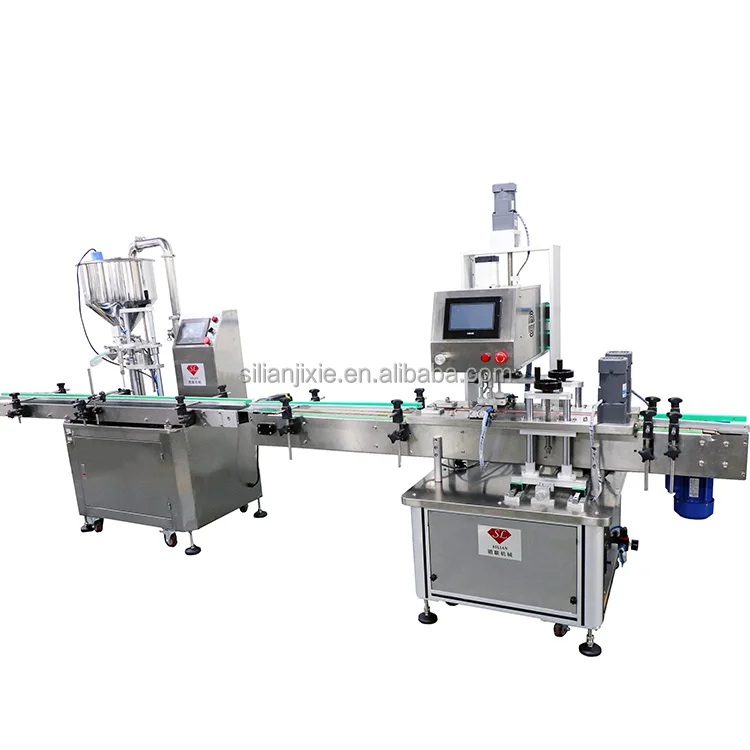

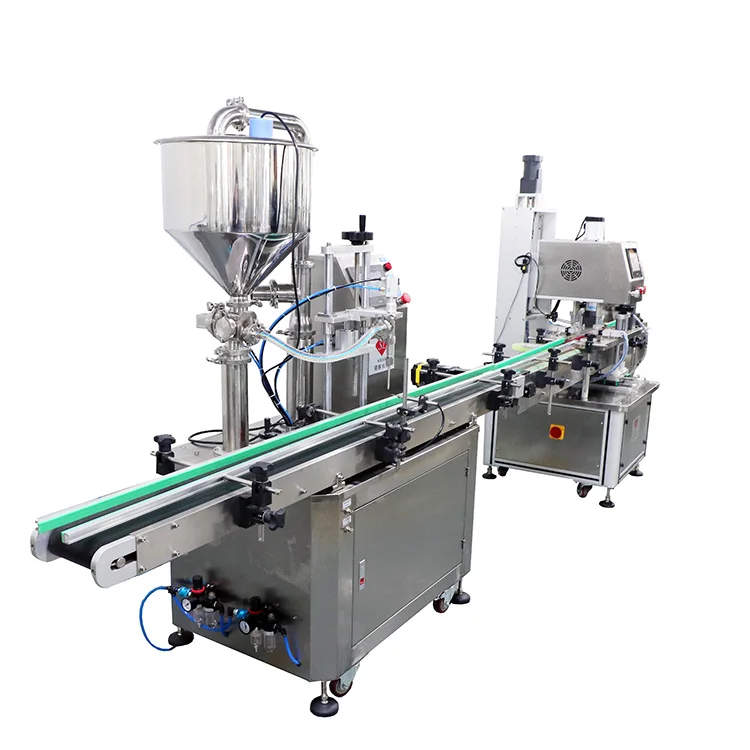

Pneumatic quantitative filling and capping production line
Automatic pneumatic quantitative filling and capping production line, suitable for filling air cushion BB cream, face cream, essence liquid, body cream and other cream products, quantitative precision, wide versatility, suitable for many industries
PRODUCT SPECIFICATIONS

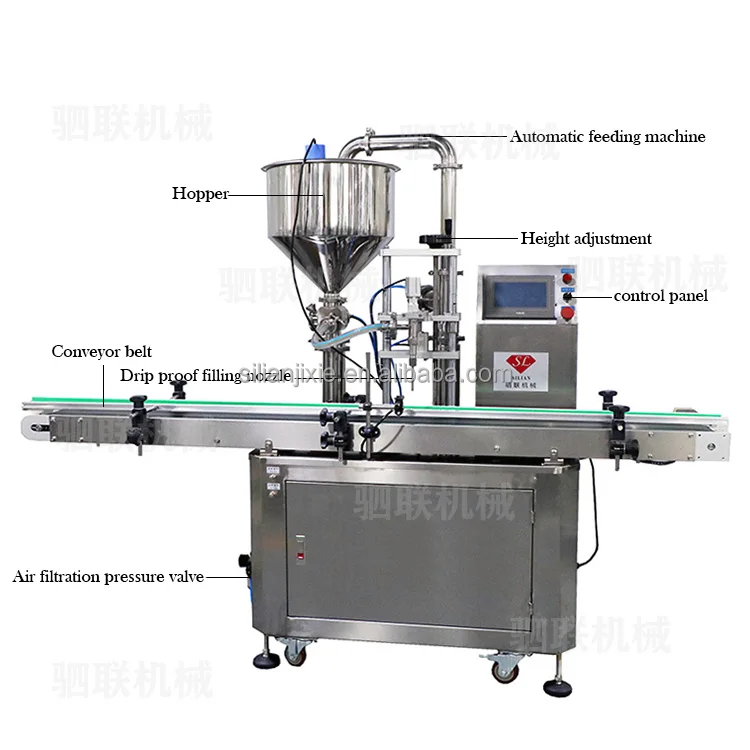

Filling machine is suitable for filling cushion BB cream essence, foundation, body milk isolation cream and other semi-liquid raw materials.
1. Nozzle is equipped with absorption device, no residual material, proportional valve and pipe easy to reinstall and clean. Quantitative accuracy, increase the efficiency of canning
The power supply | 220V/ 50Hz |
power | 0.1kw |
Pneumatic pressure | 0 - 6 K G / C M ² |
Countertop height | 700MM(H) |
Filling range | 5-40ML 10-120ML 20-250ML 50-500ML 100-1000ML(Can be selected and customized on request ) |
Filling accuracy | ±0.1ML |
Air supply | 0.3-0.8Mpa |
production capacity | 20-50pcs/min |
fuselage material | Stainless steel(SUS304) |
Tank volume | 40L |
Overall dimensions (LxWxH) | 1250*750*1650MM |
Machine net amount | 70KG |

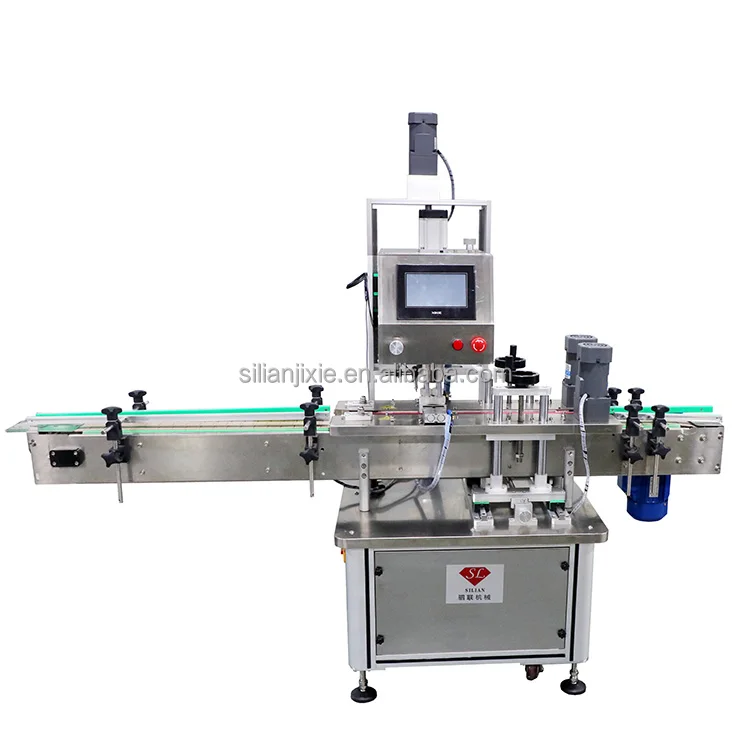

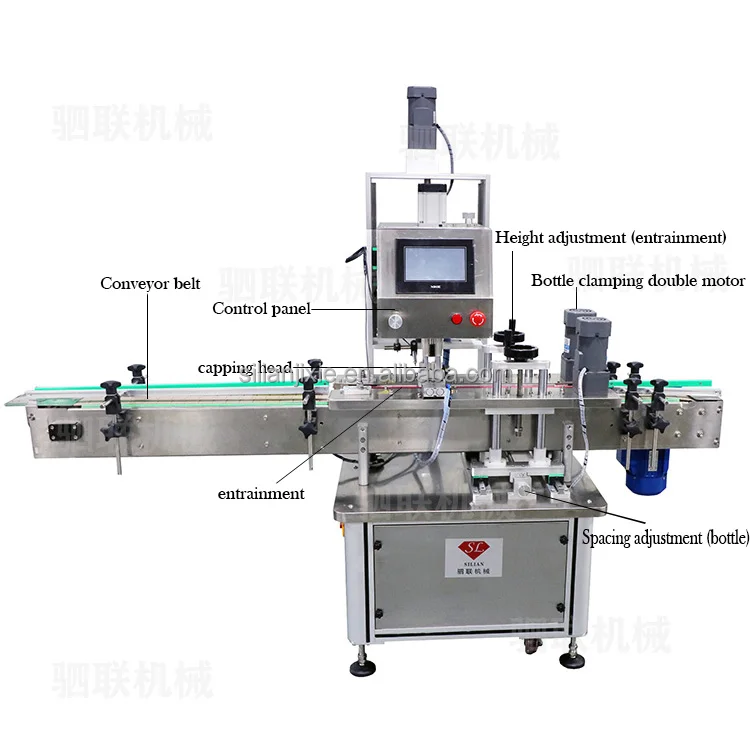

Cap screw machine is suitable for quick cap screw, lock cap, reduce labor, improve productivity.
1, wide versatility, suitable for many industries, can be applied to plastic bottles, metal bottles, pump caps, duck mouth caps and so on.
power supply | 220V 50Hz |
Air supply | 0.3-0.8MPa |
Pneumatic pressure | 0-6KG/CM² |
Suitable for bottle high | 70-300mm (other specifications can be customized according to requirements) |
Cap type | Plastic, metal material of round cover, pump head cover, duck mouth cover, etc |
production capacity | 20-50pcs/min |
Machine weight | 100kg |
machine size | 3000*750*1450mm |
PRODUCT DETAILS

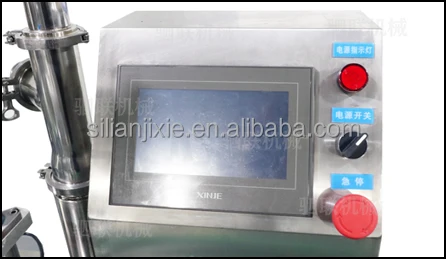

Control panel
PLC programmable control, man-machine touch screen interface setting, simple operation and intelligent control

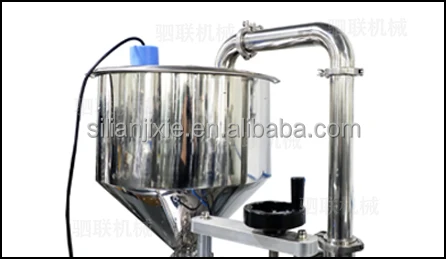

Large capacity bucket + feeding machine
Corrosion resistant stainless steel hopper+automatic feeding machine, when the filling volume is lower than the liquid level, the liquid level device will sense the automatic feeding in real time

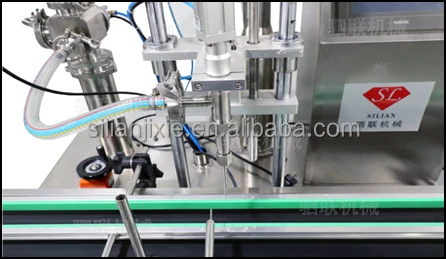

Anti drip filling nozzle
The material contact part can be customized as SUS316 according to the corrosion resistance and acid-base property of different materials, and the drip prevention device can be set. The filling head can be customized according to the production capacity

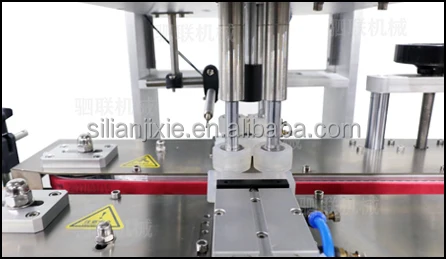

Wear resistant capping head
Wear resistant, durable, no damage to the cap, no slip, applicable to all kinds of caps, fast and tight

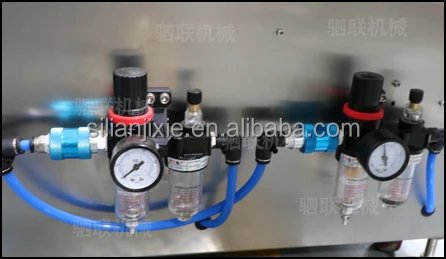

Oil water separator
Large flow, adjustable air pressure, can remove water from the gas and protect the cylinder
APPLICATION SCENARIOS
COMPANY PROFILE
SALES AND SERVICE NETWORK
CERTIFICATE
PACKAGE AND TRANSPORT
FAQ
Q1. How About the Installation & Adjustment?
After the equipment arrived at the customer’s site, customers just need connect the machine with eletricity and air compressor,then the machine can run it,as we will shipping the machine with whole packed,customers no need to install the machine again when it arrived your factory.you can use or hire a forklift for unload the machine from the car.
After the equipment arrived at the customer’s site, customers just need connect the machine with eletricity and air compressor,then the machine can run it,as we will shipping the machine with whole packed,customers no need to install the machine again when it arrived your factory.you can use or hire a forklift for unload the machine from the car.
Q2. Are There Training for Customers or our ?
We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users' technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.otherwise,we supply with Instructions in English language for each machine.
We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users' technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.otherwise,we supply with Instructions in English language for each machine.
Q3. How about the "Quality Assurance"?
We are responsible for the faults and damages of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc. Each machine will be test and factory pre-adjust according to our customers real samples.we can take video for our customers to check before shipping, to make sure the machine quality and customers satisfaction.
Q4.How about the Warranty?
We offer 12 months maintenance period to the problems that caused by our design, manufacture, and material quality, and offer the relevant parts and effective services for free if the problems was caused by above reasons. We will offer a life-long technical support, after service for customers.
We are responsible for the faults and damages of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc. Each machine will be test and factory pre-adjust according to our customers real samples.we can take video for our customers to check before shipping, to make sure the machine quality and customers satisfaction.
Q4.How about the Warranty?
We offer 12 months maintenance period to the problems that caused by our design, manufacture, and material quality, and offer the relevant parts and effective services for free if the problems was caused by above reasons. We will offer a life-long technical support, after service for customers.
