Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00

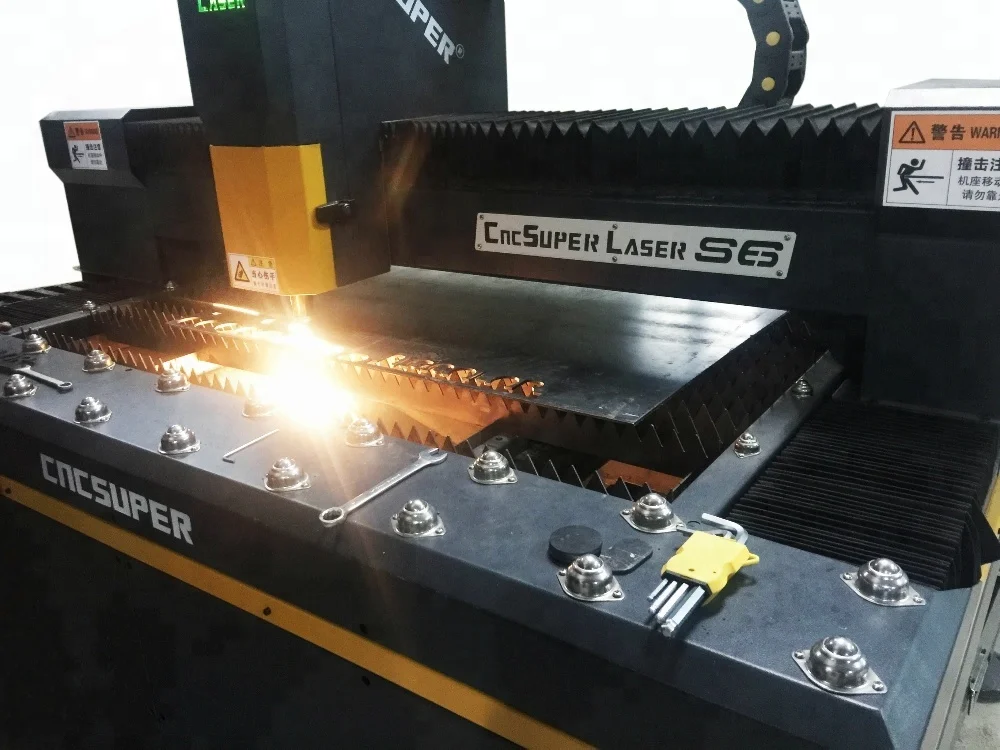

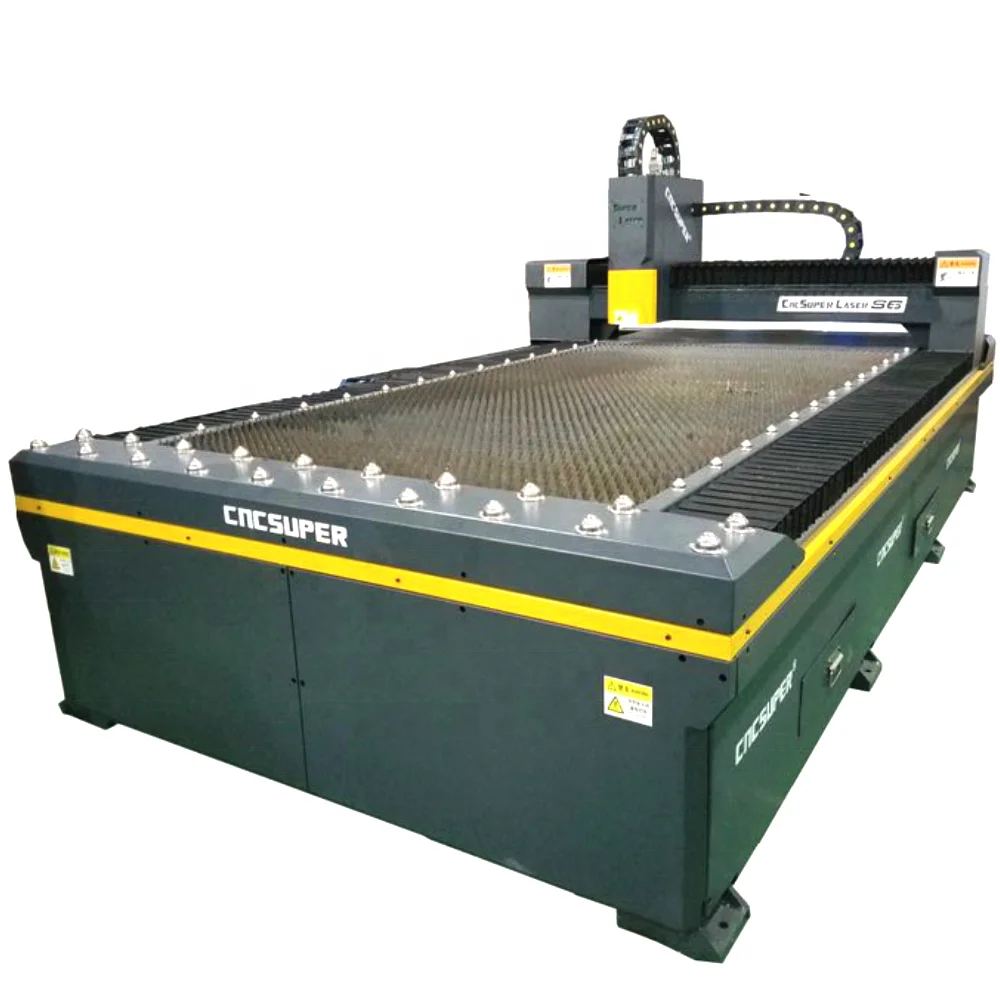

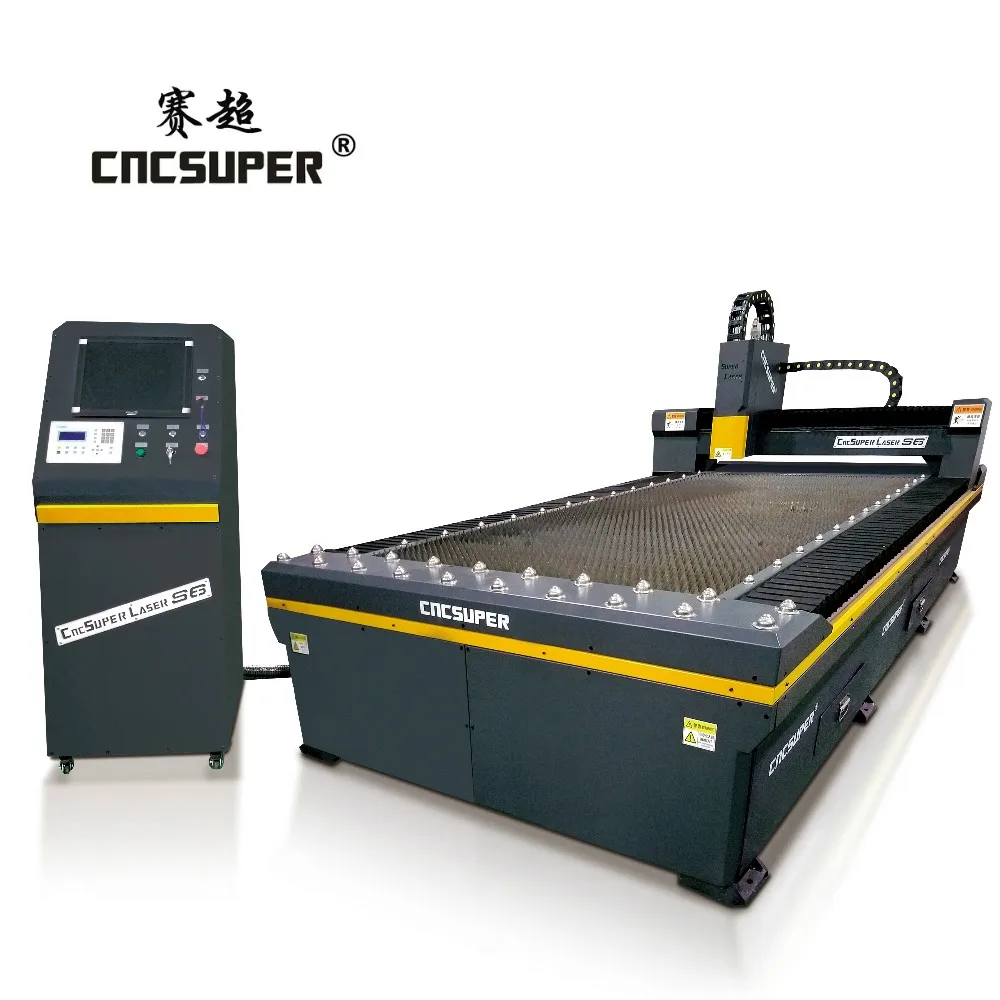

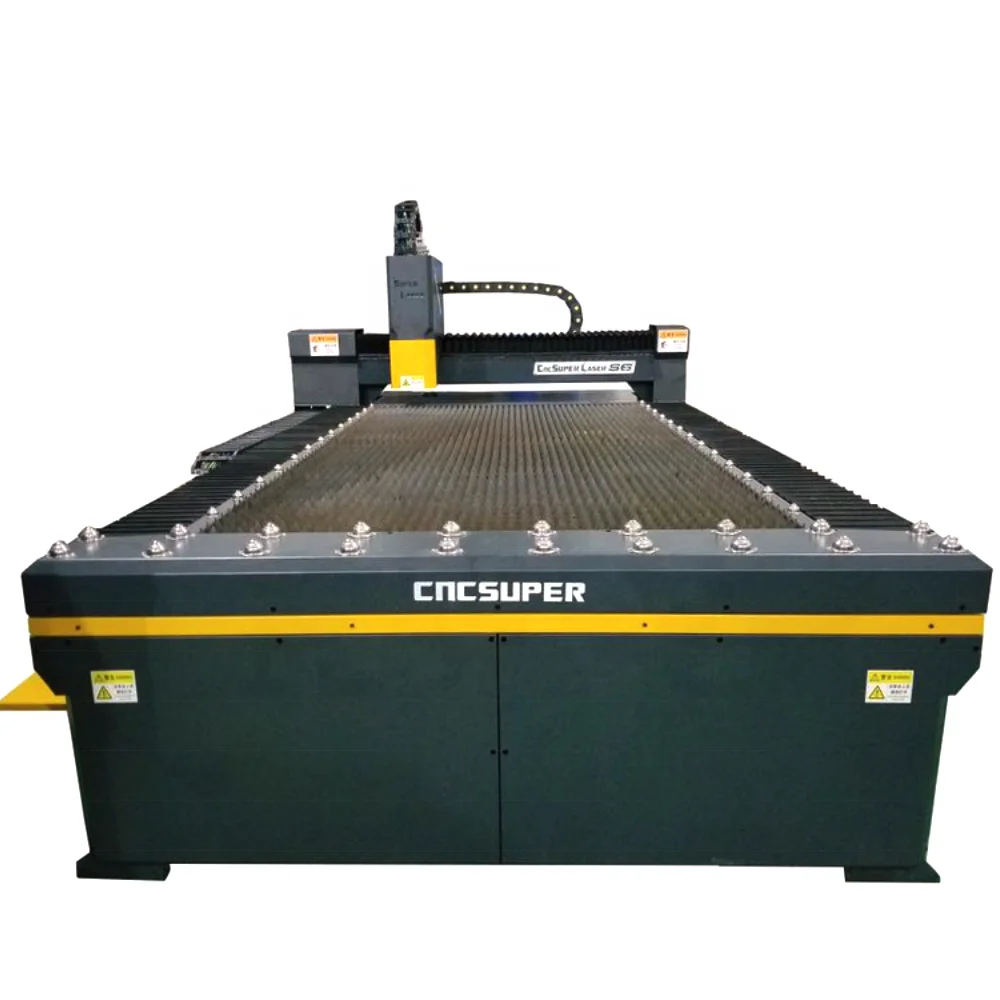

Portable Gantry 8mm 6mm 3mm Stainless Steel Sheet Cutting Metal Fiber Laser Cutting Machine
- Category: >>>
- Supplier: Guangdong Super Intelligent Equipment Co. Ltd.
Share on (1600525840592):
Product Overview
Description
Product Description
Hot Sale Pulsed Metal Fiber Laser Cutting Machine For Steel Copper Aluminum Sheet
Product Details
Machine details
Application Materials
Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries
Used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Features:
1. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating system which make the best cutting effect.
3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.
6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.
Cutting thickness
Power | Mild Steel | Stainless Steel | Aluminum | Copper | Brass |
2000W | 16mm | 8mm | 5mm | 3mm | 3mm |
1000W | 12mm | 6mm | 3mm | 2mm | 2mm |
500W | 6mm | 3mm |
Product Parameters
Fiber Laser Cutting Machine | ||||||
Laser Type | Fiber Laser | |||||
Working area(mm) | 1300*2500MM/1500*3000MM | |||||
Cutting Head | WSX middle power head | |||||
Laser power(W) | 500W/1000W/1500W/2000W | |||||
Laser generator | MAX | |||||
Driving and Transmission Way | Yaskawa Servo Motor ,Gear Rack, Linear Guide Rail | |||||
Max running speed | 60m/min | |||||
Positioning Accuracy | ≤±0.03mm | |||||
Re-positioning Accuracy | ≤±0.02mm | |||||
Working Power Supply | AC220V±10% 50HZ/380V 50Hz | |||||
Working Table | sawtooth platform | |||||
Control System | Cypcut control system | |||||
Location System | Red dot indicator | |||||
Water Cooling System | CWFL-500 dual temp control water chiller | |||||
Max Acceleration | 1G | |||||
Formats | BMP,DXF,PLT,DST,CDR,GPEG | |||||
Cutting Depth | 0-16mm(According the power) | |||||
Auxiliary Gas | oxygen,nitrogen,air | |||||
Whole machine weight | 3300KG | |||||
Note: All the working area and specifications can be customized according to your requests.

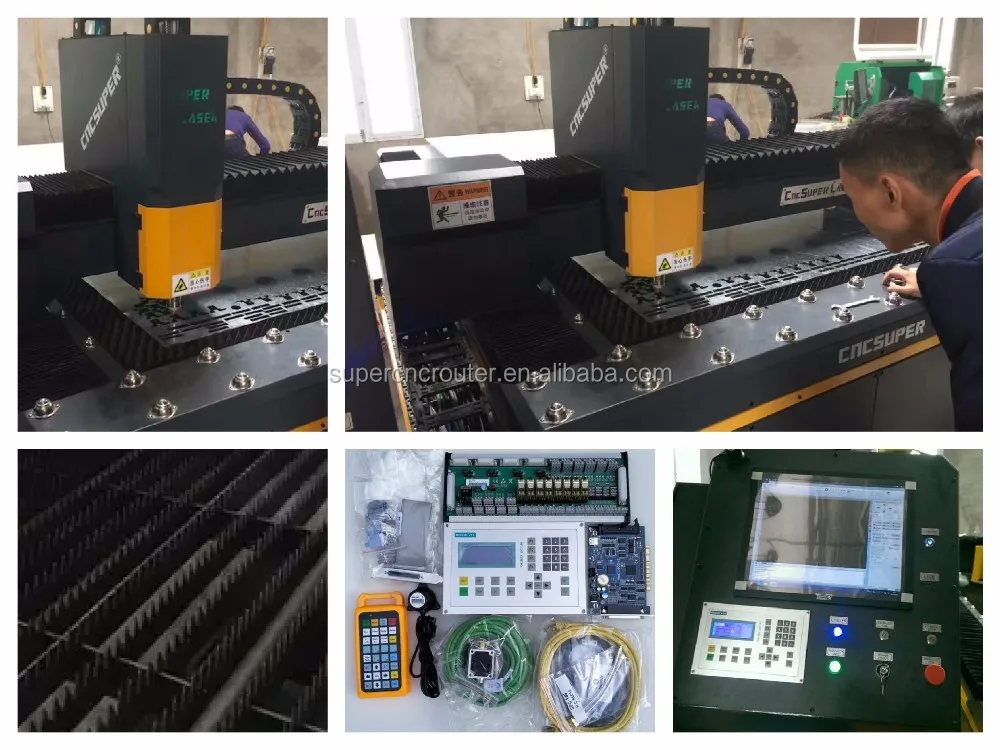

Main components
WSX Auto Focus Fiber
Laser Cutting Head
MAX laser generator
CWFL-500 dual temp
control water chiller
CypCut BCS v3.0
Master controller
CypCut hand wheel
CypCut fiber laser
cutting system
YASKAWA servo
motor and drive
YASKAWA inverter
Sawtooth table

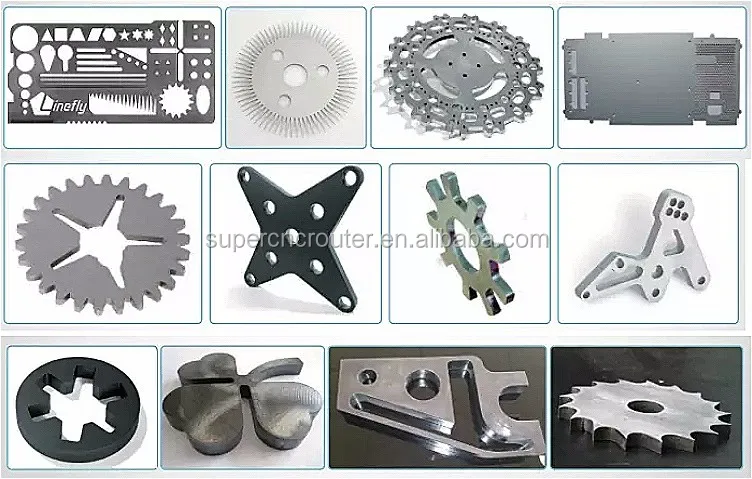

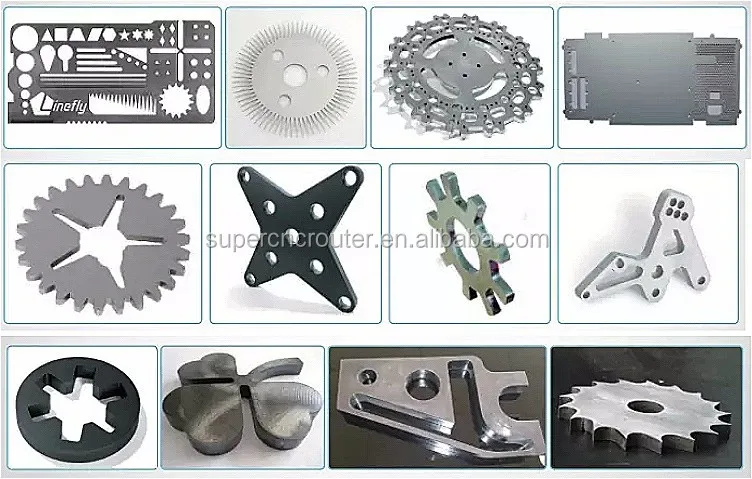

Samples
