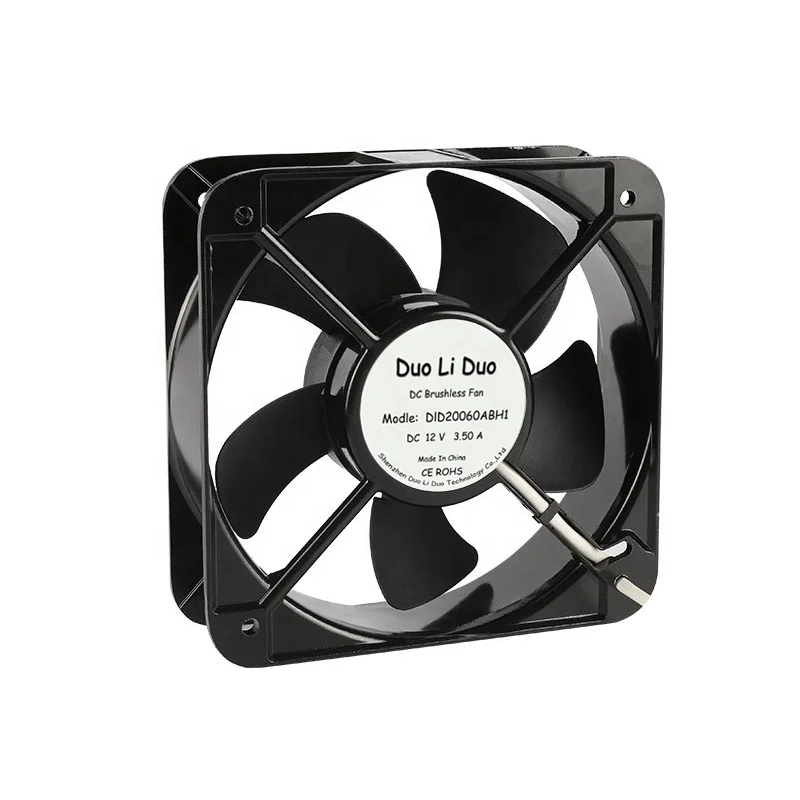

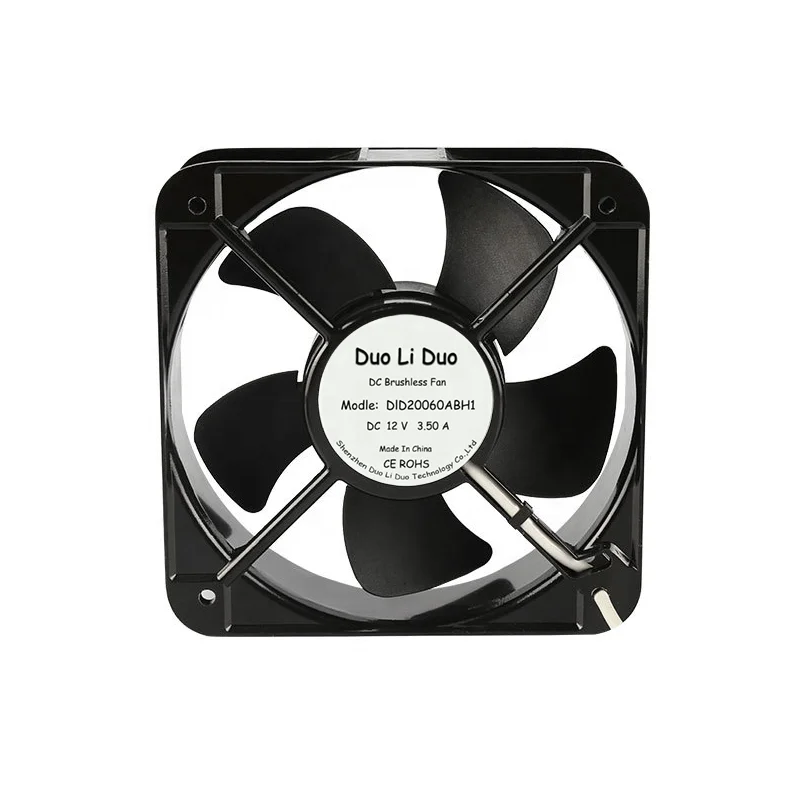

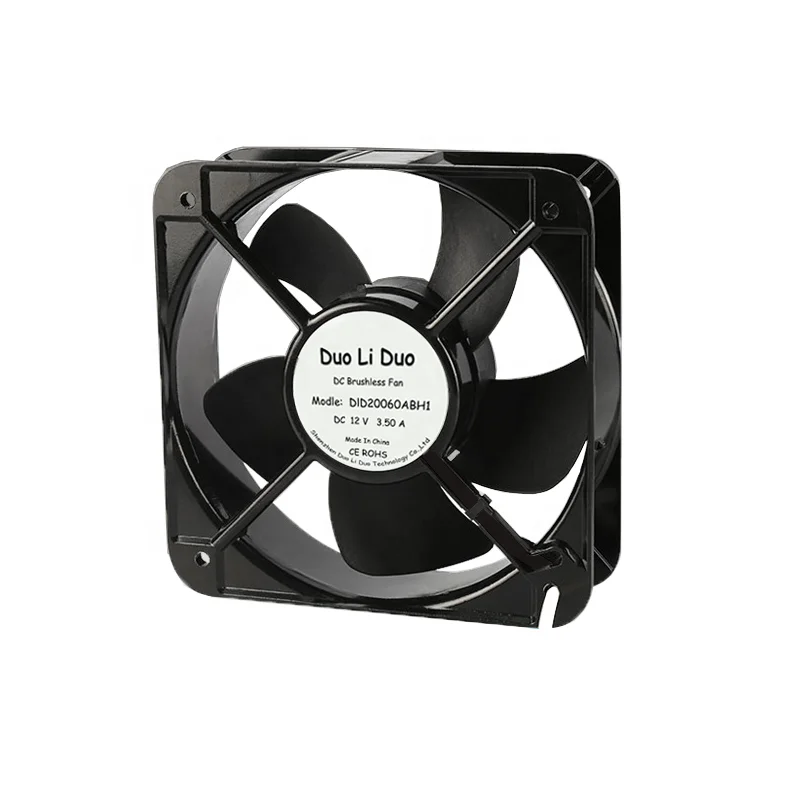

20060 12V 24V 48V 200x200x60mm pwm dc axis fan 8 inch industrial exhaust fan fan for Charging pile, chassis, oven
- Category: >>>
- Supplier: Shenzhen Duo Li Technology Company Limited
Share on (1600525851168):
Product Overview
Description
Products Description

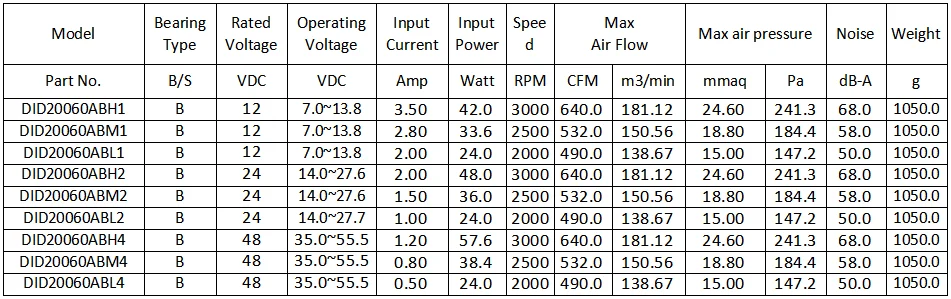

Brand: DuoLiDuo
Model: DID20060ABH1

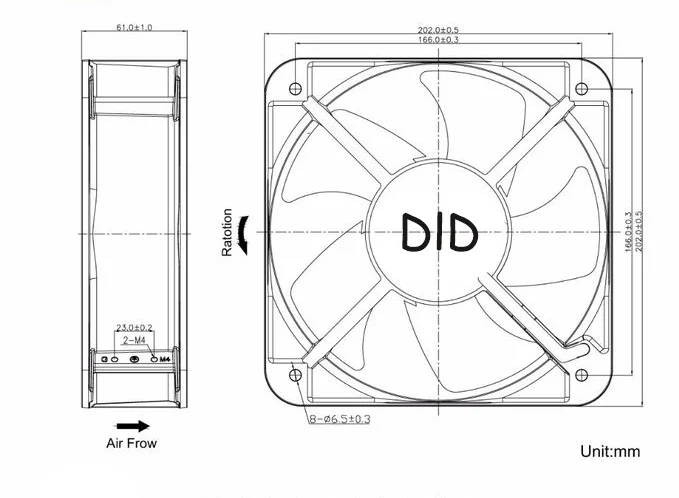

Size: 200 x200x60mm
Size: 200 x200x60mm
Bearing type: NMB ball bearing with high precision
Current: 3.5 A
Power: 42 w
Speed: 3000 RPM ±5%
Current: 3.5 A
Power: 42 w
Speed: 3000 RPM ±5%

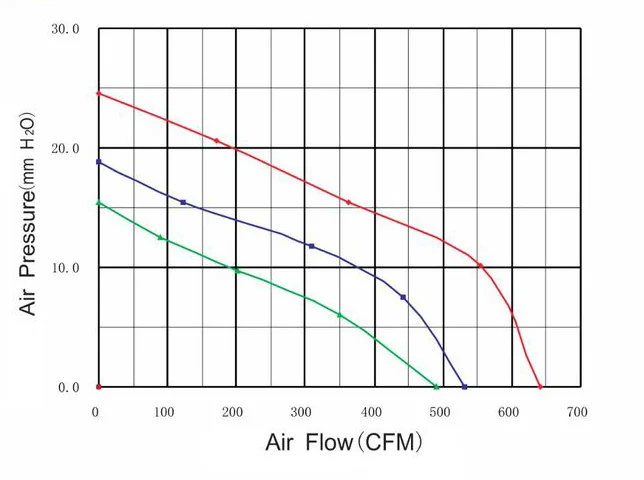

Air volume: 640CFM
Wind pressure: 24.60mmH2O
Connector: 2wire or 3 wire or 4wire original server double connector
Noise:68dB-A
Application: Charging pile, industrial equipment, exhaust fan, new energy equipment
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant
Wind blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant.
Fan rotation: counterclockwise from the direction of the fan blade
Operating temperature: -10℃~+70℃ Storage temperature: -140℃~ +70℃
Power range: plus or minus 15% of rated power Insulation resistance: greater than 500 megohms
Withstand voltage: sink current 0.5mA 500V / 1 minute
Life Expectancy: 80000 hours when the ambient temperature is 25 degrees
50000 hours when the ambient temperature is 40 degrees

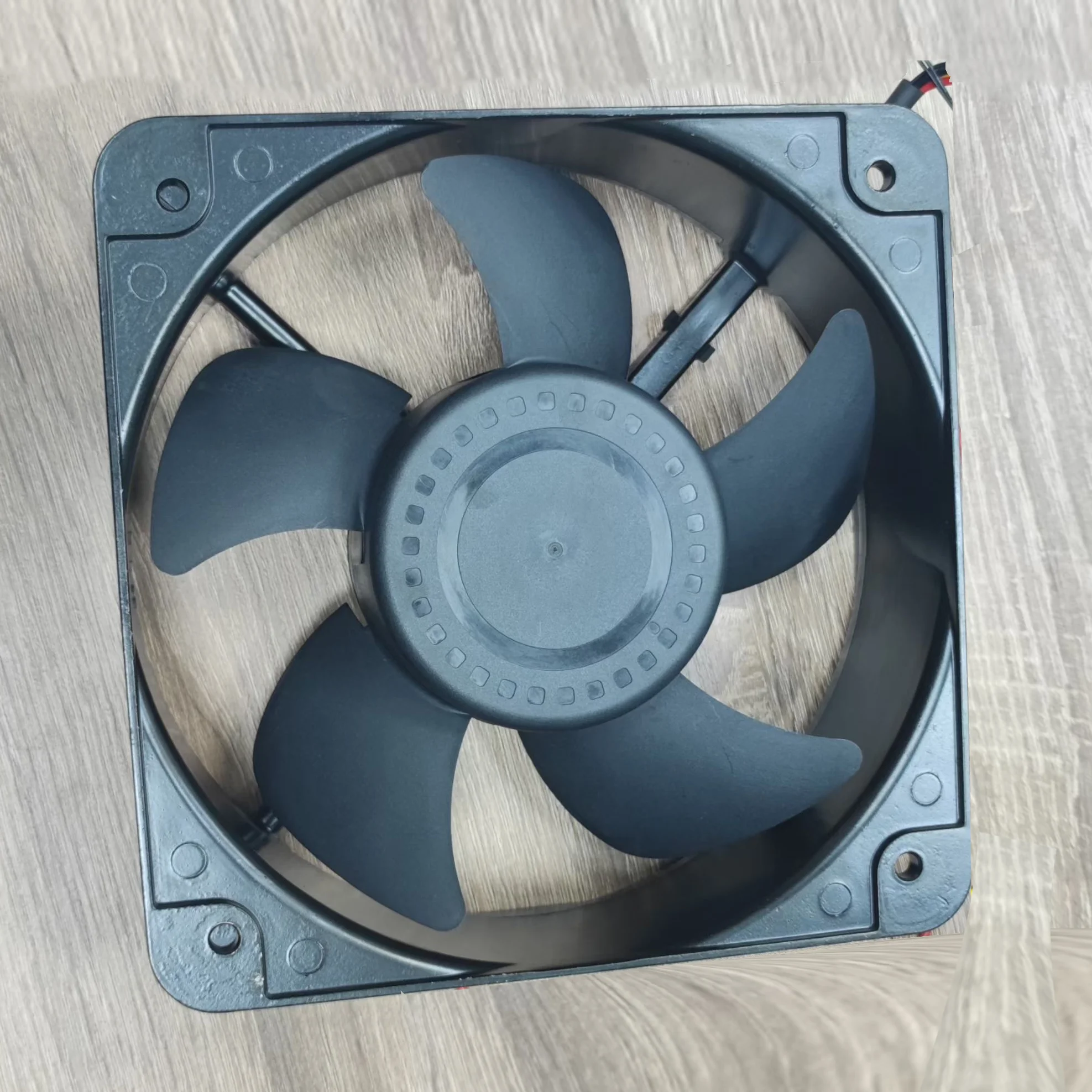

Product Images

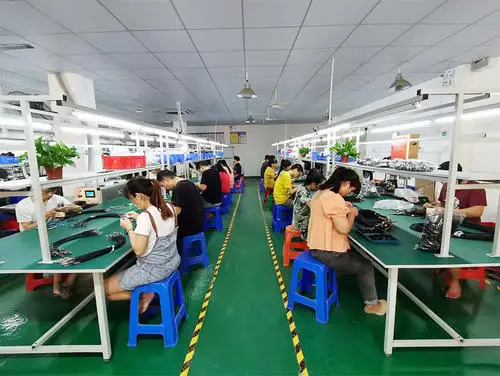

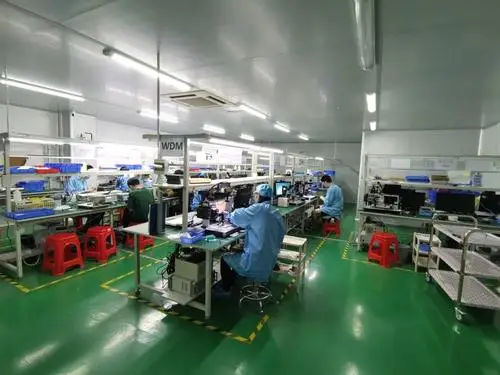

Company Profile
Shenzhen Duo Li Duo Technology Co., Ltd. (Didfan) specialized in producing DC compact brushless fans, like Dc axial flow fan, Dc blower fan, Dc centrifugal fan. we have developed a variety of low noise, strong air volume, high stability and long life products, which is widely used for industrial, medical, home appliances, consumer electronics, and other fields. such as industrial equipment, servers, new energy, communication equipment, medical equipment, instruments and meters, stage lights, cabinets, industrial power supply, ventilation and heat dissipation system, air purification, heating and cooling ventilation system, military and other products and other industries. We will always provide customers with reliable quality and stable performance of the fan, according to customer requirements to develop a variety of structure and performance of the cooling fan, and real-time technical communication with customers, respond to customer needs in short time, and help customers select the most suitable products in the shortest time. We will also collect relevant information and carry out forward-looking development according to the market situation and customer demand tendency. To expand product performance advantages and product series.
Recommend Products
FAQ
1)What's your product warranty? What if the fan has any problems during the warranty period?
Generally speaking, the warranty of the ball bearing fan is one year.
If there is any problem with the fan within one year, please send the video of the defective product or return the defective product for our analysis. We will analyze and confirm the quality problem of our product, and we will replenish it to you as soon as possible.
2) How do you manage your QC system?
Please don't worry. We have a complete quality control system. We have a series of inspections from raw materials to production to shipment, as shown below.
Incoming inspection (including inspection of frame blade, fan blade and other parts)
Semi finished products (mainly motor stator assembly test)
OQC test / Complete inspection of finished products (including performance test, appearance inspection, etc.)
Aging test (about 2-3 days)
Random sampling inspection
Double layer customized packaging (mainly to ensure that customers can receive goods intact)
3) Do you support samples? how long I can get the sample?
Yes, of course, but I'm afraid the sample fee and freight cost will be paid by your side.
For fans lead time, if we have samples in stock, then we could send you right away,
But if no stock, It probably would be 3-5days after we received the payment from your side, thank you.
4) Do you support customization?
Yes, of csif you have any other needs, such as customizing different sizes, speed, air volume, air pressure, noise, etc., we will try our best to meet your needs.
Generally speaking, the warranty of the ball bearing fan is one year.
If there is any problem with the fan within one year, please send the video of the defective product or return the defective product for our analysis. We will analyze and confirm the quality problem of our product, and we will replenish it to you as soon as possible.
2) How do you manage your QC system?
Please don't worry. We have a complete quality control system. We have a series of inspections from raw materials to production to shipment, as shown below.
Incoming inspection (including inspection of frame blade, fan blade and other parts)
Semi finished products (mainly motor stator assembly test)
OQC test / Complete inspection of finished products (including performance test, appearance inspection, etc.)
Aging test (about 2-3 days)
Random sampling inspection
Double layer customized packaging (mainly to ensure that customers can receive goods intact)
3) Do you support samples? how long I can get the sample?
Yes, of course, but I'm afraid the sample fee and freight cost will be paid by your side.
For fans lead time, if we have samples in stock, then we could send you right away,
But if no stock, It probably would be 3-5days after we received the payment from your side, thank you.
4) Do you support customization?
Yes, of csif you have any other needs, such as customizing different sizes, speed, air volume, air pressure, noise, etc., we will try our best to meet your needs.
