12 Inch 2kw 72v 80kmh V3 Brushless DC Hub Motor for Electric Scooter
- Category: >>>
- Supplier: Wuxi Yuma Power Technology Co. Ltd.
Share on (1600525854600):
Product Overview
Description
12 Inch 2kw 72v 80kmh V3 Brushless DC Hub Motor for Electric Scooter
Specification
Motor Design | 12inch BLDC Electric Hub Motor | ||||||
Motor Brand | YUMA Motor, YMMotor | ||||||
Rim Size | 12*3.5inch | ||||||
Magnet Height | 35H, 16 pole pairs | ||||||
Stator | Aluminum Core | ||||||
Rated Power | 2000W V3 | ||||||
Speed | 40-90kmh, it can be customized | ||||||
Work Voltage Range | 48V-72V | ||||||
Battery Current | peak 90A | ||||||
Brake Type | Disc brake | ||||||
Drop-outs | 200mm | ||||||
Hall | Dual Halls with waterproof connectors(One for spare) | ||||||
Color | Black | ||||||

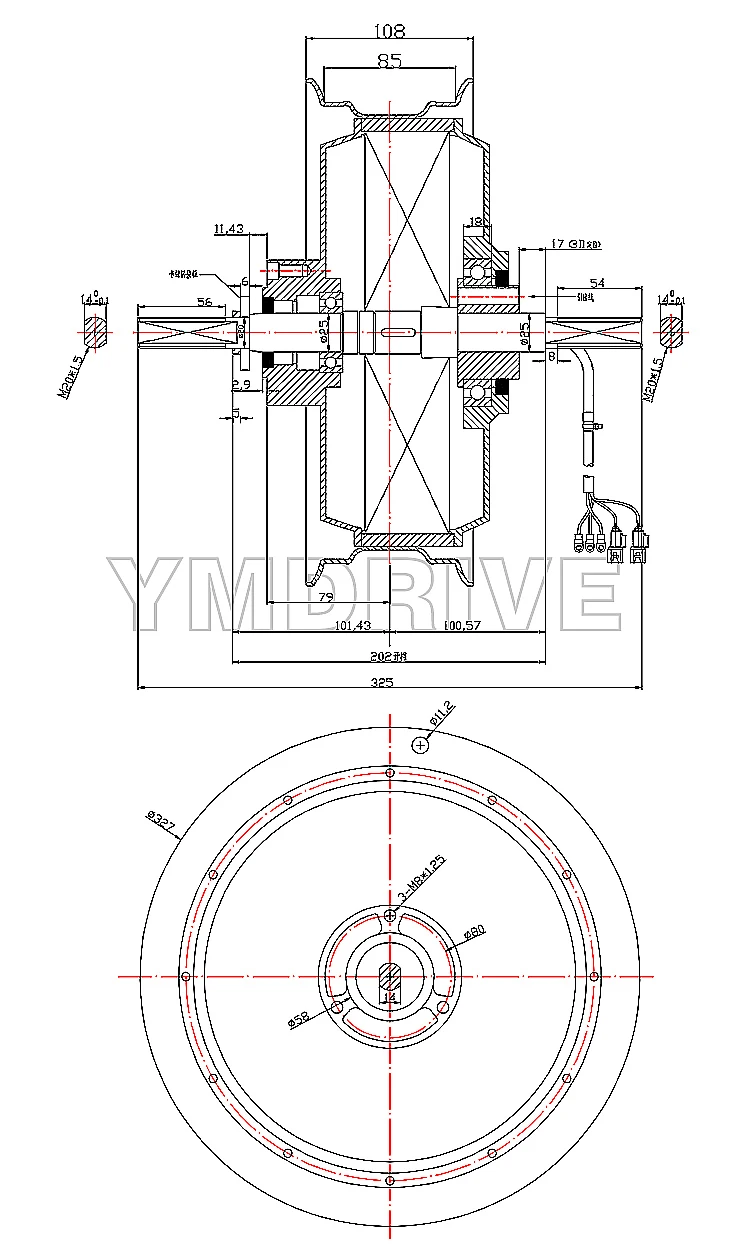

Drawing
Pls. contact with sales for more clear drawing for reference.
Size:
This is drawing for 12*3.5inch ZX 260 WP Disc Brake Electric Scooter Hub Motor
Color:
Black

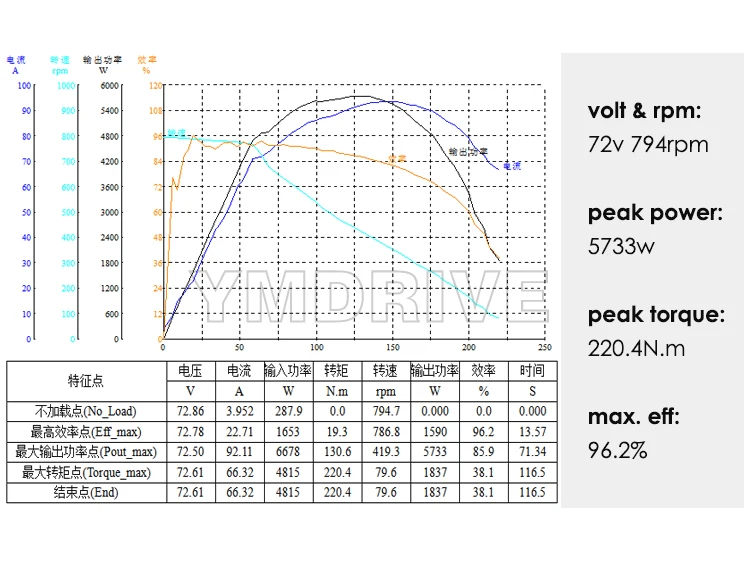

Test Report
This test report is for 12*3.5inch ZX 260 WP 40H 3000w motor.
Pls. contact with sales for full showing test report for check, if you want to customized voltage & rpm, it's also support even for sample order.
Q1. Are you trader or manufacture?
A: We're motor manufacture and also have professional export department.
Q2. What is your warranty policy?
15months for motors, other parts with 1 year warranty time.
Q3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample. Moreover, some samples support to customized.
Q4. What is the delivery time?
It usually takes 10-15 days, but the exact delivery time might be different for customized products. Once we confirmed the all details of order, we will put all source into it.
Q5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T or paypal 100% in advance.
Q6. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001.
A: We're motor manufacture and also have professional export department.
Q2. What is your warranty policy?
15months for motors, other parts with 1 year warranty time.
Q3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample. Moreover, some samples support to customized.
Q4. What is the delivery time?
It usually takes 10-15 days, but the exact delivery time might be different for customized products. Once we confirmed the all details of order, we will put all source into it.
Q5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T or paypal 100% in advance.
Q6. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001.
