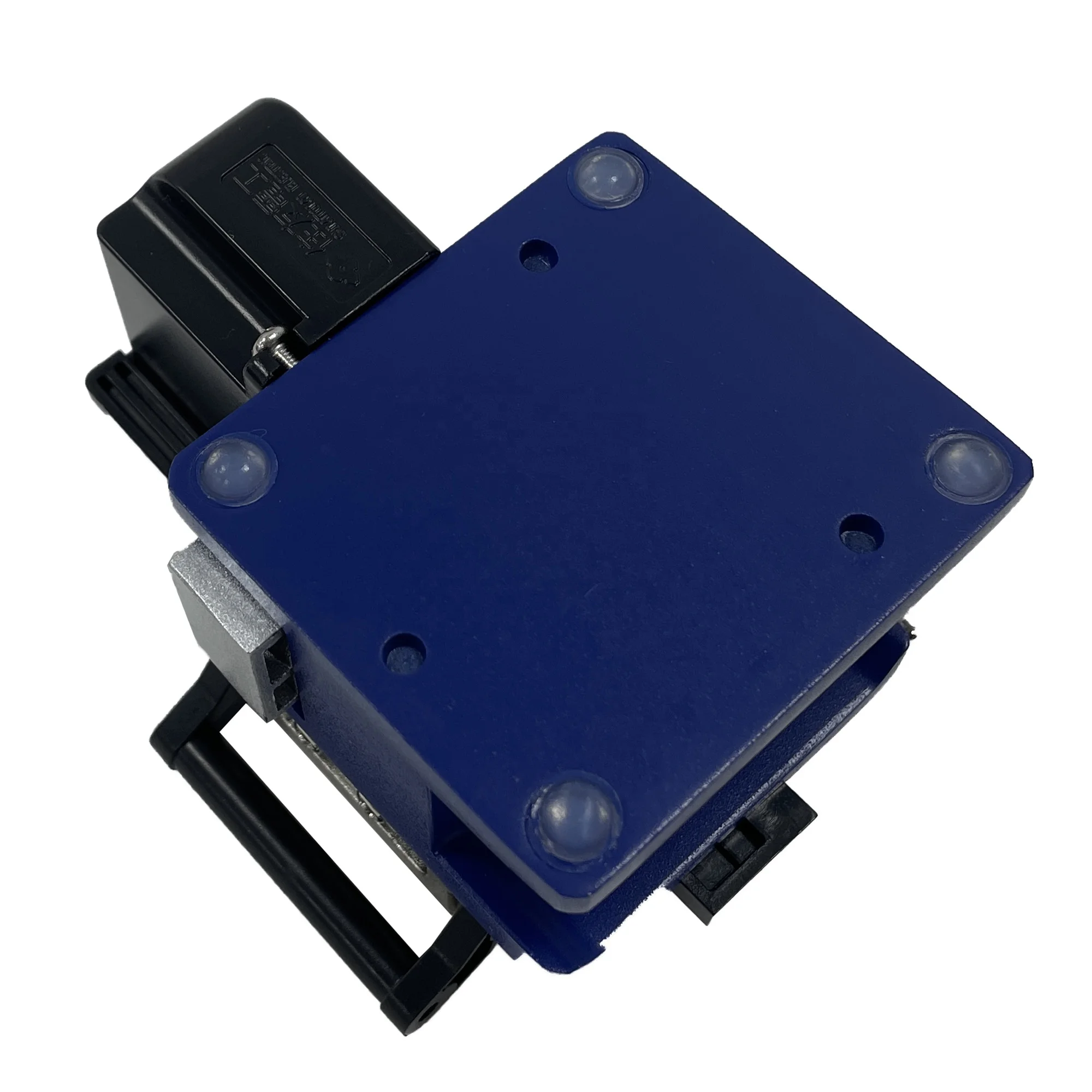

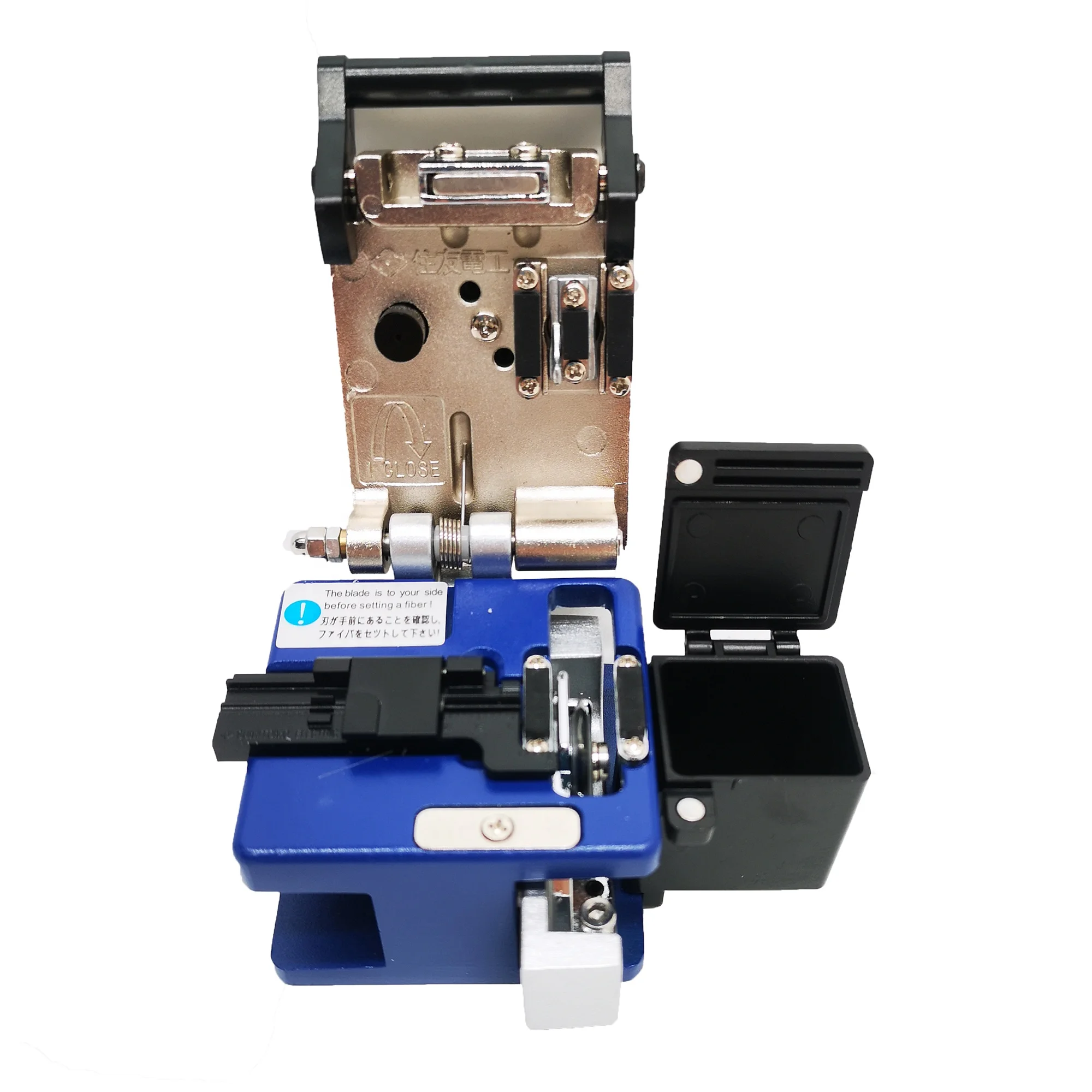

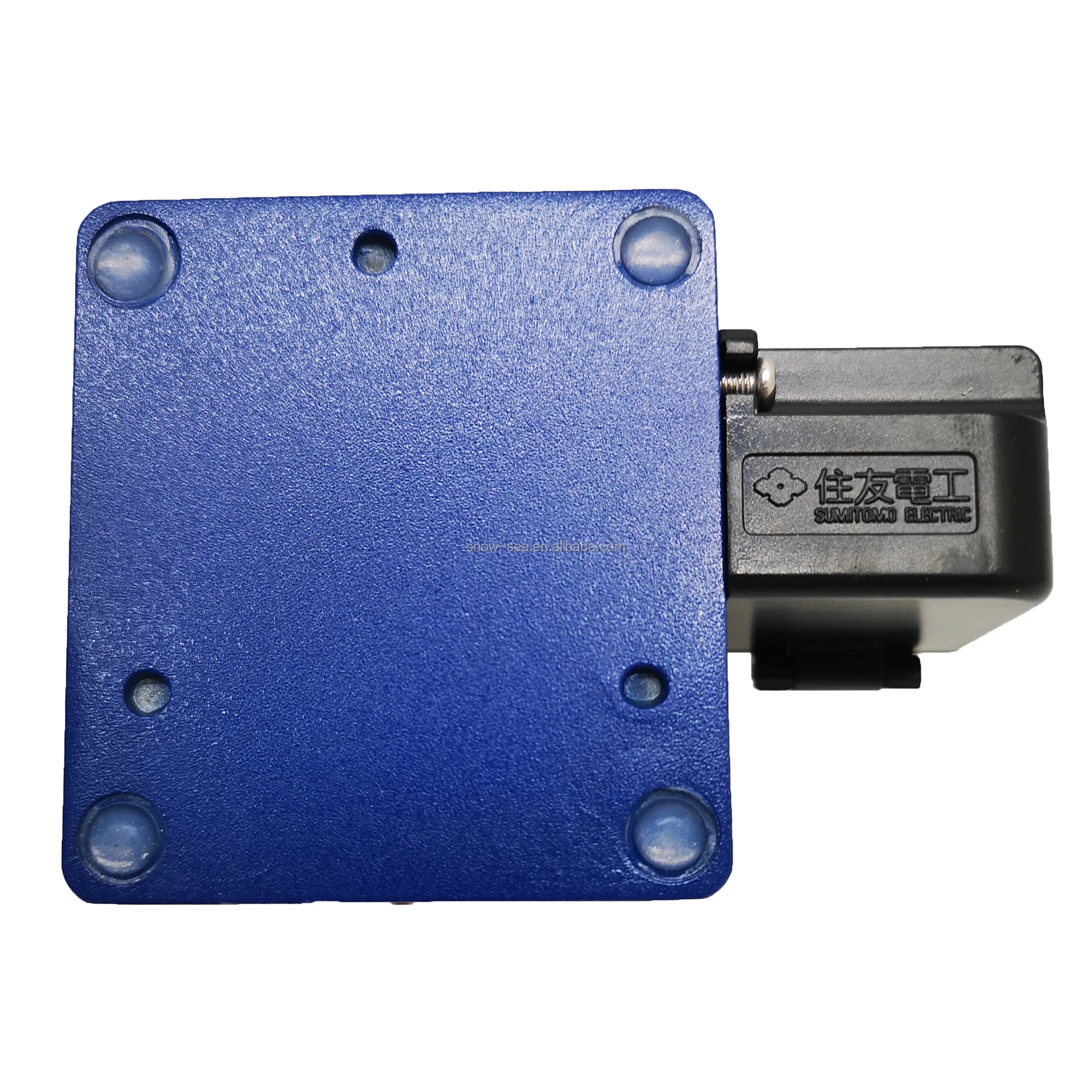

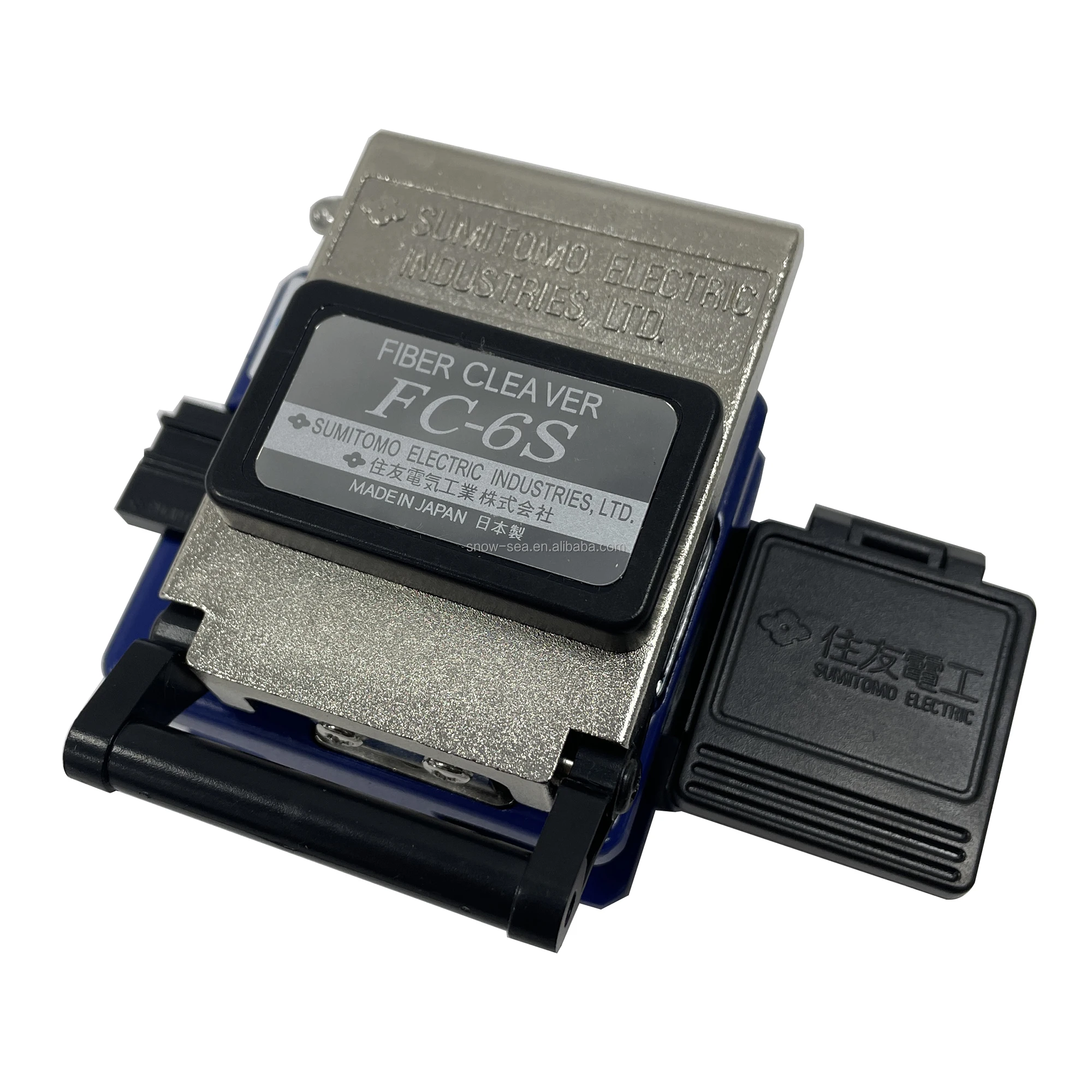

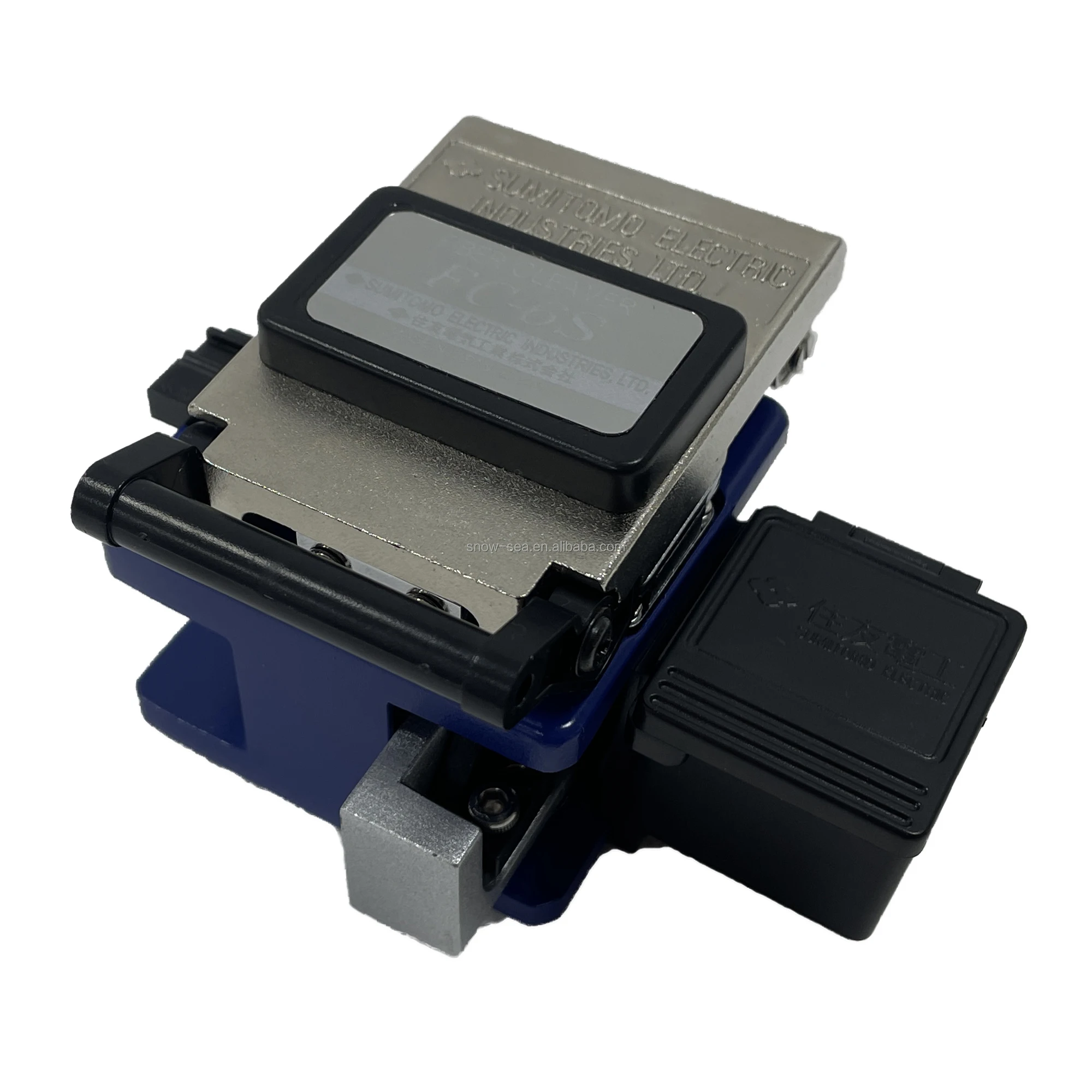

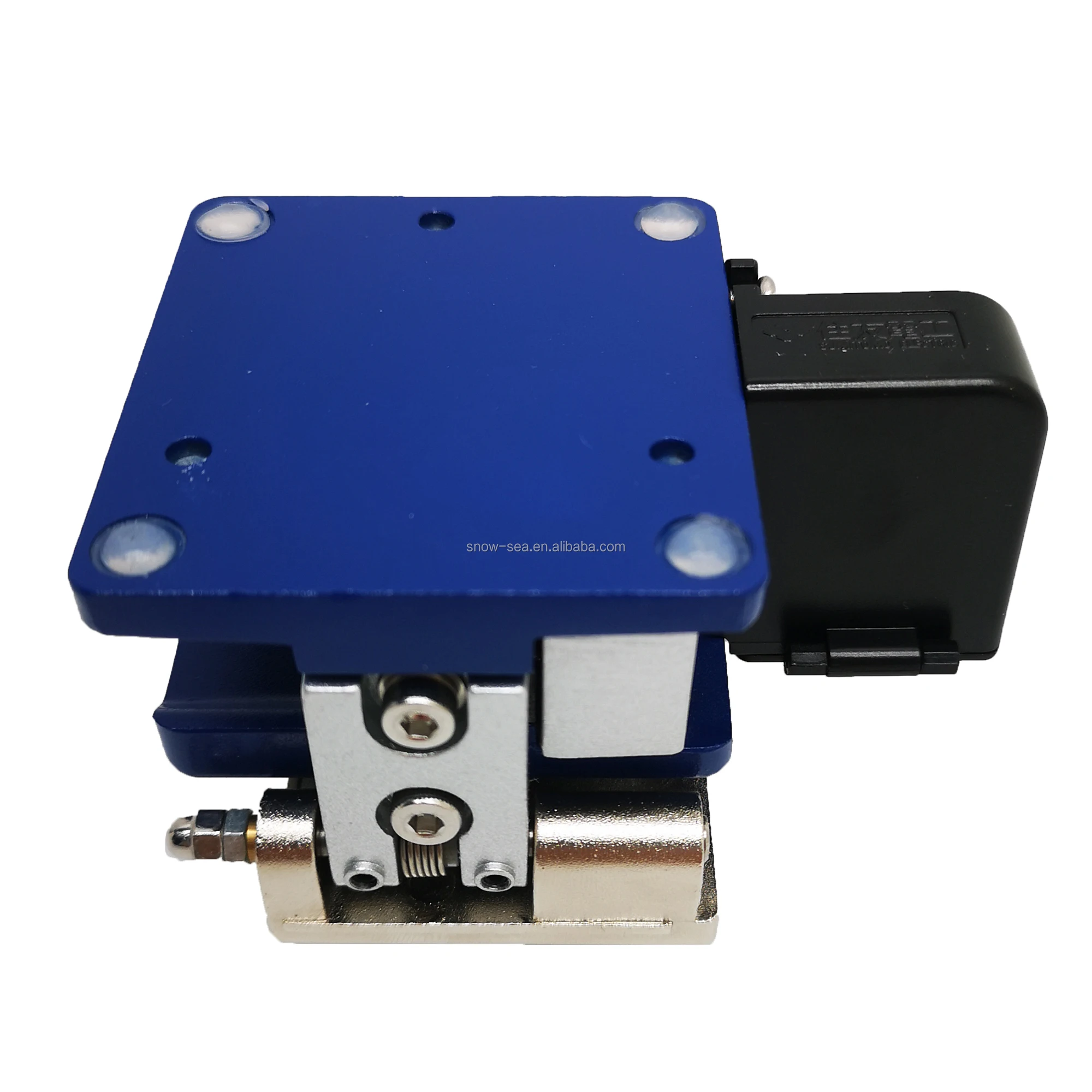

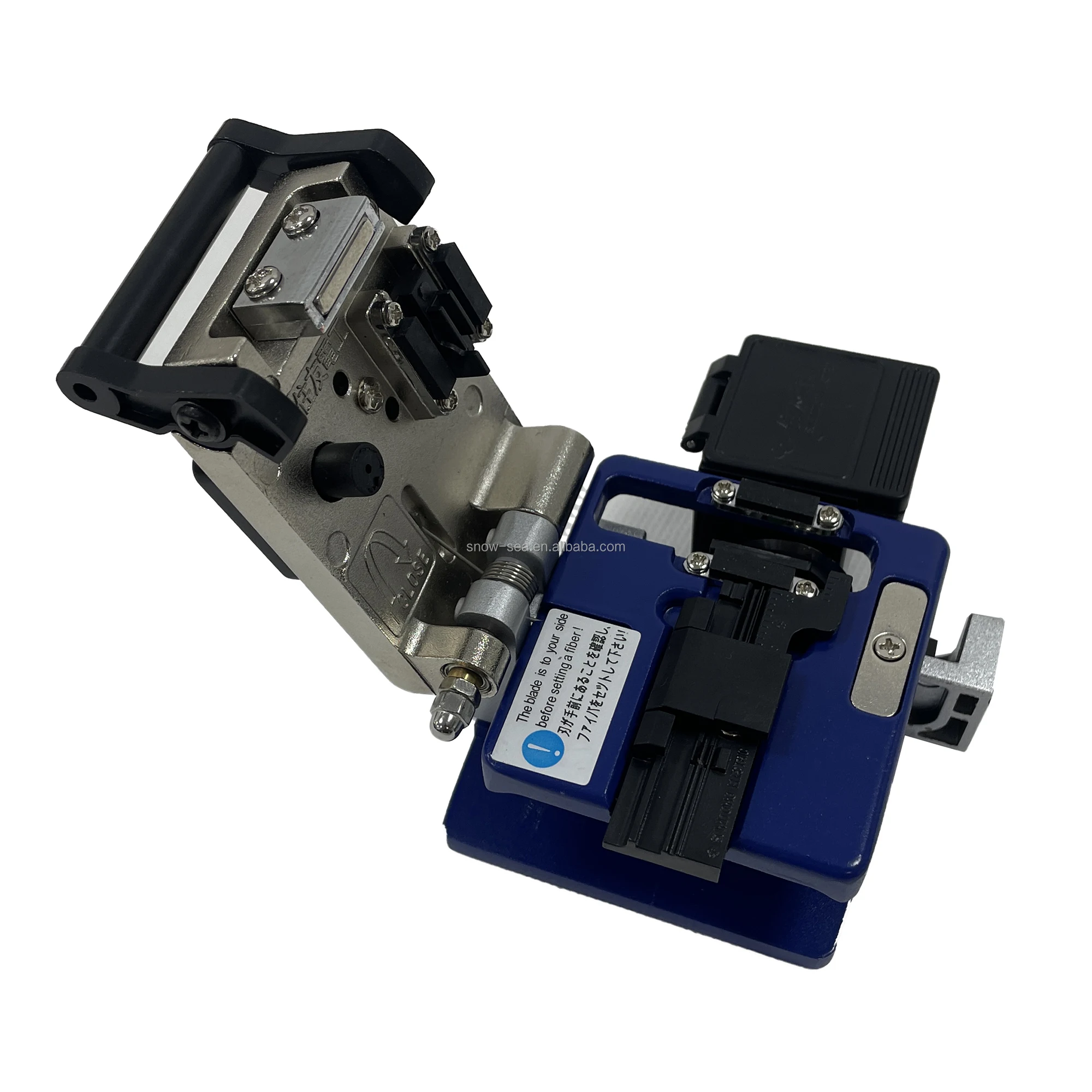

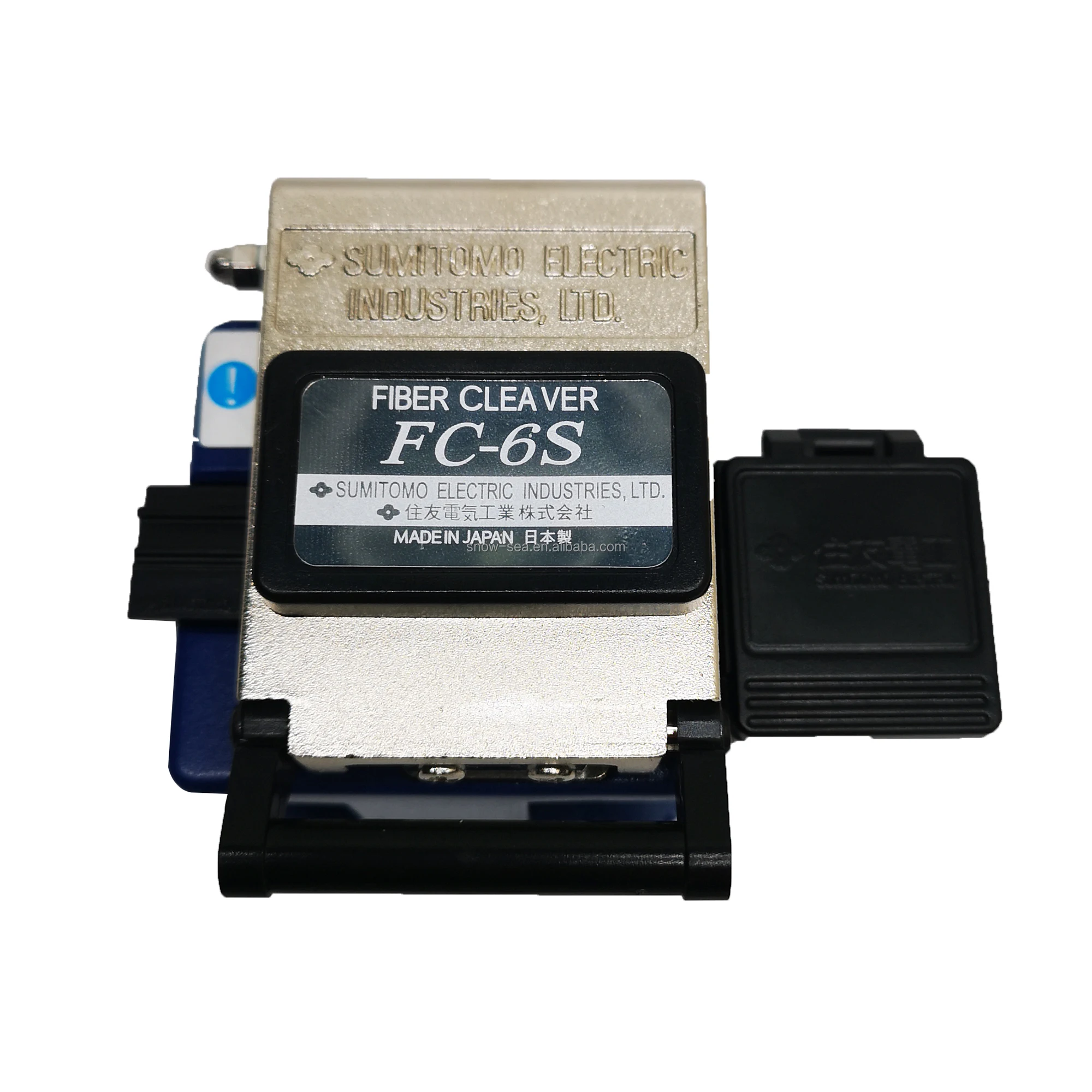

High Copy Made in China type Sumitomo FC 6S Fiber Cleaver Optical Fiber Cutter with Wasted Fiber Storage Box

Product Overview

Description

High-Copy Made in China type Sumitomo FC-6S Fiber Cleaver with Wasted Fiber Storage Box

Description

FC-6S optical fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving



Feature

* Provides approximately 36,000 cleaves
* Compact body& light weight
* High Precision Cleaves
* 250um Coated or 900um Buffer fiber
* Single mode or Multimode Use

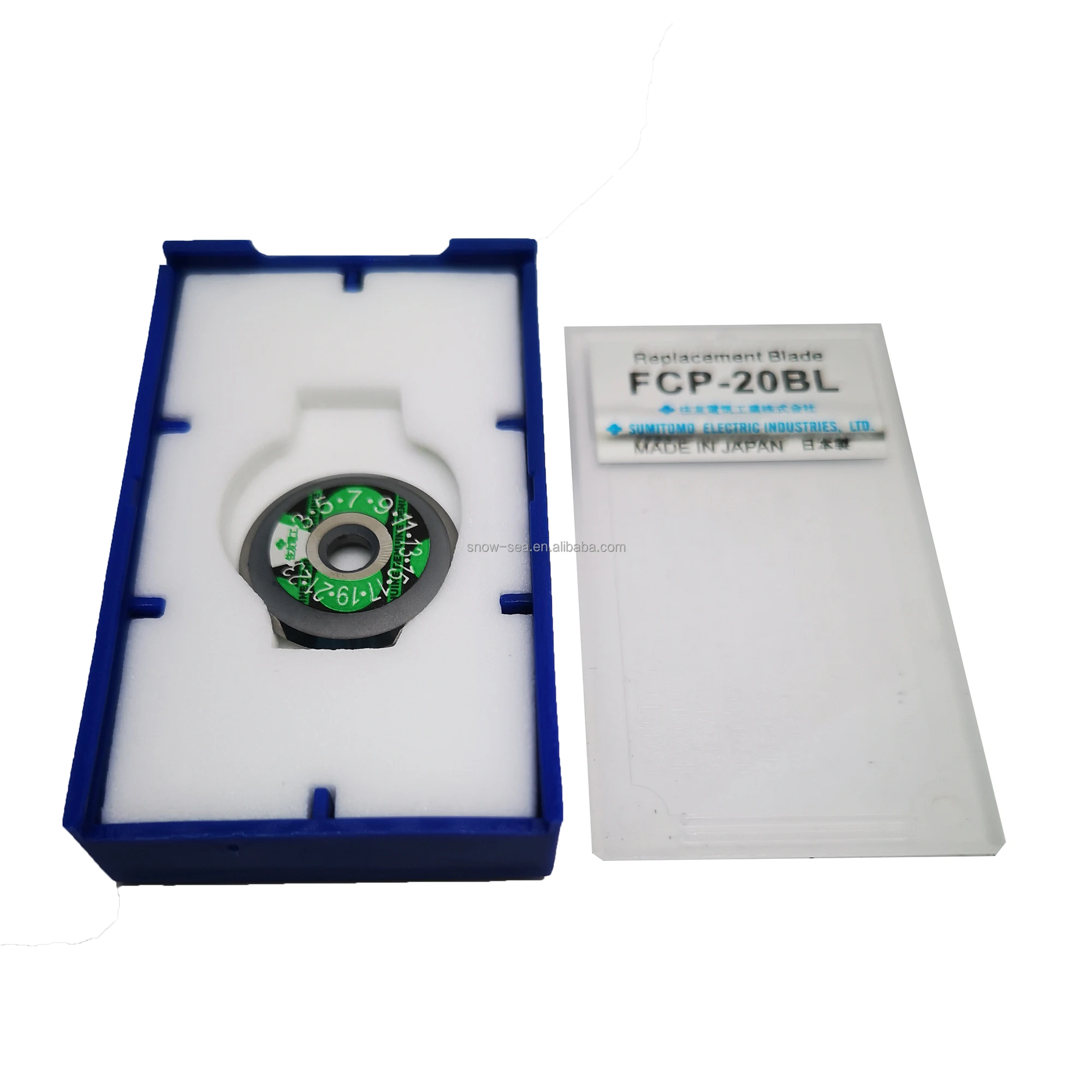

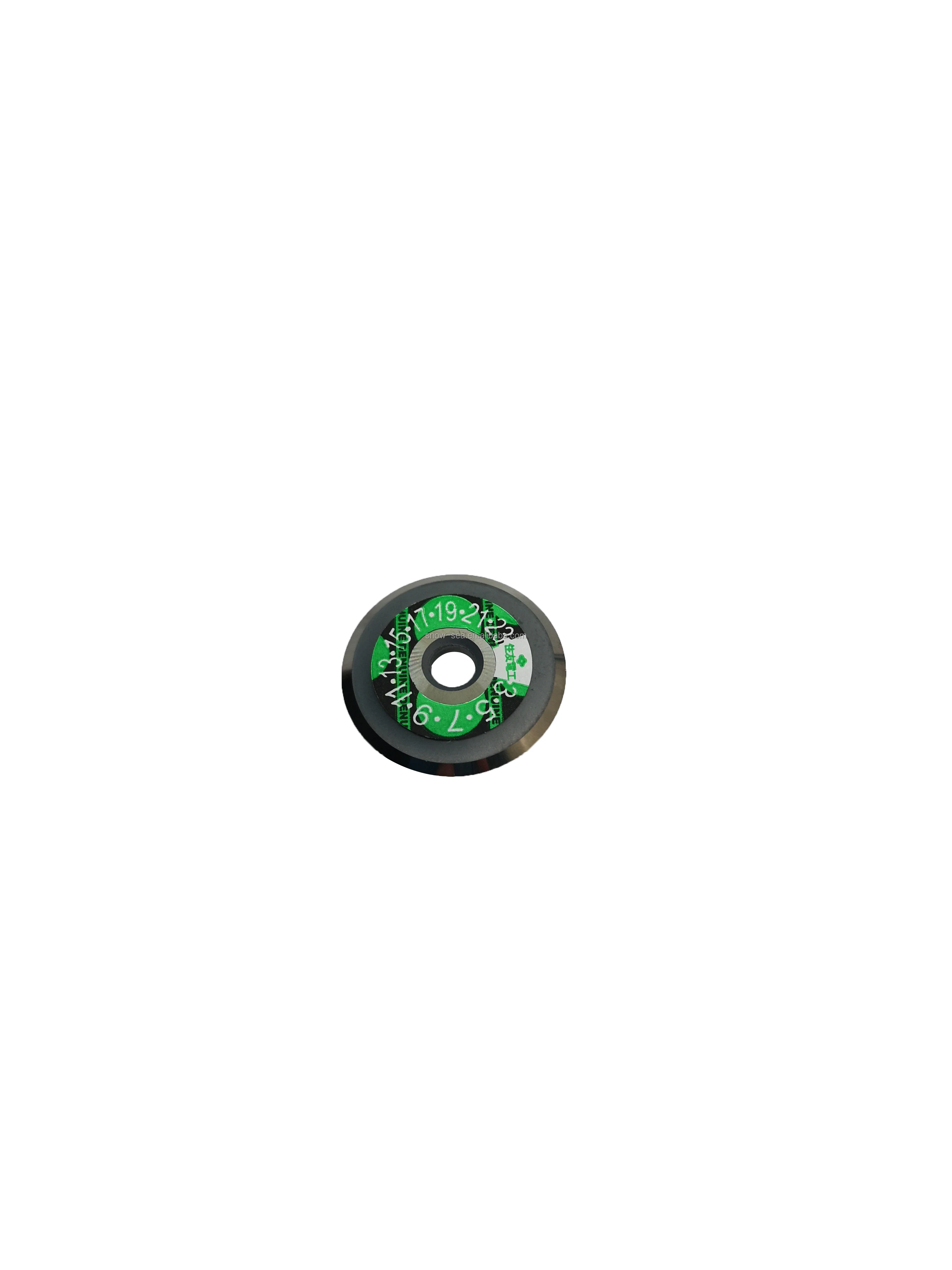

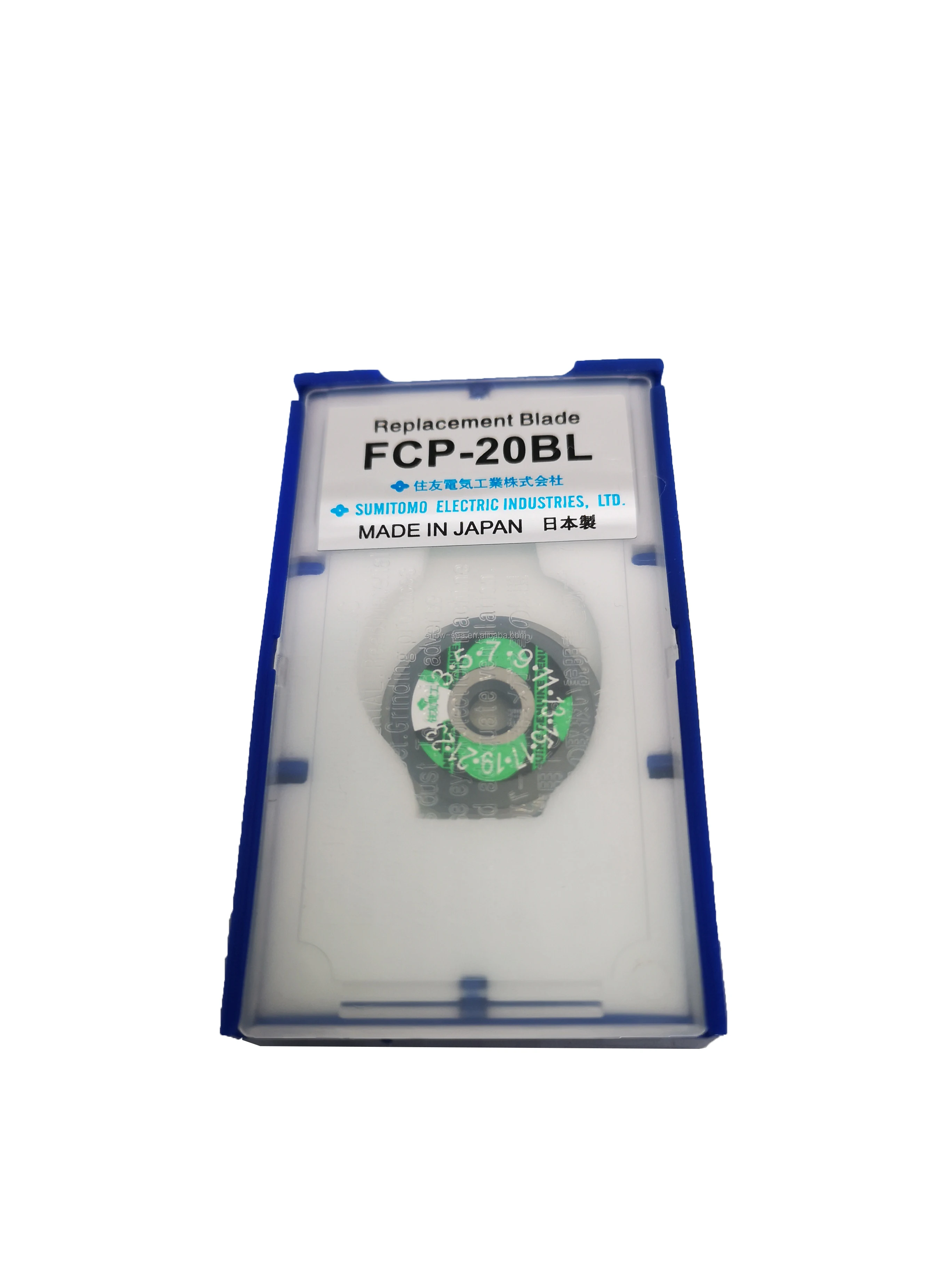

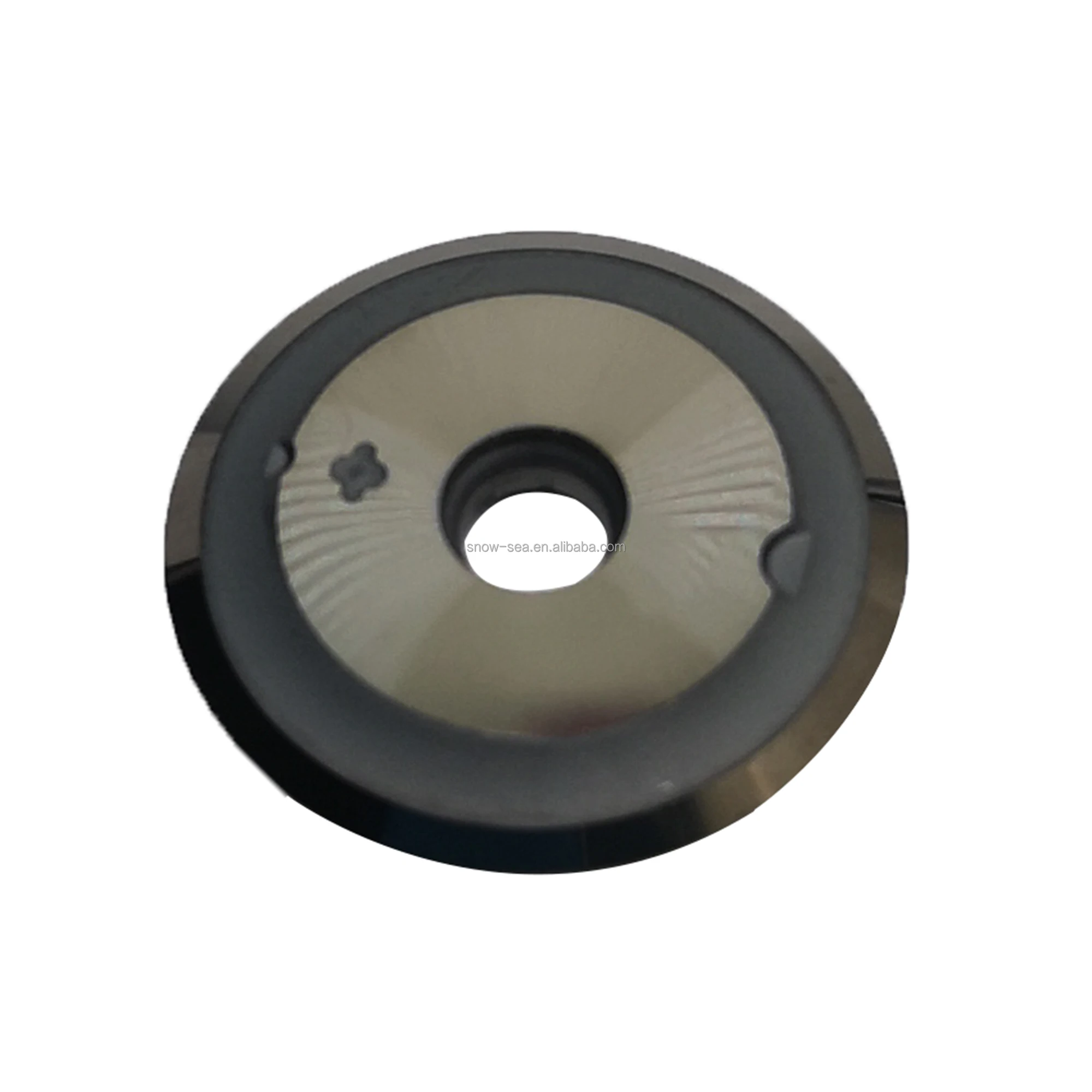

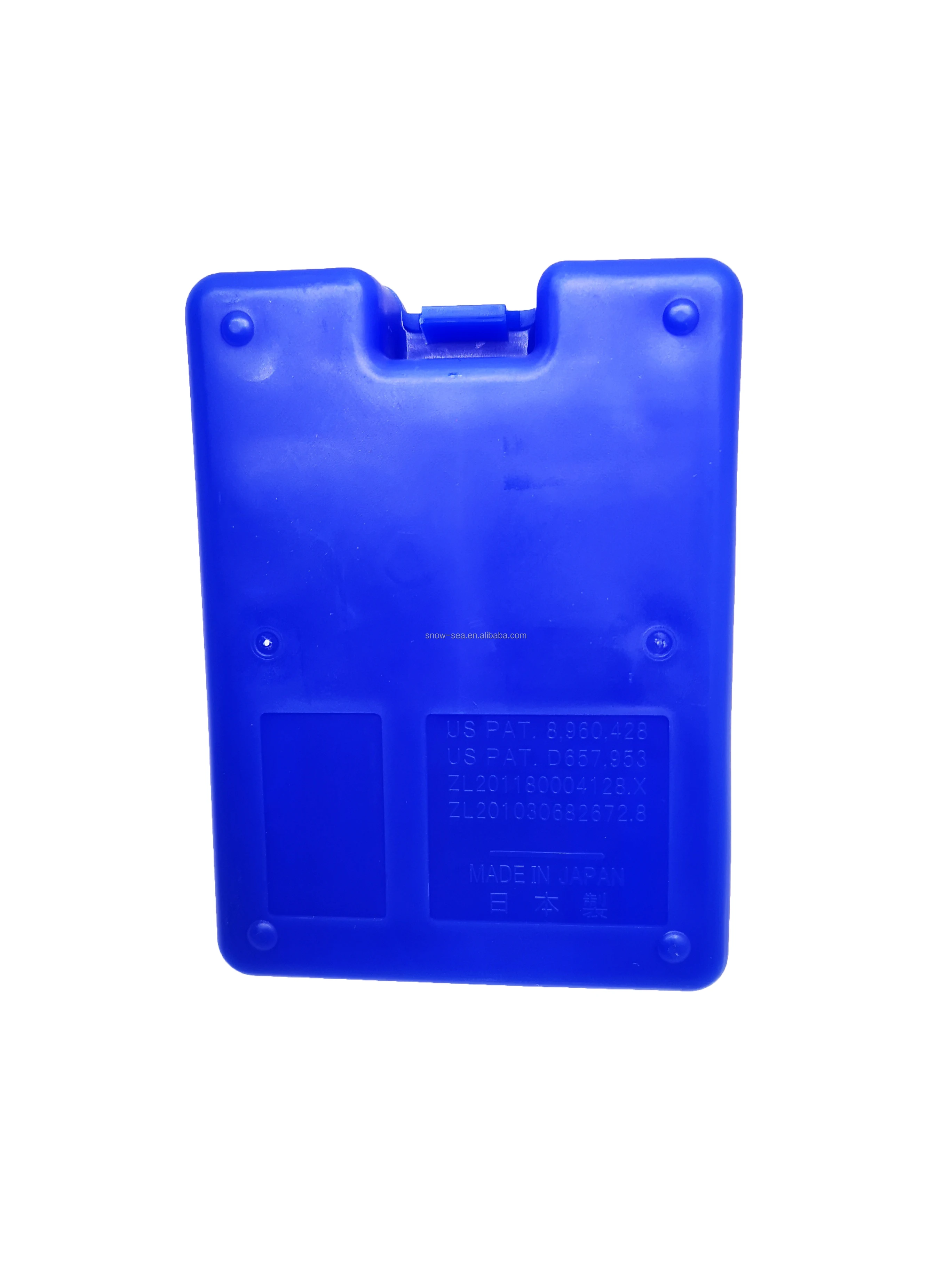

* 24 Position Rotatable and Replicable Blade
* Fiber Diameter: 125um
* Coating Diameter: 250um~900um
* Typical Cleave Angle: 0.5 Degrees
* Cleave Length: 9~16mm (Single Fiber - 0.25mm Coating), 10~16mm (Single Fiber - 0.9mm Coating)
* Blade Life Time: 36,000 cleaves (3,000 per blade position)



Specification

Model	FC-6S Optical Fiber Cleaver
Applicable fibers	Single mode or Multimode Use
Fiber Diameter	125um
Coating Diameter	250um~900um
Typical Cleaver Angle	0.5 Degrees
Cleave Length	9~16mm (Single Fiber - 0.25mm Coating) 10~16mm (Single Fiber - 0.9mm Coating)
Blade Life Time	36,000 cleaves (3,000 per blade position)
Cleaver Dimensions	60*62*64mm
Weight	300g
